Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

26 part groups · 7 illustrations

Illustrations

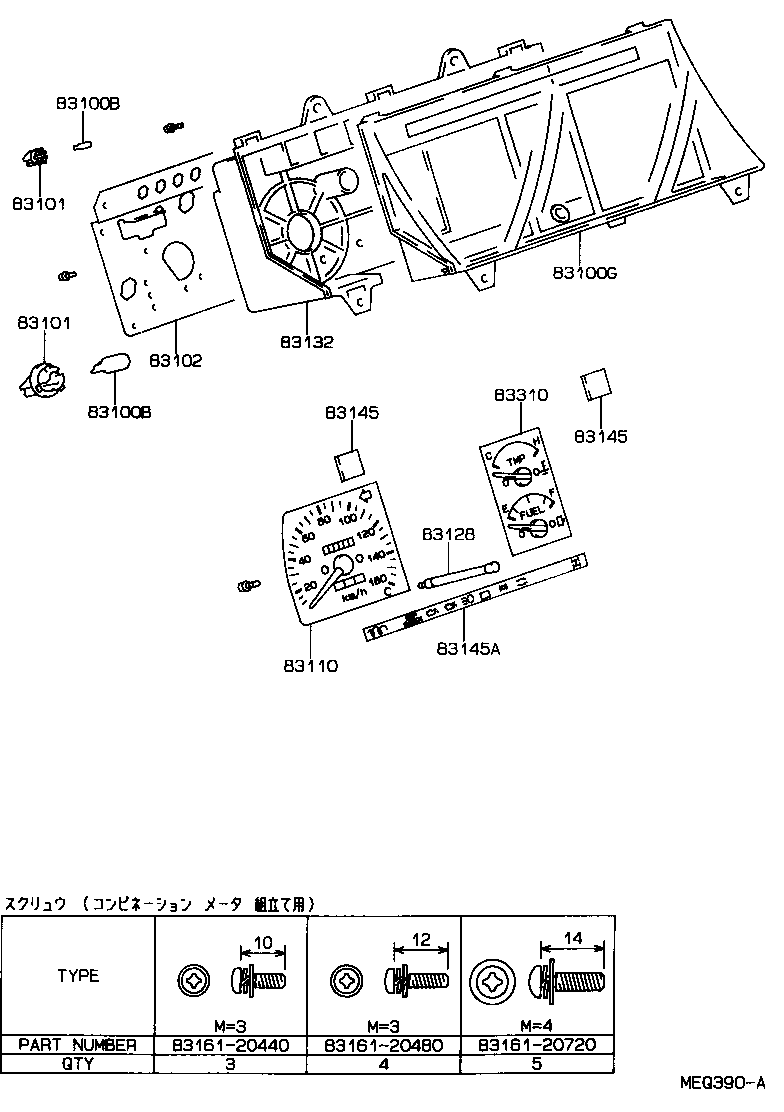

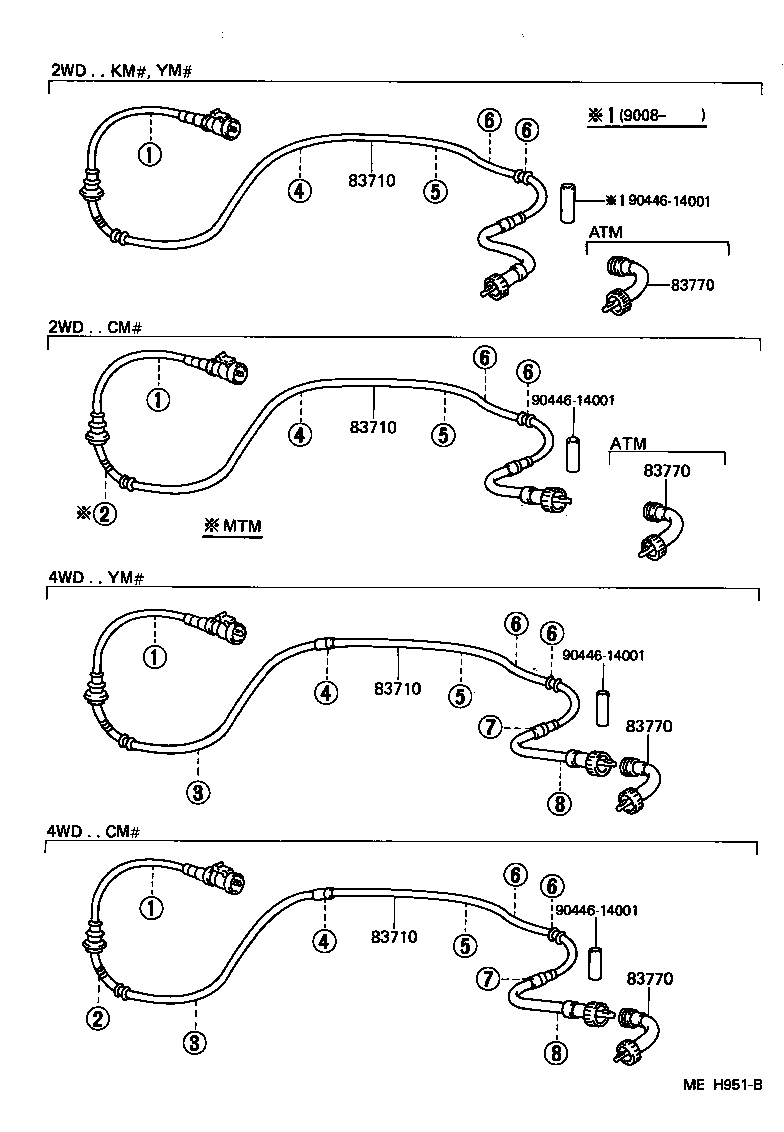

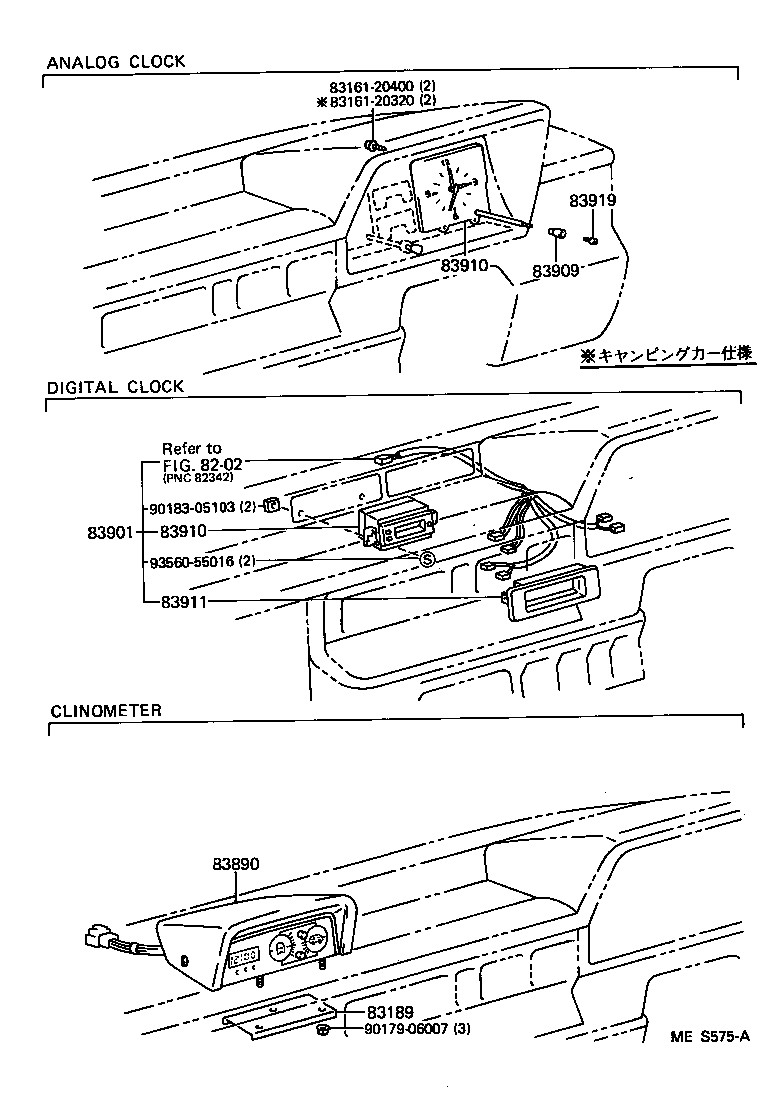

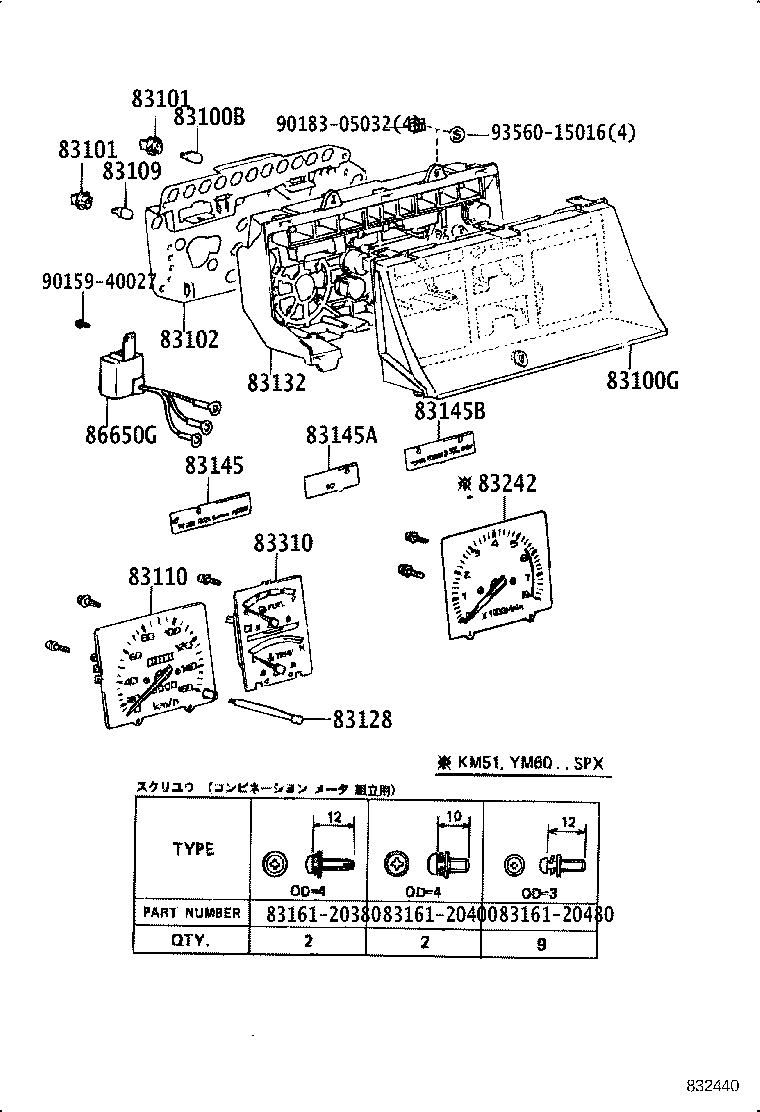

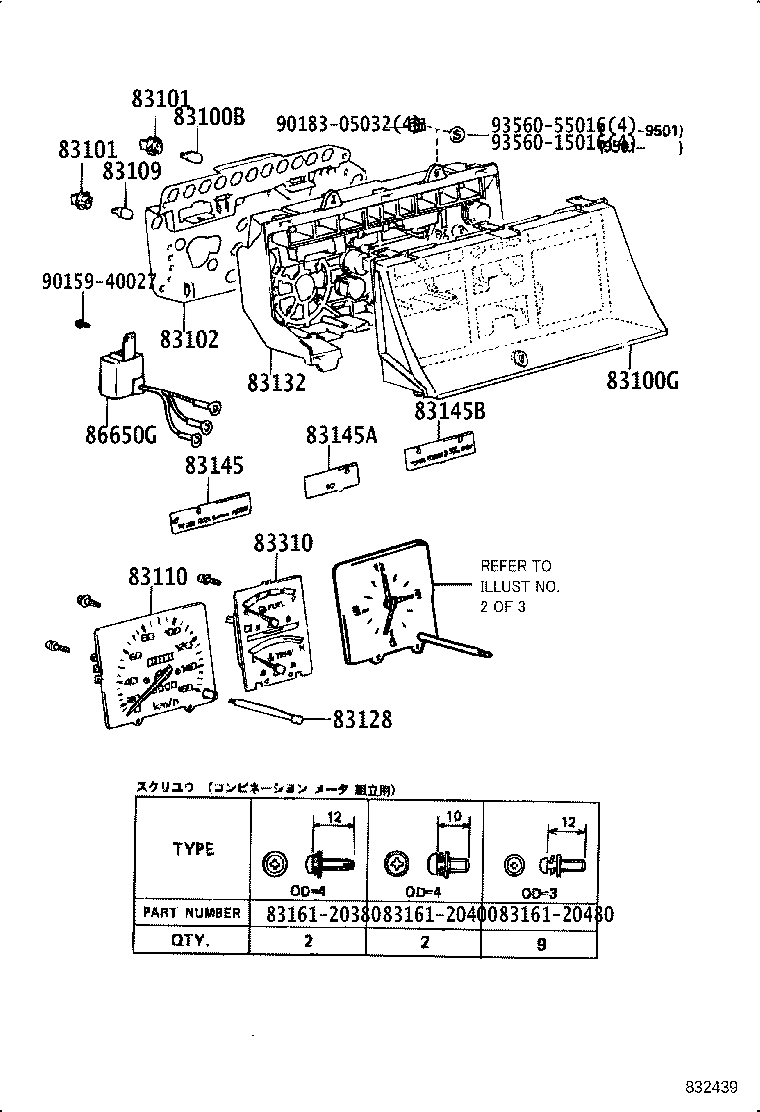

Figure 831794 831794 1986-10 → — Figure 832439 832439 1986-10 → 1991-10 Figure 832440 832440 1991-10 → — Figure MEQ390A MEQ390A 1989-11 → — Figure MES575A MES575A 1986-10 → — Figure MEH951B MEH951B 1986-10 → — Figure MEH952F MEH952F 1986-10 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83100G Glass, Combination Meter
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83109 Bulb, Combination Meter, NO.2
83110 Speedometer Assy
83116 Bracket, Speedometer
83128 Knob, Trip Counter
83132 Case, Combination Meter
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145B Lens, Meter, NO.3
83145C Lens, Meter, NO.4
83147A Lamp, Meter NO.2
83189 Bracket, Meter
83242 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83770 Adapter Assy, Speedometer Cable
83890 Clinometer Assy
83901 Clock And Setting Parts Set
83909 Knob, Clock
83910 Clock Assy
83911 Cover, Clock
83919 Screw, Clock
86650G Buzzer Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
