Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

90 part groups · 16 illustrations

Illustrations

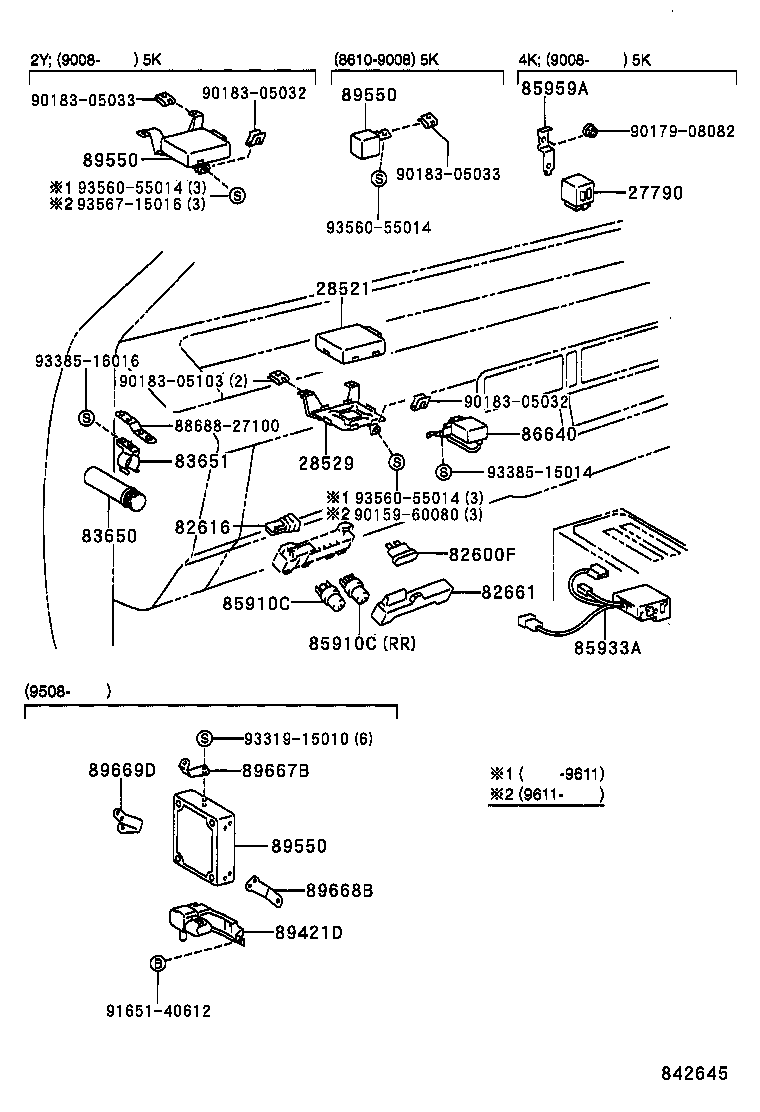

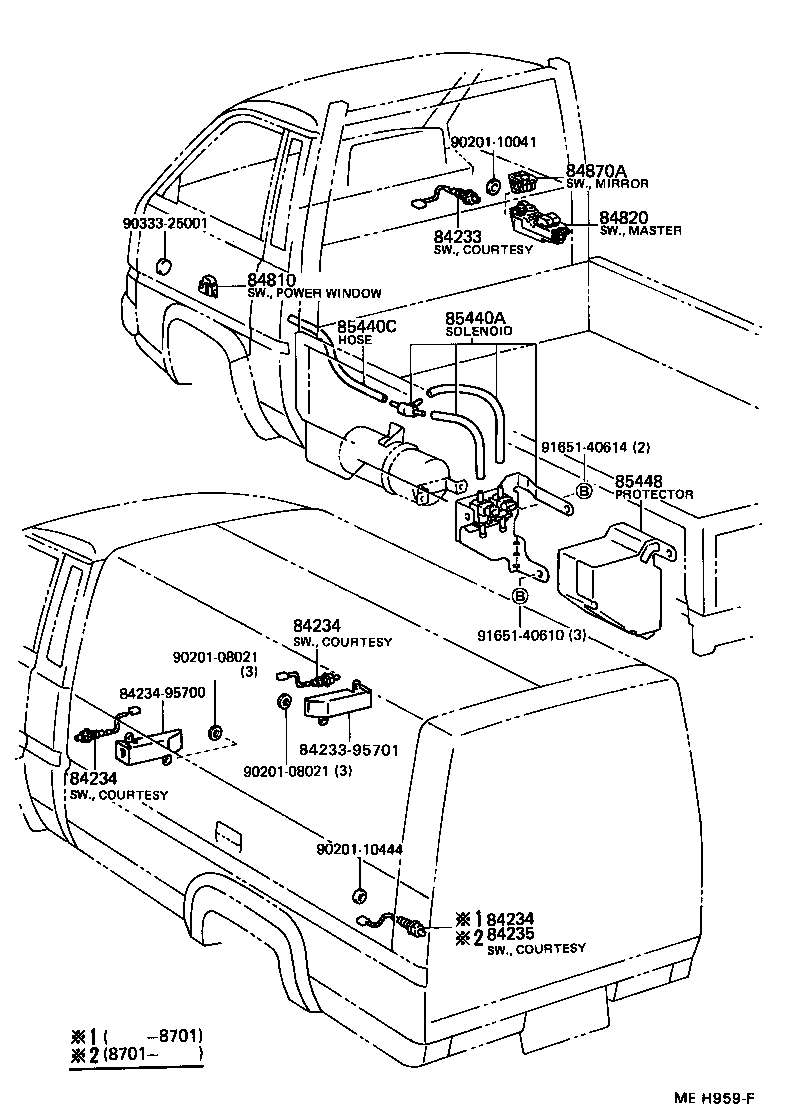

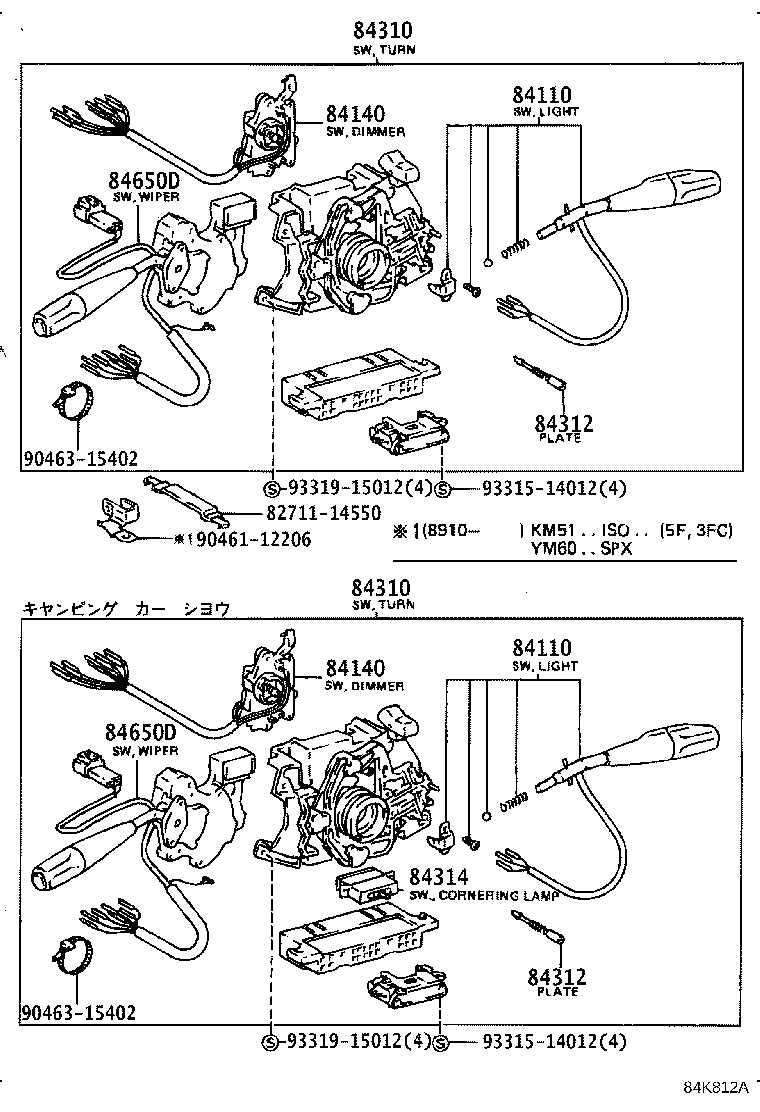

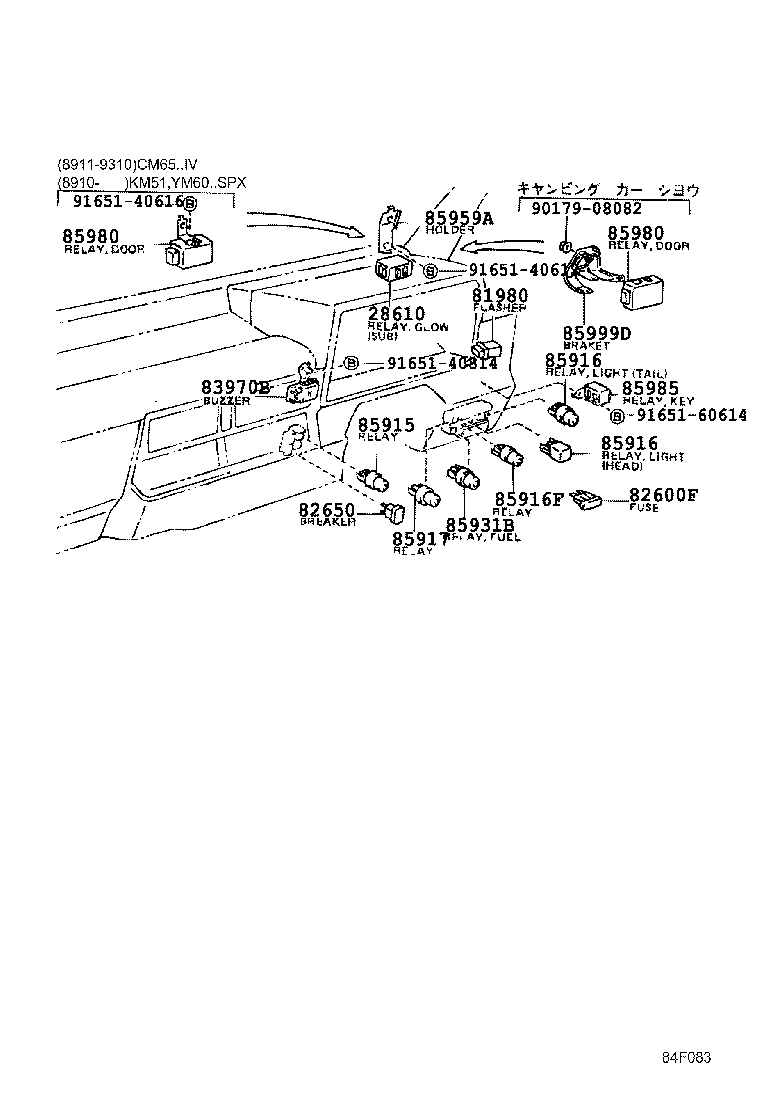

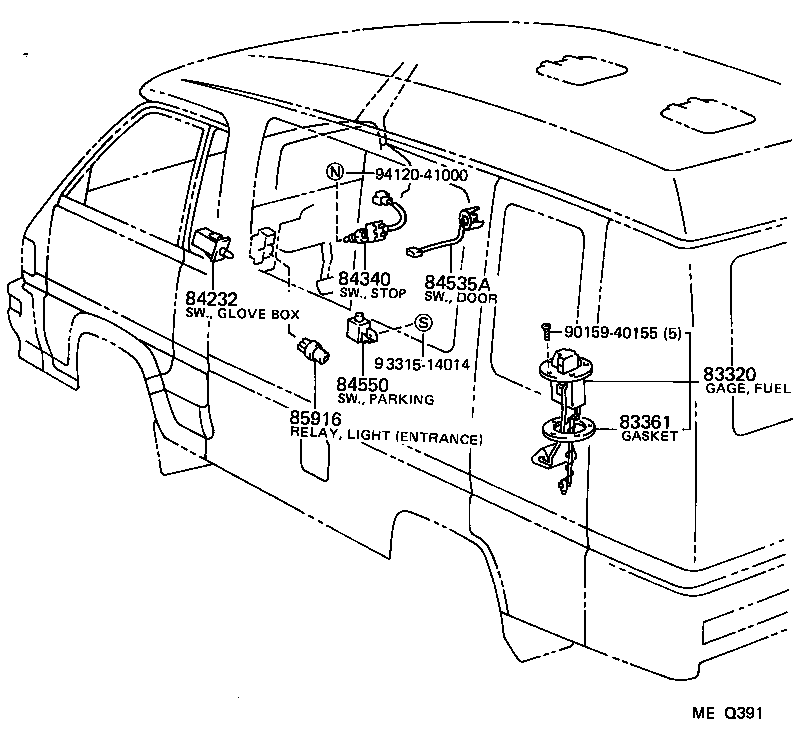

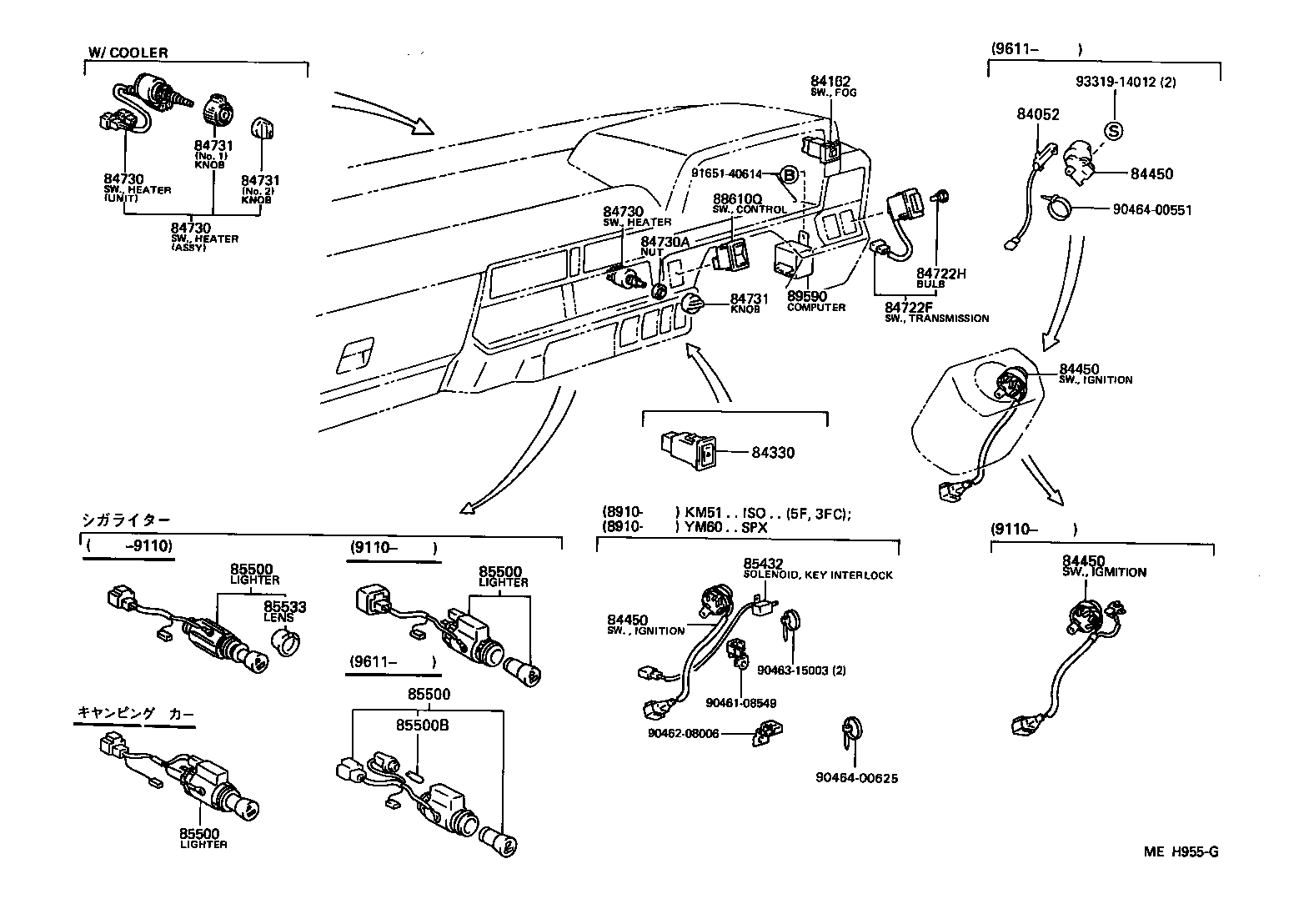

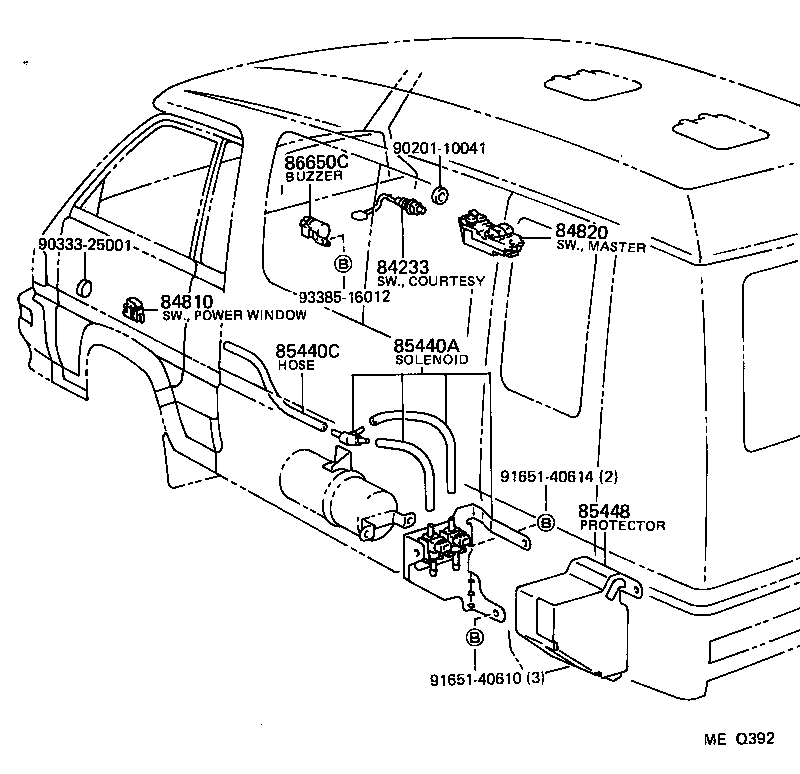

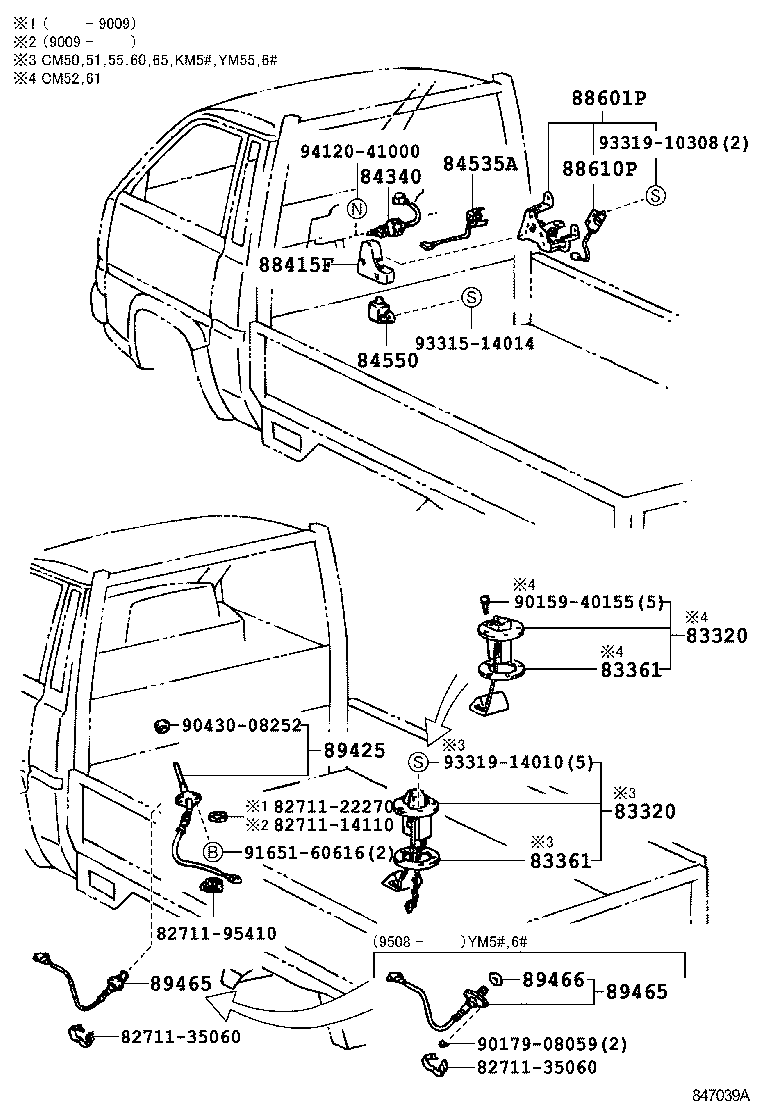

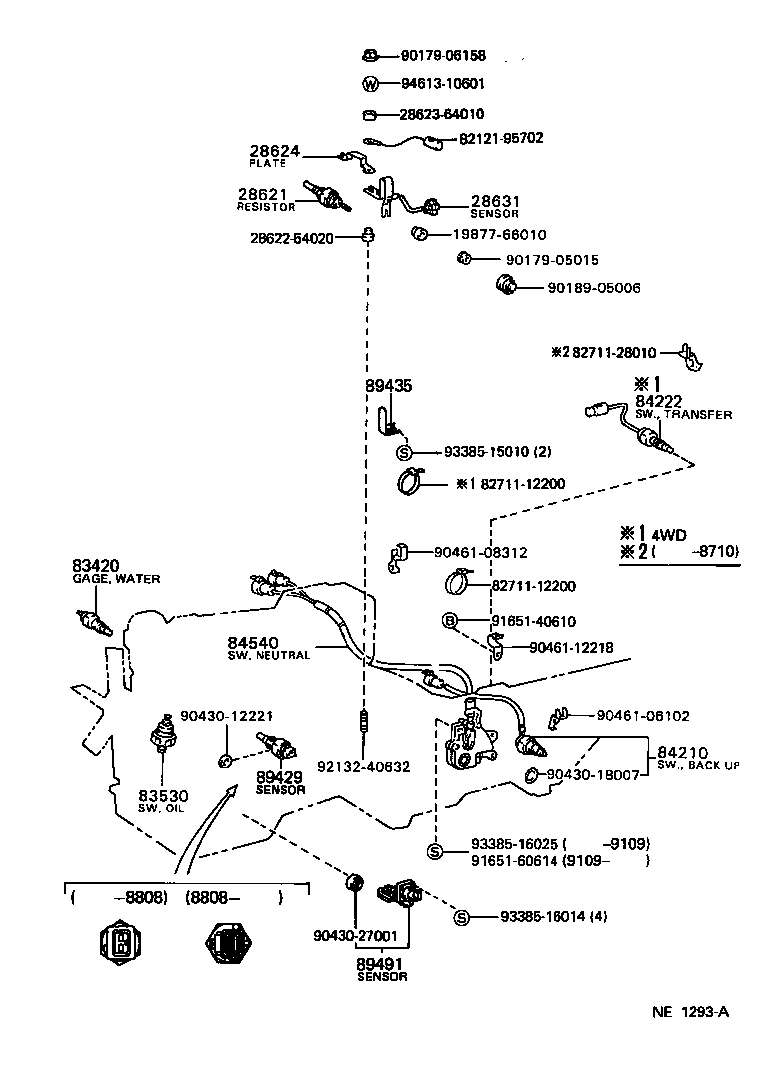

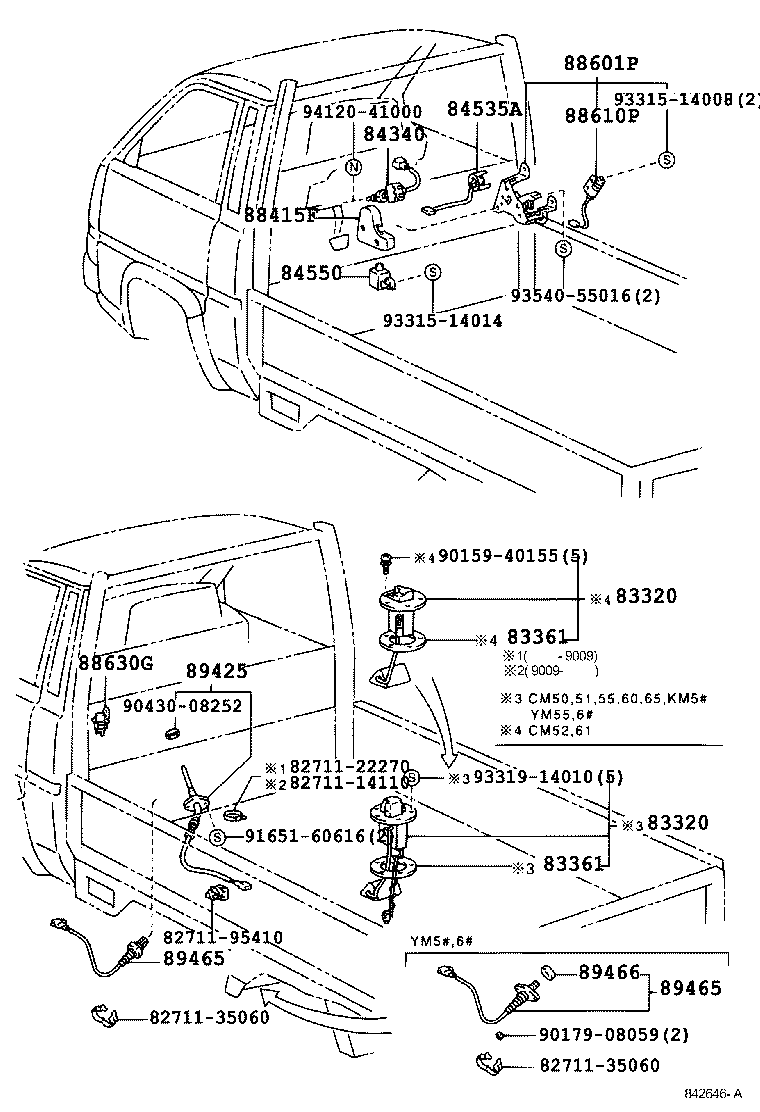

Figure MEH954F MEH954F 1986-10 → — Figure 845292A 845292A 1986-10 → — Figure NE1293A NE1293A 1986-10 → — Figure MEH984G MEH984G 1986-10 → — Figure NE1294 NE1294 1986-10 → — Figure 842774A 842774A 1986-10 → — Figure MEH955G MEH955G 1986-10 → — Figure 84K812A 84K812A 1986-10 → 1996-11 Figure 84K813 84K813 1996-11 → — Figure 84F083 84F083 1986-10 → — Figure 842645 842645 1986-10 → — Figure 847039A 847039A 1986-10 → — Figure 842646A 842646A 1986-10 → — Figure MEQ391 MEQ391 1989-11 → — Figure MEH959F MEH959F 1986-10 → — Figure MEQ392 MEQ392 1989-11 → —

Part groups

PNCDescription
27790 Relay Assy, Charge Lamp
28300 Relay Assy, Starter
28521 Timer, Preheating
28529 Bracket, Preheating Timer, NO.1
28610 Relay Assy, Intake Heater OR Glow Plug
28611 Cover, Glow Plug Relay
28621 Resistor, Glow Plug
28624 Plate, Current Sensor
28631 Sensor, Glow Plug Current
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82616 Puller, Fuse
82650 Breaker Assy, Wiring Circuit, NO.1
82661 Cover, Relay Block, NO.1
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83390 Switch Assy, Vacuum Warning
83391 Switch, Vacuum
83399 Bracket, Vacuum Switch
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
83651 Clamp, Fusee
83970B Buzzer Assy, Reverse Warning
84052 Switch Assy, Un-lock Warning
84110 Switch Assy, Light Control, NO.1
84140 Switch Assy, Headlamp Dimmer
84162 Switch, Front Fog Lamp
84210 Switch Assy, Back-up Lamp
84222 Switch, Transfer Indicator, NO.1
84232 Switch Assy, Courtesy Lamp (FOR GLOVE BOX)
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84314 Switch, Cornering Lamp
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84535A Switch, Door Lock
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84722F Switch, Transmission Control
84722H Bulb, Transmission Control Switch
84730 Switch Assy, Heater Blower
84730A Nut, Heater Blower Switch
84731 Knob, Heater Blower Switch
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
85432 Solenoid, Key Interlock
85440A Solenoid Assy, Four Wheel Drive Control
85440C Hose (FOR FOUR WHEEL DRIVE CONTROL)
85448 Protector, Solenoid
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85915 Relay, Main
85916 Relay, Light Control
85916F Relay, Cornering Lamp
85917 Relay, Front Drive
85931B Relay, Fuel Heater
85933A Computer, Shift Lock Control
85959A Holder, Relay
85980 Relay Assy, Door Control
85985 Relay, Key Reminder
85999D Bracket, Relay, NO.4
86640 Chime Assy
86650C Buzzer Assy, Sedimenter Warning
88415F Cover, Dust
88601P Switch Sub-assy, Control
88610P Switch Assy, Control
88610Q Switch Assy, Idle UP
88630G Relay Assy, Cooler
89390 Relay, Brake Warning
89421D Sensor, Turbo Pressure
89425 Sensor, Exhaust Gas Temperature
89429 Sensor, Oil Temperature
89435 Bracket, Connector Cover
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89491 Sensor, Engine Oil Level
89550 Computer Assy, Emission Control
89590 Computer Assy, Condition Indicator
89667B Bracket, Engine Control Computer, NO.1
89668B Bracket, Engine Control Computer, NO.2
89669D Bracket, Engine Control Computer, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
