Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

22 part groups · 3 illustrations

Illustrations

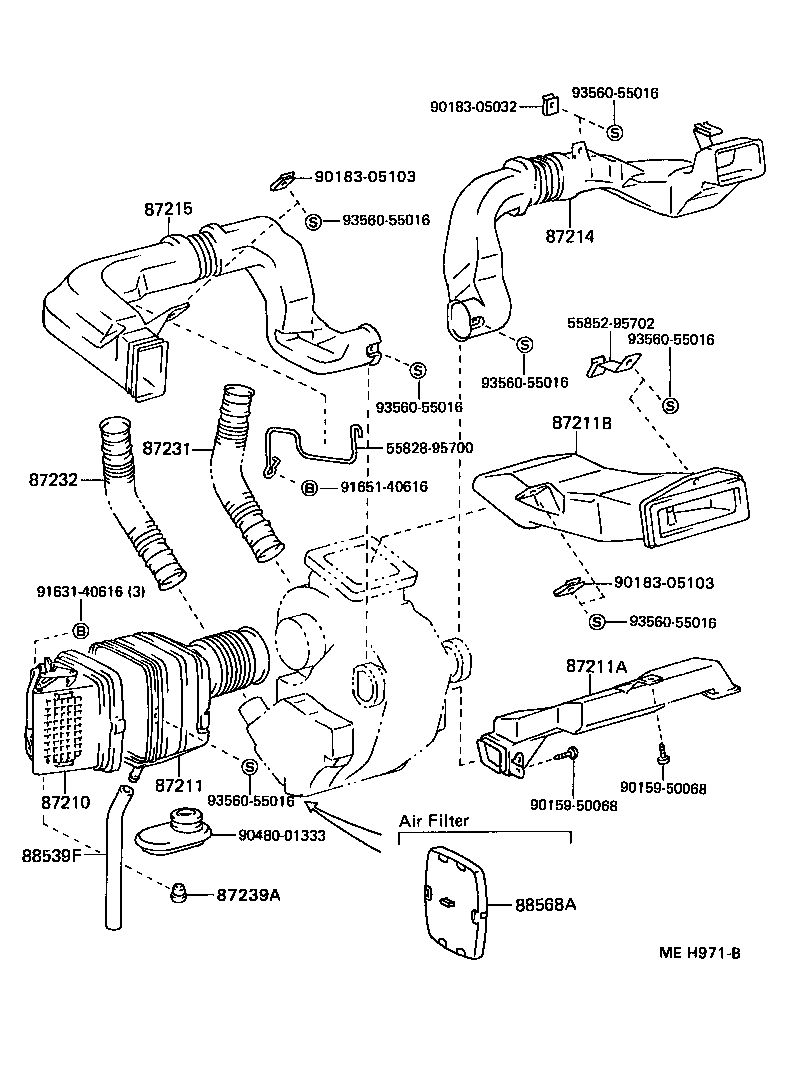

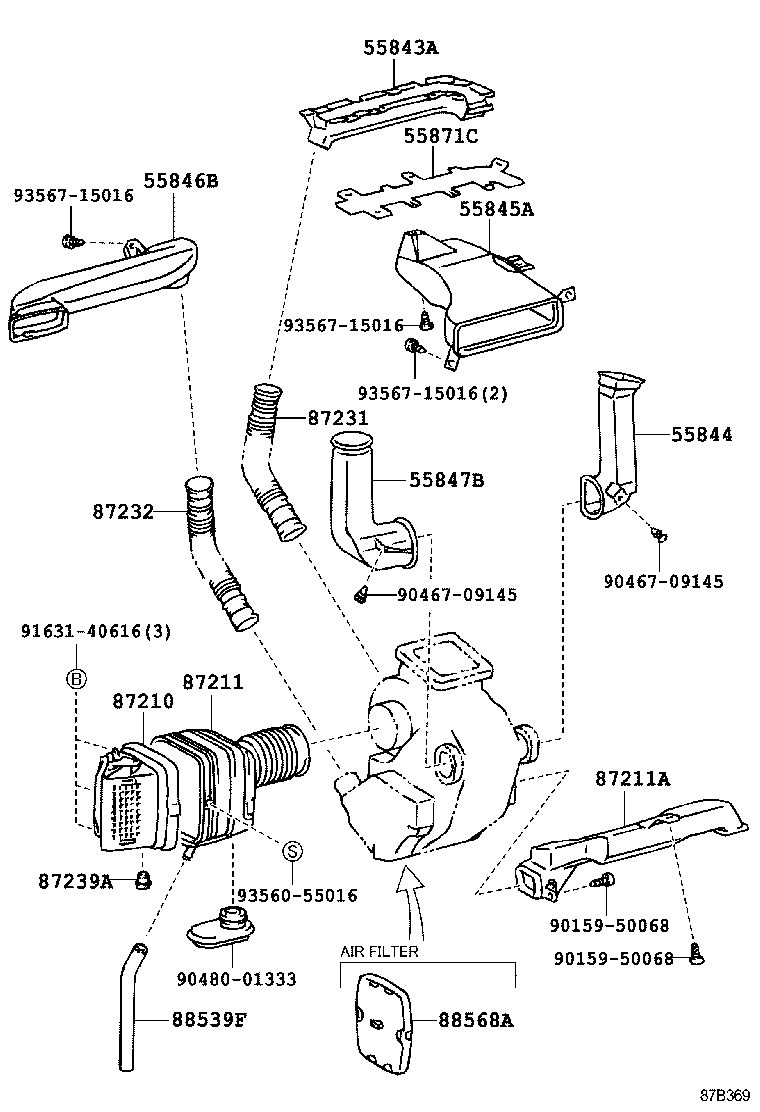

Figure MEH970B MEH970B 1986-10 → — Figure MEH971B MEH971B 1986-10 → 1996-11 Figure 87B369 87B369 1996-11 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846B Duct, Heater TO Register, NO.4
55847B Duct, Heater TO Register, NO.5
55871C Seal, Air Duct
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
87210 Damper Assy, Air
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87214 Duct, Air, Side NO.1 RH
87215 Duct, Air, Side NO.1 LH
87231 Hose, Heater Defroster, RH
87232 Hose, Heater Defroster, LH
87239A Cover, Heater Inlet Hole
88539F Hose, Drain
88568A Filter, Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
