Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

37 part groups · 20 illustrations

Illustrations

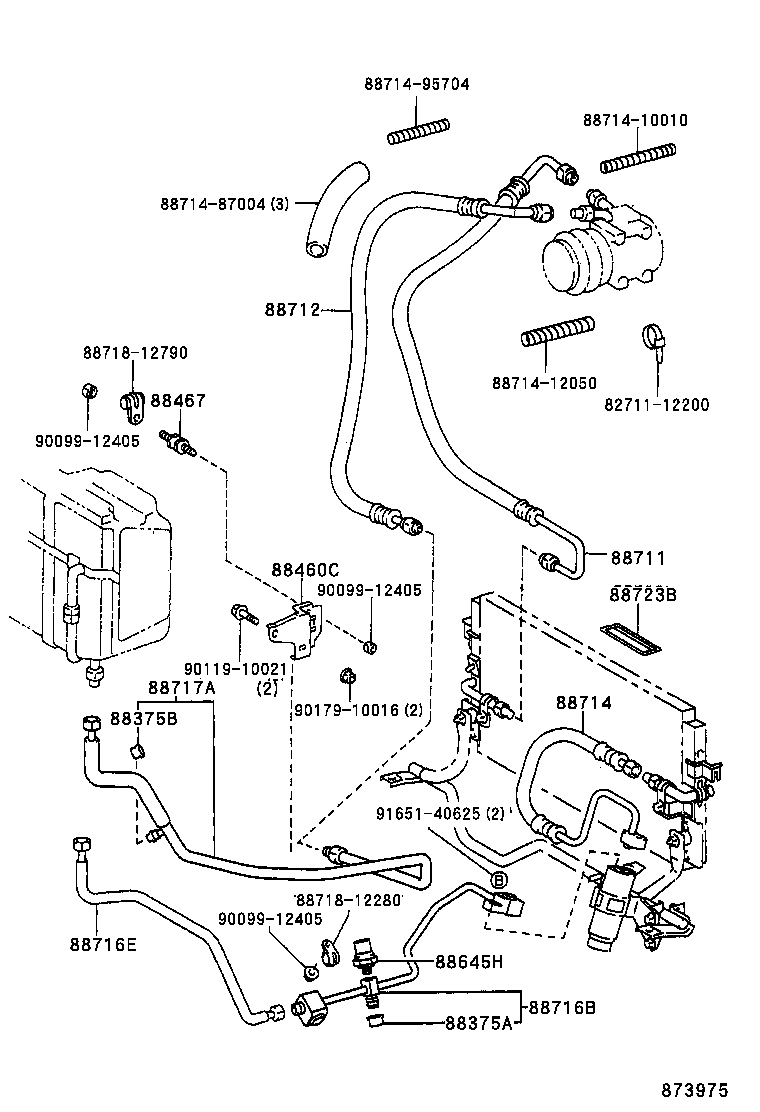

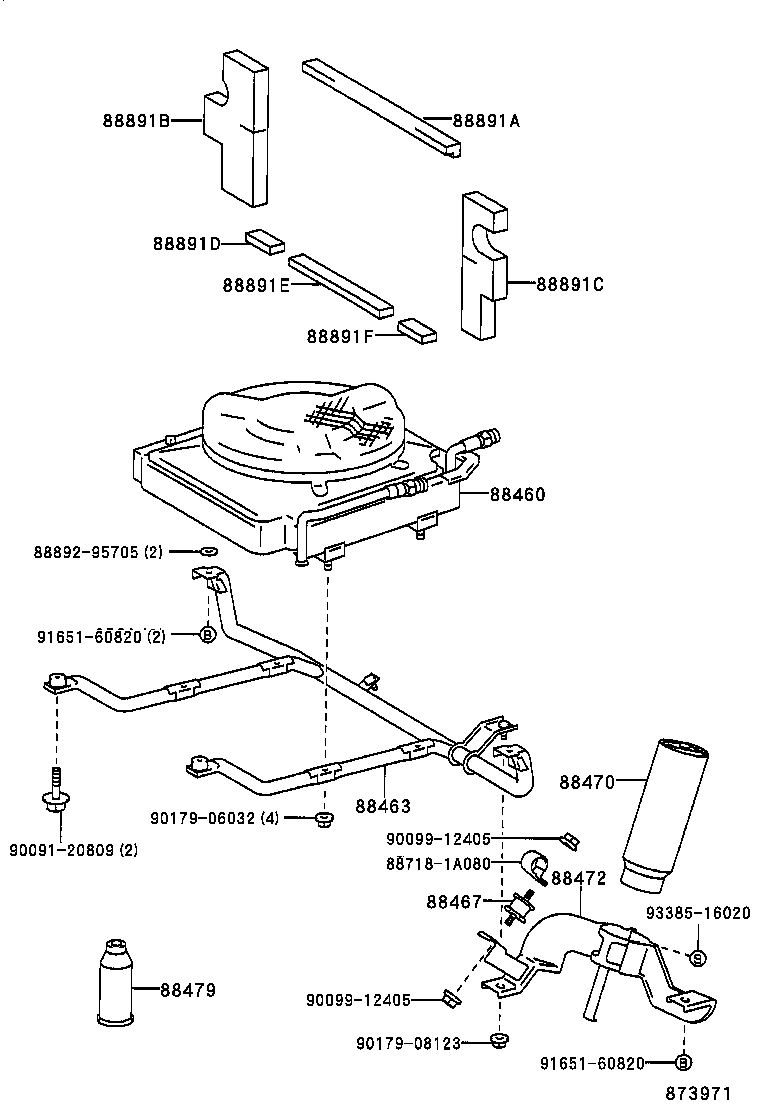

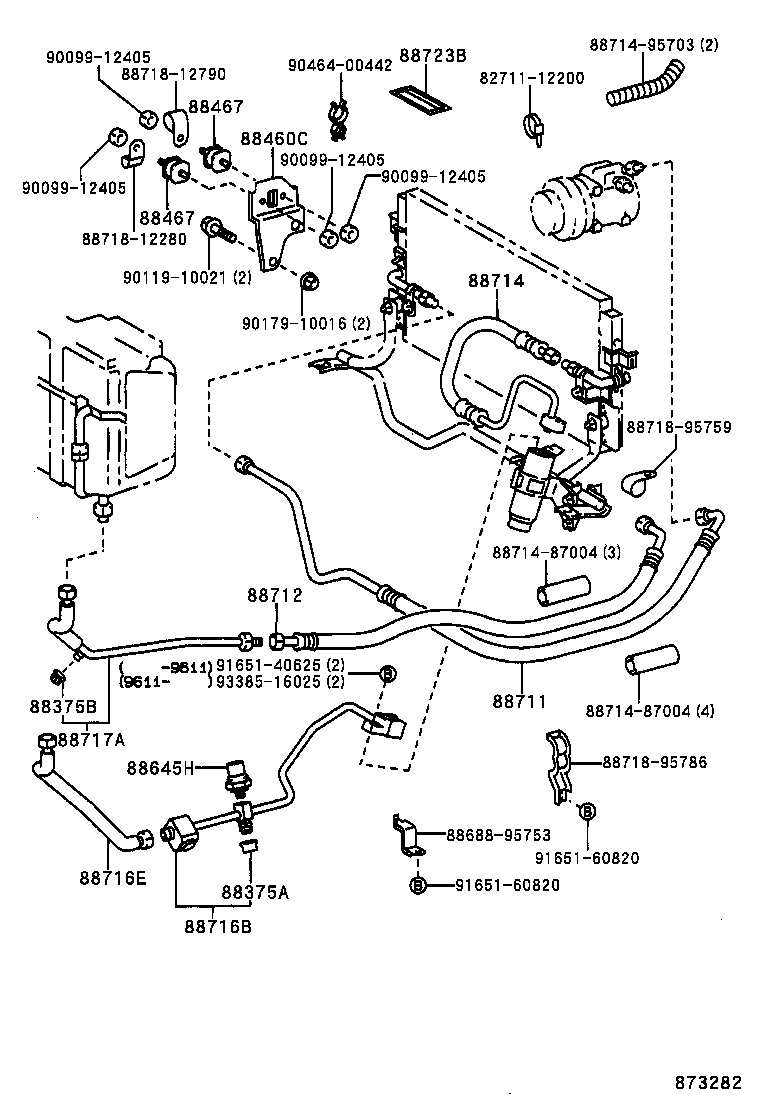

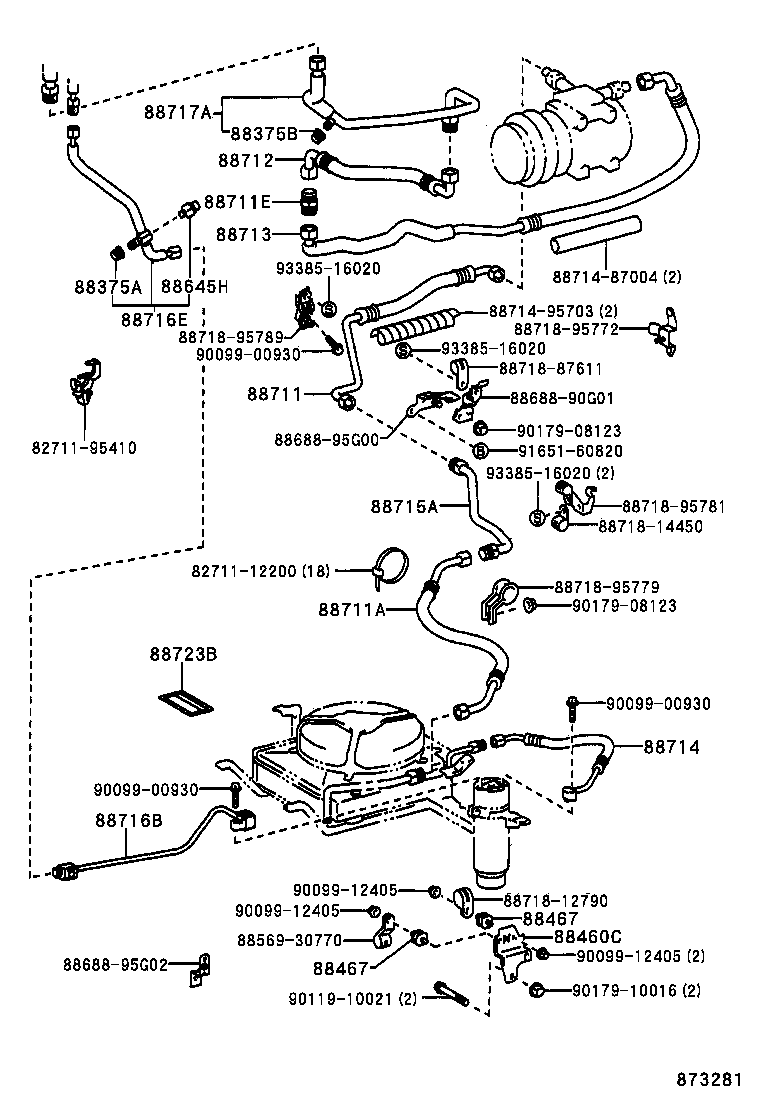

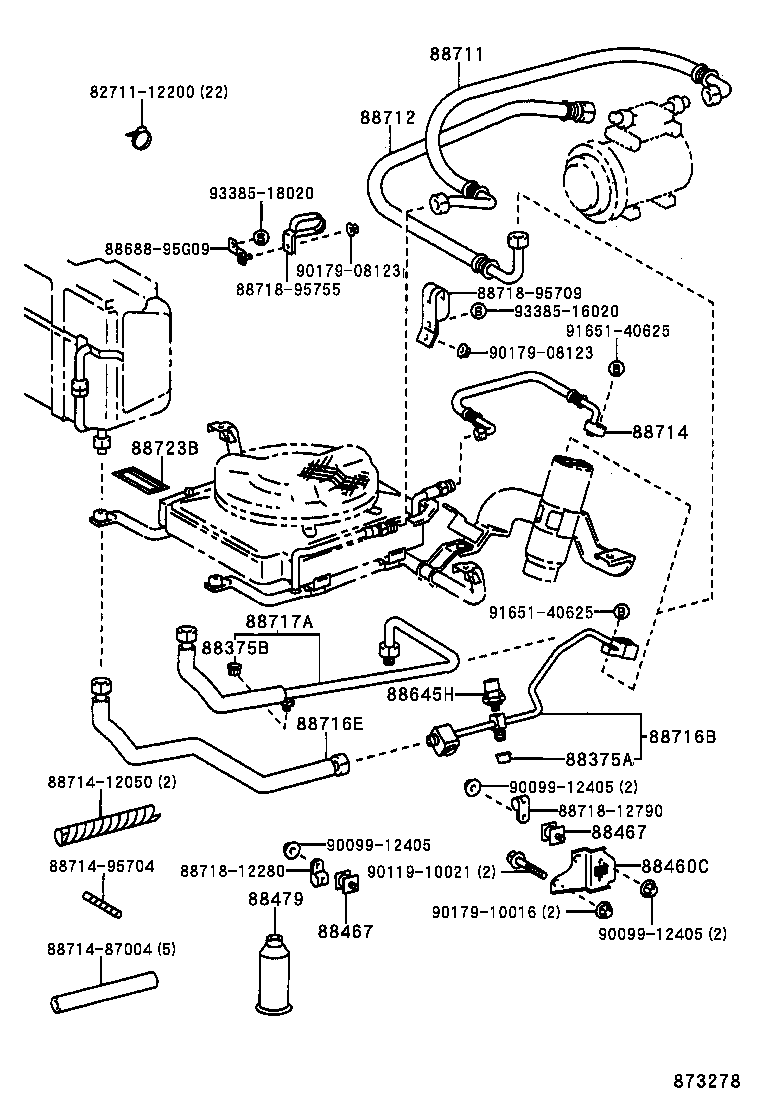

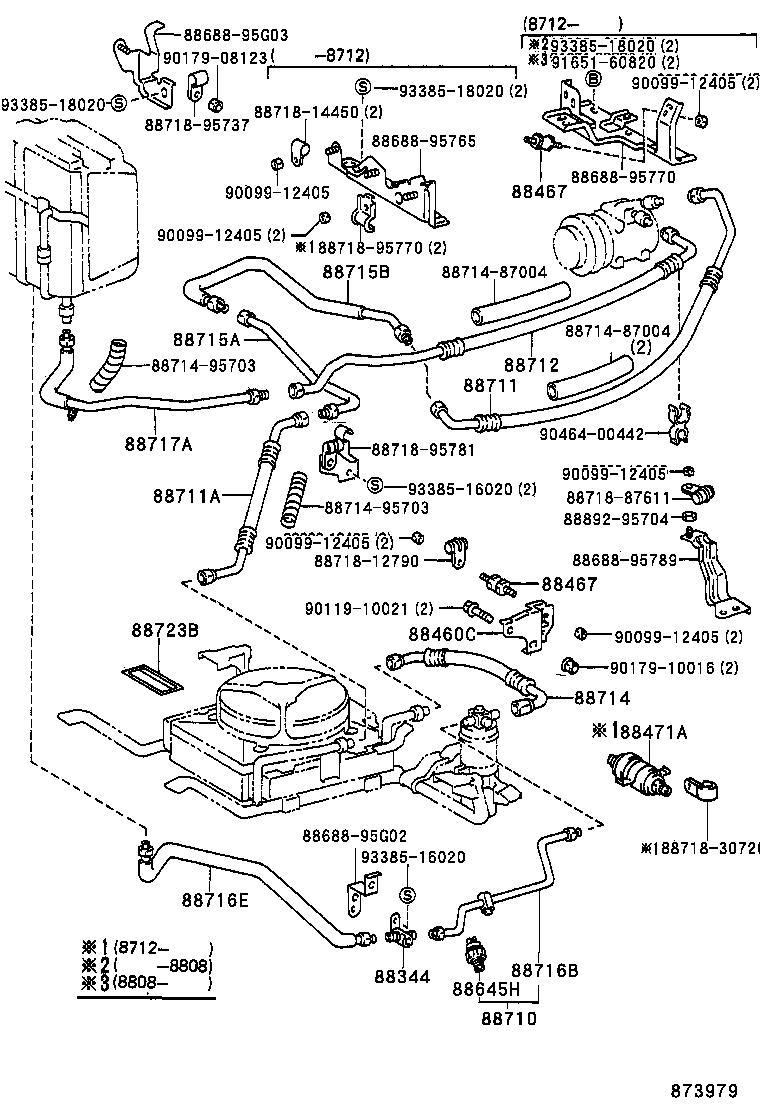

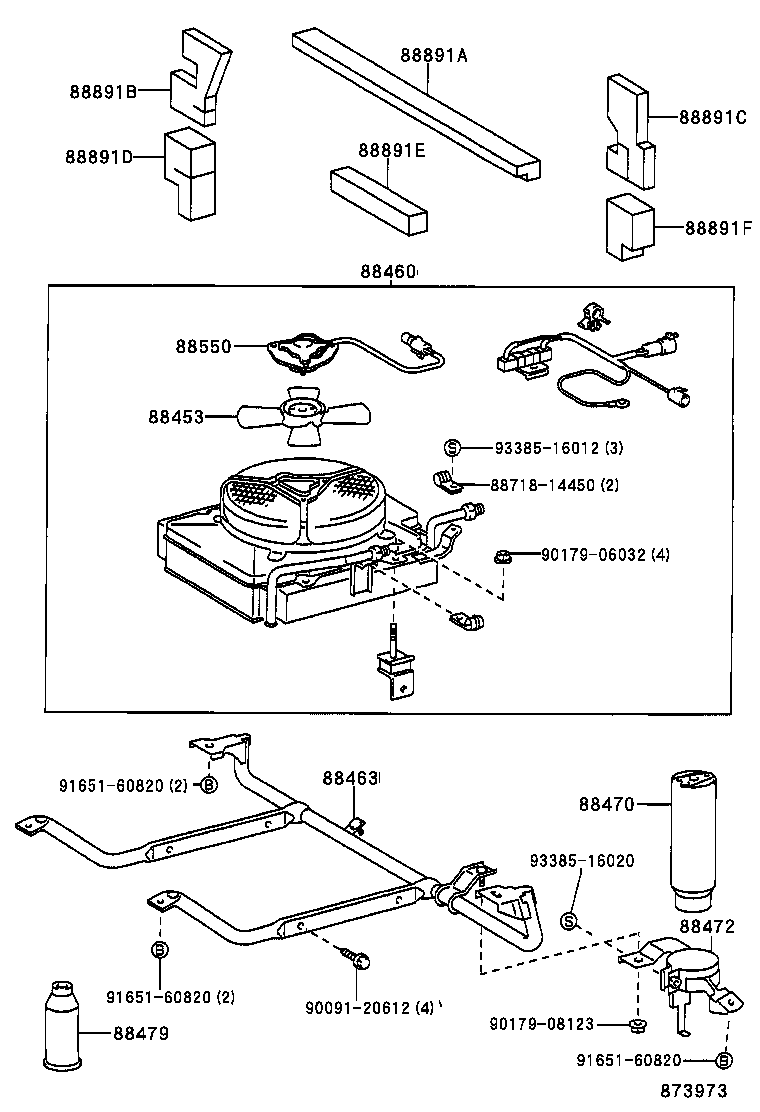

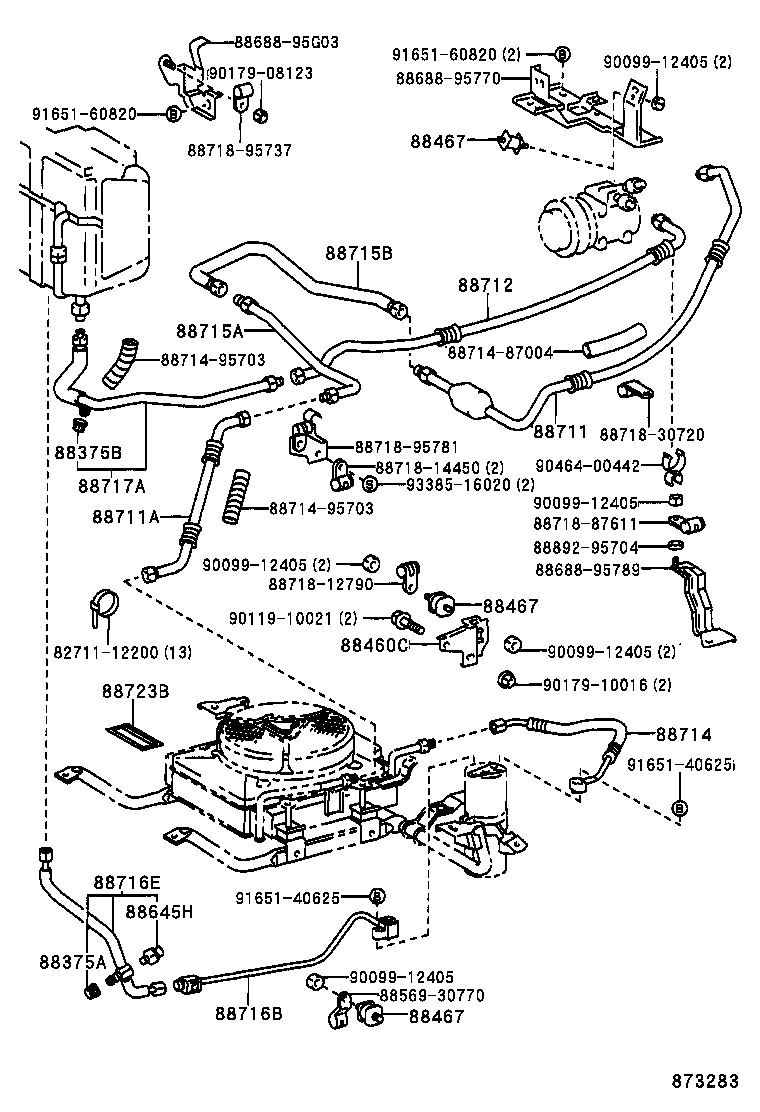

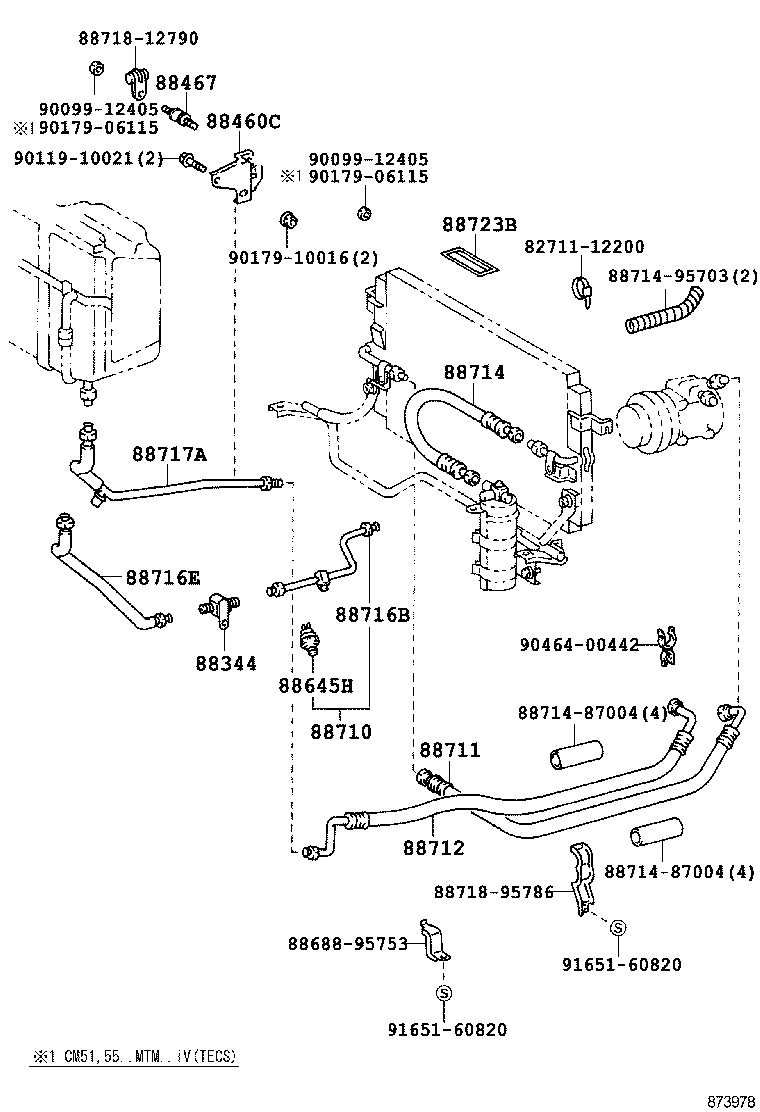

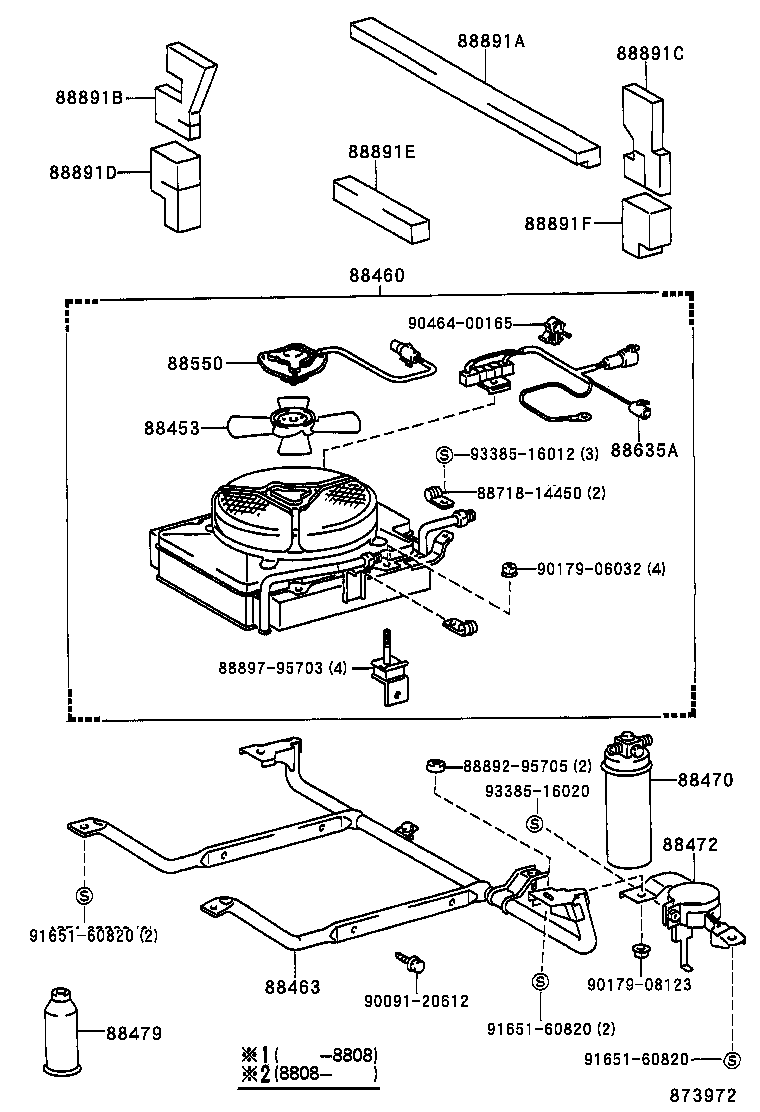

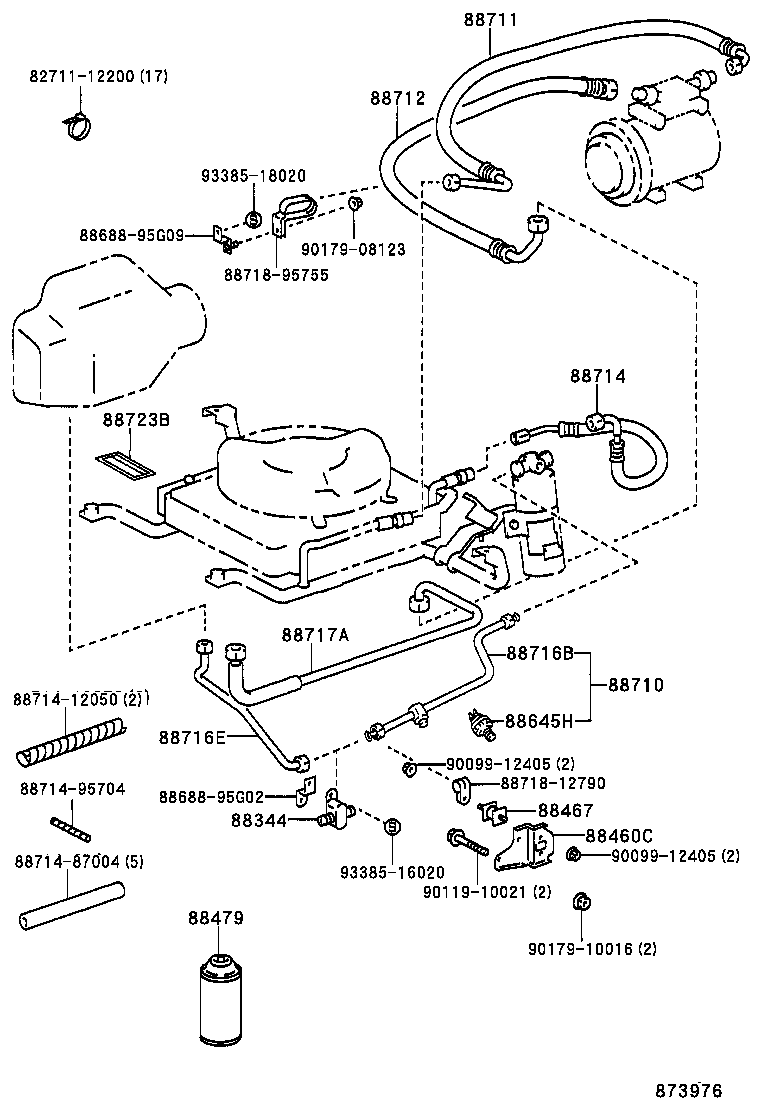

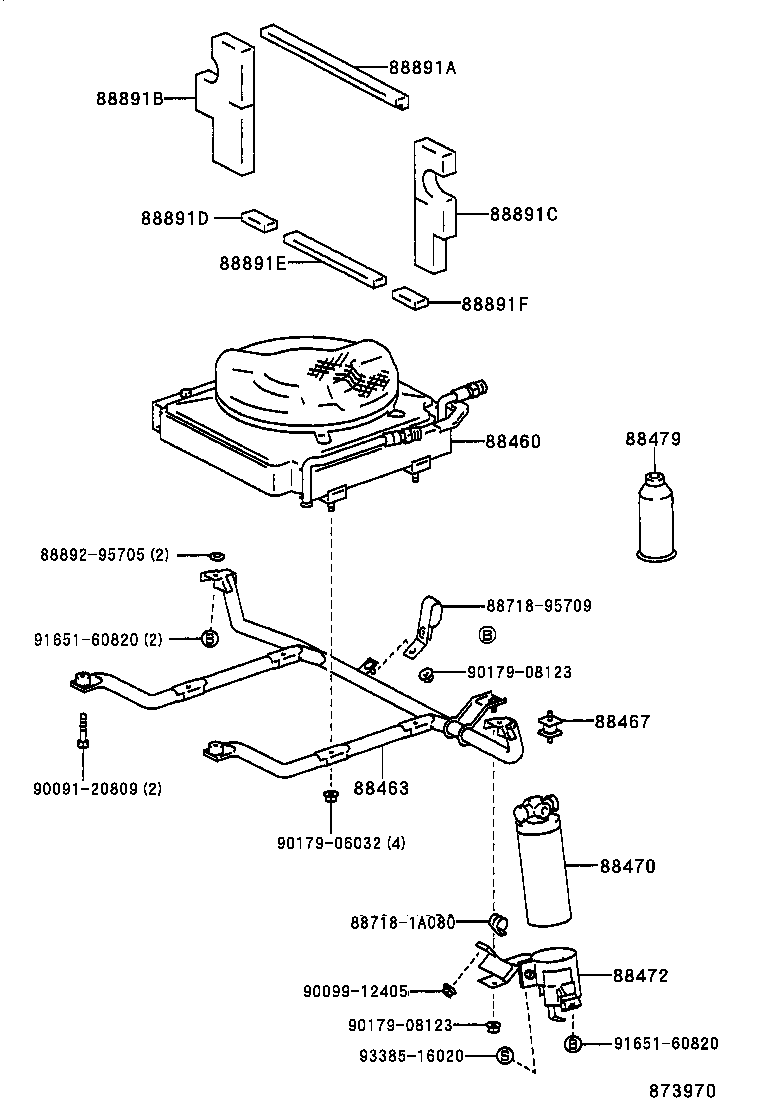

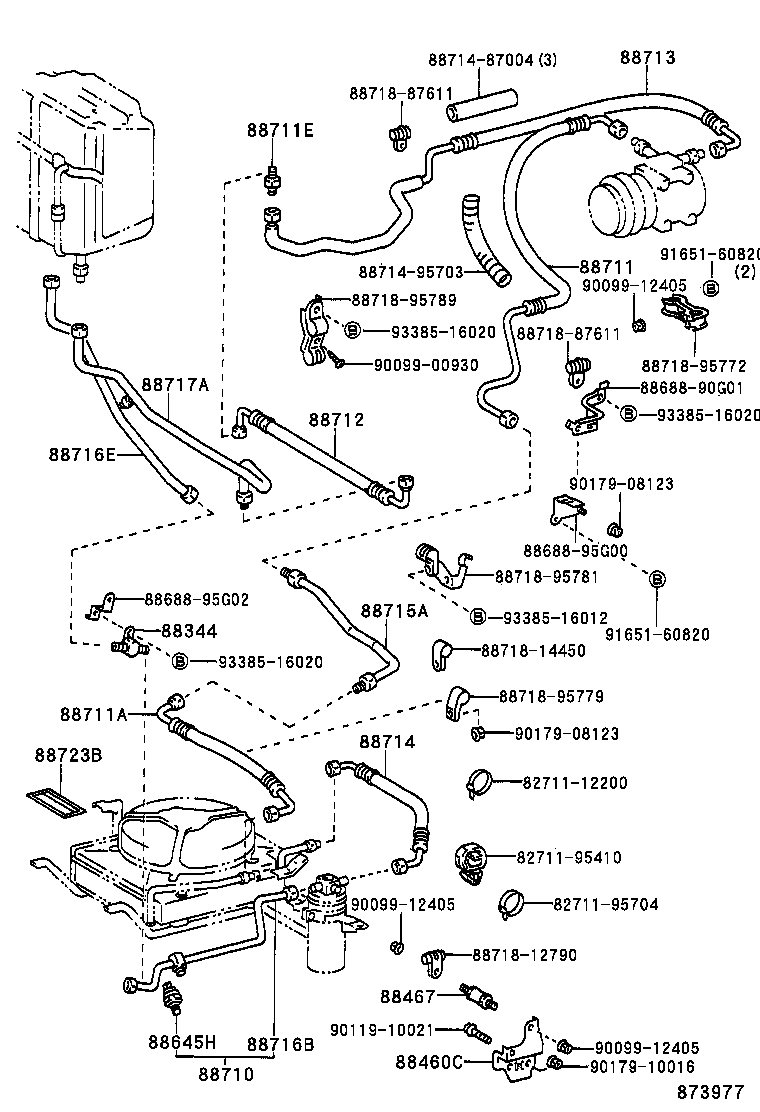

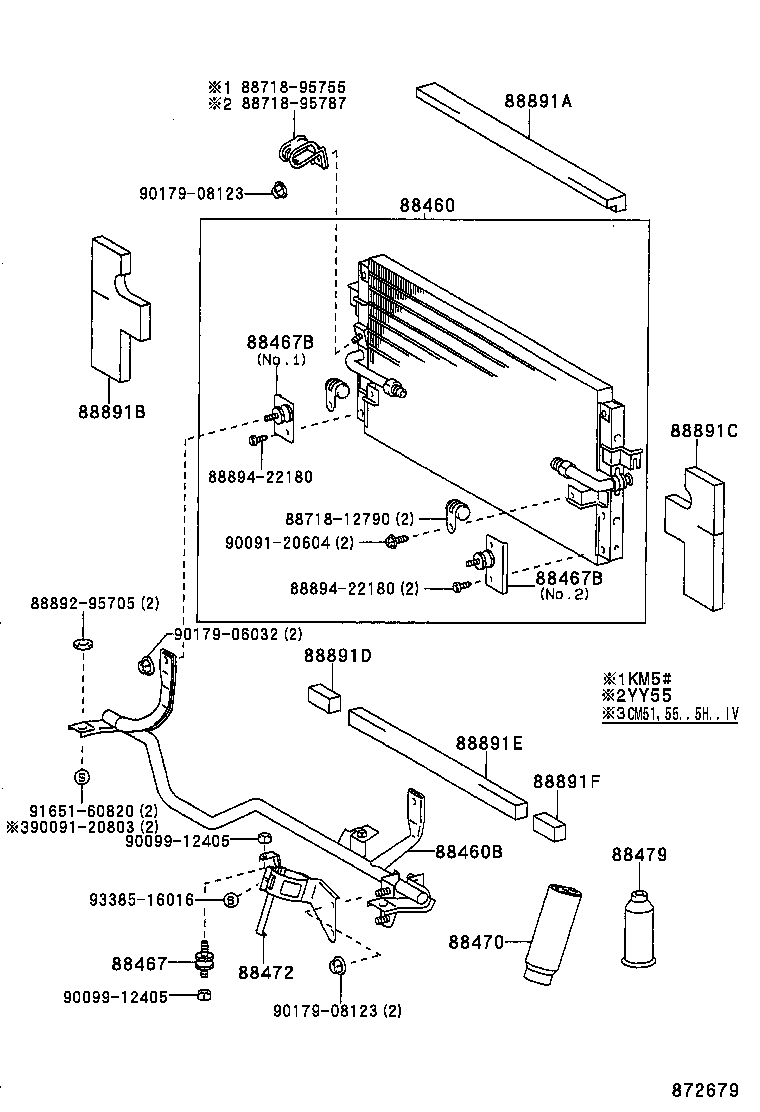

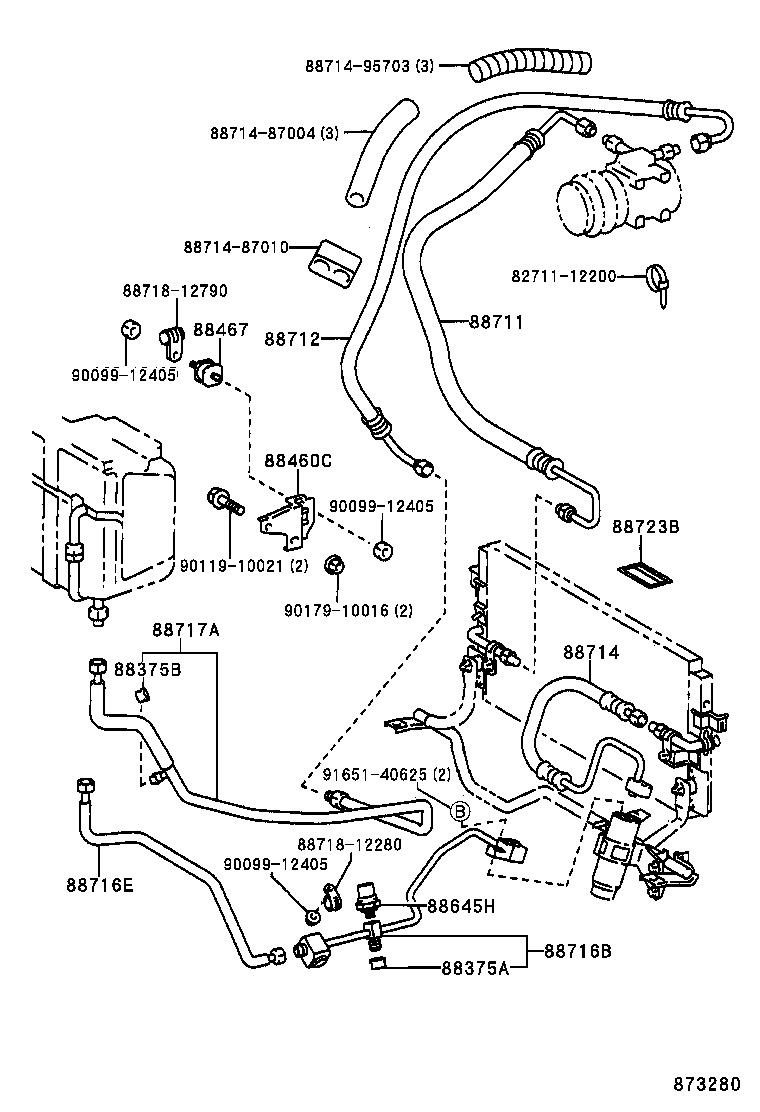

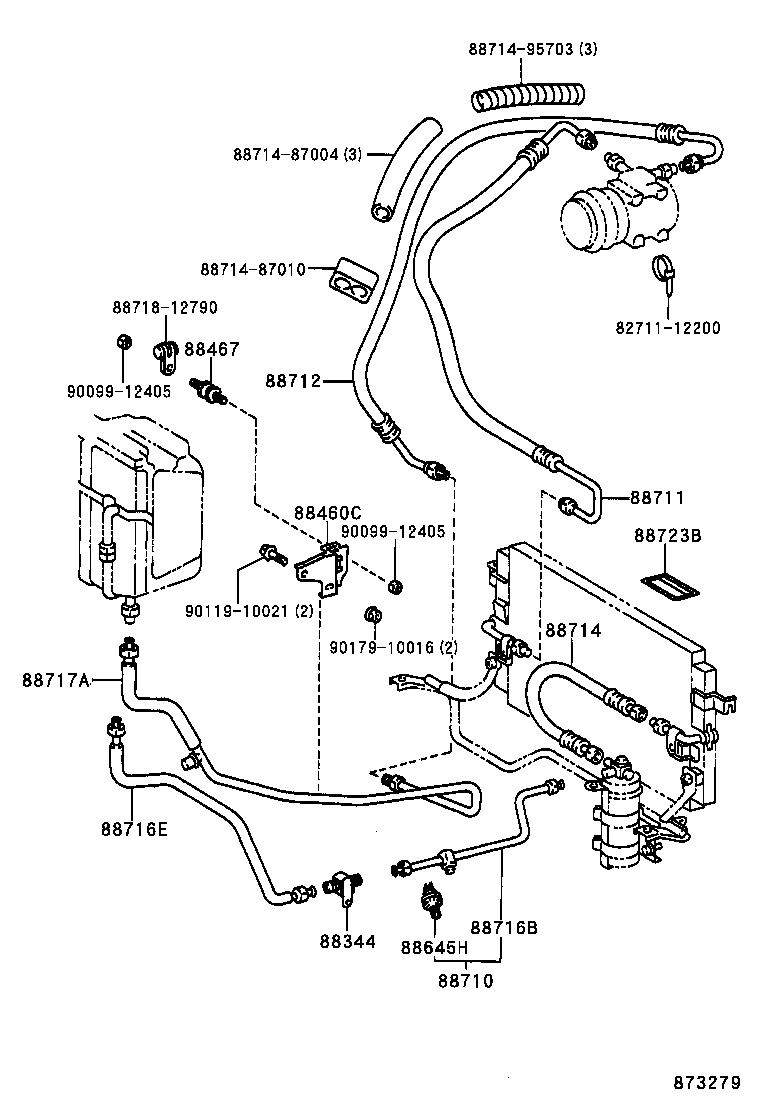

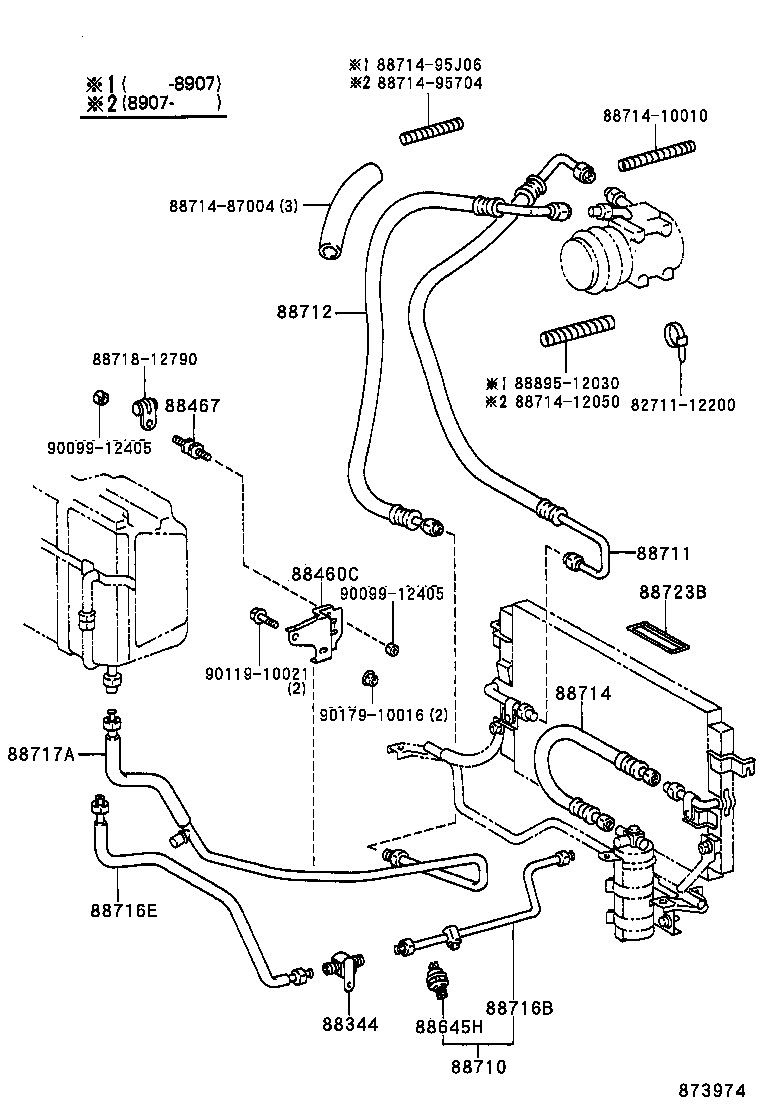

Figure 873277 873277 1986-10 → 1989-10 Figure 873277 873277 1989-10 → 1993-10 Figure 872679 872679 1993-10 → — Figure 873970 873970 1989-10 → 1993-10 Figure 873971 873971 1993-10 → — Figure 873972 873972 1986-10 → 1993-10 Figure 873973 873973 1993-10 → — Figure 873974 873974 1986-10 → 1989-10 Figure 873974 873974 1989-10 → 1993-10 Figure 873975 873975 1993-10 → — Figure 873976 873976 1989-10 → 1993-10 Figure 873278 873278 1993-10 → — Figure 873279 873279 1986-10 → 1993-10 Figure 873280 873280 1993-10 → — Figure 873977 873977 1986-10 → 1993-10 Figure 873281 873281 1993-10 → — Figure 873978A 873978A 1986-10 → 1993-10 Figure 873282 873282 1993-10 → — Figure 873979 873979 1986-10 → 1993-10 Figure 873283 873283 1993-10 → —

Part groups

PNCDescription
88344 Glass Sub-assy, Sight
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88453 Fan, Cooling (FOR CONDENSER)
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88463 Bracket, Cooler Condenser, NO.1
88467 Cushion, Cooler Condenser, NO.1
88467B Insulator, Cooler Condenser Mounting
88470 Receiver & Dryer Assy, Cooler
88470C Bolt, Fuse
88471A Tank, Receiver
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88635A Resistor, Blower (FOR COOLER CONDENSER MOTOR)
88645H Switch, Pressure NO.1
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88711E Union, NO.1(FOR COOLER HOSE)
88712 Hose, Cooler Refrigerant Suction, NO.1
88713 Hose, Cooler Refrigerant Suction, NO.2
88714 Hose, Cooler Refrigerant Liquid, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88723B Label, Cooler Service Caution
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88891C Packing C (FOR COOLER)
88891D Packing D (FOR COOLER)
88891E Packing E (FOR COOLER)
88891F Packing F (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
