Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

15 part groups · 9 illustrations

Illustrations

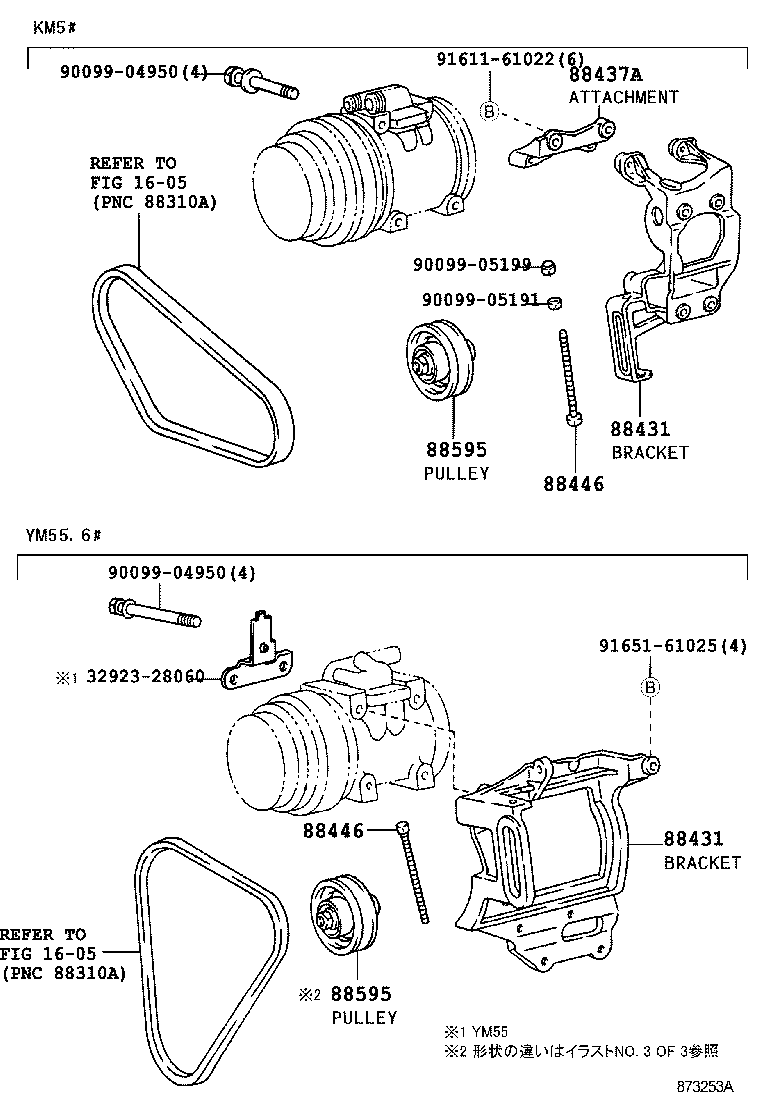

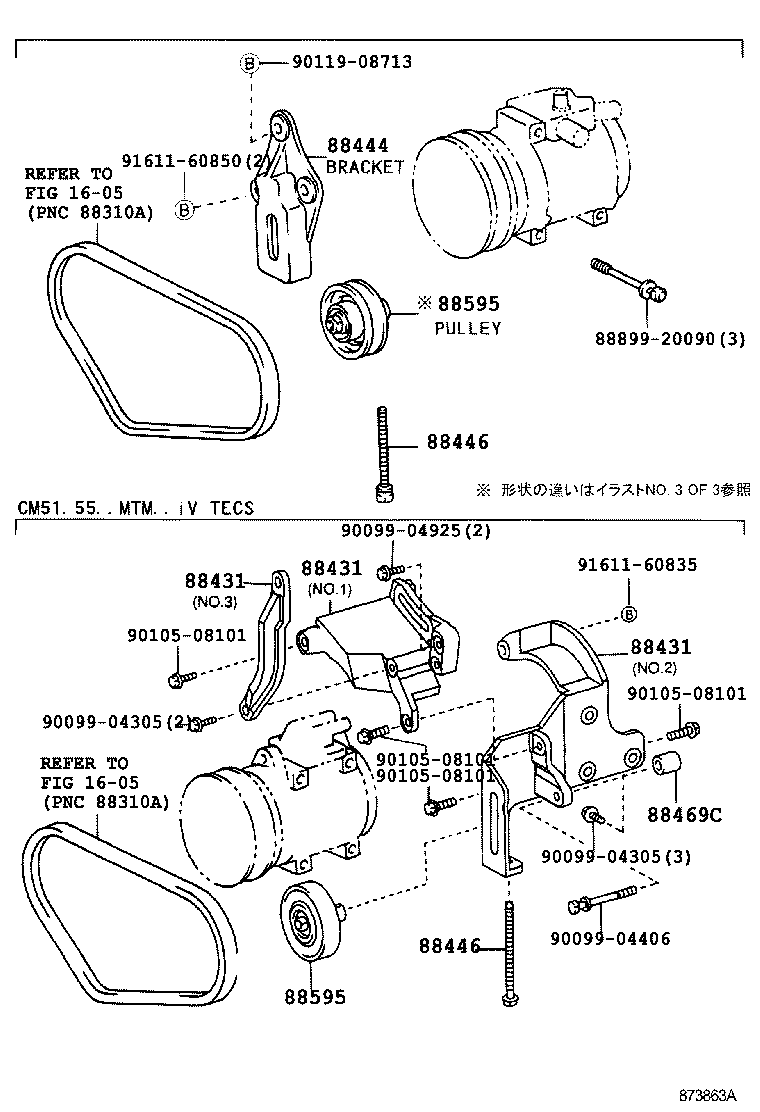

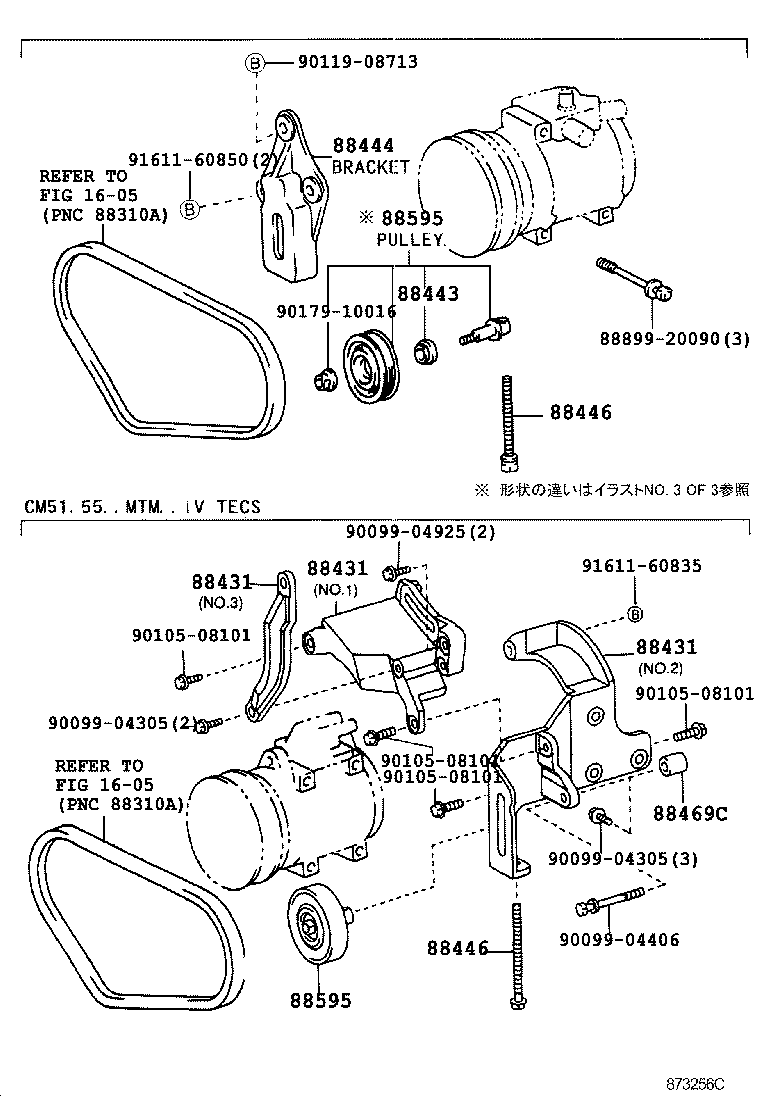

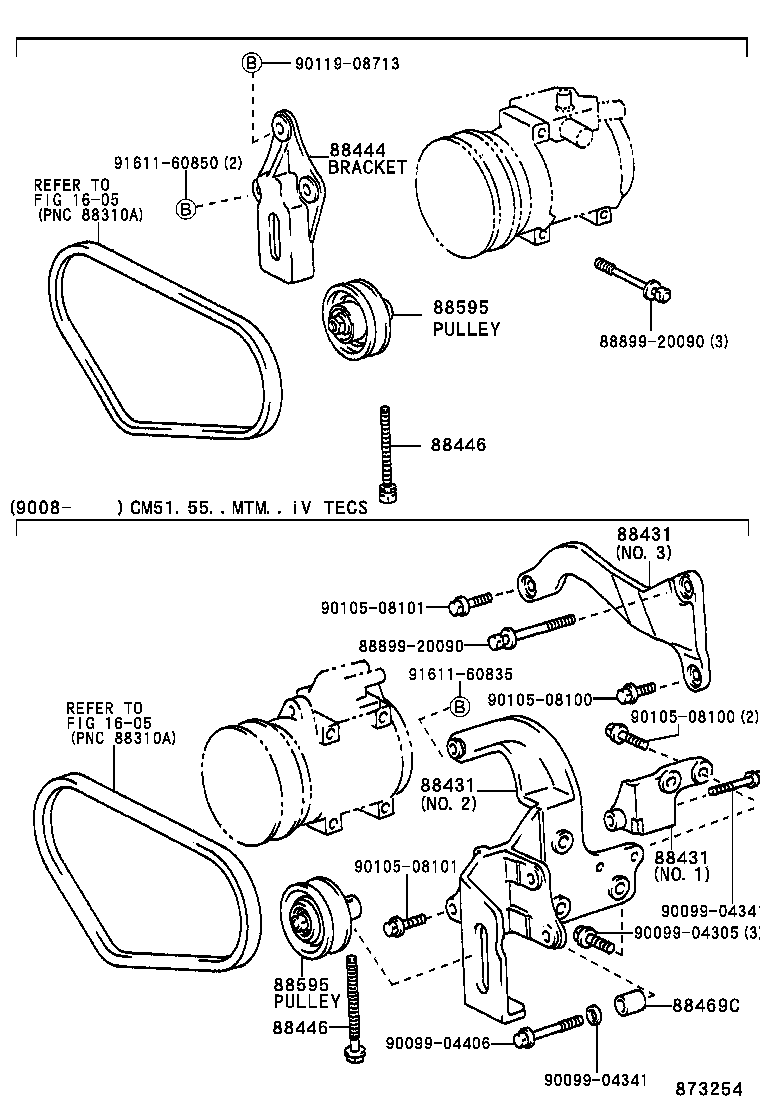

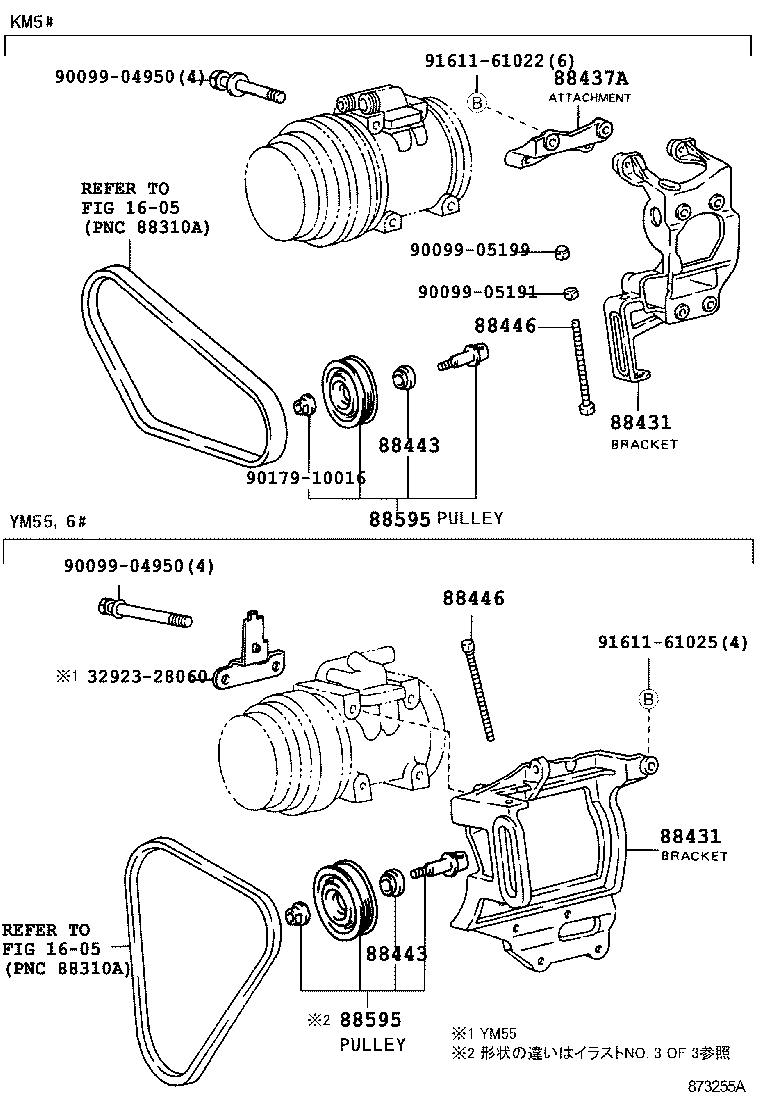

Figure 873980 873980 1986-10 → — Figure 873981 873981 1990-08 → 1996-11 Figure 873981 873981 1996-11 → — Figure 873253A 873253A 1986-10 → 1996-11 Figure 873255A 873255A 1996-11 → — Figure 873254 873254 1986-10 → 1993-10 Figure 873863A 873863A 1993-10 → 1996-11 Figure 873256C 873256C 1996-11 → — Figure 87A550 87A550 1993-10 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330 Clutch Assy, Magnet
88330A Washer (FOR MAGNET CLUTCH)
88330B Bearing, Magnet Clutch
88330C Ring, Snap (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88431 Bracket, Compressor Mounting, NO.1
88437A Attachment, Compressor
88443 Collar, Idle Pulley
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88469C Spacer
88595 Pulley, Cooler Compressor Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
