Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 2 illustrations

Illustrations

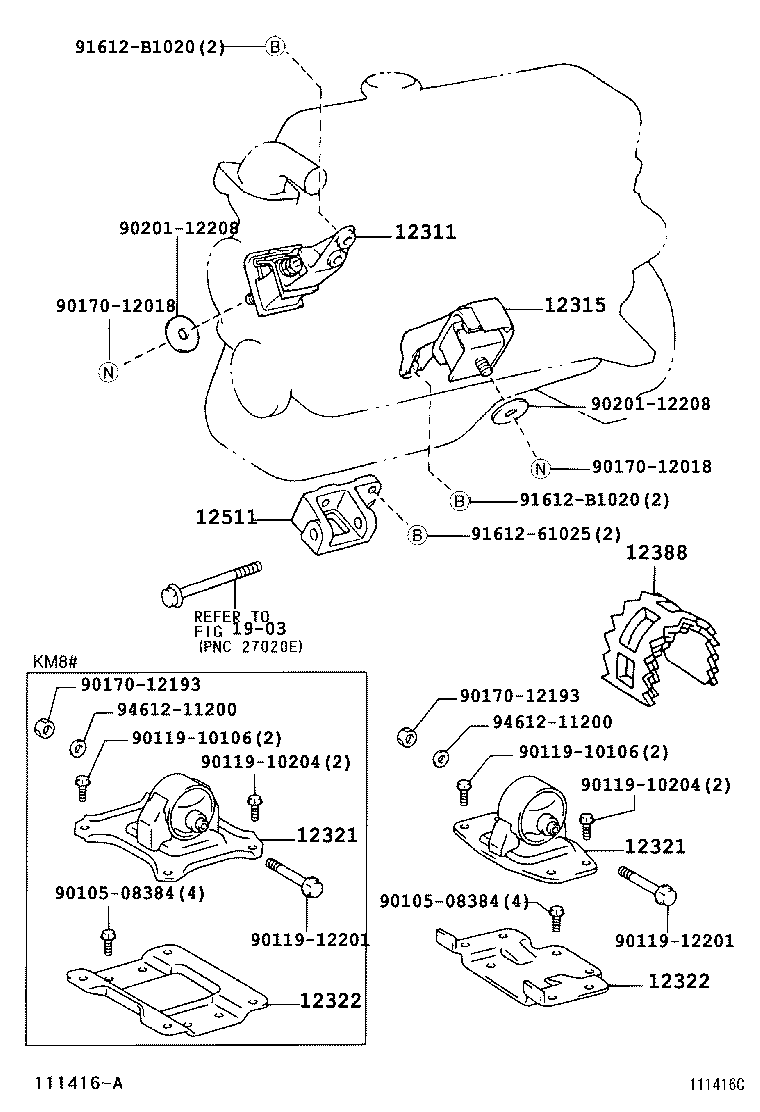

Figure 111425D 111425D 1999-06 → — Figure 111416C 111416C 1999-06 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12361 Insulator, Engine Mounting, Front
12361D Bracket, Engine Cover
12381 Stabilizer, Engine Mounting
12388 Stopper, Engine Mounting Bracket, Rear
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
