Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

19 part groups · 3 illustrations

Illustrations

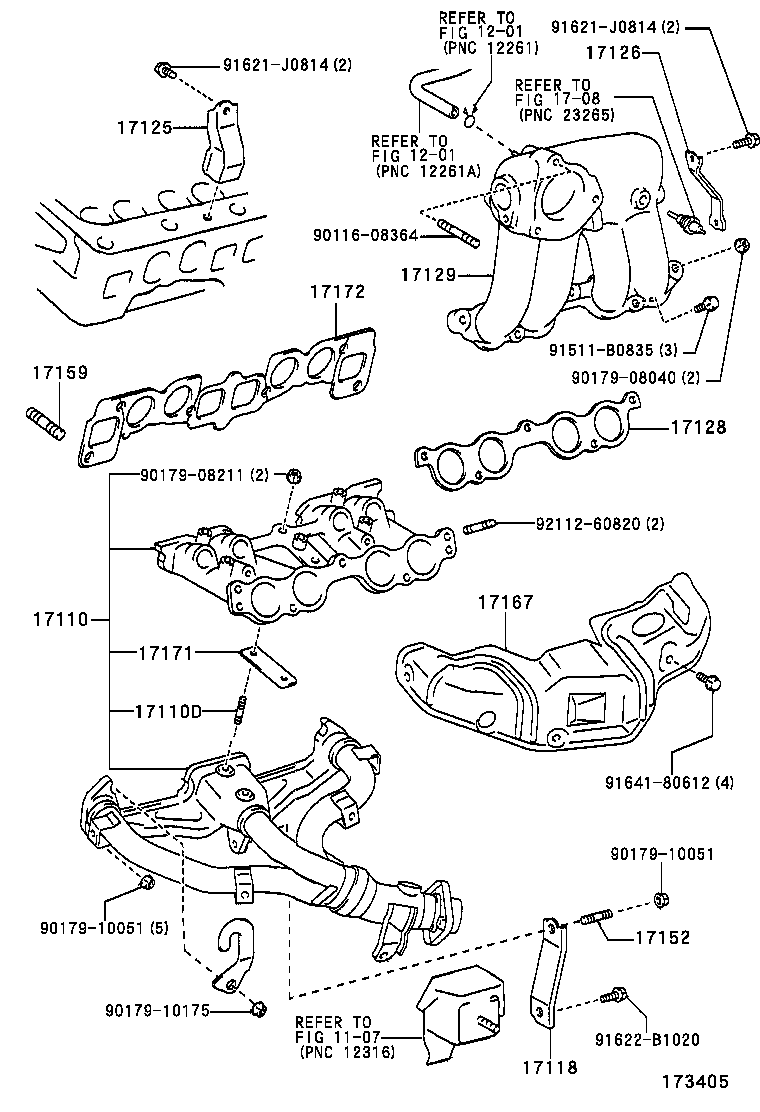

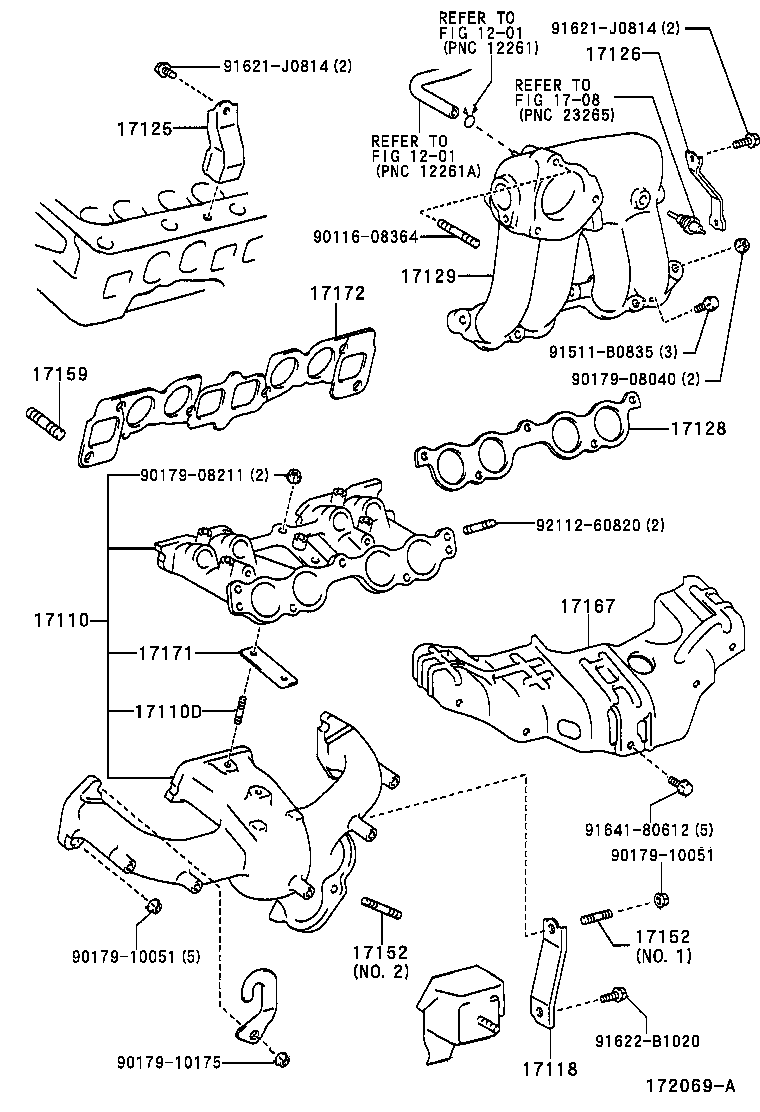

Figure 172085B 172085B 1999-06 → — Figure 172069A 172069A 1999-06 → 2002-08 Figure 173405 173405 2002-08 → —

Part groups

PNCDescription
17110 Manifold Assy
17110D Bolt(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
17111 Manifold, Intake
17114A Flange, Intake
17118 Stay, Manifold
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17128 Gasket, Surge Tank
17129 Tank, Intake Air Surge
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
