Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

14 part groups · 4 illustrations

Illustrations

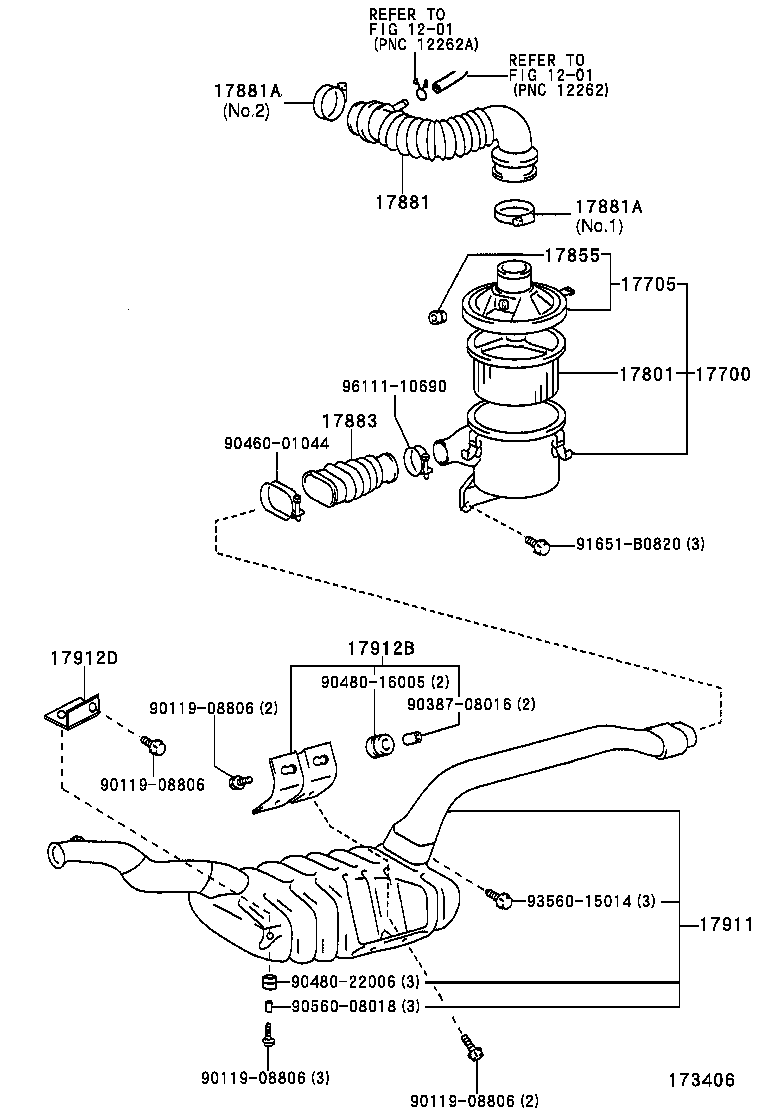

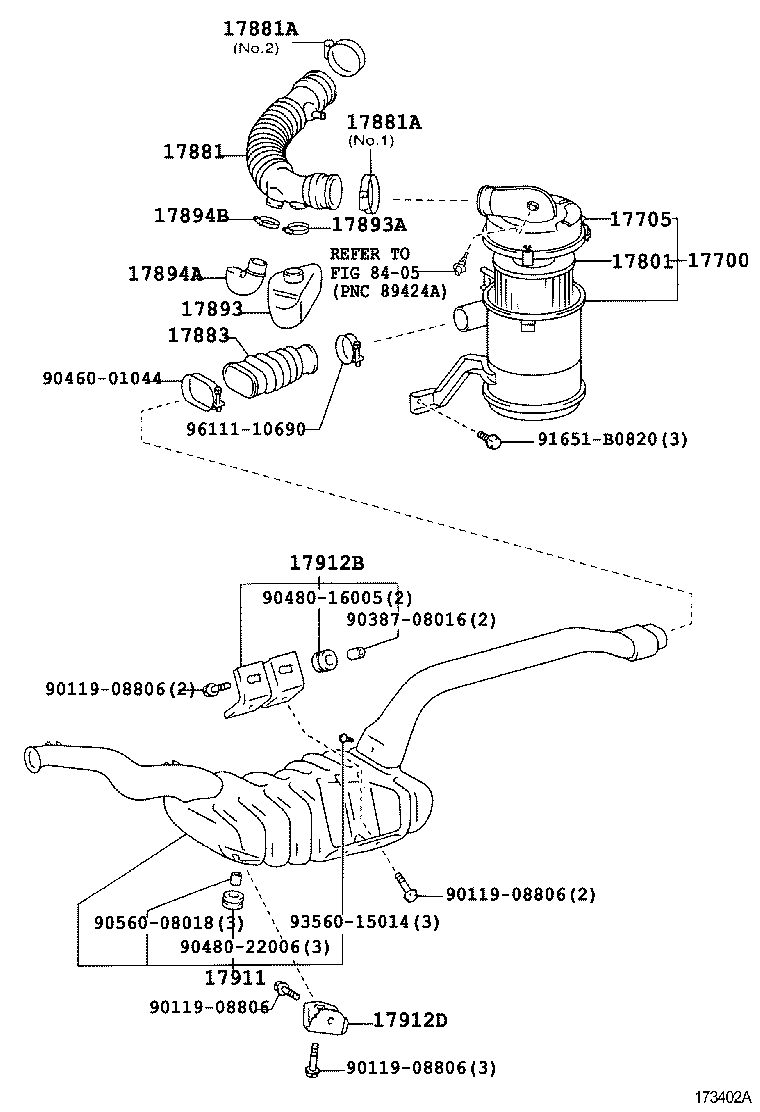

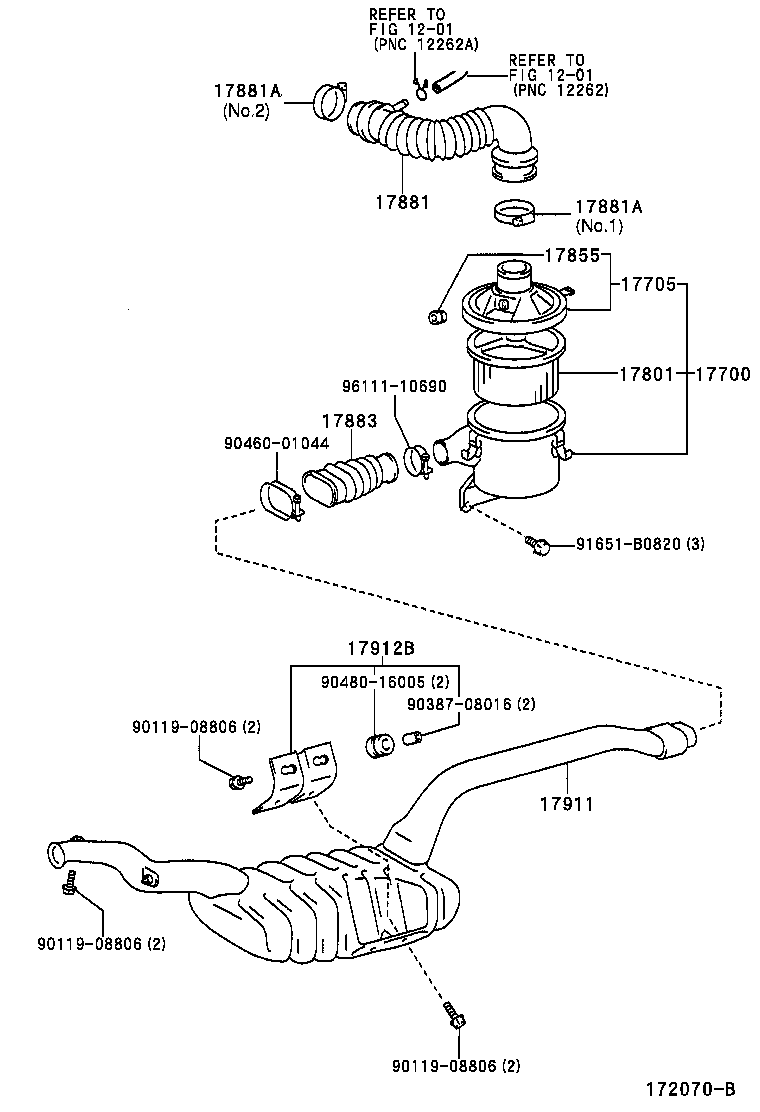

Figure 172096C 172096C 1999-06 → 2002-08 Figure 173402A 173402A 2002-08 → — Figure 172070B 172070B 1999-06 → 2002-08 Figure 173406 173406 2002-08 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17855 Gasket, Air Inlet Duct, NO.1
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17883 Hose, Air Cleaner, NO.3
17893 Resonator, Intake Air
17893A Clamp, Hose
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
17911 Duct, Cool Air Intake, NO.1
17912B Bracket, Cool Air Intake Duct, NO.2
17912D Bracket, Cool Air Intake Duct, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
