Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

9 part groups · 4 illustrations

Illustrations

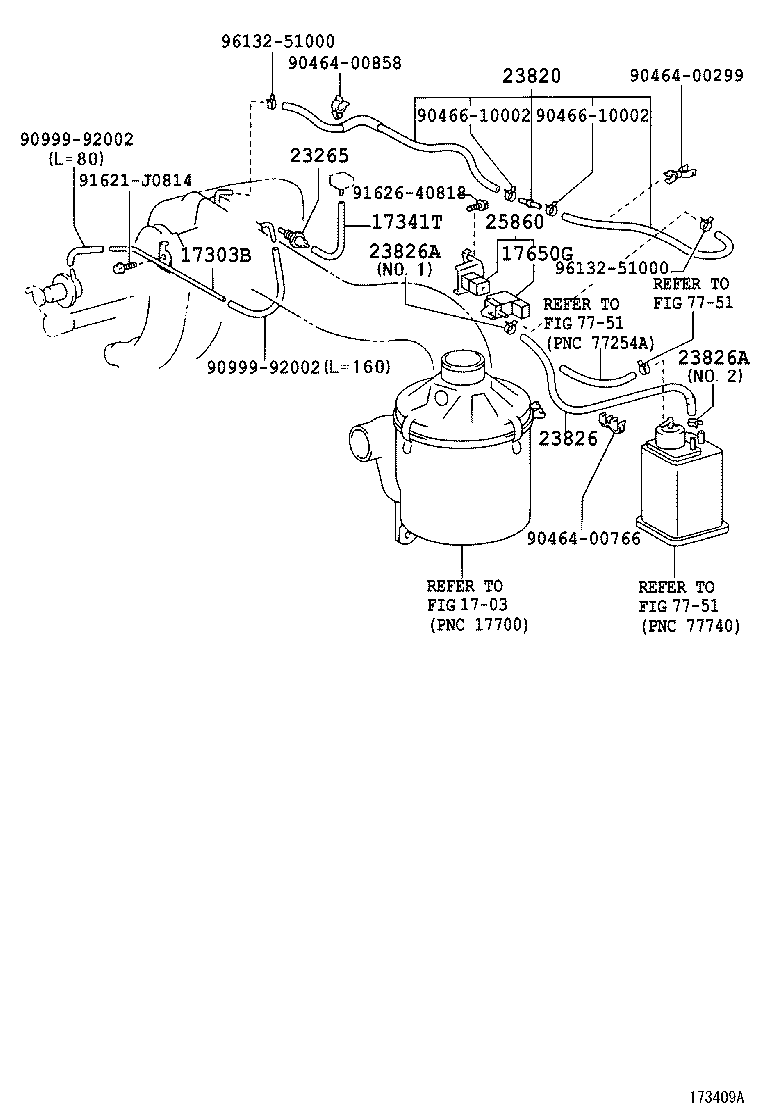

Figure 170020 170020 1999-06 → — Figure 172099B 172099B 1999-06 → — Figure 172084B 172084B 1999-06 → 2002-08 Figure 173409A 173409A 2002-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341T Hose, Air, NO.1
17650G Valve, Duty Vacuum Switching
23265 Filter, Gas, NO.1
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
25770 Hose Assy, Vacuum Transmitting, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
