Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

14 part groups · 3 illustrations

Illustrations

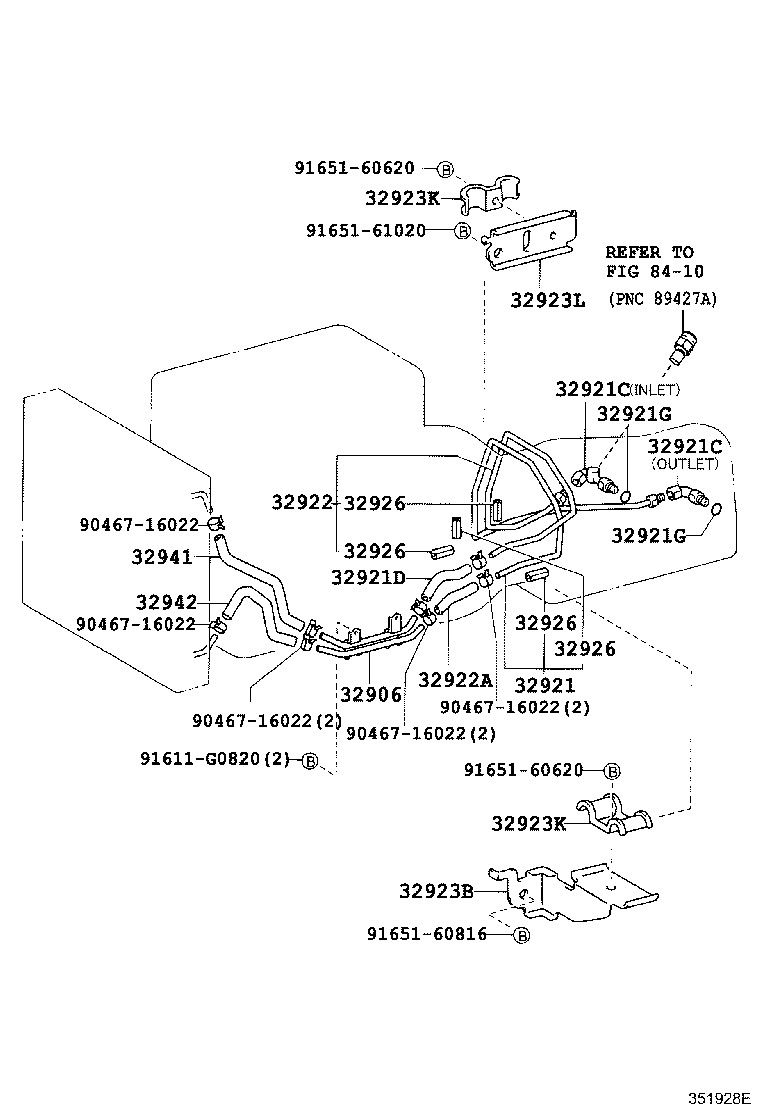

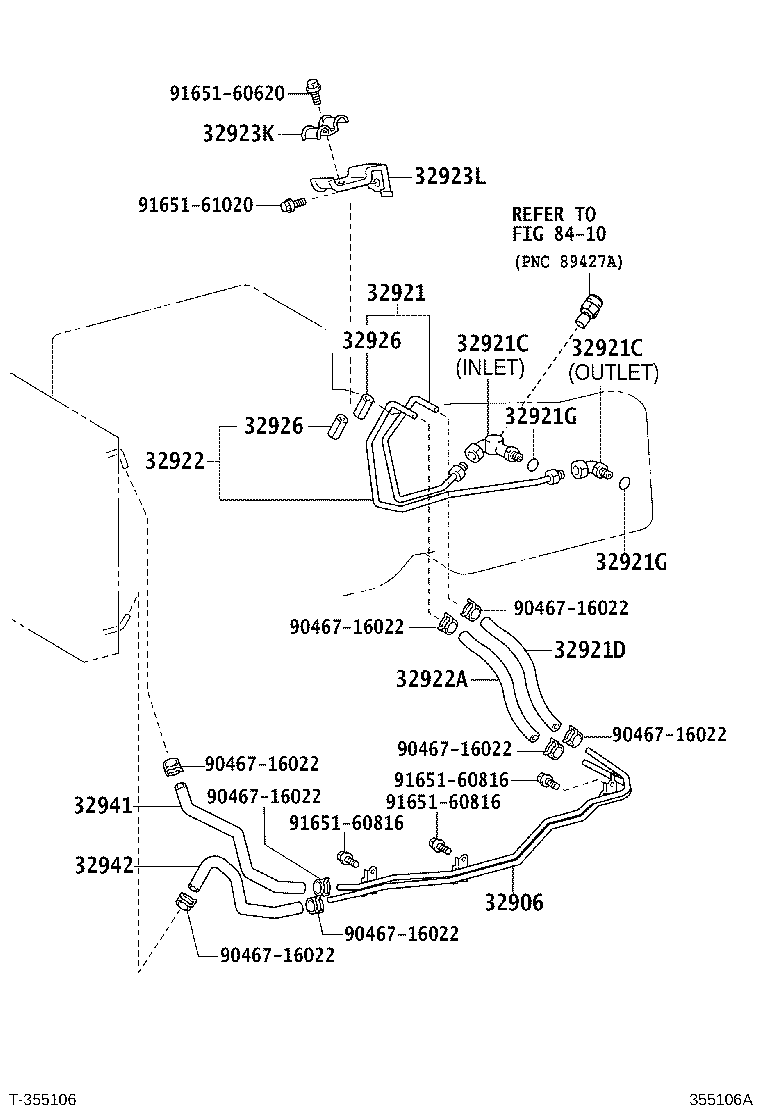

Figure 351927D 351927D 1999-06 → — Figure 351928E 351928E 1999-06 → — Figure 355106A 355106A 2005-02 → —

Part groups

PNCDescription
32906 Tube Sub-assy, Oil Cooler
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32923B Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32923K Clamp, Automatic Transmission Oil Cooler Tube, NO.2
32923L Clamp, Automatic Transmission Oil Cooler Tube, NO.3
32926 Cushion, Oil Cooler Tube(ATM)
32928 Clamp, Flexible Hose, NO.1
32941 Hose, Oil Cooler Inlet, NO.1
32942 Hose, Oil Cooler Outlet, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
