Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

13 part groups · 4 illustrations

Illustrations

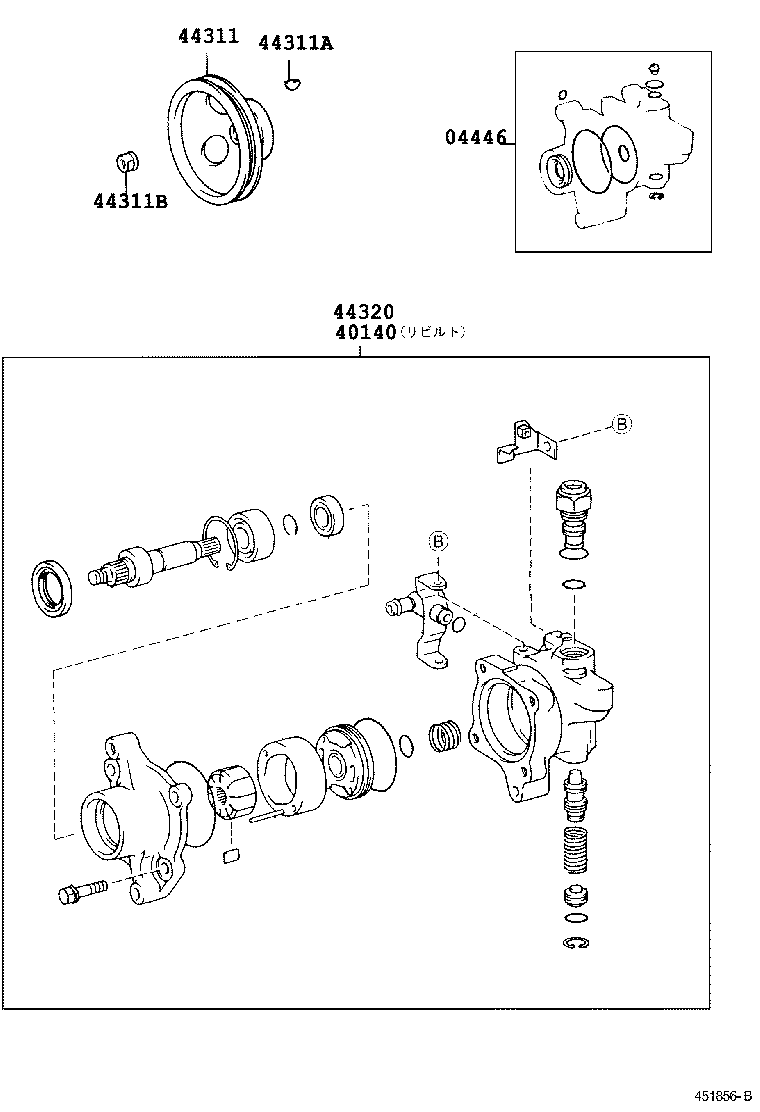

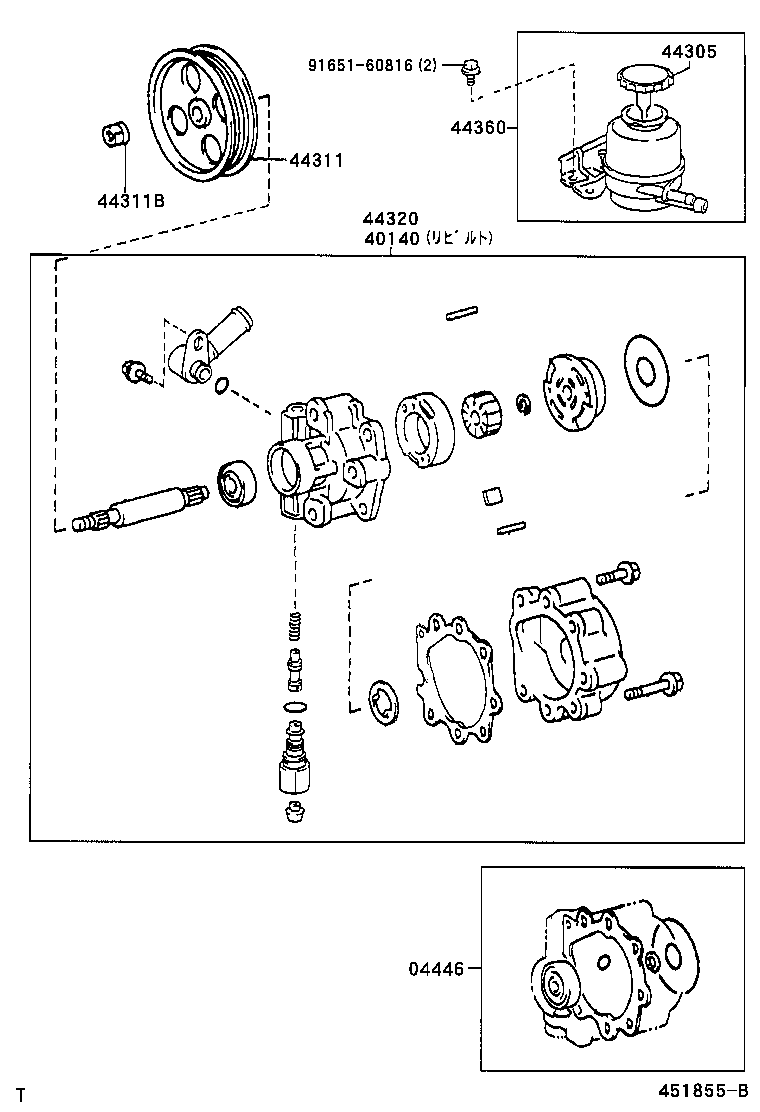

Figure 451854D 451854D 1999-06 → — Figure 451855B 451855B 1999-06 → — Figure 451856B 451856B 1999-06 → — Figure 451853A 451853A 1999-06 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
40140 Pump Assy,Vane Rebuilt
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44311 Pulley, Vane Pump
44311A Key, Vane Pump Pulley
44311B Nut(FOR VANE PUMP PULLEY)
44320 Pump Assy, Vane
44360 Reservoir Assy, Vane Pump Oil
44365 Packing, Oil Reserver Bracket
44369A Bracket, Oil Reservoir, NO.1
44379A Bracket, Oil Reservoir, NO.2
44388 Retainer, Oil Reserver Bracket
44399 Cover, Vane Pump Oil Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
