Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

23 part groups · 5 illustrations

Illustrations

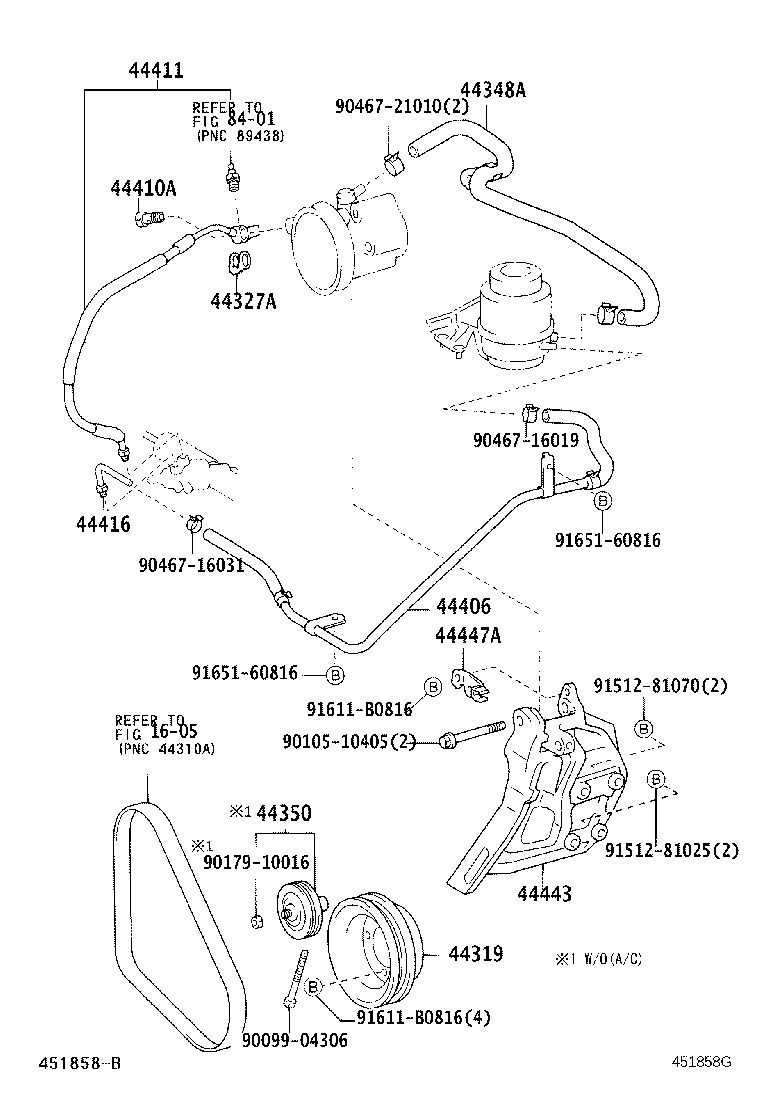

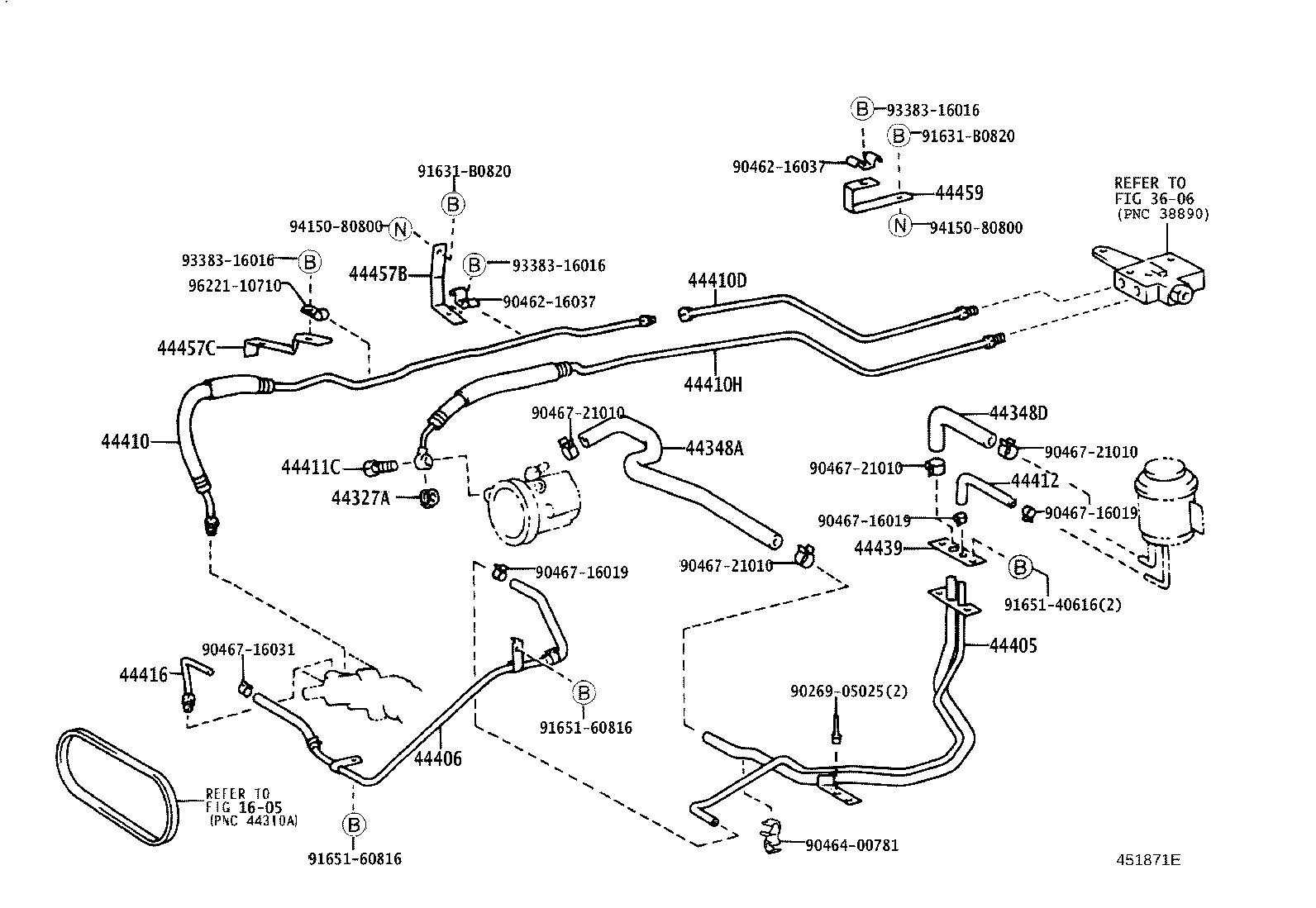

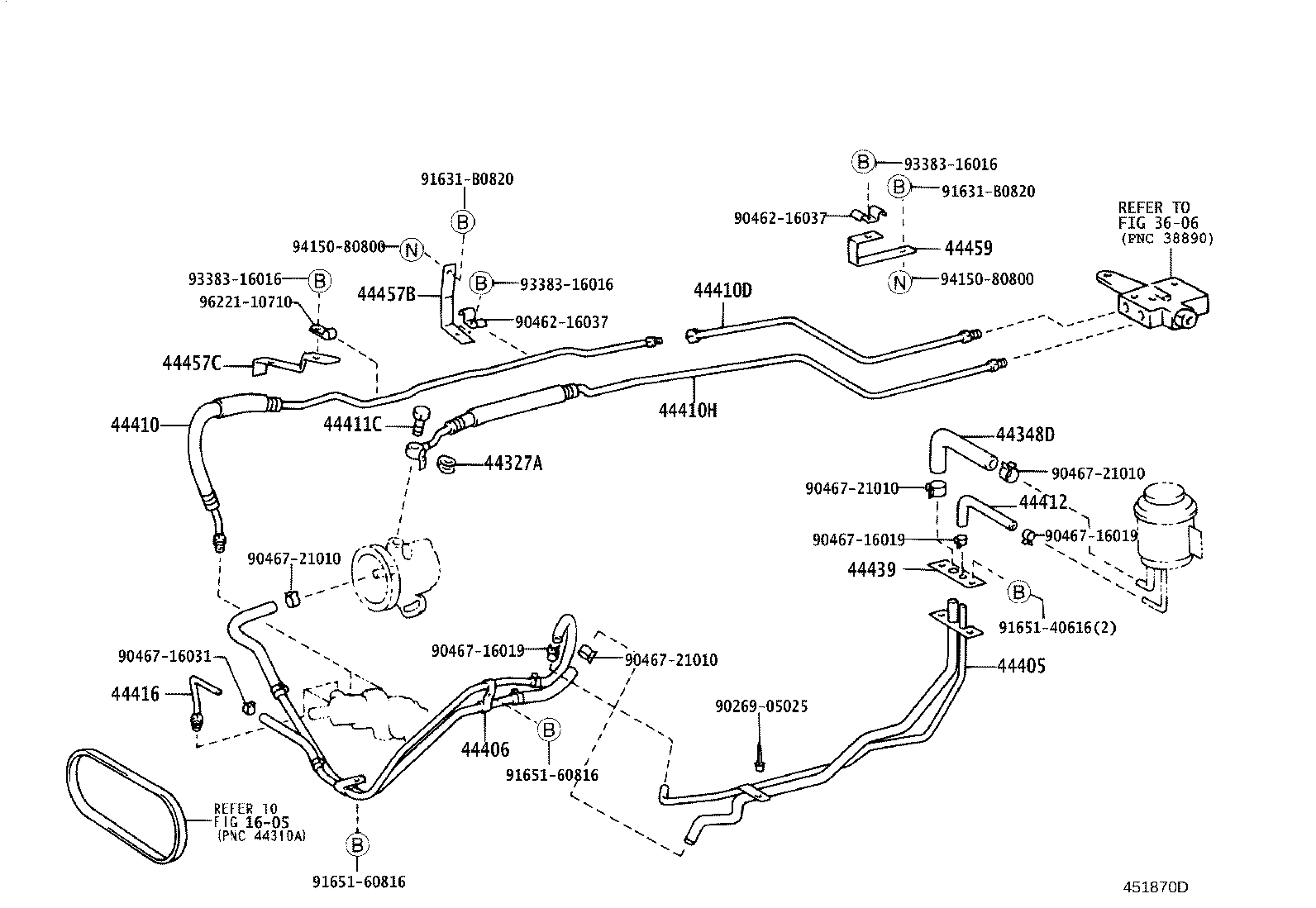

Figure 451857C 451857C 1999-06 → — Figure 451858G 451858G 1999-06 → — Figure 451859A 451859A 1999-06 → — Figure 451870D 451870D 1999-06 → — Figure 451871E 451871E 1999-06 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44348D Hose, Oil Reservoir TO Pump, NO.2
44350 Pulley Assy, Power Steering Idle
44350A Bolt(FOR POWER STEERING IDLE PULLEY)
44381 Bracket, Power Steering Idle Pulley
44405 Tube Sub-assy, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410D Tube Assy, Pressure Feed, NO.2
44410H Tube Assy, Pressure Feed, NO.3
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44439 Packing, Oil Reservoir TO Pump Tube
44443 Bracket, Pump
44447A Bracket, Hose Support, NO.1
44457B Bracket, Power Steering Tube Support, NO.2
44457C Bracket, Power Steering Tube Support, NO.1
44459 Bracket, Tube Support, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
