Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

13 part groups · 5 illustrations

Illustrations

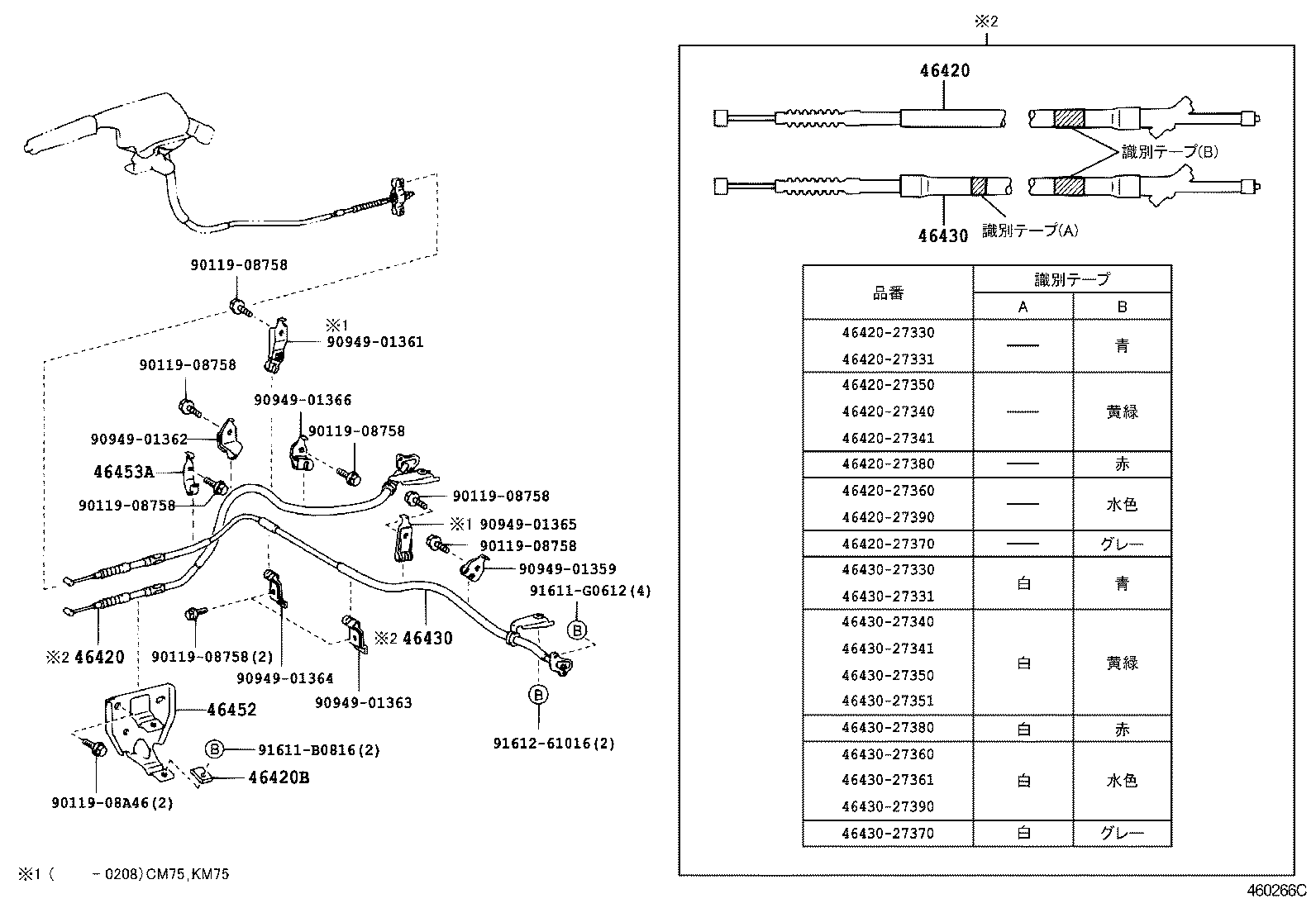

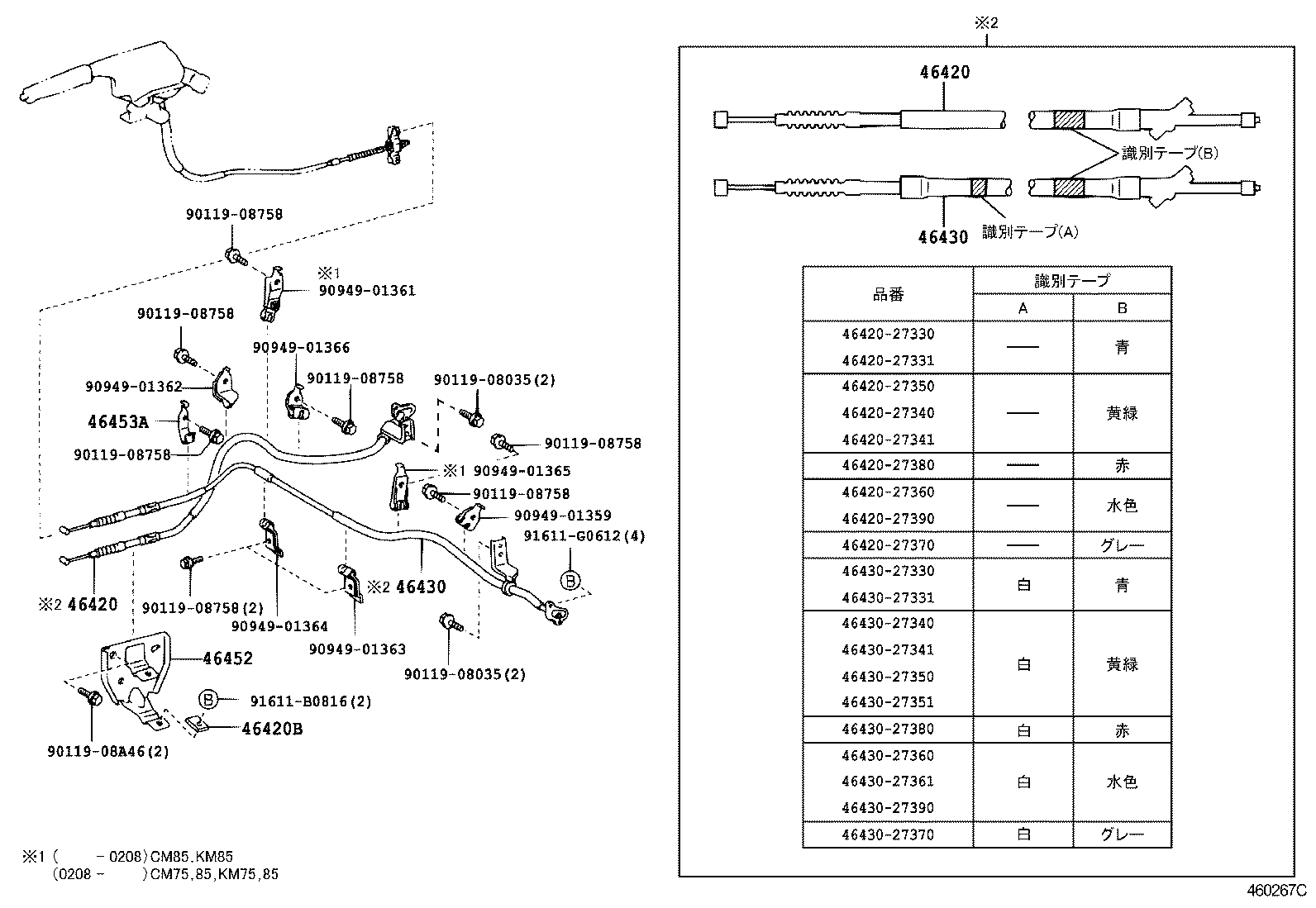

Figure 460268C 460268C 1999-06 → — Figure 460266C 460266C 1999-06 → 2002-08 Figure 460266C 460266C 2002-08 → — Figure 460267C 460267C 1999-06 → 2002-08 Figure 460267C 460267C 2002-08 → —

Part groups

PNCDescription
46201E Lever Sub-assy, Parking Brake
46217 Knob, Parking Brake Release Rod
46225A Spring, Compression(FOR PARKING BRAKE PAWL ROD)
46304 Equalizer Sub-assy, Parking Brake
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46451 Bracket, Cable Support
46452 Bracket, Parking Brake Cable Support, NO.2
46453A Bracket, Cable Support, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
