Toyota Lite/Townace
1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan
Discontinued model
Data version 2008-04

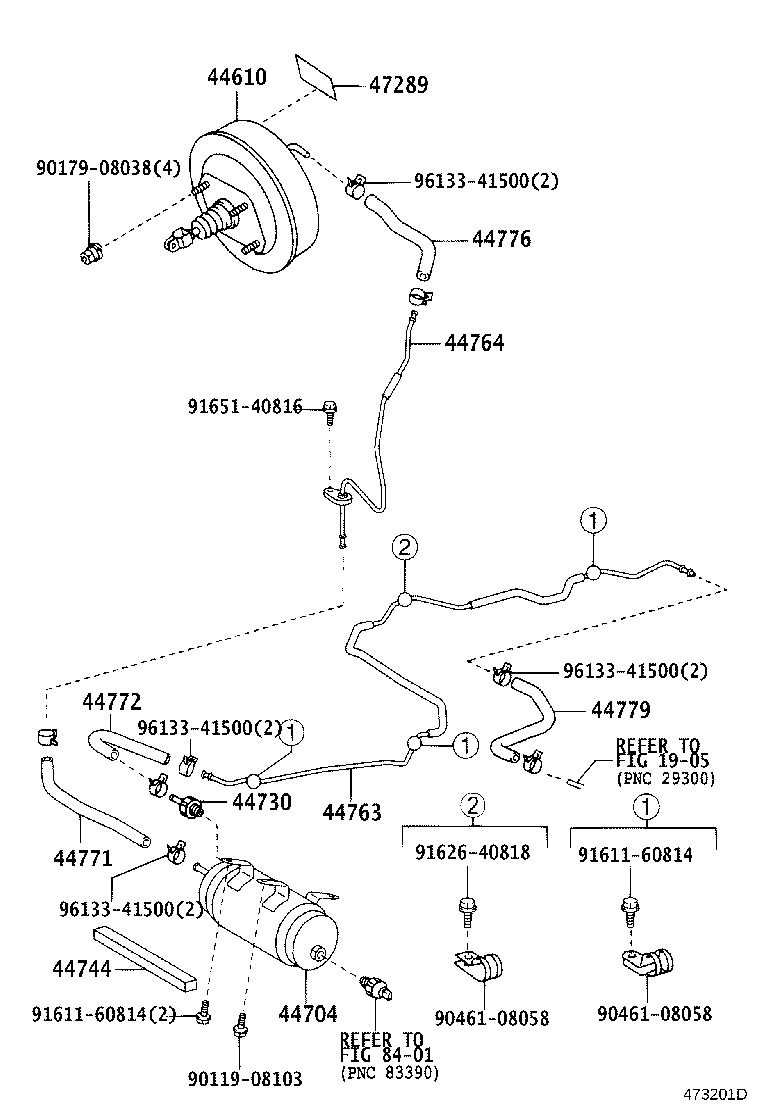

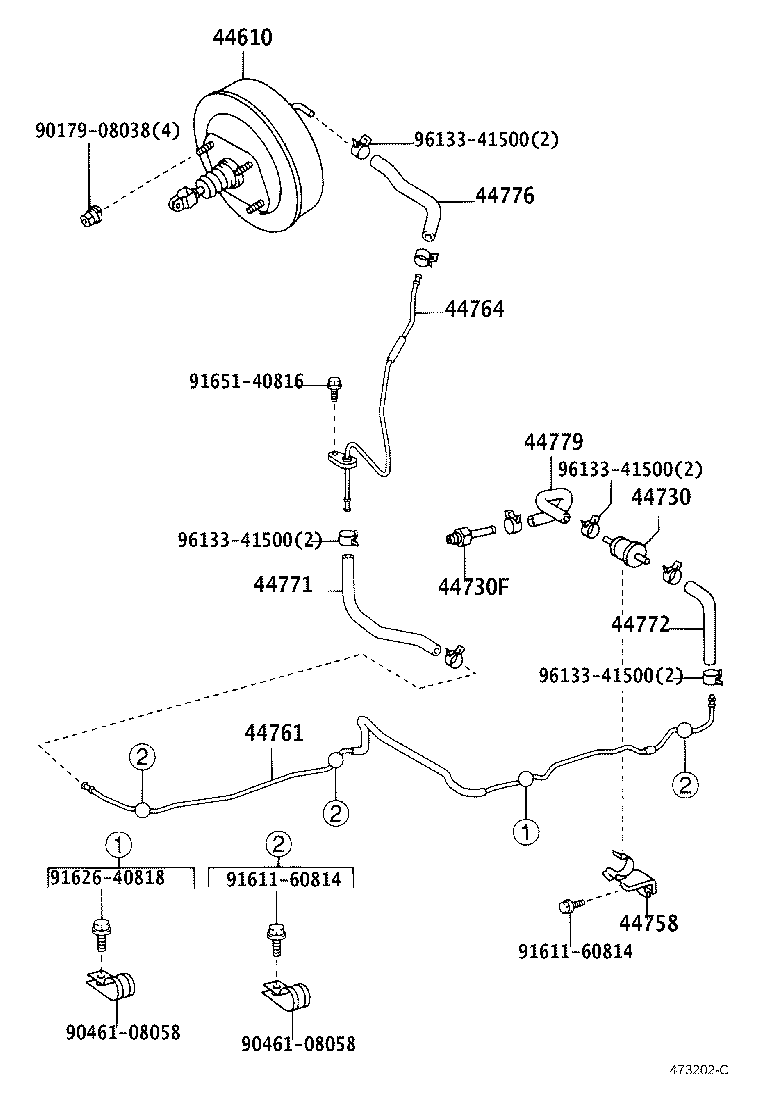

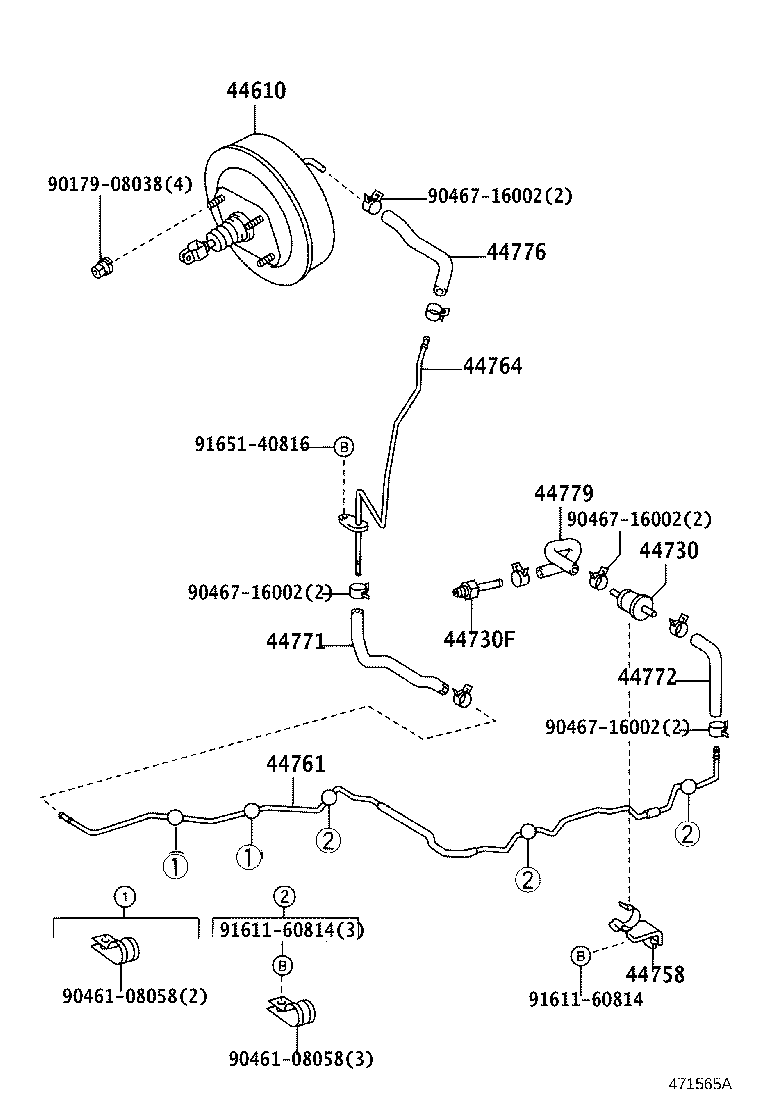

Brake Booster & Vacuum Tube
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44744 | Protector, Vacuum Tank |
| 44758 | Bracket, Vacuum Check Valve |
| 44761 | Tube, Intake Manifold OR Vacuum Pump TO Connector |
| 44763 | Tube, Booster Vacuum |
| 44764 | Tube, Booster Vacuum |
| 44771 | Hose, Vacuum Tube Connector |
| 44772 | Hose, Check Valve TO Connector Tube |
| 44776 | Hose, Brake Booster |
| 44779 | Hose, Union TO Connector |
| 47289 | Label, Brake Master Cylinder Adjust Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
