Toyota Lite/Townace
1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan
Discontinued model
Data version 2008-04

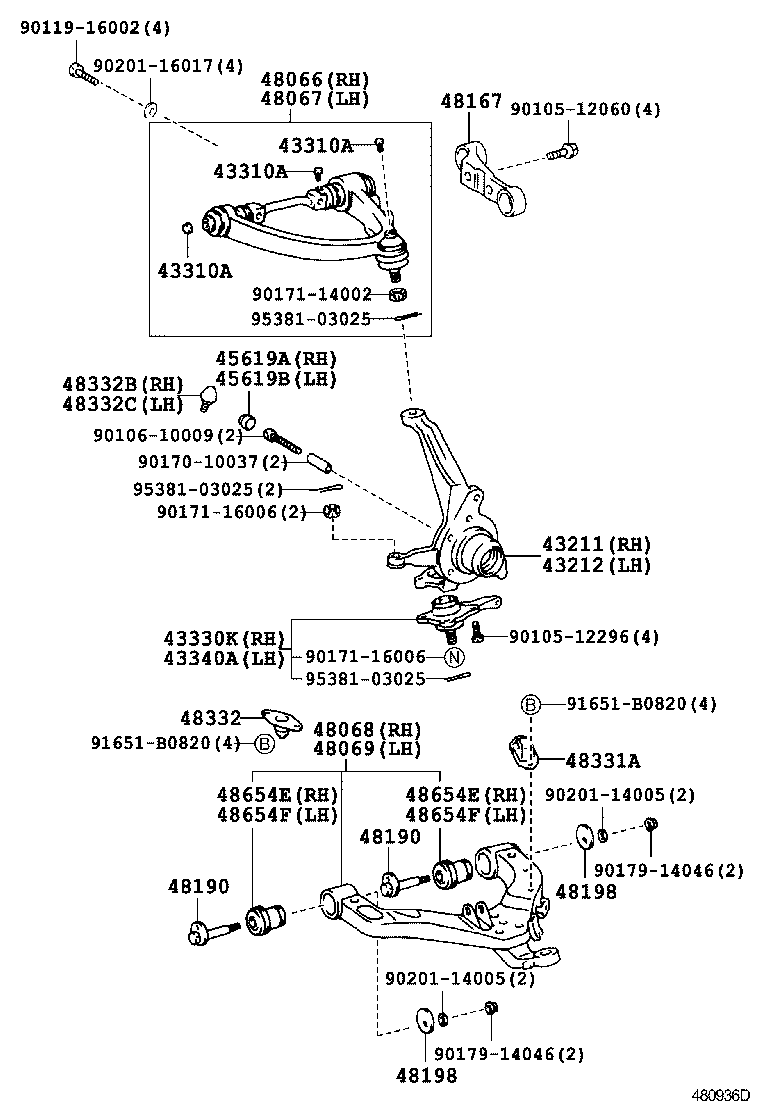

Front Axle Arm & Steering Knuckle
33 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04485A | Shaft Kit, Front Suspension Upper Arm, RH |
| 04485B | Shaft Kit, Front Suspension Upper Arm, LH |
| 43211 | Knuckle, Steering, RH |
| 43212 | Knuckle, Steering, LH |
| 43310A | Plug (FOR BALL JOINT) |
| 43330K | Joint Assy, Lower Ball, Front RH |
| 43340A | Joint Assy, Lower Ball, Front LH |
| 43346 | Protector, Lower Ball Joint Dust Cover |
| 43350 | Joint Assy, Front Upper Ball, RH |
| 43355C | Deflector, Lower Arm Ice, RH NO.1 |
| 43356A | Deflector, Lower Arm Ice, LH NO.1 |
| 43360 | Joint Assy, Front Upper Ball, LH |
| 45619A | Cover, Steering Knuckle Stopper, RH |
| 45619B | Cover, Steering Knuckle Stopper, LH |
| 48066 | Arm Sub-assy, Front Suspension, Upper RH |
| 48067 | Arm Sub-assy, Front Suspension, Upper LH |
| 48068 | Arm Sub-assy, Front Suspension, Lower NO.1 RH |
| 48069 | Arm Sub-assy, Front Suspension, Lower NO.1 LH |
| 48167 | Arm, Torque |
| 48167A | Bolt(FOR TORQUE ARM SETTING) |
| 48167B | Tube(FOR TORQUE ARM SETTING BOLT) |
| 48190 | Cam Assy, Camber Adjust |
| 48198 | Cam, Camber Adjust, NO.2 |
| 48331A | Bumper, Front Spring, NO.1 |
| 48332 | Bumper, Front Spring, NO.2 |
| 48332B | Bumper, Front Spring, NO.2 RH |
| 48332C | Bumper, Front Spring, NO.2 LH |
| 48610 | Arm Assy, Front Suspension Upper, RH |
| 48630 | Arm Assy, Front Suspension, Upper LH |
| 48632A | Bush, Front Suspension Upper Arm, RH |
| 48632B | Bush, Front Suspension Upper Arm, LH |
| 48654E | Bush, Front Lower Arm, NO.1 RH |
| 48654F | Bush, Front Lower Arm, NO.1 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
