Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

33 part groups · 5 illustrations

Illustrations

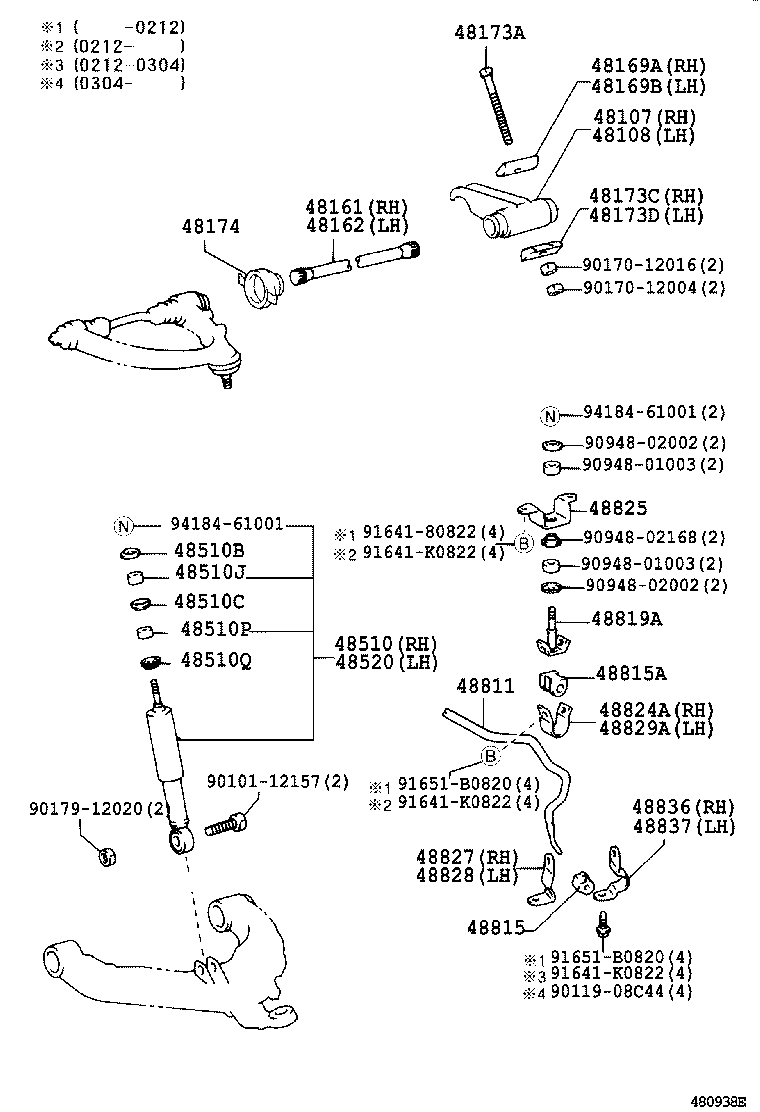

Figure 480937D 480937D 1999-06 → 2002-08 Figure 480937D 480937D 2002-08 → — Figure 480938E 480938E 1999-06 → 2002-08 Figure 480938E 480938E 2002-08 → — Figure 480938E 480938E 2005-01 → —

Part groups

PNCDescription
48107 Arm Sub-assy, Anchor, RH
48108 Arm Sub-assy, Anchor, LH
48161 Spring, Torsion Bar, RH
48162 Spring, Torsion Bar, LH
48169A Swivel, Anchor Arm, RH
48169B Swivel, Anchor Arm, LH
48173A Bolt, Hexagon(FOR ANCHOR ARM ADJUSTING)
48173C Seat, Anchor Arm Adjuster, RH
48173D Seat, Anchor Arm Adjuster, LH
48174 Cover, Torsion Bar Dust
48510 Absorber Assy, Shock, Front RH
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48510J Cushion, Front Shock Absorber, NO.1
48510P Cushion, Front Shock Absorber, NO.2
48510Q Retainer, Cushion, NO.3(FOR FRONT SHOCK ABSORBER)
48520 Absorber Assy, Shock, Front LH
48660 Bar Assy, Strut, RH
48670 Bar Assy, Strut, LH
48674 Cushion, Strut Bar
48674A Retainer, Cushion(FOR STRUT BAR CUSHION)
48674B Collar(FOR STRUT BAR CUSHION)
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48815A Bush, Front Stabilizer Bar, NO.2
48819A Bolt, Front Stabilizer
48824A Bracket, Front Stabilizer, NO.1 RH
48825 Bracket, Stabilizer, NO.2
48827 Bracket, Front Stabilizer, NO.2 RH
48828 Bracket, Front Stabilizer, NO.2 LH
48829A Bracket, Front Stabilizer, NO.1 LH
48836 Bracket, Front Stabilizer End, RH
48837 Bracket, Front Stabilizer End, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
