Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

12 part groups · 3 illustrations

Illustrations

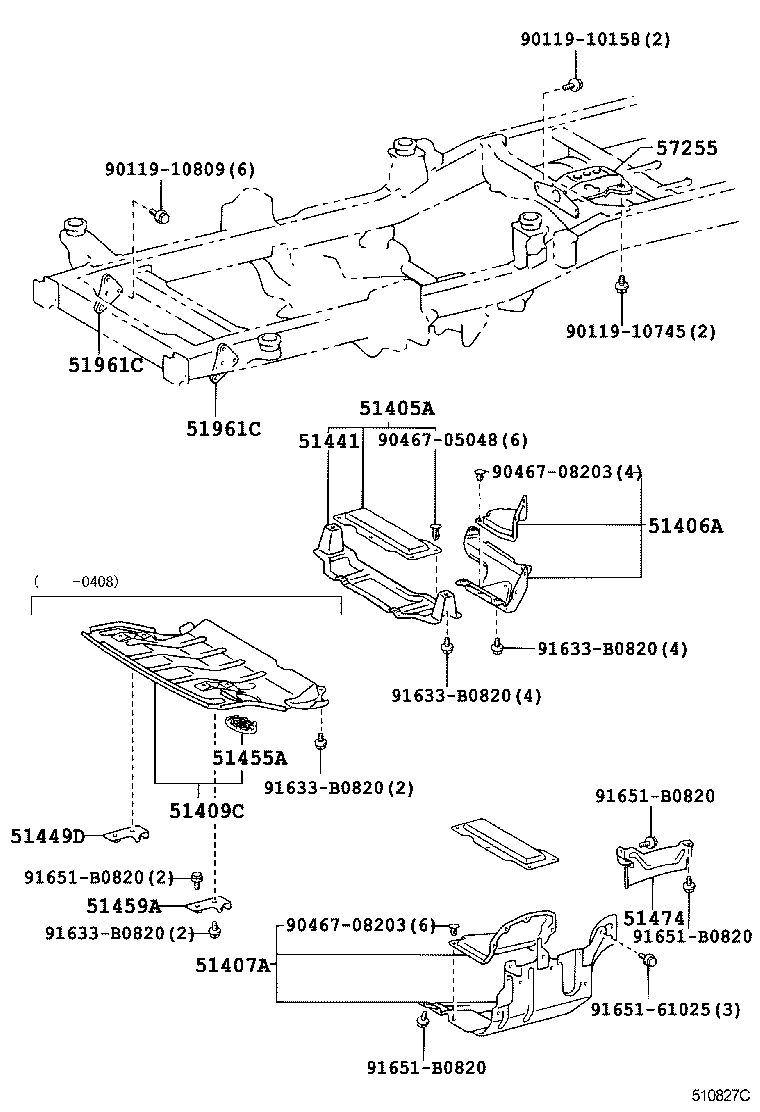

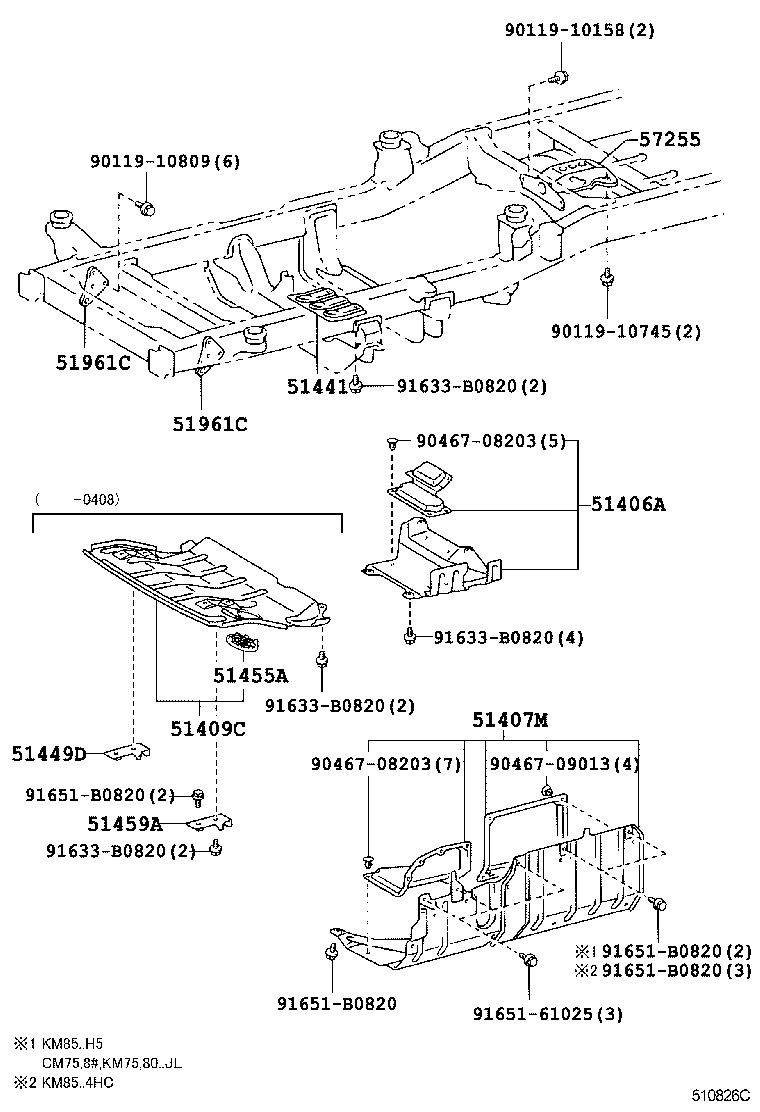

Figure 510484 510484 1999-06 → 2002-08 Figure 510826C 510826C 2002-08 → — Figure 510827C 510827C 2002-08 → —

Part groups

PNCDescription
51405A Cover Sub-assy, Engine Under, NO.1
51406A Cover Sub-assy, Engine Under, NO.2
51407A Cover Sub-assy, Engine Under, NO.3
51407M Cover Sub-assy, Engine Side Under, LH
51409C Guide, Engine Under Air
51441 Cover, Engine Under, NO.1
51449D Bracket, Engine Under Cover Air Guide, RH
51455A Seal, Engine Under Cover, NO.1
51459A Bracket Engine Under Cover Air Guide, LH
51474 Cover Sub-assy, Engine Side, LH
51961C Hook, Front
57255 Member, Engine Rear Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
