Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

3 part groups · 2 illustrations

Illustrations

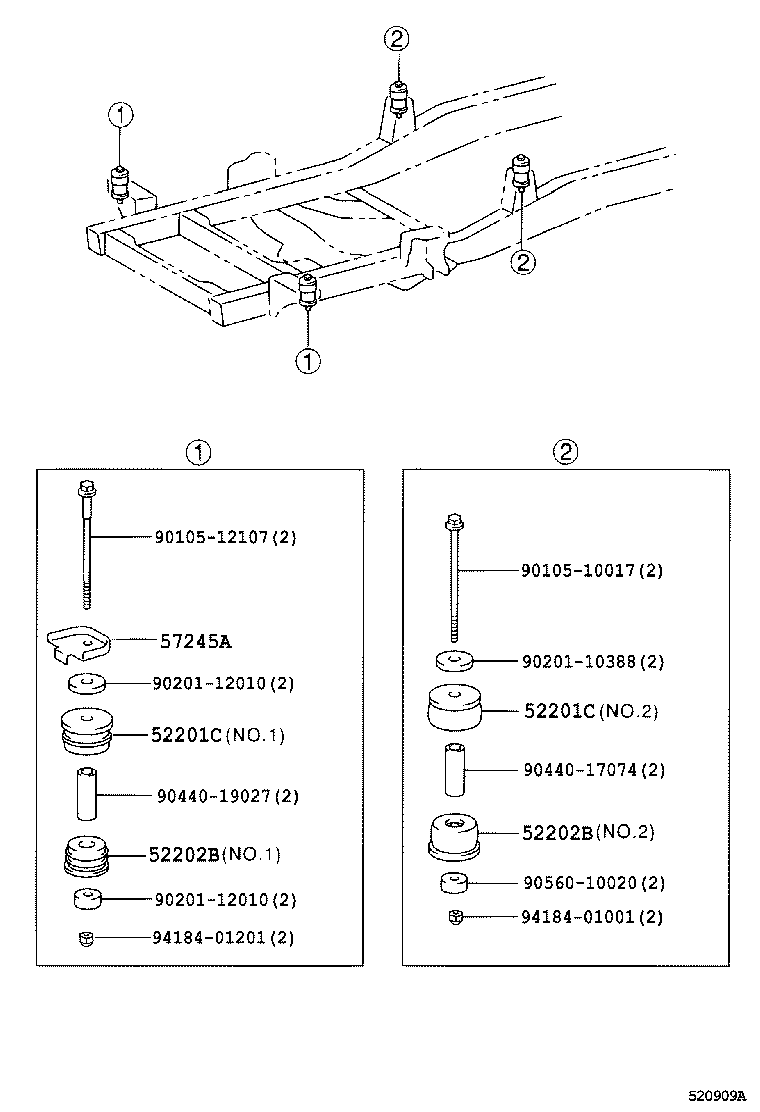

Figure 520513 520513 1999-06 → 2002-08 Figure 520909A 520909A 2002-08 → —

Part groups

PNCDescription
52201C Cushiion Sub-assy, Cab Mounting, NO.1 Upper
52202B Cushiion Sub-assy, Cab Mounting, NO.1 Lower
57245A Plate, Anchor Side Strength
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
