Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

19 part groups · 2 illustrations

Illustrations

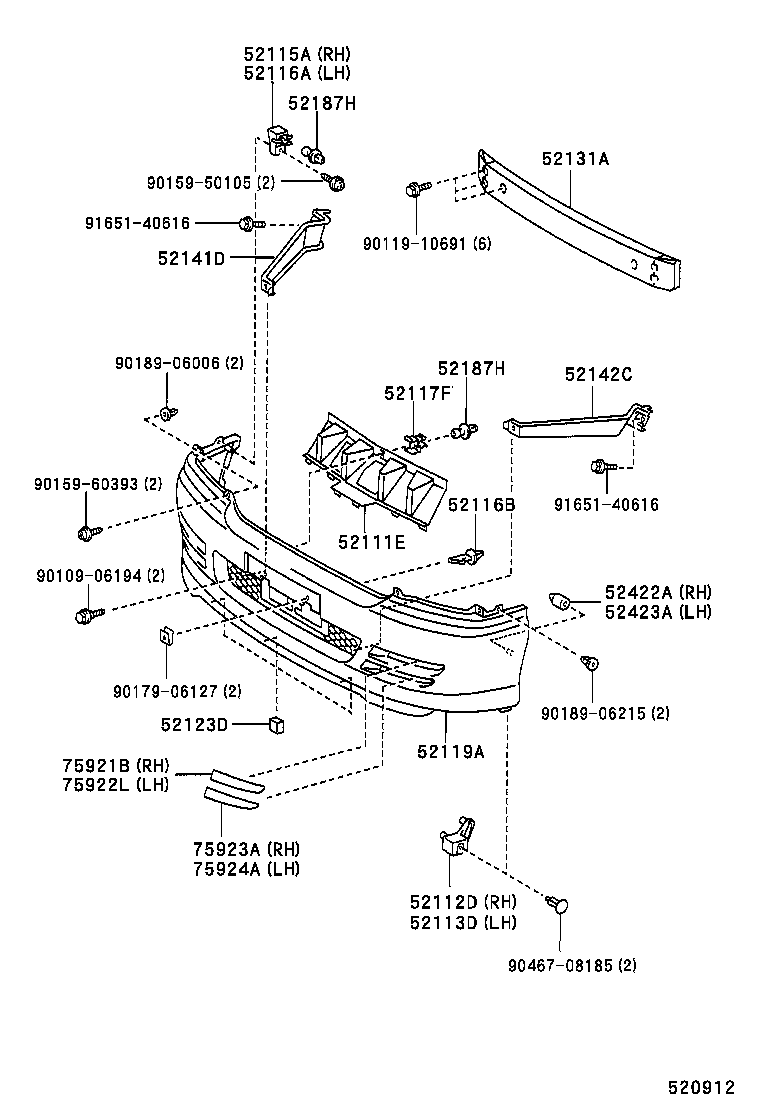

Figure 520514A 520514A 1999-06 → 2002-08 Figure 520912 520912 2002-08 → —

Part groups

PNCDescription
52111E Bar, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52116B Retainer, Front Bumper
52117F Support, Front Bumper, Upper
52119A Cover, Front Bumper
52123D Plate, Front Bumper Reinforcement
52131A Reinforcement, Front Bumper
52141D Stay, Front Bumper, RH
52142C Stay, Front Bumper, LH
52187H Guide, Front Bumper Location
52422A Pad, Front Bumper, RH
52423A Pad, Front Bumper, LH
75921B Tape, Black Out, NO.1 RH
75922L Tape, Black Out, NO.1 LH
75923A Tape, Black Out, NO.2 RH
75924A Tape, Black Out, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
