Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

20 part groups · 2 illustrations

Illustrations

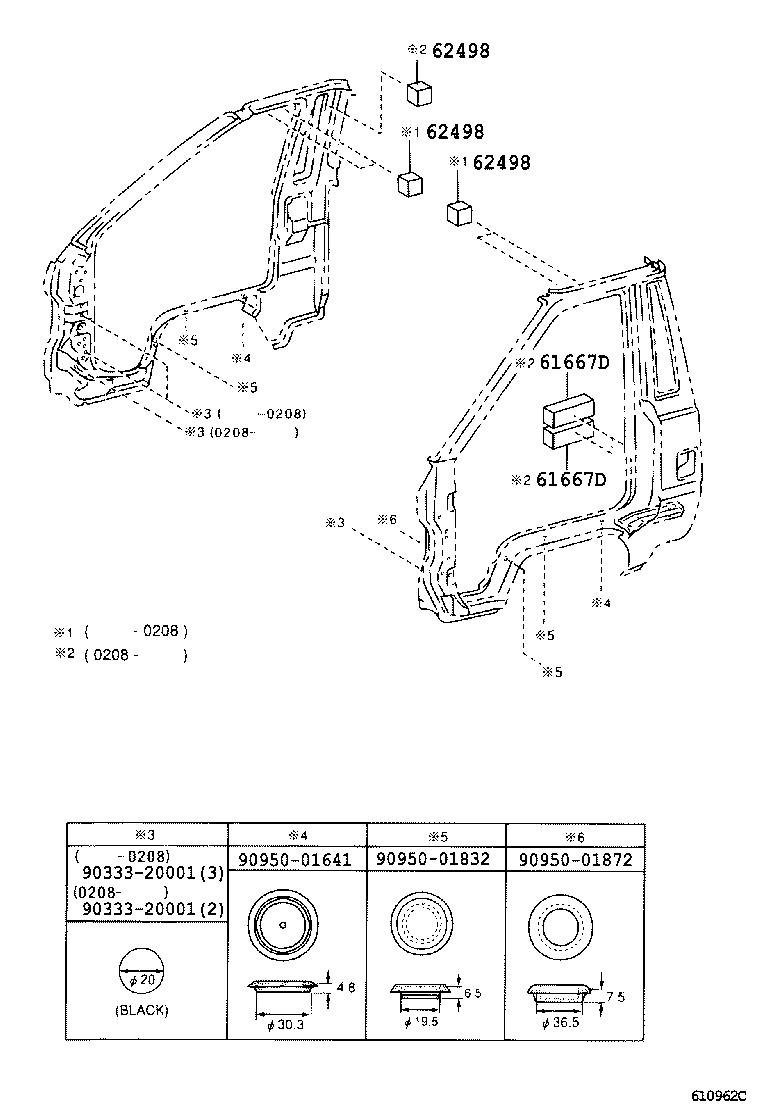

Figure 610961E 610961E 1999-06 → — Figure 610962C 610962C 1999-06 → —

Part groups

PNCDescription
53829A Protector, Front Fender, Lower
61023B Pillar Sub-assy, Front Body, Inner RH
61024B Pillar Sub-assy, Front Body, Inner LH
61027A Pillar Sub-assy, Front Body, Outer RH
61028A Pillar Sub-assy, Front Body, Outer LH
61188B Retainer, Mirror Base, LH
61231 Rail, Roof Side, Inner RH
61232 Rail, Roof Side, Inner LH
61401 Panel Sub-assy, Fender, RH
61402 Panel Sub-assy, Fender, LH
61411D Panel, Fender, Outer RH
61412D Panel, Fender, Outer LH
61421A Panel, Fender, Inner RH
61422A Panel, Fender, Inner LH
61667D Seal, Quarter Panel
61995 Dam, Front Body Pillar, Outer
62498 Seal, Roof Side, Inner Rear
64163A Cover, Back Corner, Inner
67841C Cover, Quarter Service Hole, RH
67842C Cover, Quarter Service Hole, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
