Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

45 part groups · 12 illustrations

Illustrations

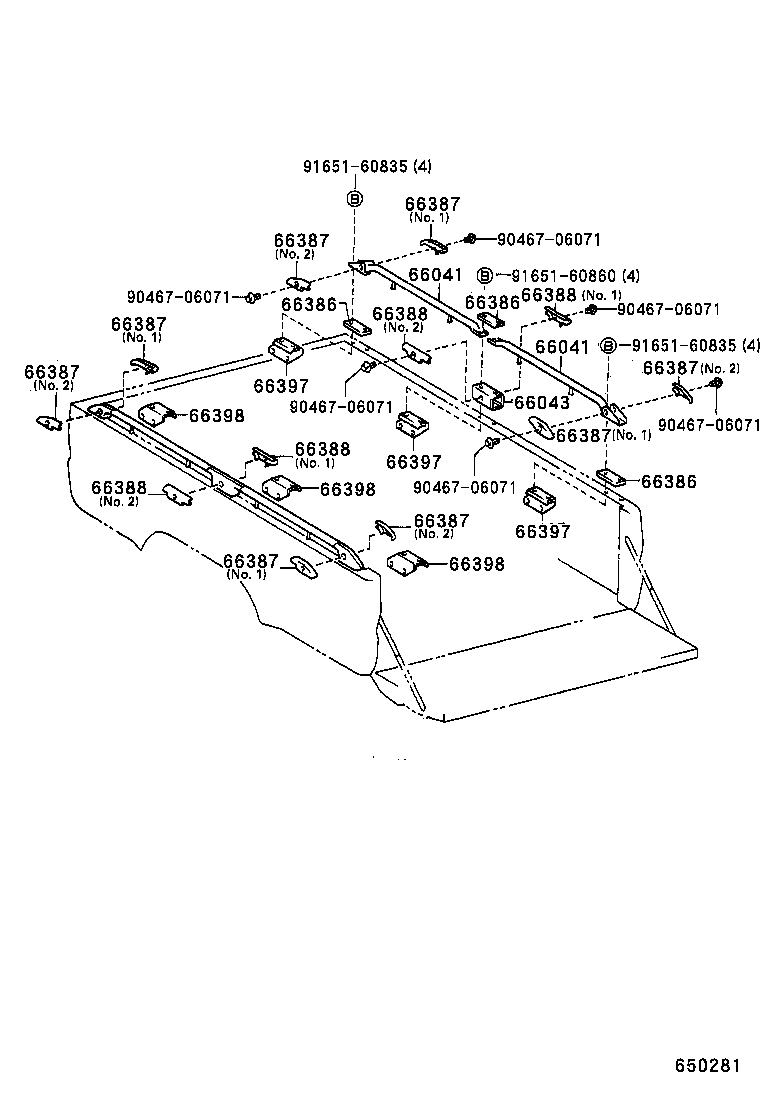

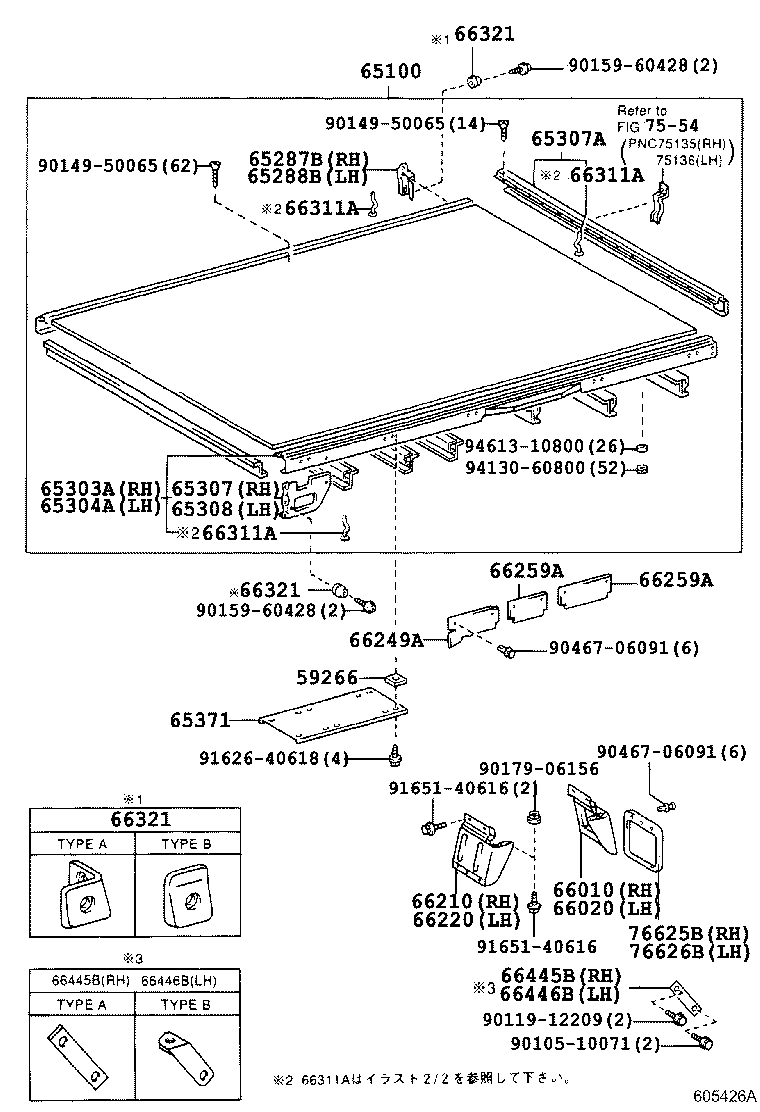

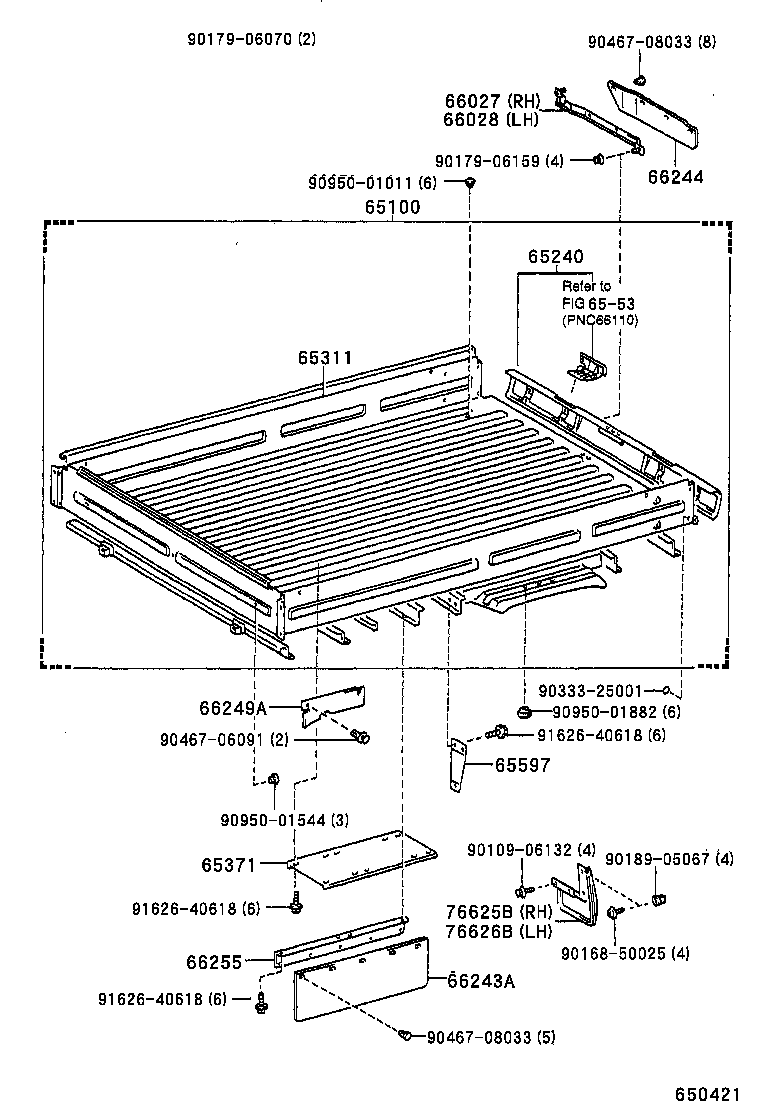

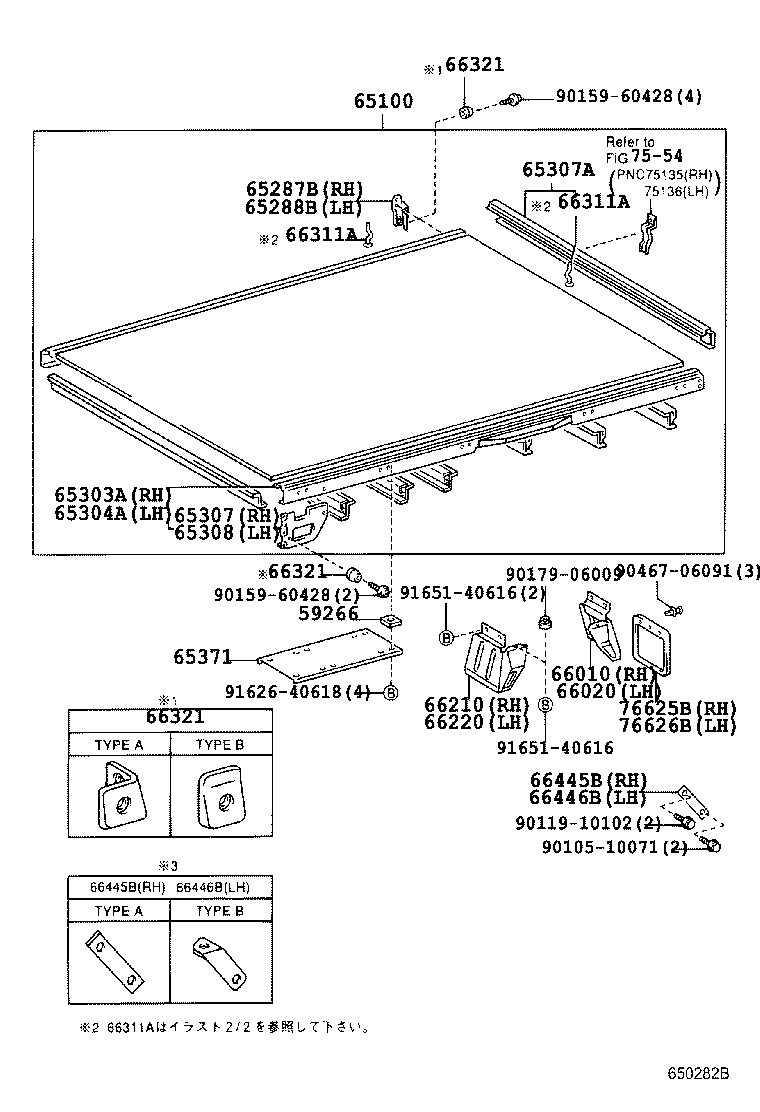

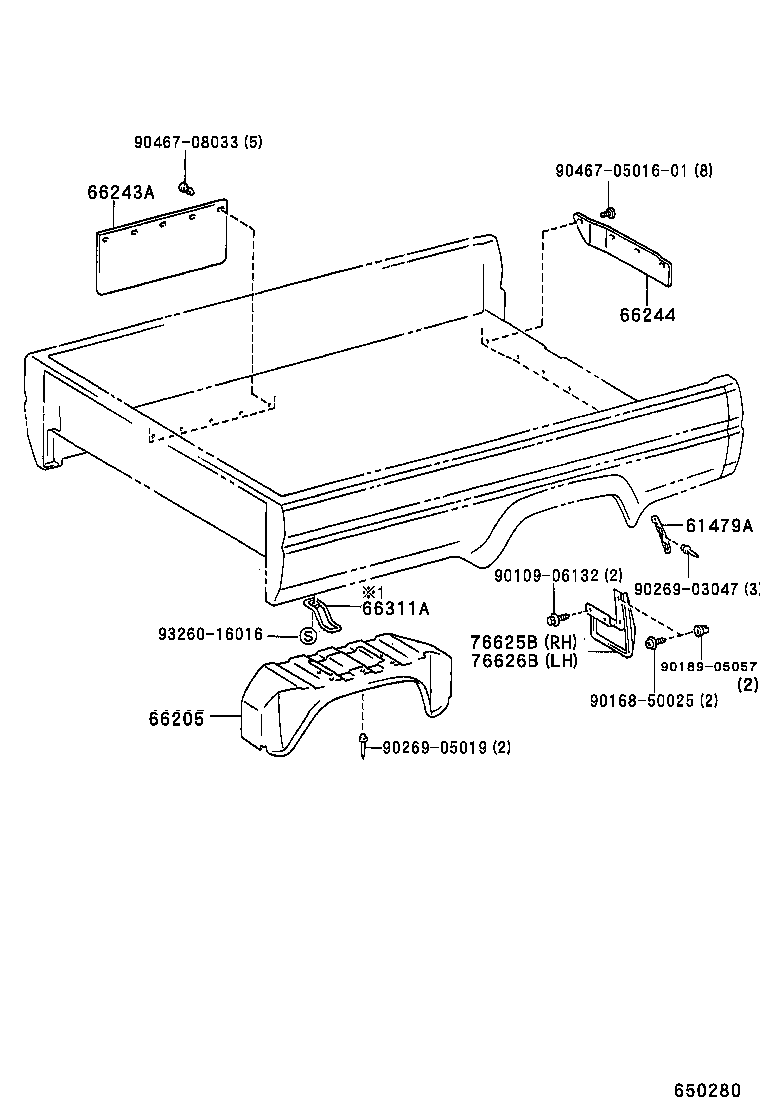

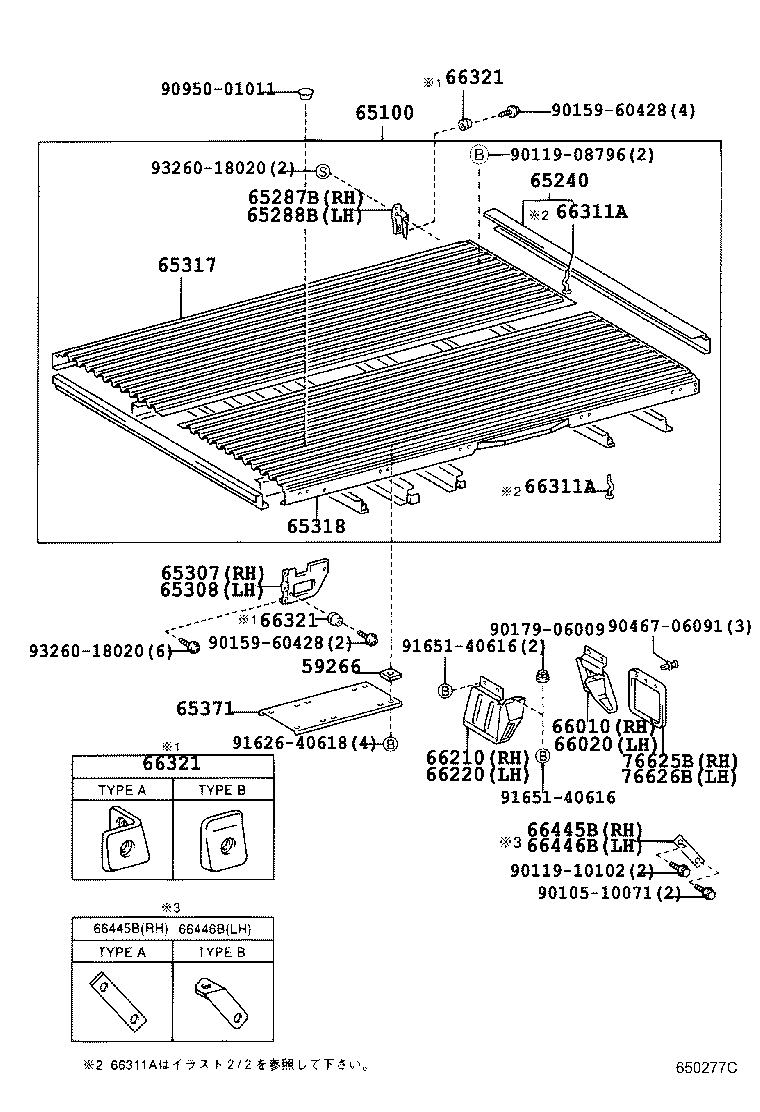

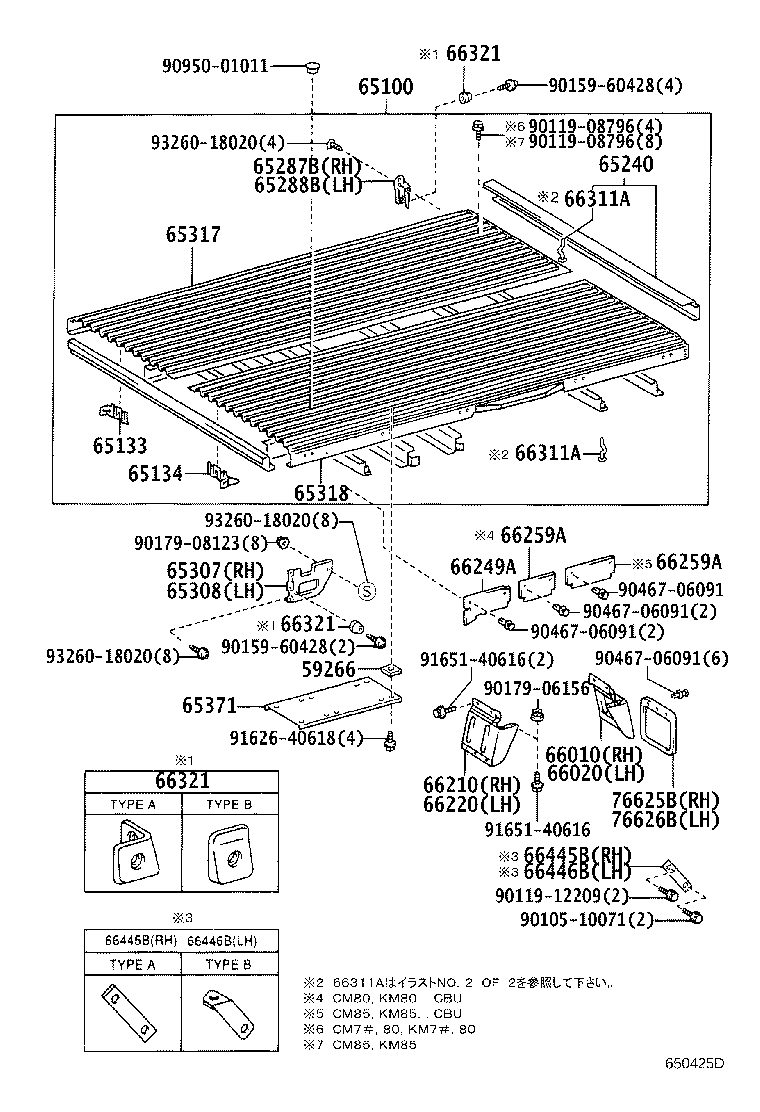

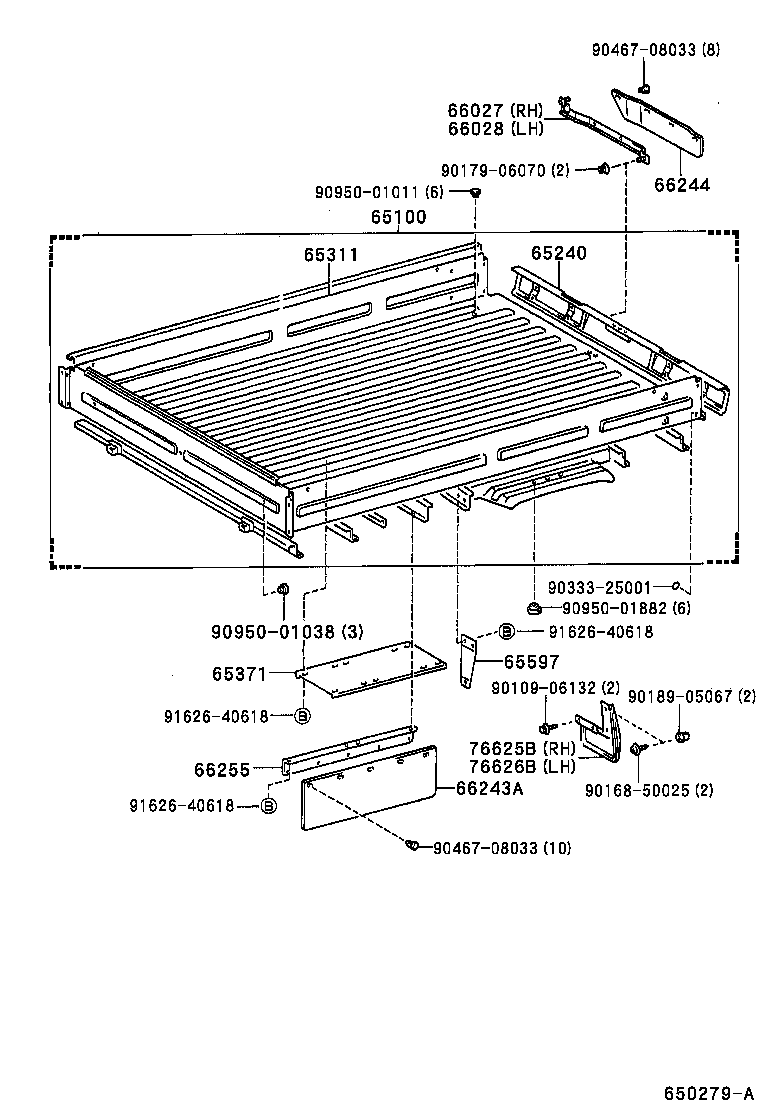

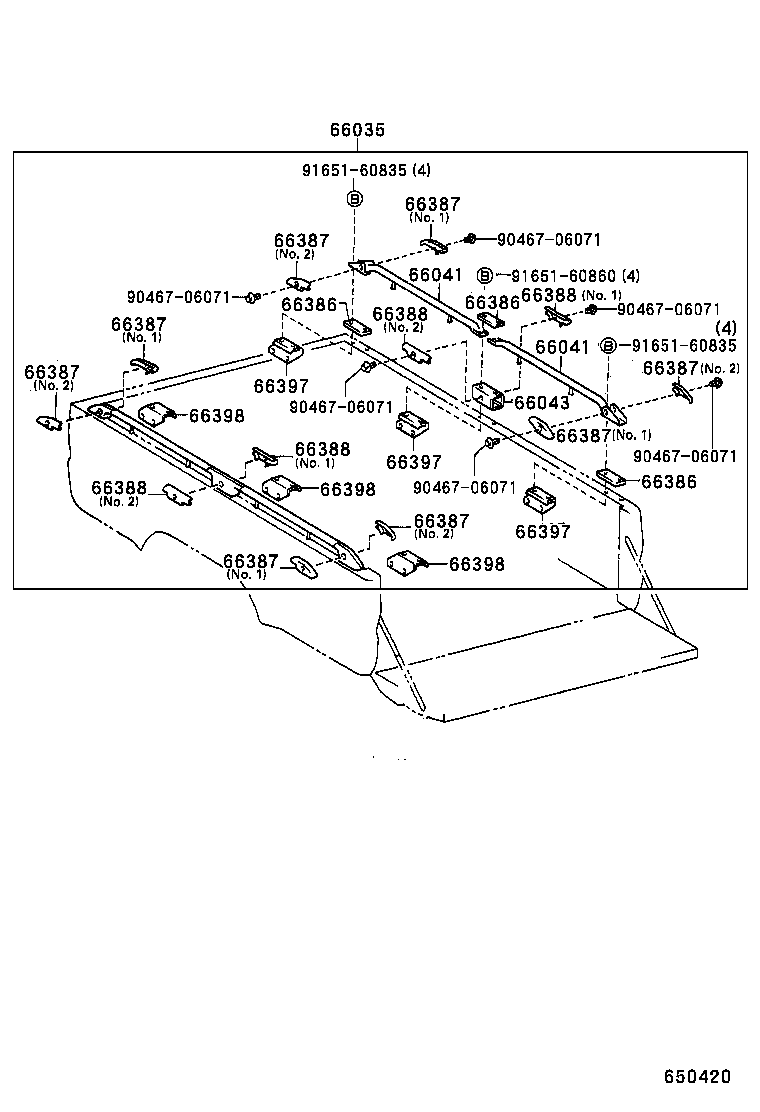

Figure 650276A 650276A 1999-06 → 2002-08 Figure 650277C 650277C 1999-06 → 2002-08 Figure 650279A 650279A 1999-06 → 2002-08 Figure 650280 650280 1999-06 → 2002-08 Figure 650281 650281 1999-06 → 2002-08 Figure 650282B 650282B 1999-06 → 2002-08 Figure 650278A 650278A 1999-06 → — Figure 650421 650421 2002-08 → — Figure 650425D 650425D 2002-08 → — Figure 650426A 650426A 2002-08 → — Figure 650295A 650295A 1999-06 → — Figure 650420 650420 2002-08 → —

Part groups

PNCDescription
59266 Seal, Engine Service Cover, NO.2
61479A Bracket, Front Mudguard
65100 Floor Assy, Rear Body
65133 Reinforcement, Main Sill End, NO.1
65134 Reinforcement, Main Sill End, NO.2
65200 Frame Assy, Floor
65240 Crossmember, Rear Body Floor, Tail
65287B Bracket, Gate Rubber Bumper, RH
65288B Bracket, Gate Rubber Bumper, LH
65303A Frame Sub-assy, Floor Side, RH
65304A Frame Sub-assy, Floor Side, LH
65307 Bracket Sub-assy, Guad Frame, RH
65307A Frame Sub-assy, Floor, Rear
65308 Bracket Sub-assy, Guad Frame, LH
65311 Panel, Floor, Center
65317 Panel, Floor Side, RH
65318 Panel, Floor Side, LH
65371 Insulator, Rear Floor
65597 Brace, Side Panel Frame
66010 Fender Assy, Rear Body, Rear RH
66020 Fender Assy, Rear Body, Rear LH
66027 Bracket Sub-assy, Rear Body Protector, RH
66028 Bracket Sub-assy, Rear Body Protector, LH
66035 Rope Hook Set
66041 Bar Sub-assy, Rope Hook
66043 Bracket Sub-assy, Rope Hook Bar
66205 Fender Sub-assy, Rear NO.1
66210 Fender Assy, Rear Body, Front RH
66220 Fender Assy, Rear Body, Front LH
66243A Protector, Rear Body, NO.1
66244 Protector, Rear Body, NO.2
66249A Cover, Rear Body Floor Side, LH
66255 Bracket, Rear Body Protector
66259A Cover, Rear Body Floor, Rear
66311A Hook, Rope, NO.1
66321 Bumper, Gate Rubber
66386 Plate, Rope Hook Bar
66387 Cover, Rope Hook Bar End, NO.1
66388 Cover, Rope Hook Bar End, NO.2
66397 Retainer, Rope Hook Bar, RH
66398 Retainer, Rope Hook Bar, LH
66445B Brace, Frame TO Rear Body
66446B Brace, Frame TO Rear Body, NO.2
76625B Mudguard, Rear Body, RH
76626B Mudguard, Rear Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
