Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

22 part groups · 5 illustrations

Illustrations

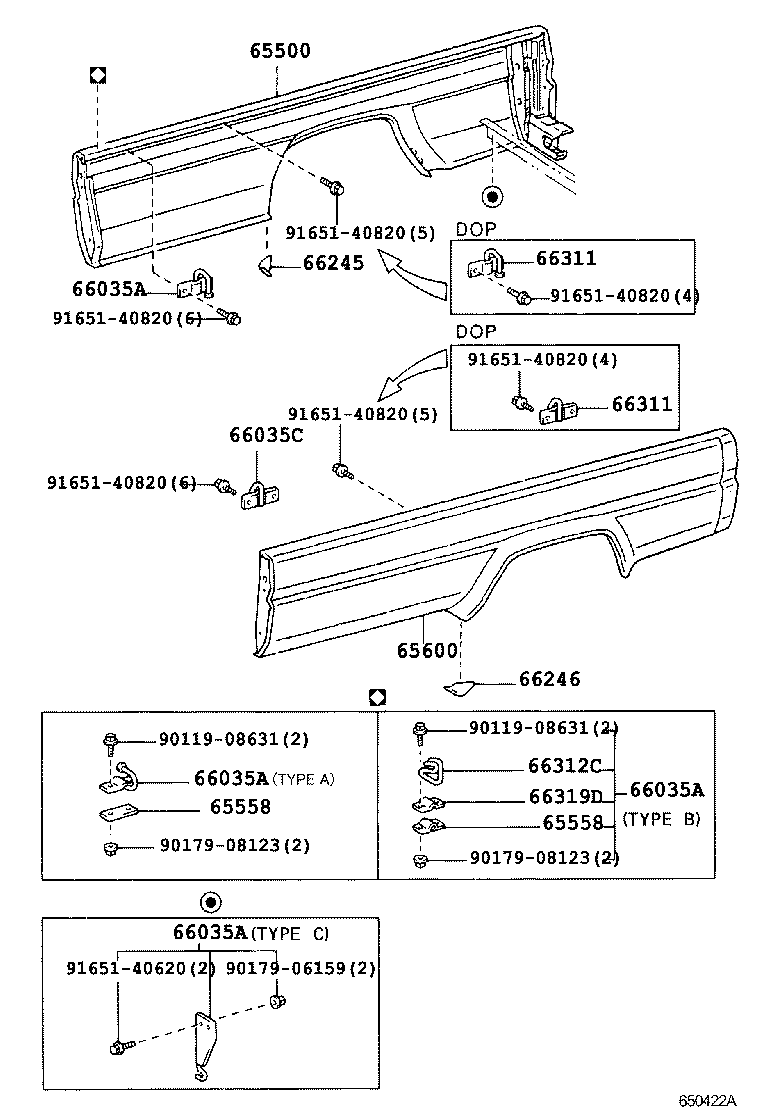

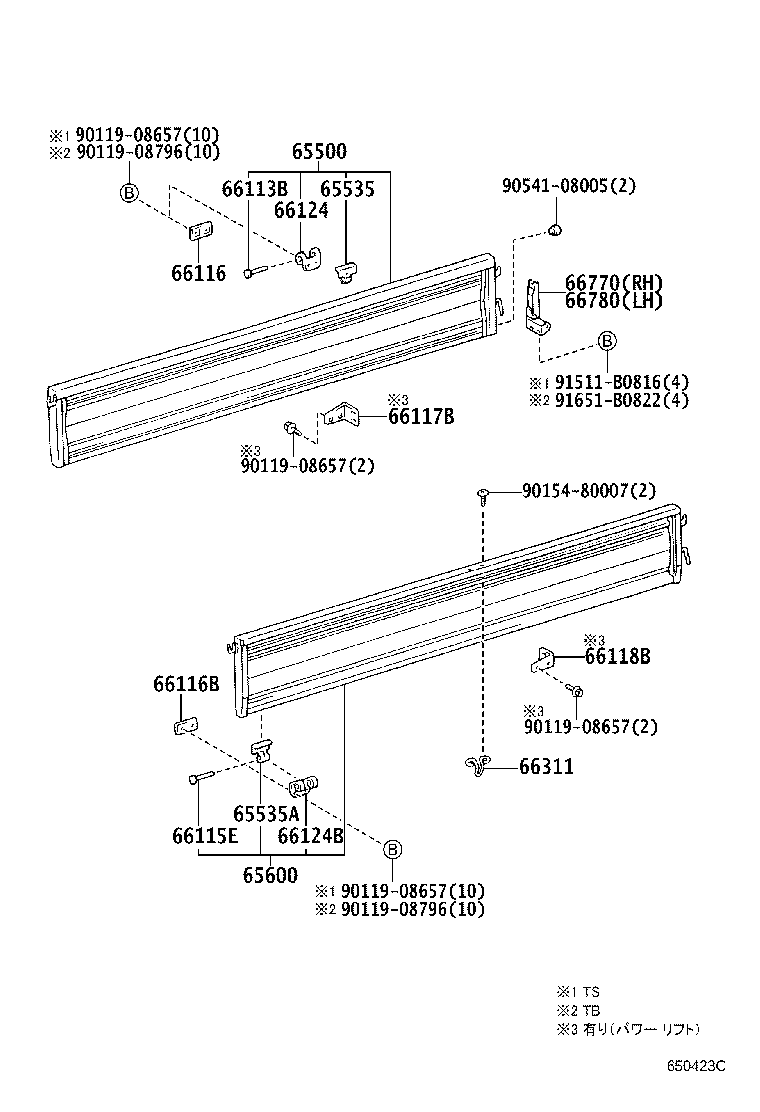

Figure 650291A 650291A 1999-06 → 2002-08 Figure 650292 650292 1999-06 → 2002-08 Figure 650423C 650423C 1999-06 → — Figure 650422A 650422A 2002-08 → — Figure 650424A 650424A 2002-08 → —

Part groups

PNCDescription
65500 Panel Assy, Rear Body Side, RH
65535 Hinge, Side Gate Male
65535A Hinge, Side Gate Male
65558 Spacer, Rope Hook
65600 Panel Assy, Rear Body Side, LH
66035A Rope Hook Set
66035C Rope Hook Set, LH
66113B Pin, Gate Hinge
66115E Pin, Gate Hinge, LH
66116 Retainer, Gate Hinge, Lower
66116B Retainer, Gate Hinge
66117B Gusset, Gate Hinge, RH
66118B Gusset, Gate Hinge, LH
66124 Hinge, Side Gate, Female
66124B Hinge, Side Gate, Female
66245 Protector, Rear Body, NO.3 RH
66246 Protector, Rear Body, NO.3 LH
66311 Hook, Rope
66312C Hook, Rope
66319D Plate, Rope Hook
66770 Support Sub-assy, Side Gate, RH
66780 Support Sub-assy, Side Gate, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
