Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

19 part groups · 2 illustrations

Illustrations

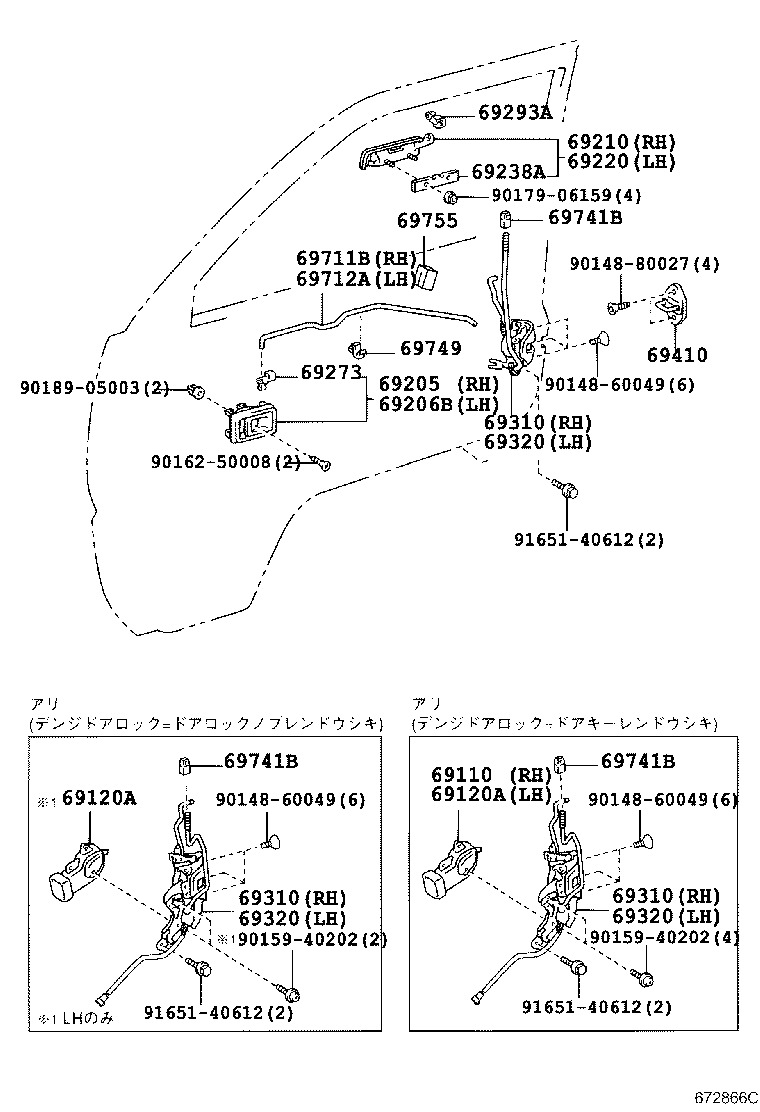

Figure 671641A 671641A 1999-06 → 2002-08 Figure 672866C 672866C 2002-08 → —

Part groups

PNCDescription
69110 Actuator Assy, Front Door Lock, RH
69120A Actuator Assy, Front Door Lock, LH
69205 Handle Sub-assy, Front Door Inside, RH
69206B Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69220 Handle Assy, Front Door Outside, LH
69238A Pad, Door Outside Handle
69273 Snap, Door Inside Handle Rod
69293A Snap, Front Door Outside Handle
69310 Lock Assy, Front Door, RH
69320 Lock Assy, Front Door, LH
69410 Plate Assy, Front Door Lock Striker
69711B Link, Front Door Lock Remote Control, RH
69712A Link, Front Door Lock Remote Control, LH
69741B Knob, Front Door Lock Control
69749 Clamp, Front Door Lock Link
69755 Silencer, Front Door Lock Link
85450J Solenoid Assy, Door Control, Front RH
85460E Solenoid Assy, Door Control, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
