Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

14 part groups · 2 illustrations

Illustrations

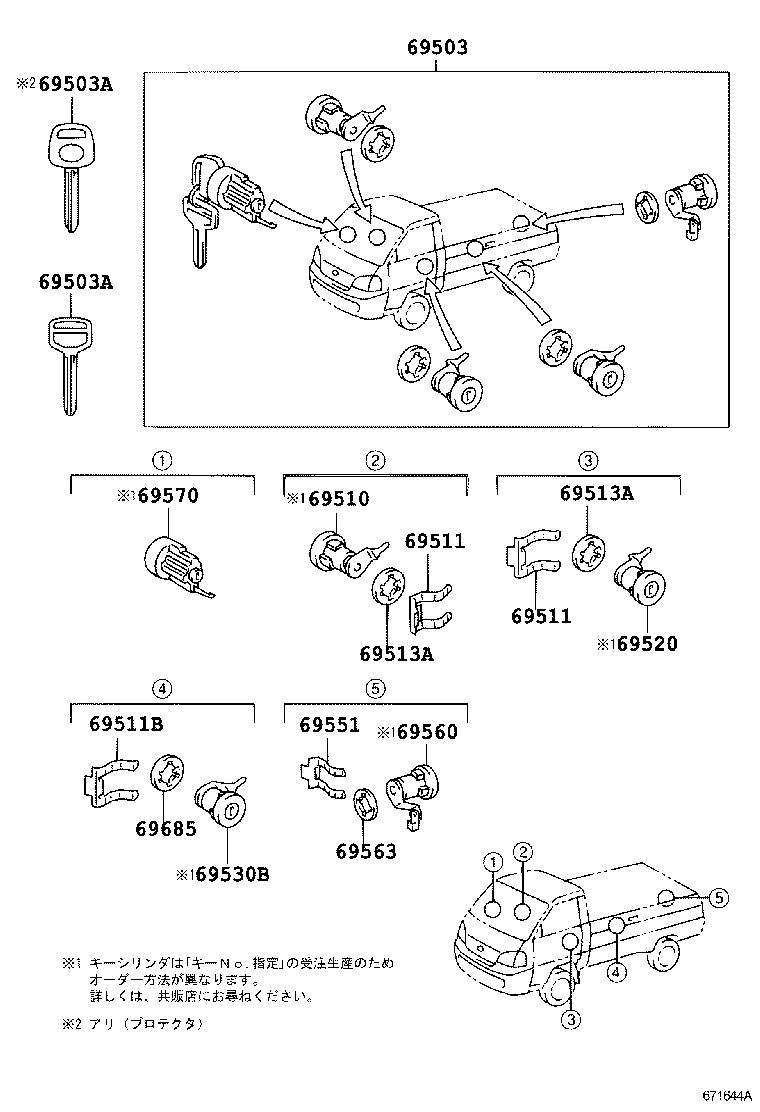

Figure 671645A 671645A 1999-06 → 2002-08 Figure 671644A 671644A 1999-06 → —

Part groups

PNCDescription
69503 Cylinder Set, Lock
69503A Key, Blank
69510 Cylinder Assy, Front Door Lock, RH
69511 Retainer, Front Door Lock Cylinder
69511A Retainer, Side Tarpaulin Lock Cylinder
69511B Retainer, Top Cover Lock Cylinder
69513A Pad, Door Cylinder
69520 Cylinder Assy, Front Door Lock, LH
69530B Cylinder Assy, Top Cover Lock
69551 Retainer, Back Door Lock Cylinder
69560 Cylinder Assy, Back Door Lock
69563 Pad, Back Door Lock Cylinder
69570 Cylinder Assy, Ignition Switch Lock
69685 Pad, Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
