Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

14 part groups · 2 illustrations

Illustrations

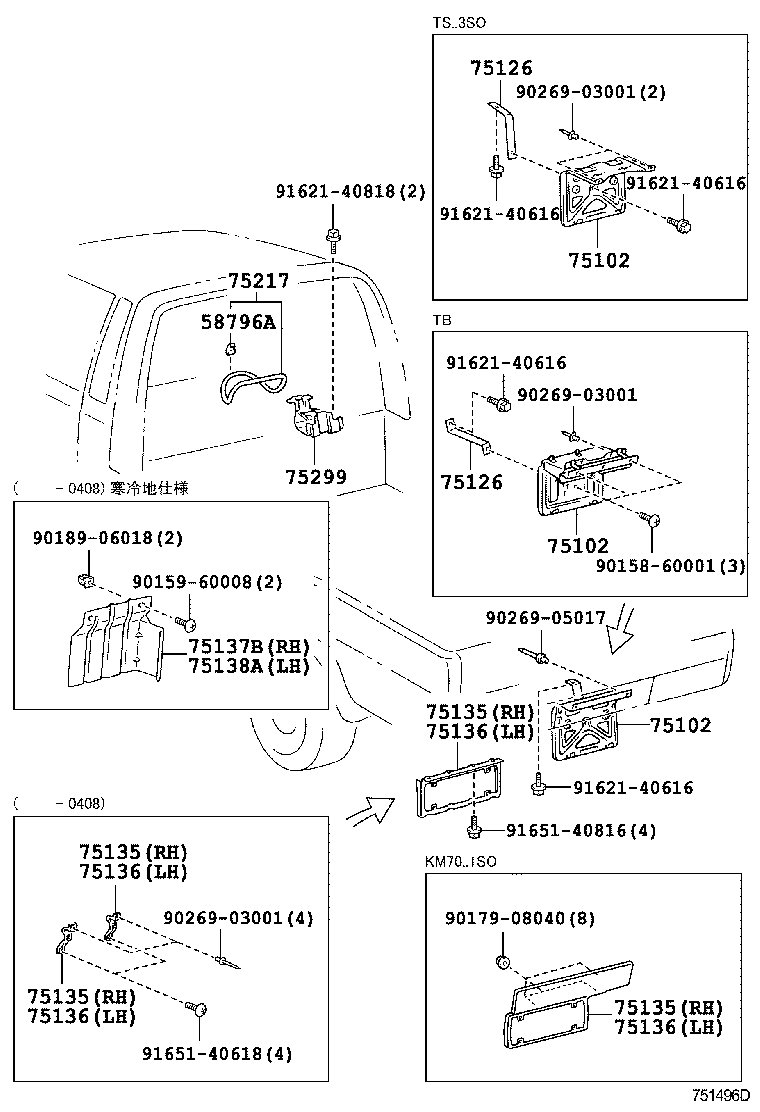

Figure 750616F 750616F 1999-06 → 2002-08 Figure 751496D 751496D 2002-08 → —

Part groups

PNCDescription
58796A Hook, Jack Clamp
75102 Bracket Sub-assy, Rear License Plate
75126 Stay, Rear License Plate Bracket, Lower
75135 Bracket, Combination Rear Lamp, RH
75136 Bracket, Combination Rear Lamp, LH
75137B Cover, Combination Rear Lamp, RH
75138A Cover, Combination Rear Lamp, LH
75201 Box Sub-assy, Tool W/Stay
75217 Band, Tool Bag
75227 Cushion, Tool Box
75257 Support, Tool Box, Front
75258A Support, Tool Box, Rear
75285 Protector, Tool Box
75299 Base, Jack Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
