Toyota Lite/Townace
1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan
Discontinued model
Data version 2008-04

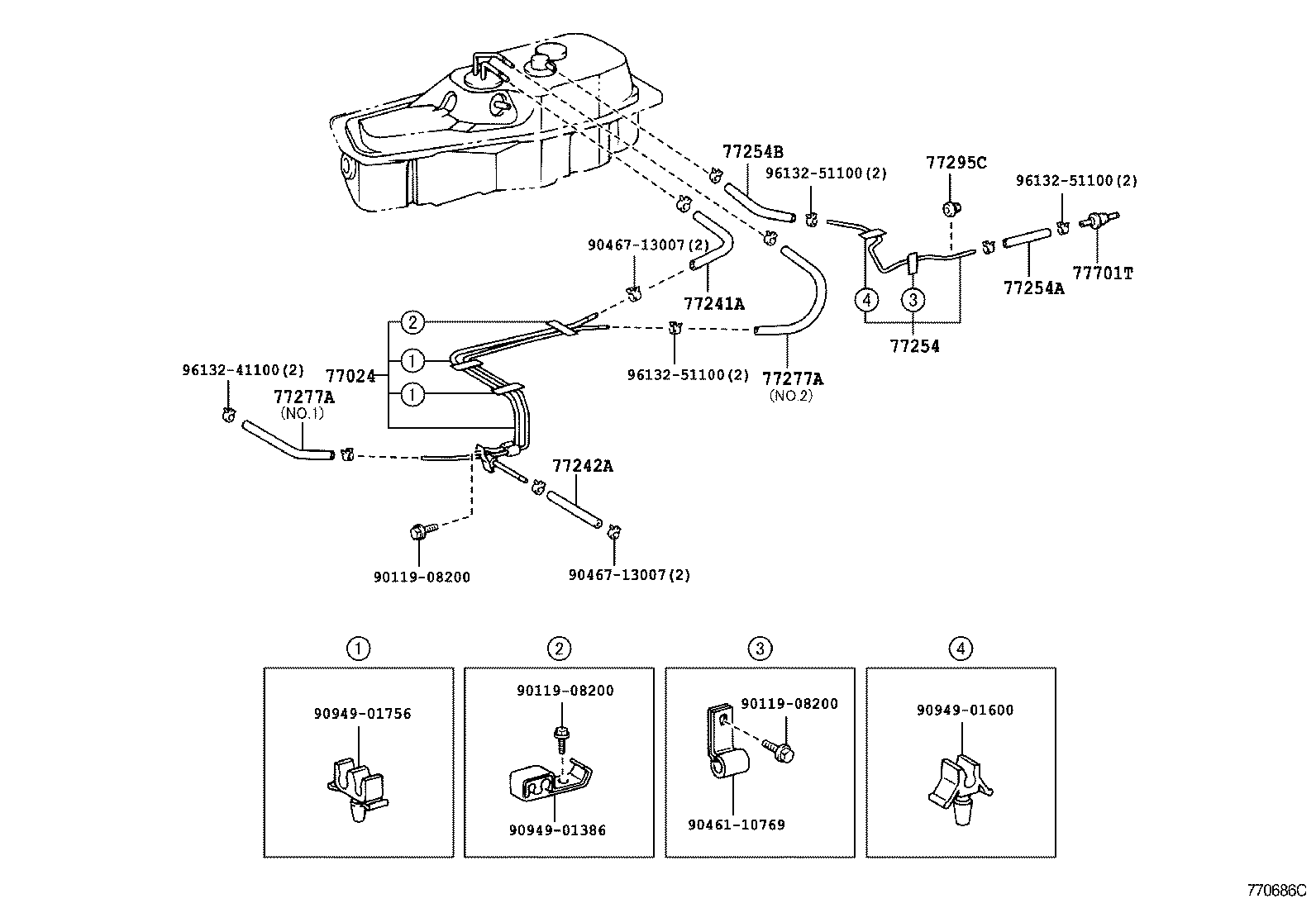

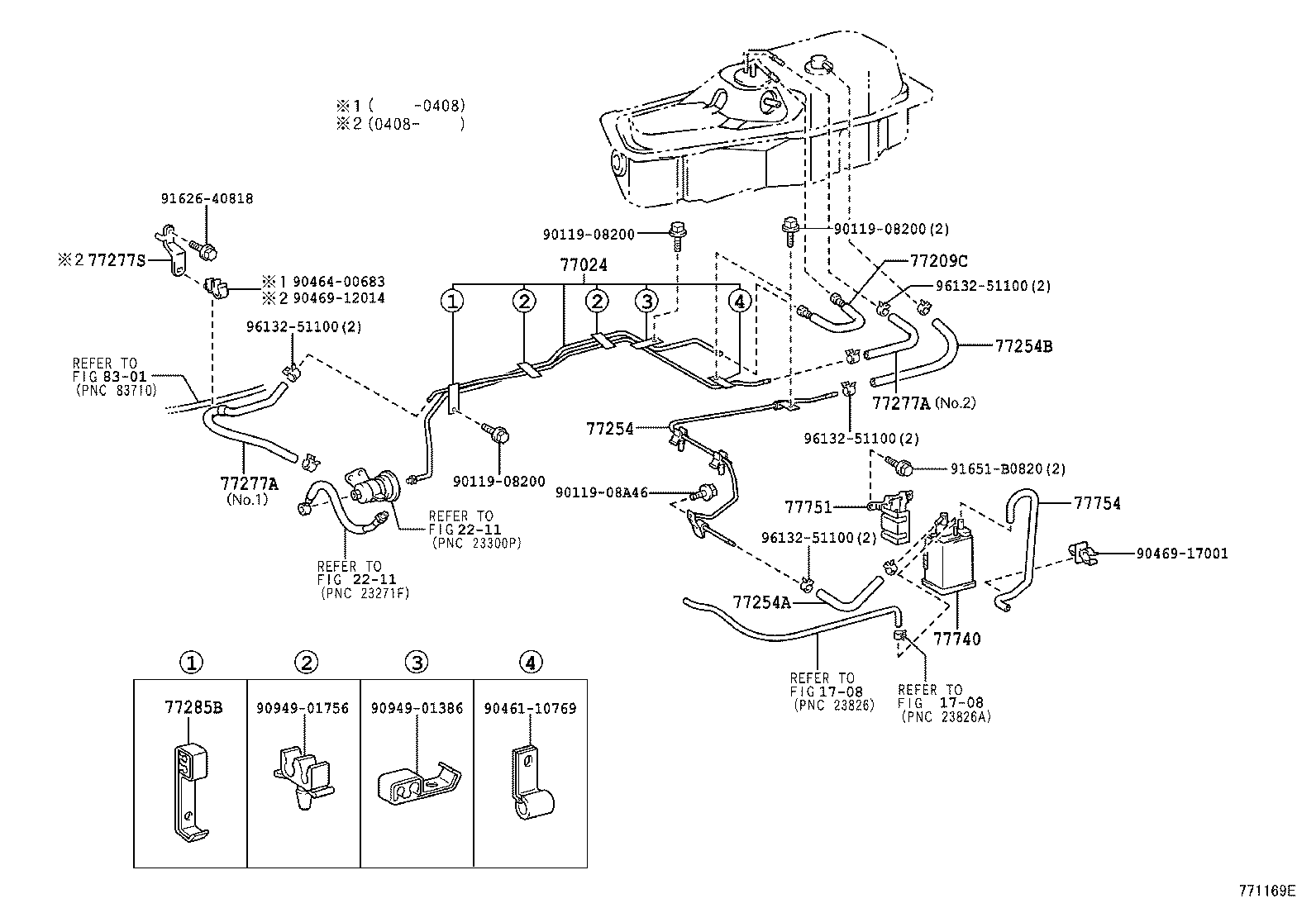

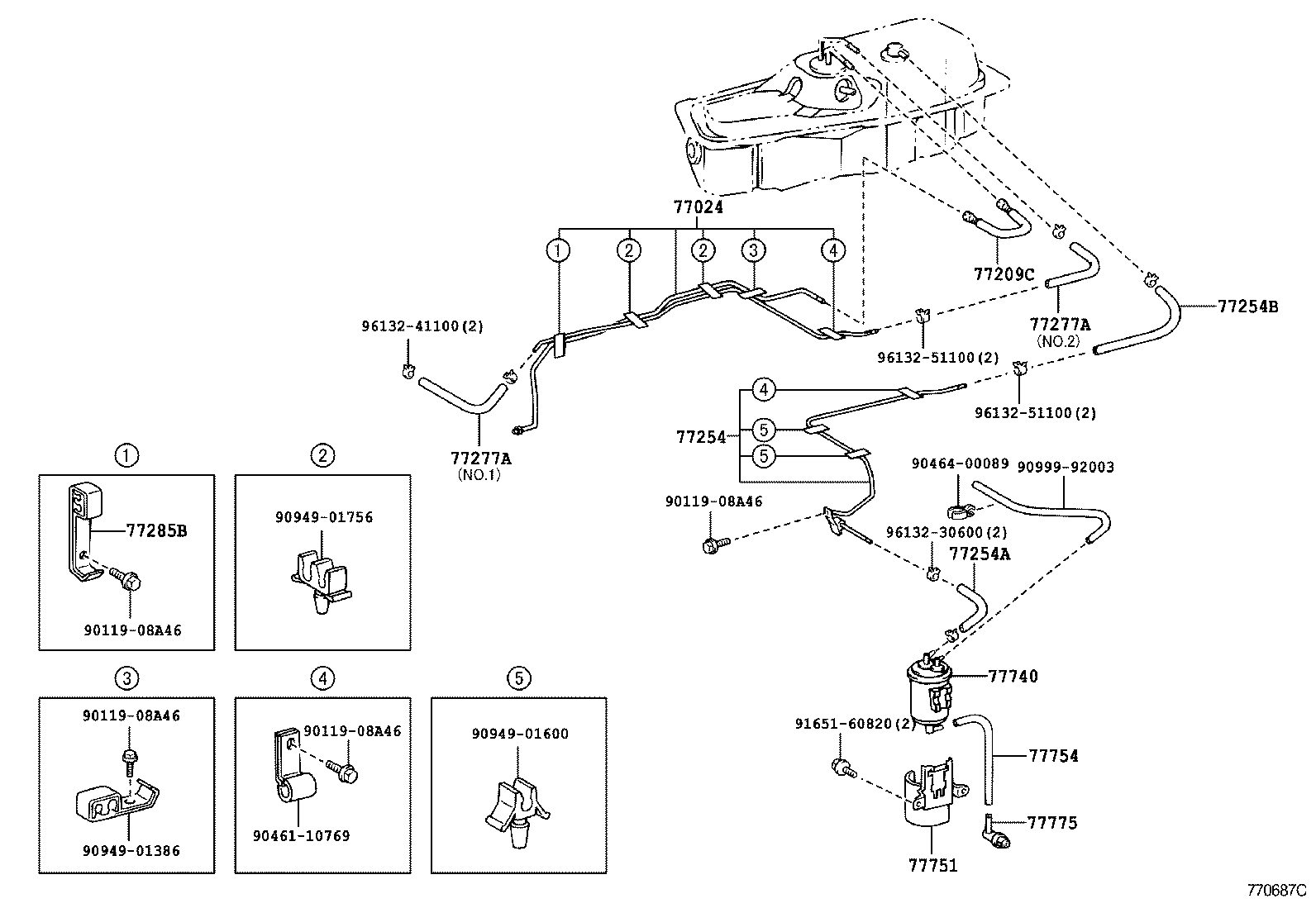

Fuel Tank & Tube
51 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58119G | Cover, Rear Floor Side, Front |
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77017B | Tube Sub-assy, Fuel Tank Vent |
| 77017C | Gasket, Fuel Tank Vent |
| 77018E | Tube Sub-assy, Fuel Tank Evaporation Vent |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77024 | Tube Sub-assy, Fuel Main & Return, Front |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77048 | Seal Sub-assy, Fuel Inlet Pipe, Upper |
| 77048A | Clip (FOR FUEL INLET PIPE SEAL) |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77179B | Gasket, Fuel Tank Evaporation Vent Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77202A | Hose, Fuel, NO.1 (FOR BREATHER TUBE) |
| 77202B | Hose, Fuel, NO.2 (FOR BREATHER TUBE) |
| 77203A | Tube Sub-assy, Fuel Suction |
| 77204 | Pipe Sub-assy, Fuel Tank Filler, Center |
| 77209C | Tube Sub-assy, Fuel Tank Main |
| 77213 | Hose, Fuel Tank Sub Inlet |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77222 | Tube, Fuel Tank Breather, NO.2 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77242A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2) |
| 77251 | Shield, Fuel Tank, Inlet, NO.1 |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77254B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1) |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277S | Bracket, Fuel Hose |
| 77285B | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77295C | Grommet, Fuel Tube |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77308 | Cover Sub-assy, Fuel Inlet Box |
| 77358A | Stopper, Fuel Filler Opening Lid |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77380 | Valve Assy, Fuel Cut Off |
| 77511A | Bracket, Fuel Tank |
| 77612 | Bracket Sub-assy, Fuel Tank |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77740 | Canister Assy, Charcoal |
| 77751 | Bracket, Charcoal Canister Base |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77775 | Guide, Charcoal Canister Outlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
