Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

22 part groups · 8 illustrations

Illustrations

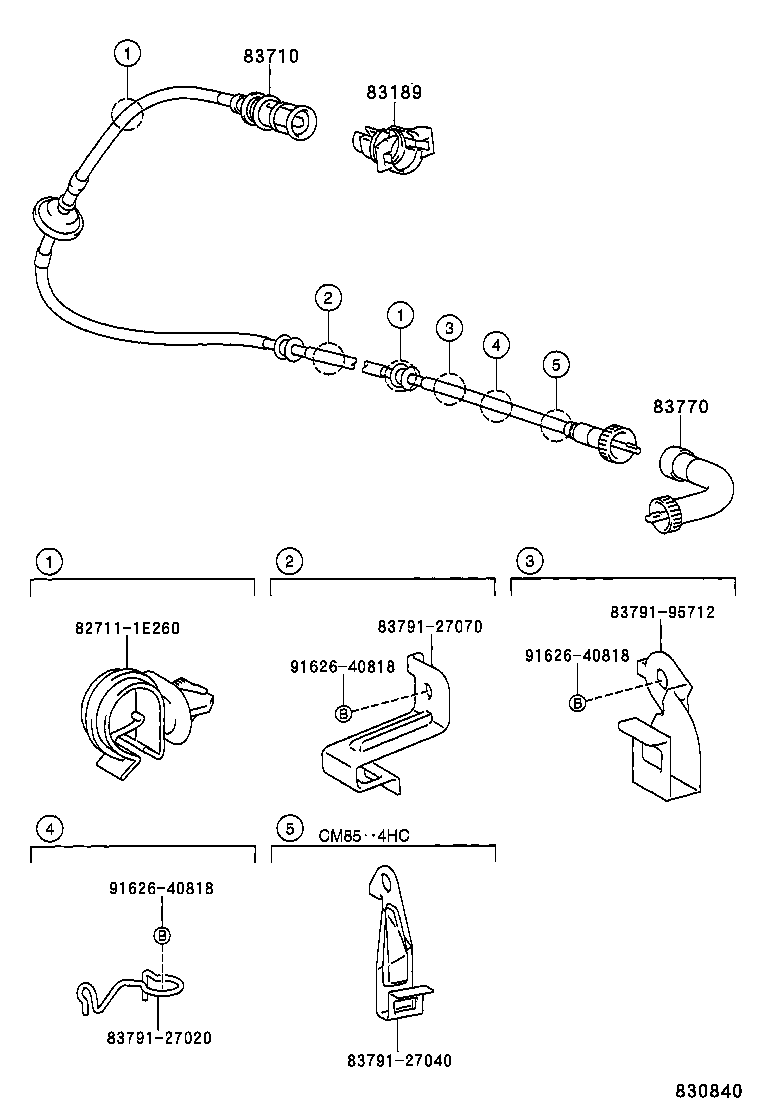

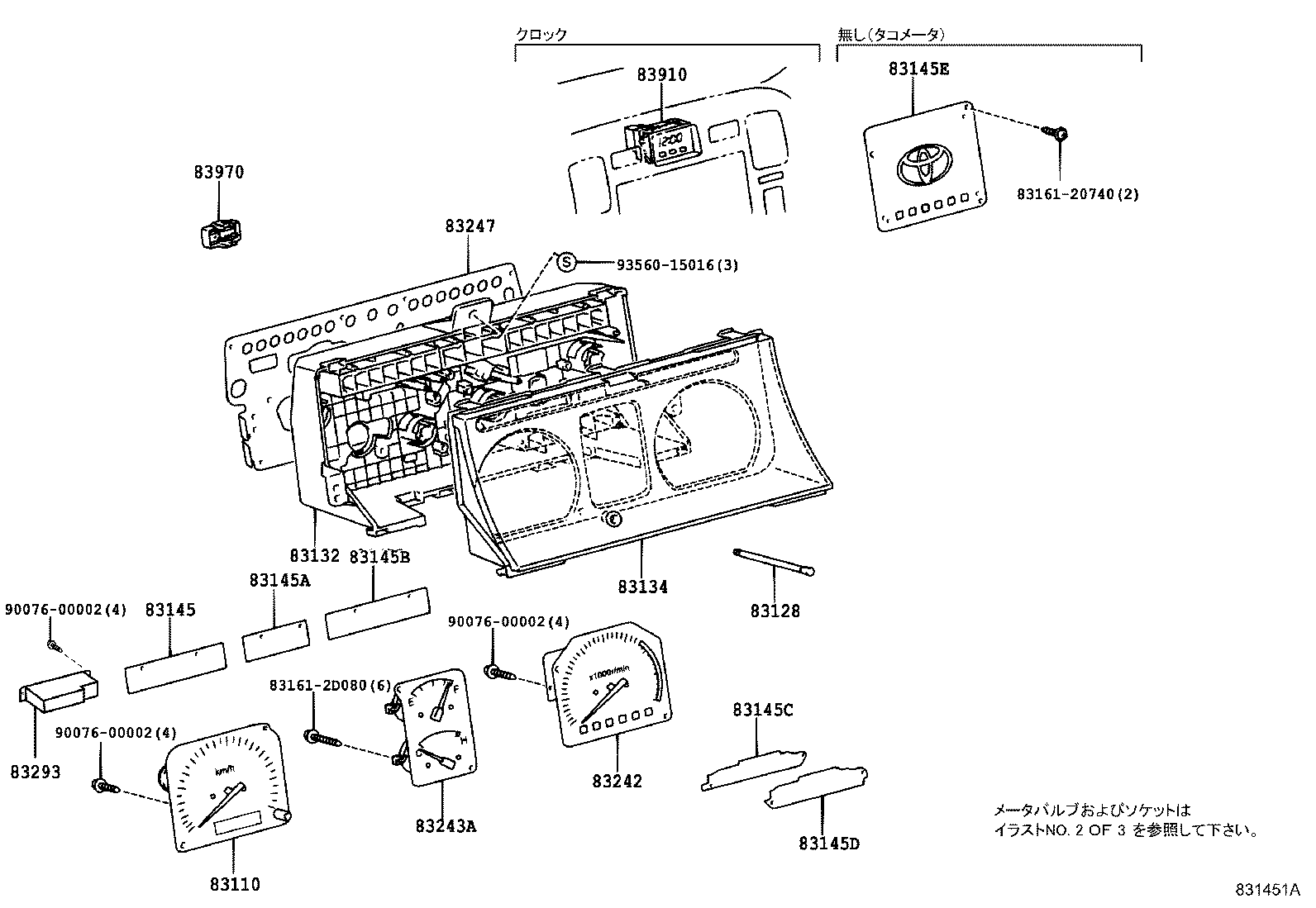

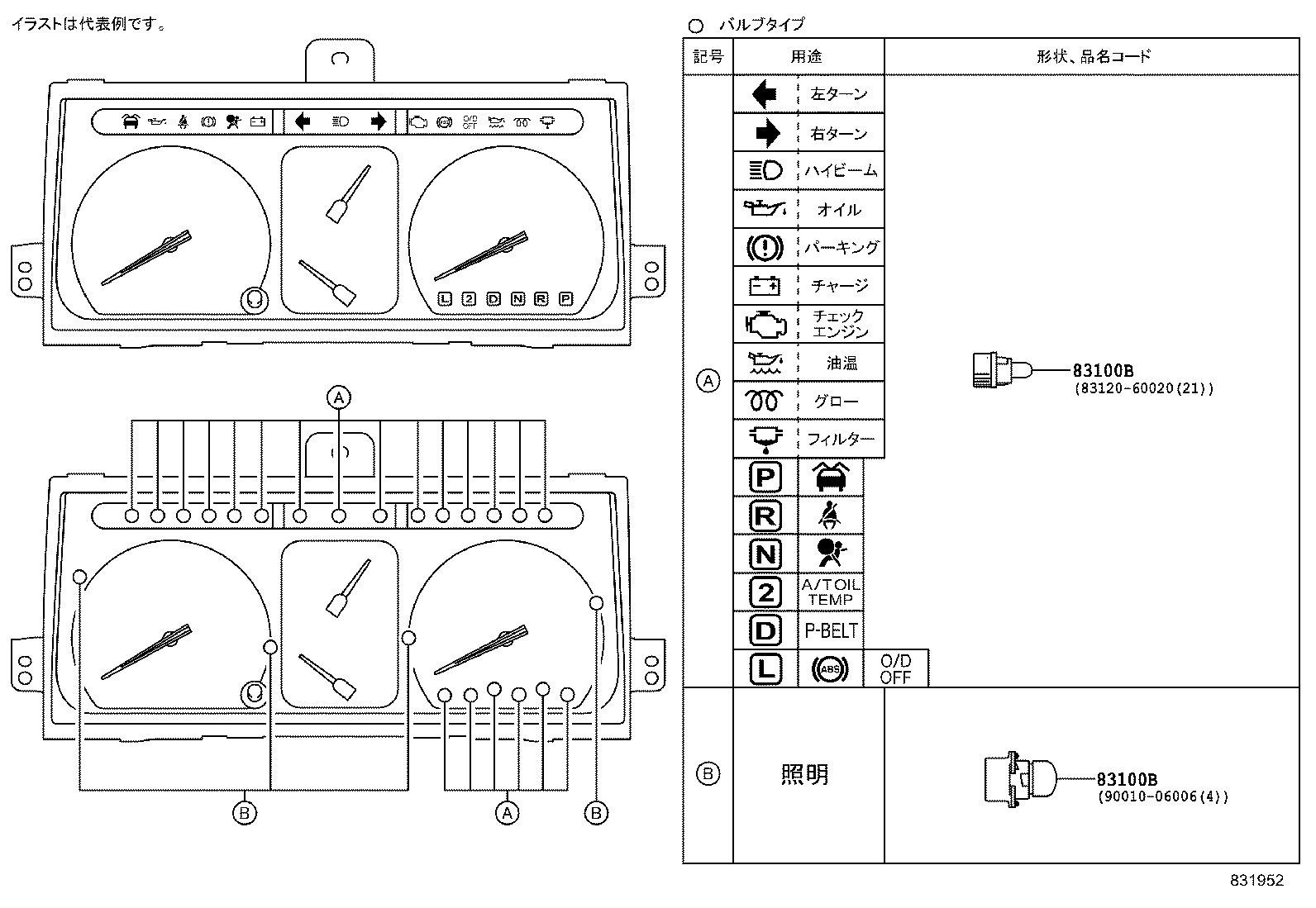

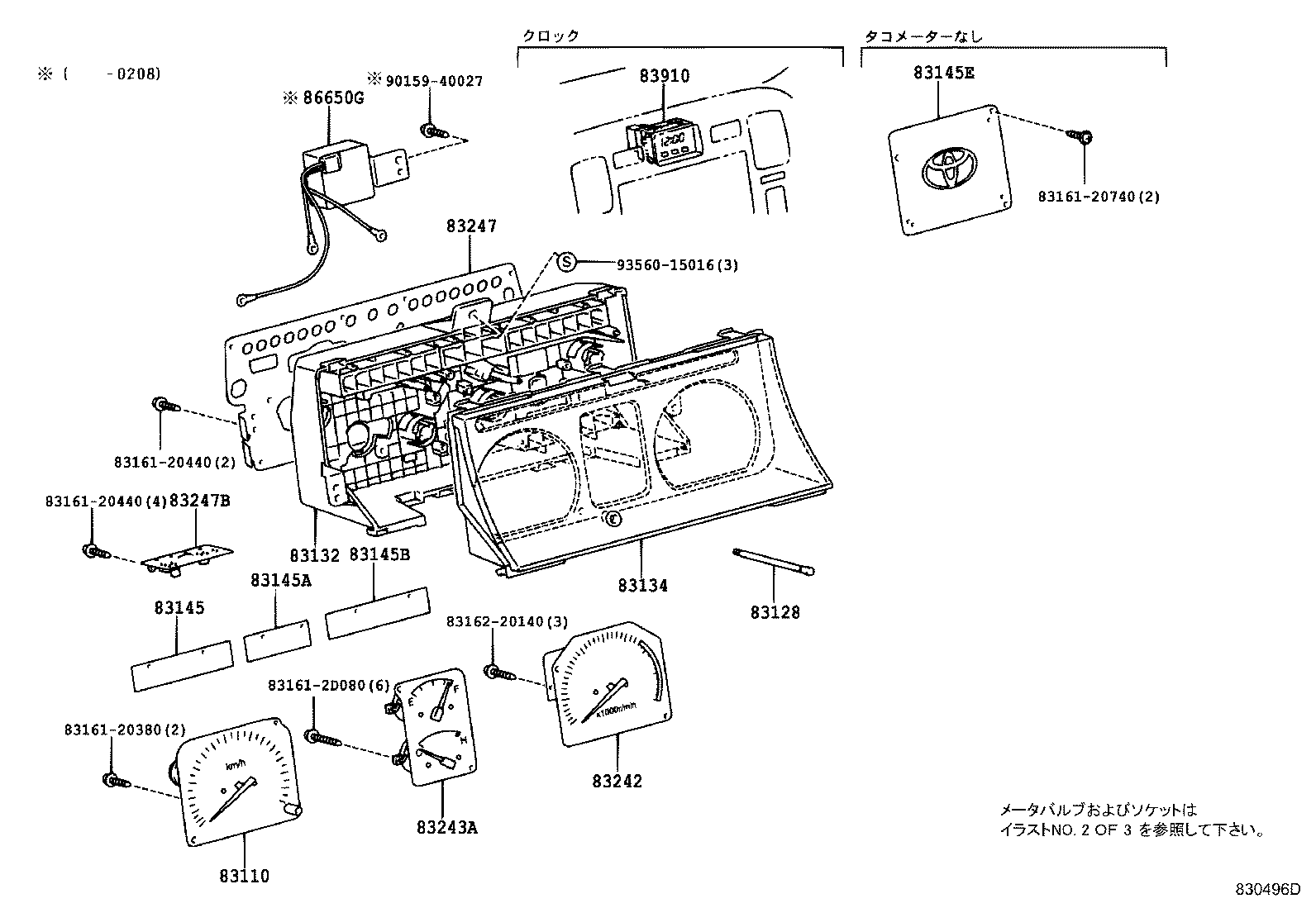

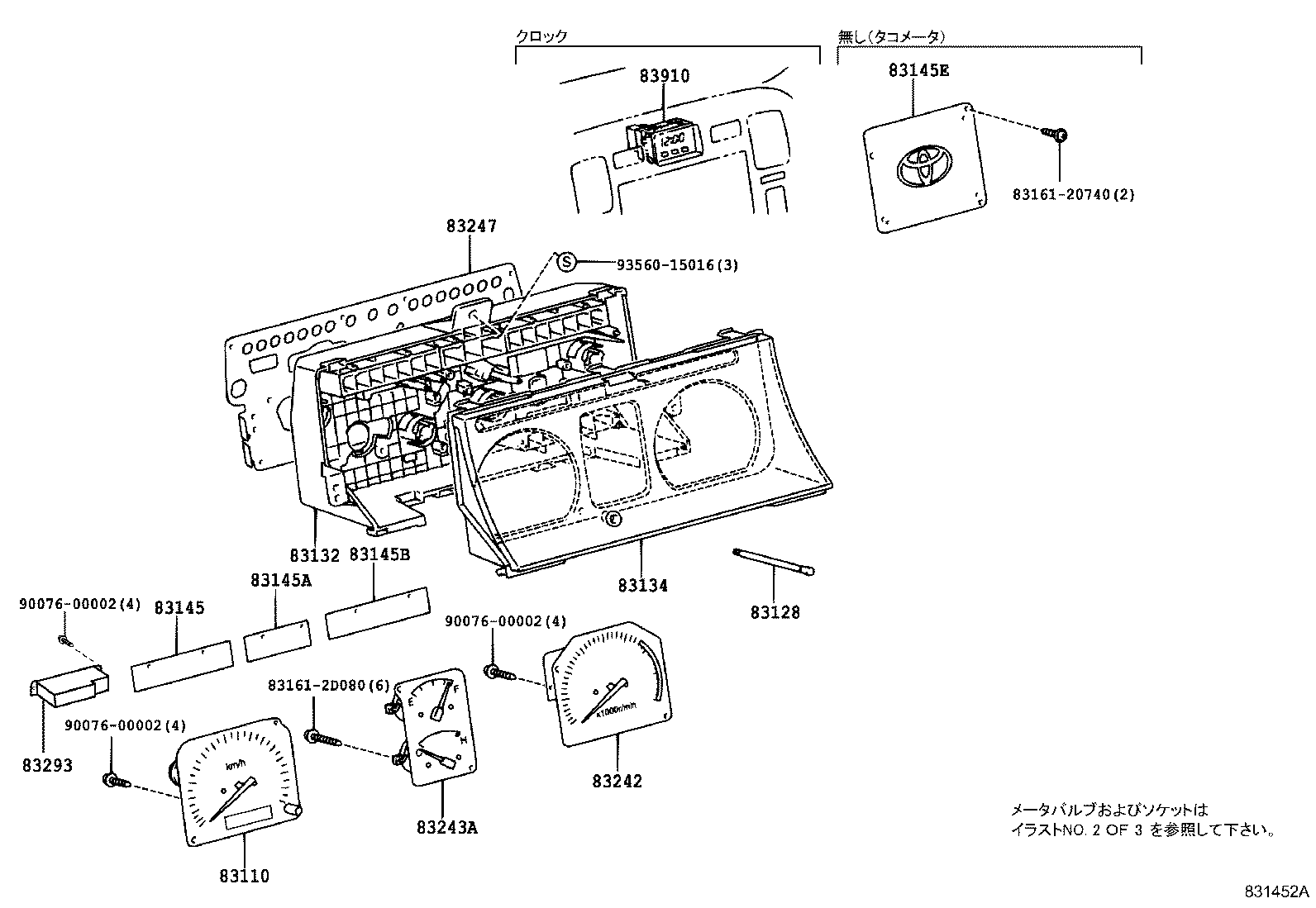

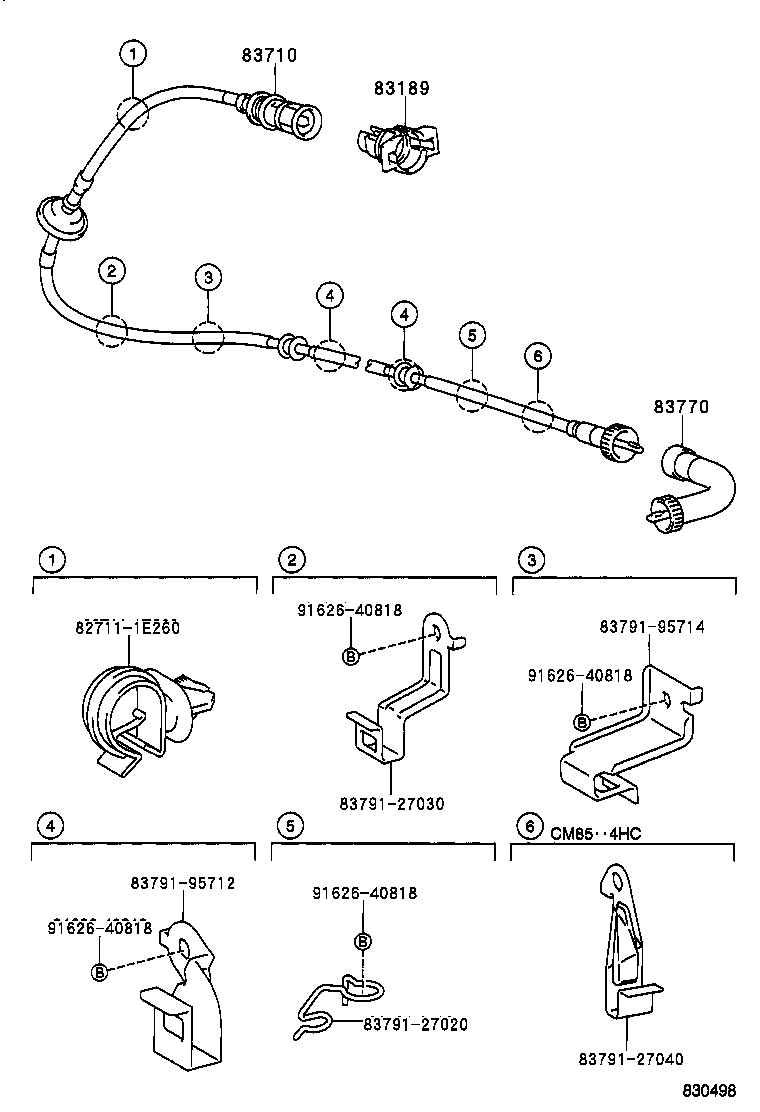

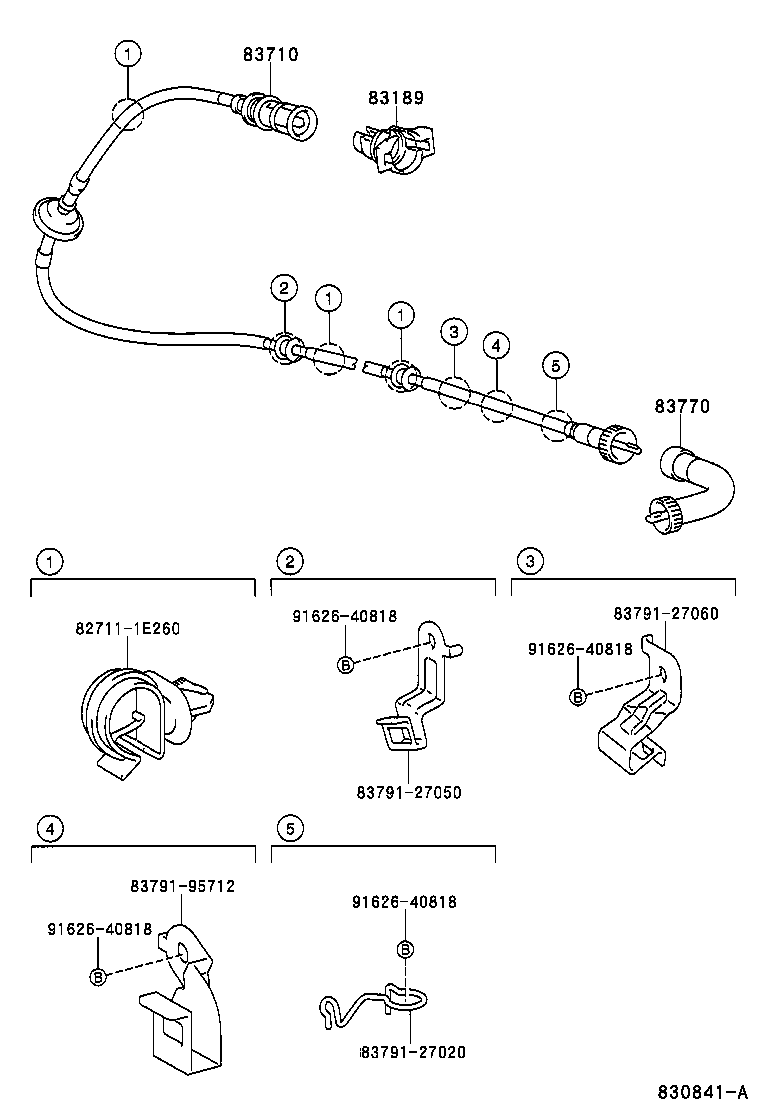

Figure 830497D 830497D 1999-06 → 2004-08 Figure 830496D 830496D 1999-06 → 2004-08 Figure 831451A 831451A 2004-08 → — Figure 831452A 831452A 2004-08 → — Figure 831952 831952 1999-06 → — Figure 830498 830498 1999-06 → 2002-08 Figure 830840 830840 2002-08 → — Figure 830841A 830841A 2002-08 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83110 Speedometer Assy
83128 Knob, Trip Counter
83132 Case, Combination Meter
83134 Cover, Combination Meter, NO.1
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145B Lens, Meter, NO.3
83145C Lens, Meter, NO.4
83145D Lens, Meter, NO.5
83145E Lens, Meter, NO.6
83189 Bracket, Meter
83242 Tachometer Assy, Engine
83243A Gauge Sub-assy, Fuel Receiver
83247 Plate, Meter Circuit
83247B Plate, Meter Circuit, NO.2
83293 Computer, Total Counter Module
83710 Cable Assy, Speedometer Drive, NO.1
83770 Adapter Assy, Speedometer Cable
83910 Clock Assy
83970 Buzzer Assy, Reverse Warning
86650G Buzzer Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
