Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

15 part groups · 3 illustrations

Illustrations

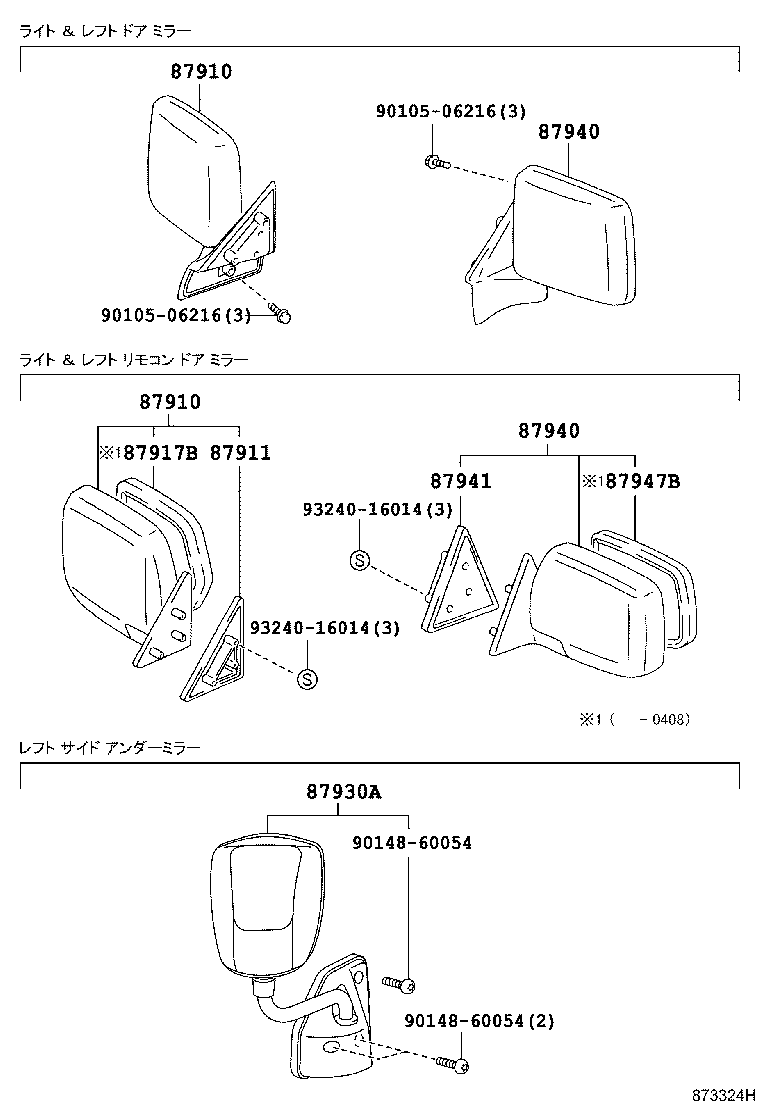

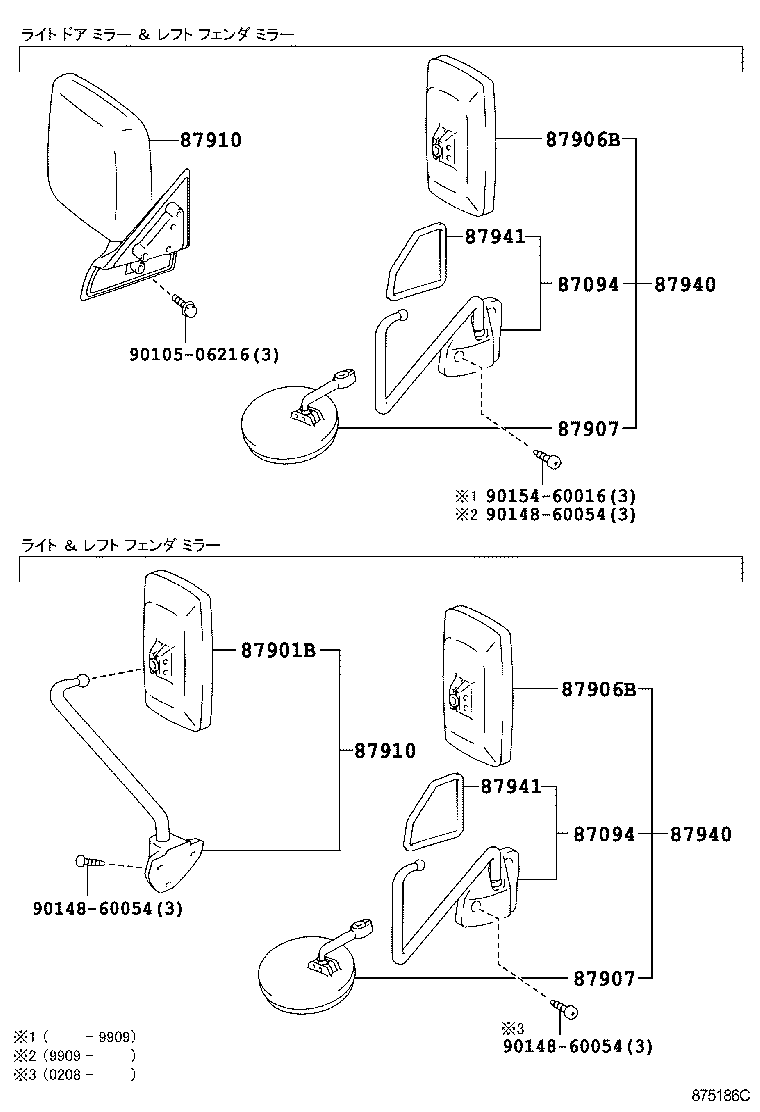

Figure 873323 873323 1999-06 → — Figure 873324H 873324H 1999-06 → — Figure 875186C 875186C 1999-06 → —

Part groups

PNCDescription
87094 Stay Sub-assy, Outer Rear View Mirror, Upper LH
87810 Mirror Assy, Inner Rear View
87810B Bulb, Inner Rear View Mirror Lamp
87827 Absorber, Inner Rear View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87901B Mirror Sub-assy, Outer Rear View, RH
87906B Mirror Sub-assy, Outer Rear View, LH
87907 Mirror Sub-assy, Outer Under View
87910 Mirror Assy, Outer Rear View, RH
87911 Gasket, Outer Rear View Mirror, RH
87917B Mirror, Outer Rear View, RH
87930A Mirror Assy, Outer Under View
87940 Mirror Assy, Outer Rear View, LH
87941 Gasket, Outer Rear View Mirror, LH
87947B Mirror, Outer Rear View, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
