Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

21 part groups · 2 illustrations

Illustrations

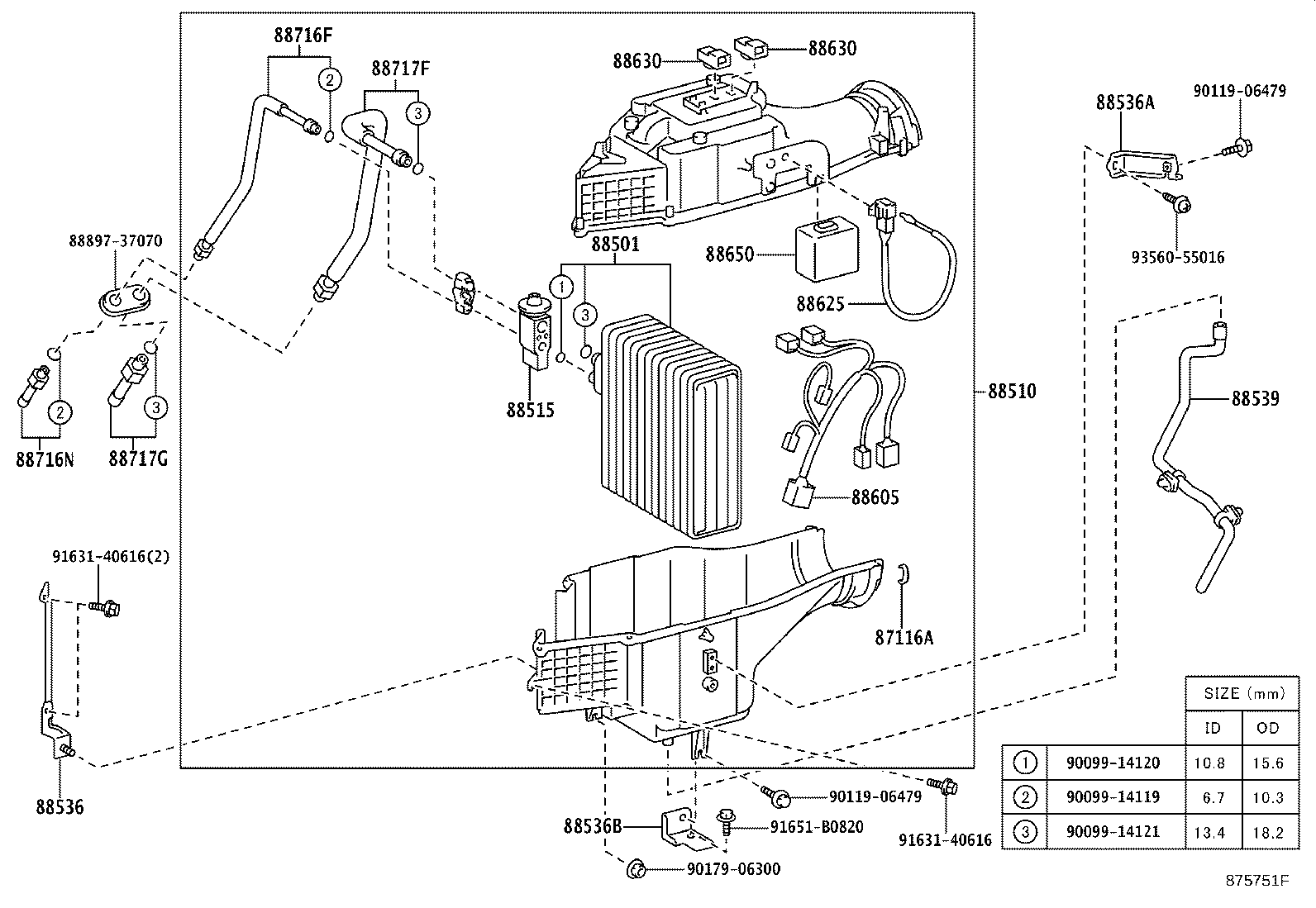

Figure 873417A 873417A 1999-06 → 2002-08 Figure 875751F 875751F 2002-08 → —

Part groups

PNCDescription
87116A Spring, Holding (FOR COOLER UNIT CASE)
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88519A Holder, Remote Bulb, Parts
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88539 Hose, Cooler Unit Drain, NO.1
88578A Packing, Cooler Stabilizer Amplifier
88578B Packing, Cooling Unit, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88626A Holder, Thermistor
88630 Relay Assy, Cooler
88650 Amplifier Assy, Cooler Stabilizer
88716F Pipe, Cooler Refrigerant Liquid, F
88716G Pipe, Cooler Refrigerant Liquid, G
88716N Pipe, Cooler Refrigerant Liquid, N
88717F Pipe, Cooler Refrigerant Suction, F
88717G Pipe, Cooler Refrigerant Suction, G
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
