Toyota Lite/Townace
1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan
Discontinued model
Data version 2008-04
Heating & Air Conditioning - Cooler Piping
35 part groups · 11 illustrations

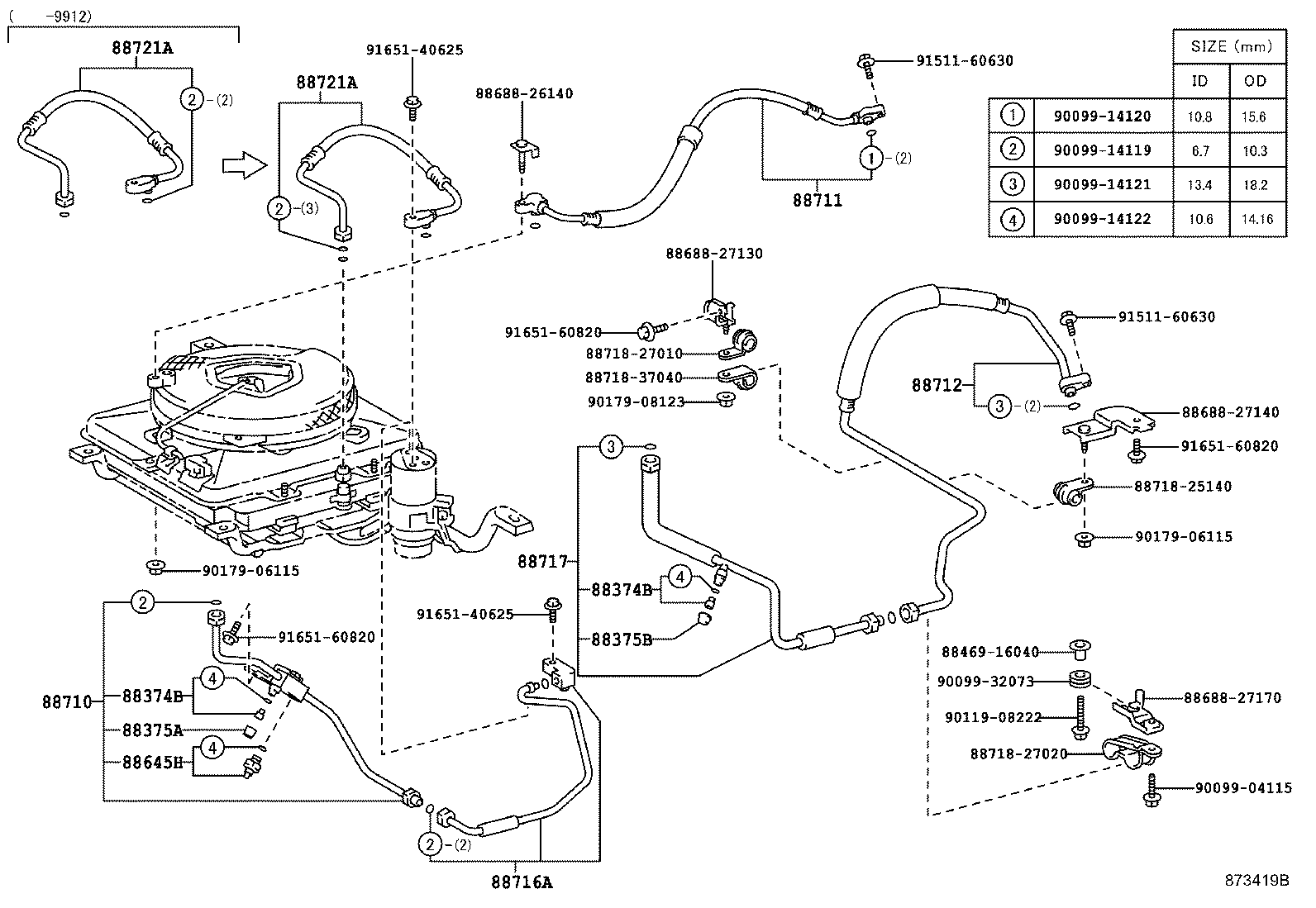

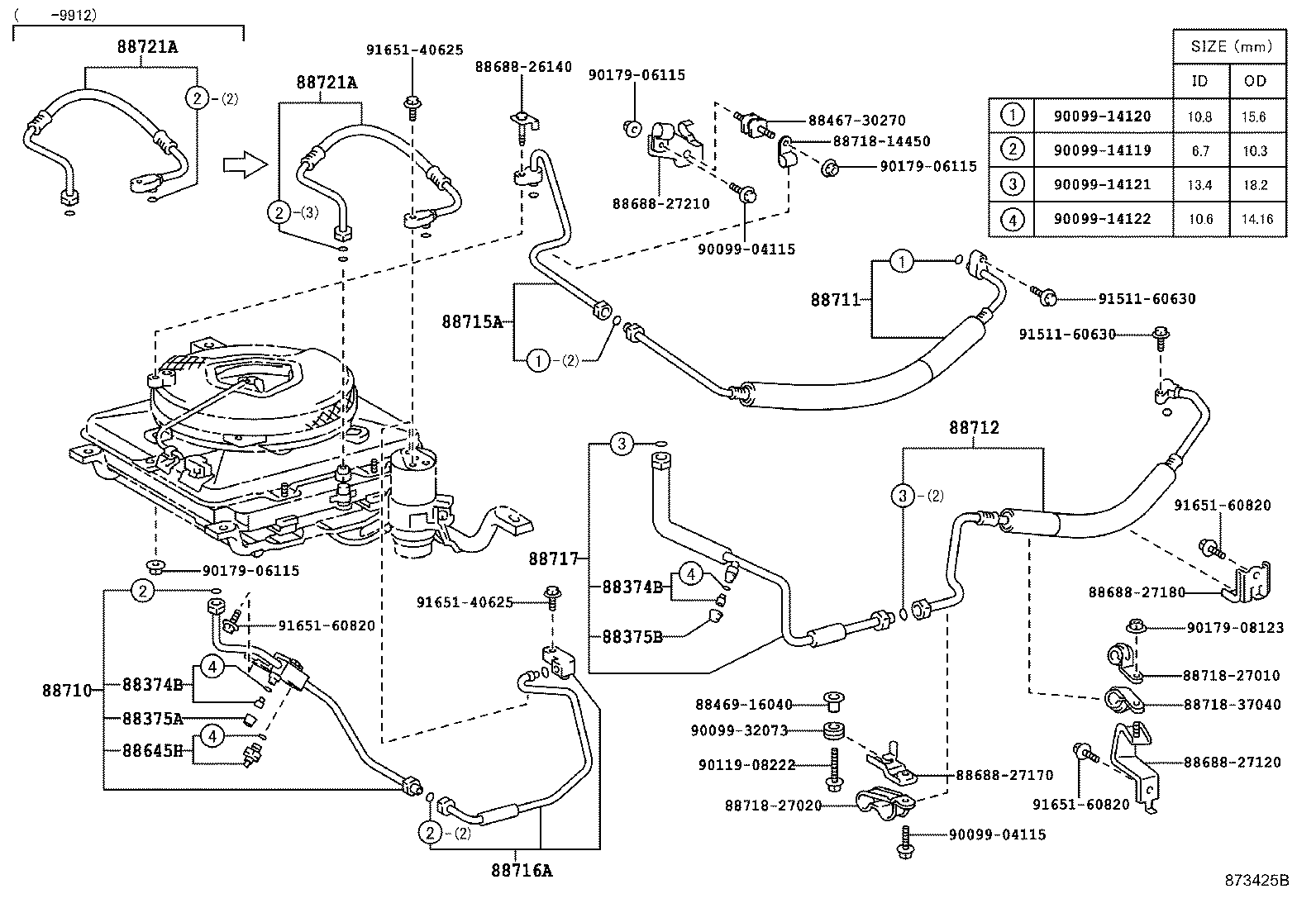

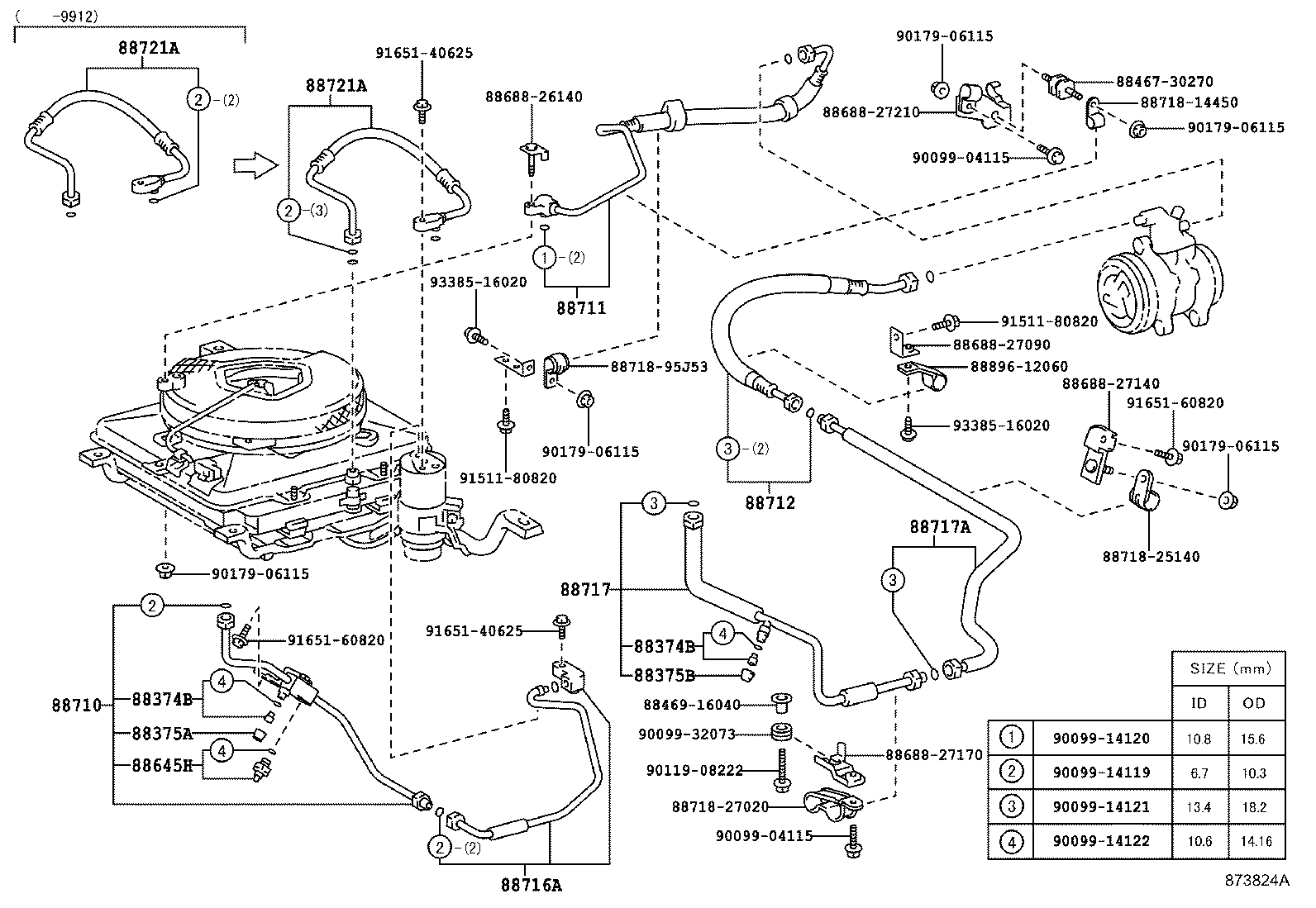

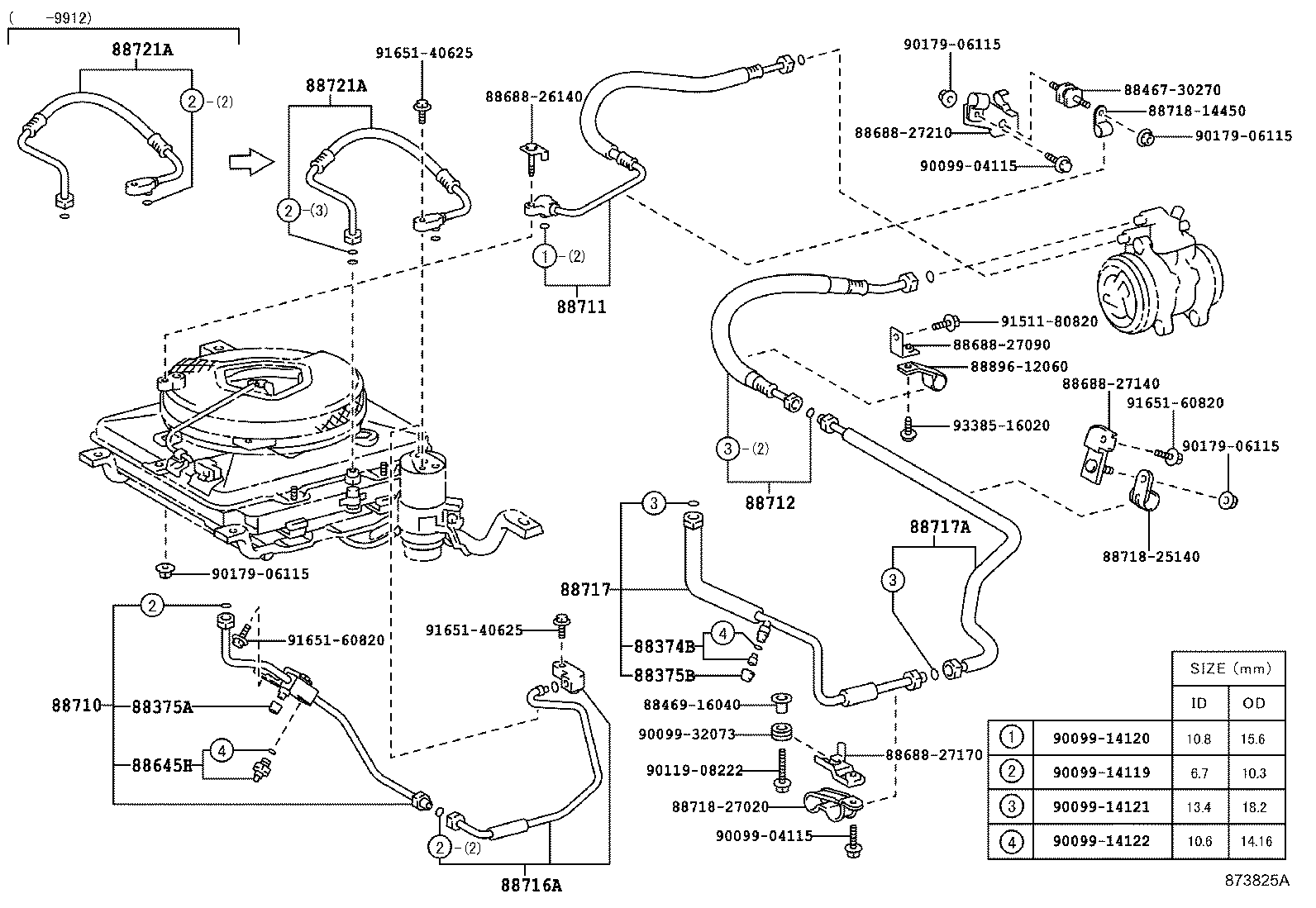

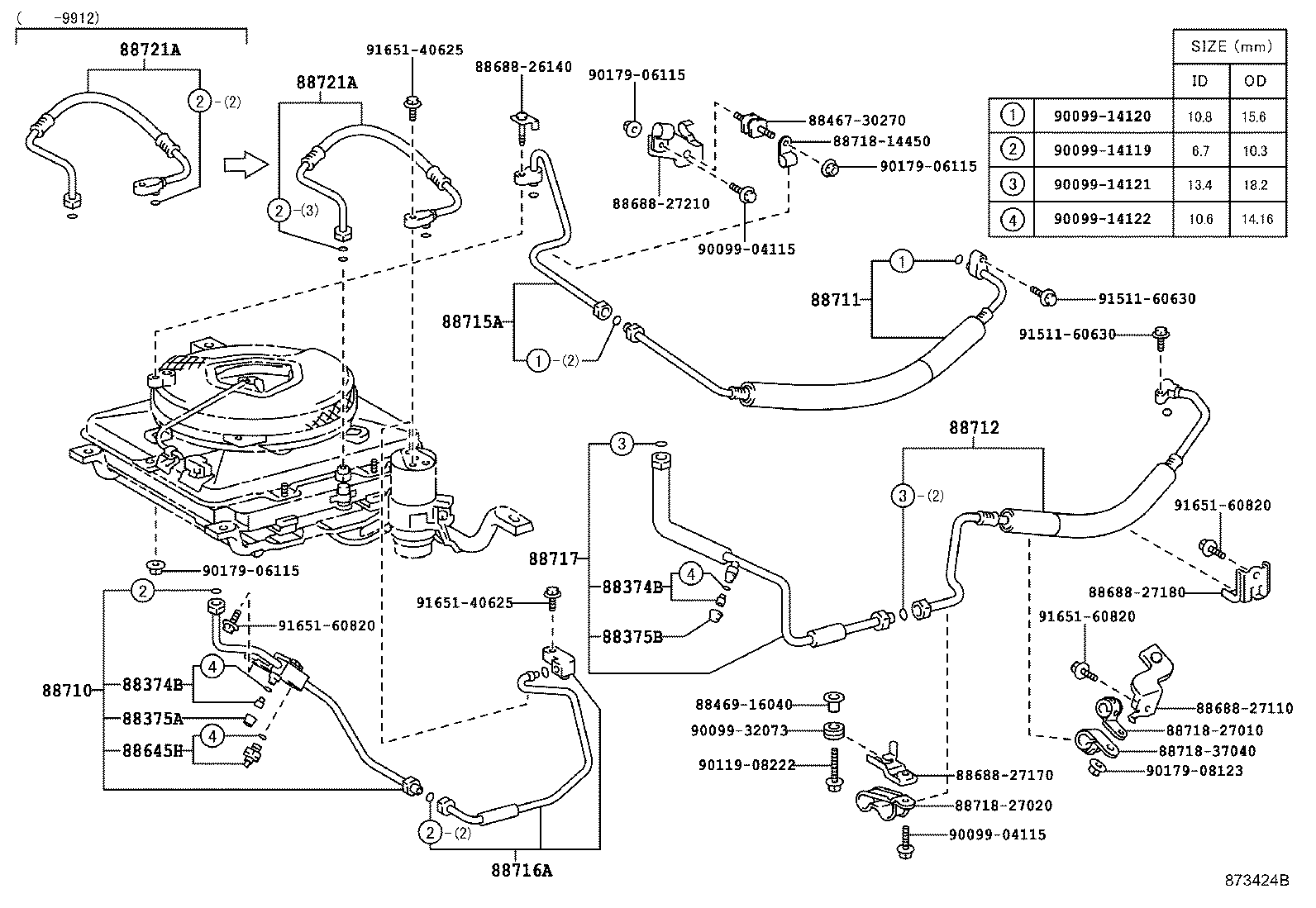

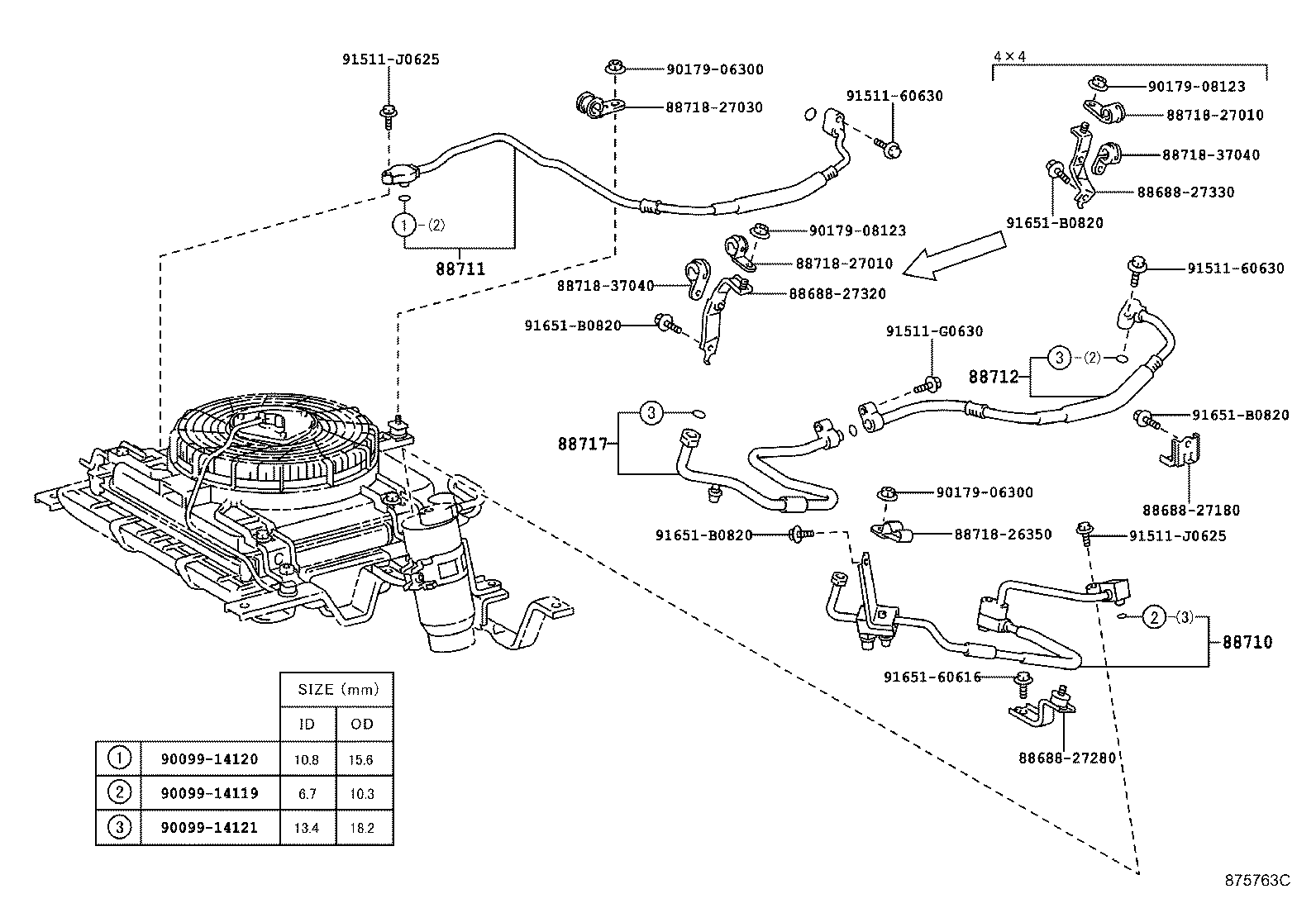

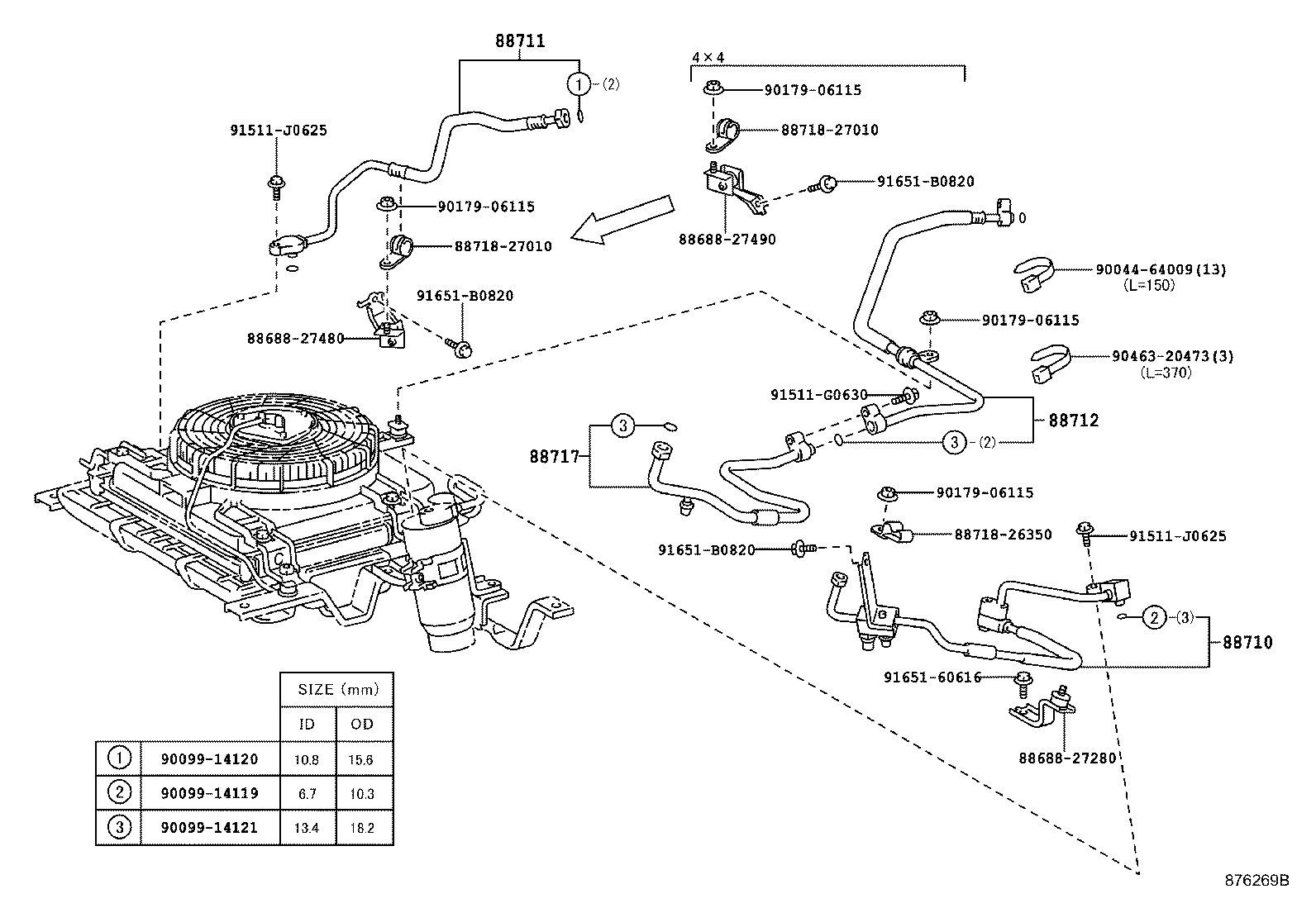

Illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88375A | Cap, Service Valve (FOR COOLER PIPE) |
| 88375B | Cap, Service Valve, NO.1 |
| 88453 | Fan, Cooling (FOR CONDENSER) |
| 88454A | Shroud, Fan |

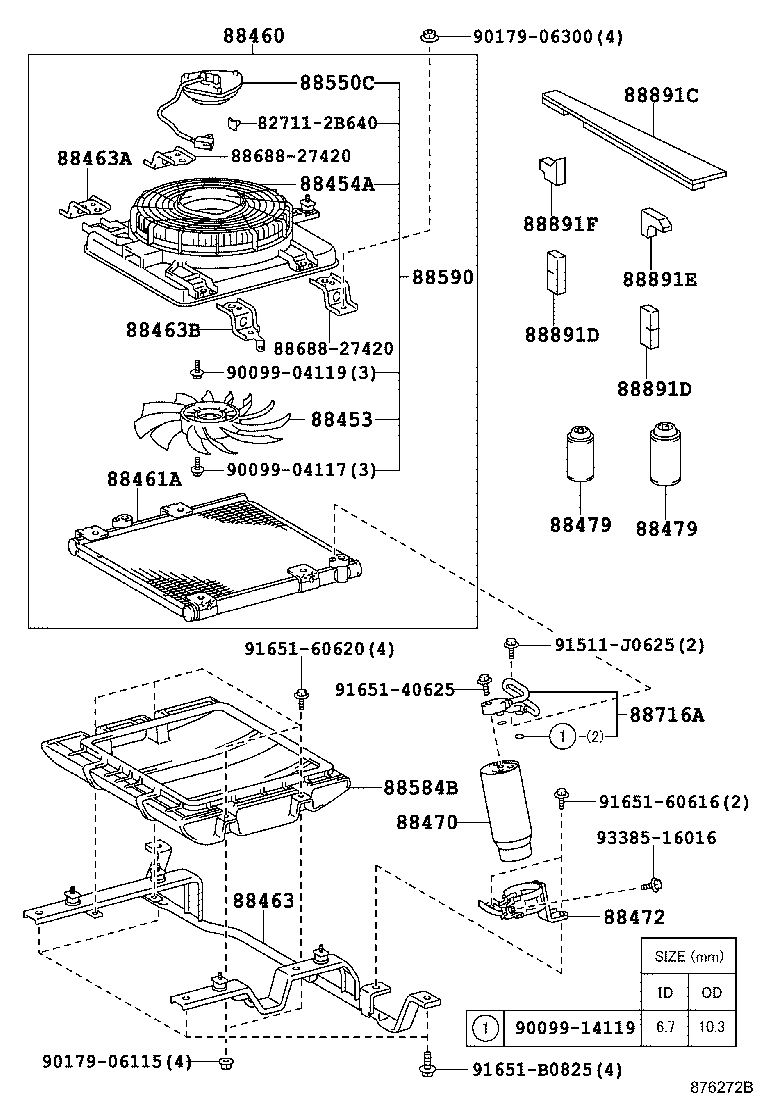

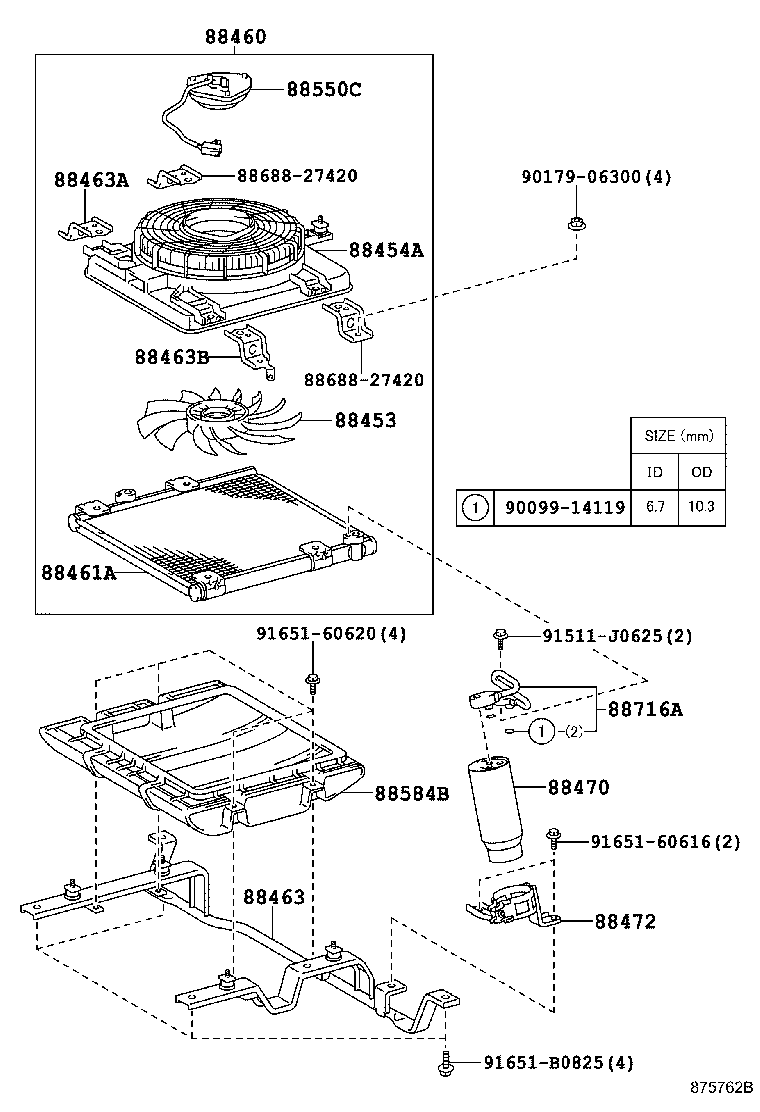

| 88460 | Condenser Assy, Cooler |
| 88461A | Core, Cooler Condenser |
| 88463 | Bracket, Cooler Condenser, NO.1 |
| 88463A | Bracket, Cooler Condenser, NO.2 |
| 88463B | Bracket, Cooler Condenser, NO.3 |
| 88470 | Receiver & Dryer Assy, Cooler |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88479 | Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) |
| 88550C | Motor Assy, Printed |
| 88584B | Guide, Cooler Air |
| 88590 | Blower Assy, W/Shroud |
| 88645H | Switch, Pressure NO.1 |
| 88703 | Hose Sub-assy, Discharge |
| 88704 | Hose Sub-assy, Suction |

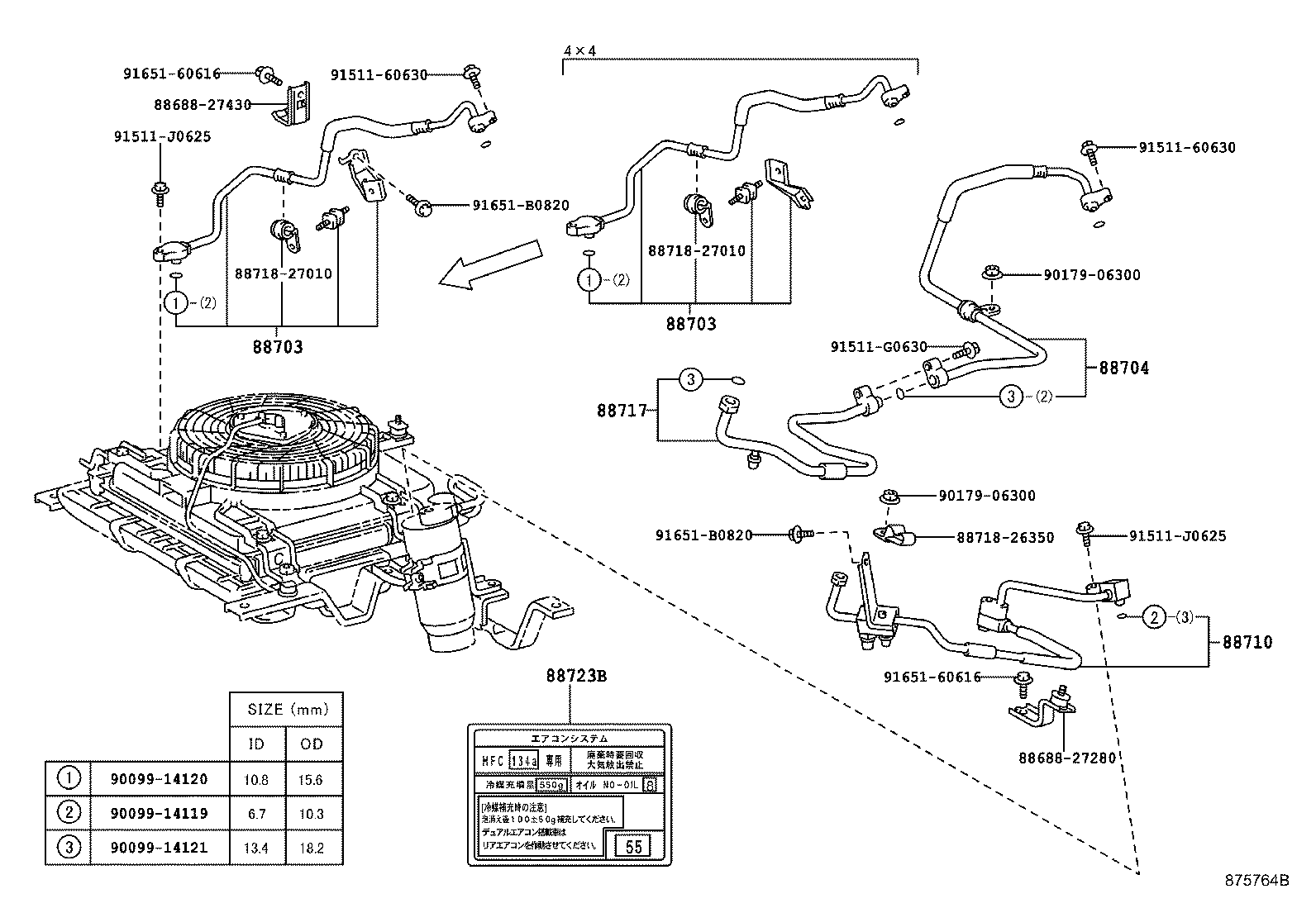

| 88710 | Tube Assy, Air Conditioner |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88715A | Pipe, Cooler Refrigerant Discharge, A |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88717 | Pipe, Cooler Refrigerant Suction, NO.1 |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88721A | Hose, Liquid, A |
| 88723B | Label, Cooler Service Caution |
| 88891A | Packing A (FOR COOLER) |
| 88891B | Packing B (FOR COOLER) |
| 88891C | Packing C (FOR COOLER) |
| 88891D | Packing D (FOR COOLER) |
| 88891E | Packing E (FOR COOLER) |
| 88891F | Packing F (FOR COOLER) |
| 88897T | Grommet, Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
