Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

14 part groups · 6 illustrations

Illustrations

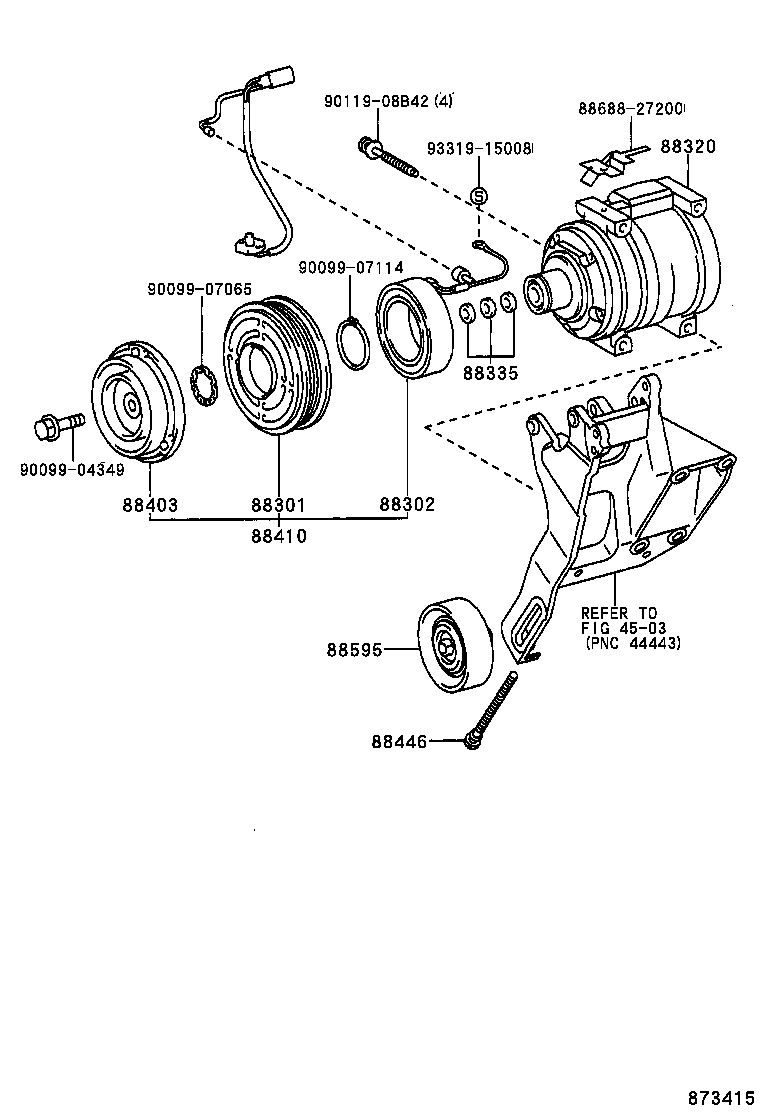

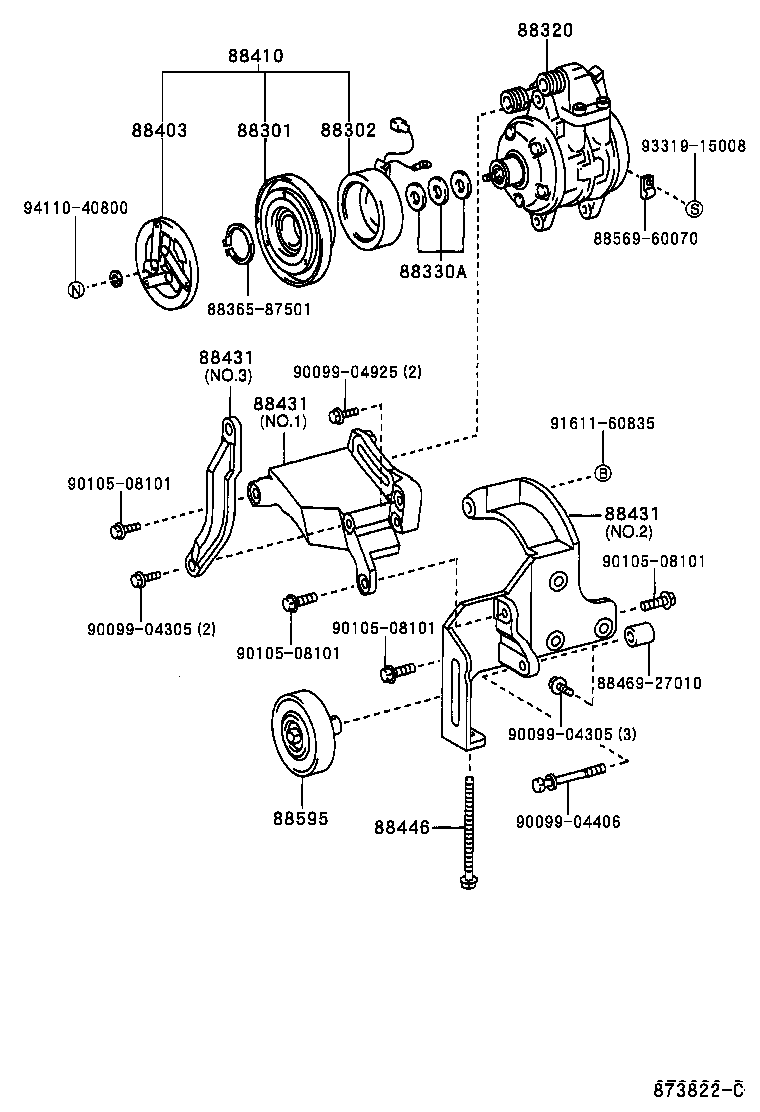

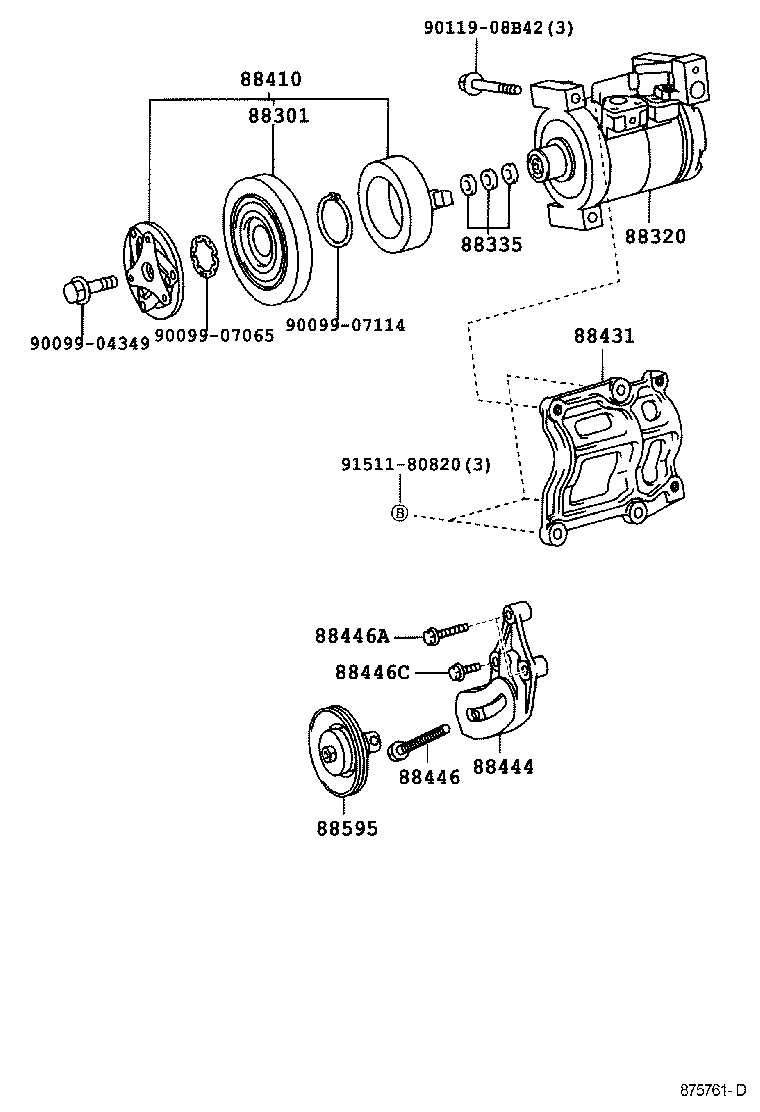

Figure 873414 873414 1999-06 → 2002-08 Figure 875761D 875761D 2002-08 → — Figure 873415 873415 1999-06 → — Figure 873822C 873822C 1999-06 → — Figure 873860 873860 1999-06 → 2002-08 Figure 873861 873861 1999-06 → 2002-08

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330 Clutch Assy, Magnet
88330A Washer (FOR MAGNET CLUTCH)
88335 Gasket Kit, Overhaul
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88446A Bolt, Idle Pulley NO.2
88446C Bolt, Magnet Clutch Setting
88595 Pulley, Cooler Compressor Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
