Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

10 part groups · 4 illustrations

Illustrations

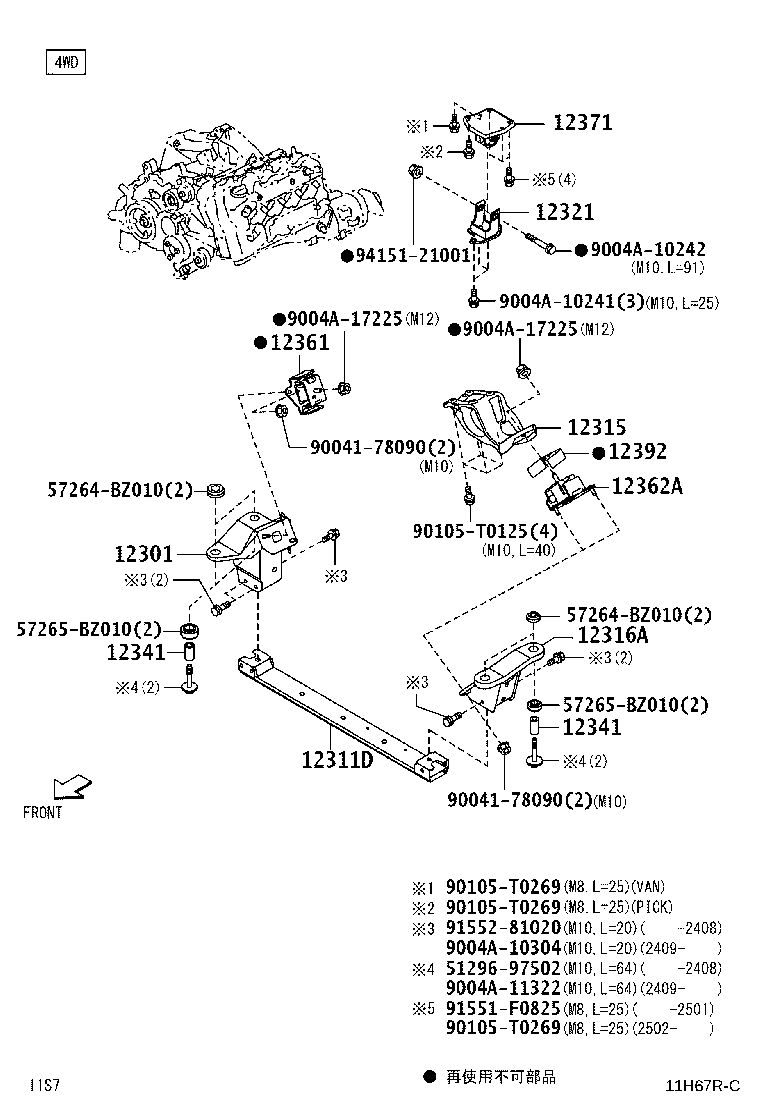

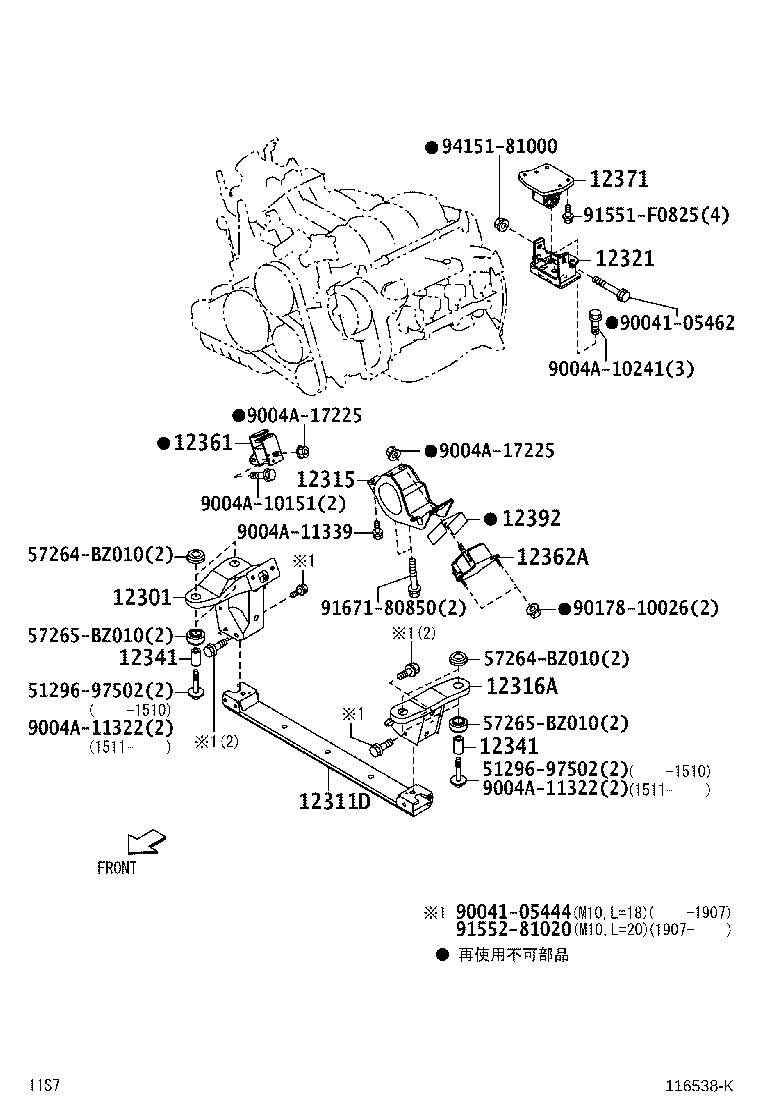

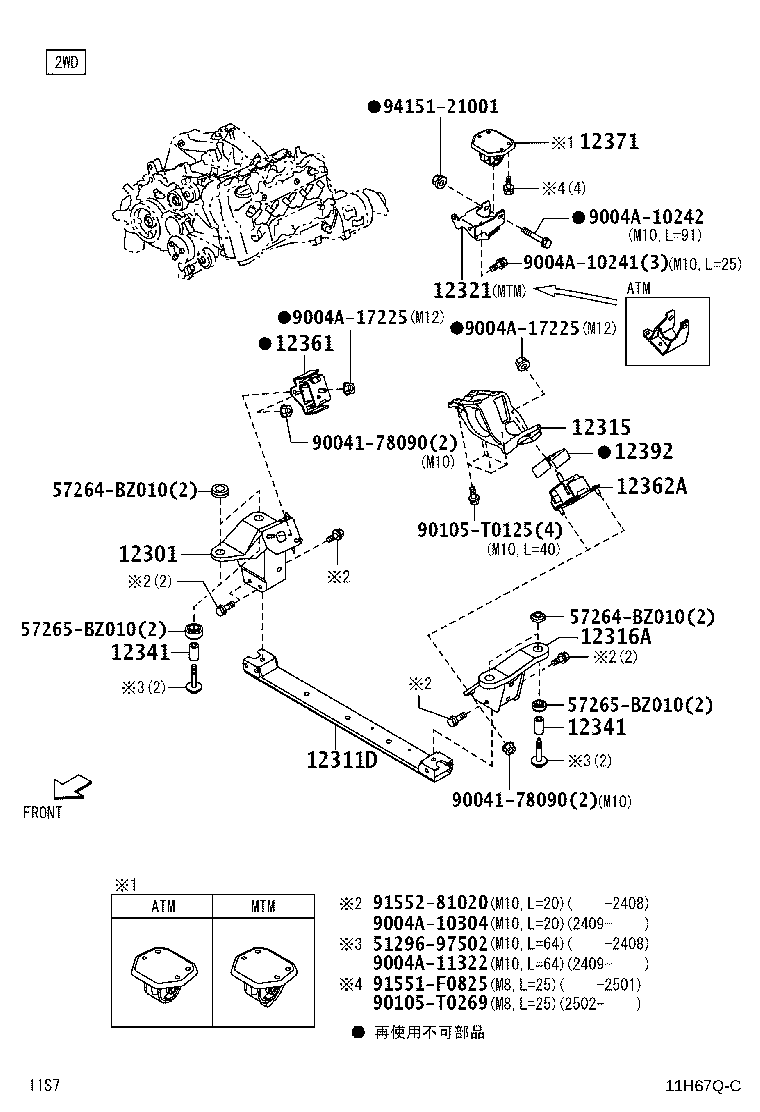

Figure 115271O 115271O 2008-01 → 2020-07 Figure 116538K 116538K 2010-06 → 2020-07 Figure 11H67QC 11H67QC 2020-07 → — Figure 11H67RC 11H67RC 2020-07 → —

Part groups

PNCDescription
12301 Bracket Sub-assy, Engine Mounting, Front RH
12311D Bracket, Engine Mounting
12315 Bracket, Engine Mounting, Front NO.1 LH
12316A Bracket, Engine Mounting, FR NO.2 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12341 Spacer, Engine Mounting
12361 Insulator, Engine Mounting, Front
12362A Insulator, Engine Mounting, Front LH
12371 Insulator, Engine Mounting, Rear NO.1
12392 Insulator, Engine Mounting Heat, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
