Toyota Lite/Townace
2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan
Discontinued model
Data version 2020-10

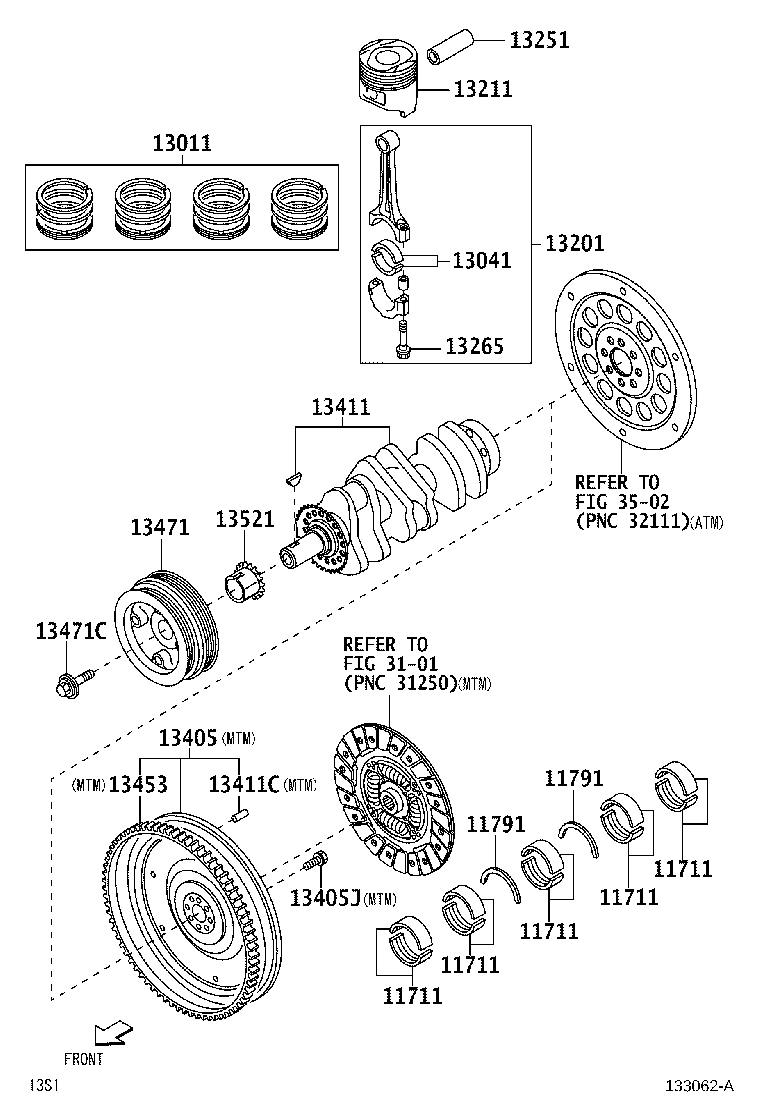

Crankshaft & Piston
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11702 | Bearing Set, Crankshaft |
| 11711 | Bearing, Crankshaft |
| 11791 | Washer, Crankshaft Thrust, Upper |
| 13011 | Ring Set, Piston |
| 13041 | Bearing, Connecting Rod |
| 13101 | Piston Sub-assy, W/Pin |
| 13201 | Rod Sub-assy, Connecting |
| 13202 | Bearing Set, Connecting Rod |
| 13211 | Piston |
| 13251 | Pin, Piston |
| 13265 | Bolt, Connecting Rod |
| 13405 | Flywheel Sub-assy |
| 13405A | Pin, Straight(FOR FLYWHEEL) |
| 13405J | Bolt(FOR FLYWHEEL) |
| 13411 | Crankshaft |
| 13411C | Pin, Straight(FOR CRANKSHAFT) |
| 13453 | Gear, Flywheel Ring |
| 13457 | Ring, Flywheel Spacer |
| 13471 | Pulley, Crankshaft |
| 13471C | Bolt(FOR CRANKSHAFT PULLEY SET) |
| 13477 | Pulley, Crankshaft, NO.2 |
| 13521 | Gear OR Sprocket, Crankshaft Timing |
| 13521A | Key(FOR CRANKSHAFT TIMING GEAR) |
| 19315 | Plate, Crank Angle Sensor, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
