Water Pump

6 part groups · 2 illustrations

Illustrations

Figure 1690CT

1690CT 2008-01 → —

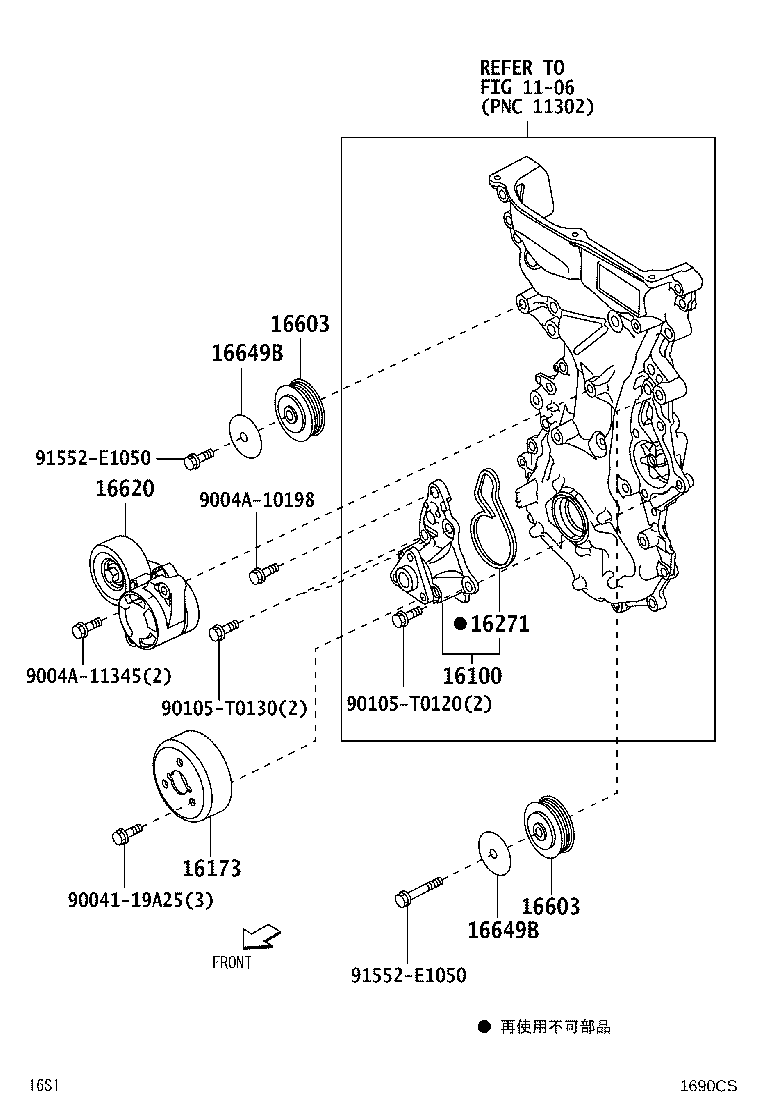

Figure 1690CS

1690CS 2020-07 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16271	Gasket, Water Pump
16603	Pulley Sub-assy, Idler, NO.1
16620	Tensioner Assy, V-ribbed Belt
16649B	Plate, Idler Pulley Cover

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
