Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

V-belt

2 part groups · 2 illustrations

Illustrations

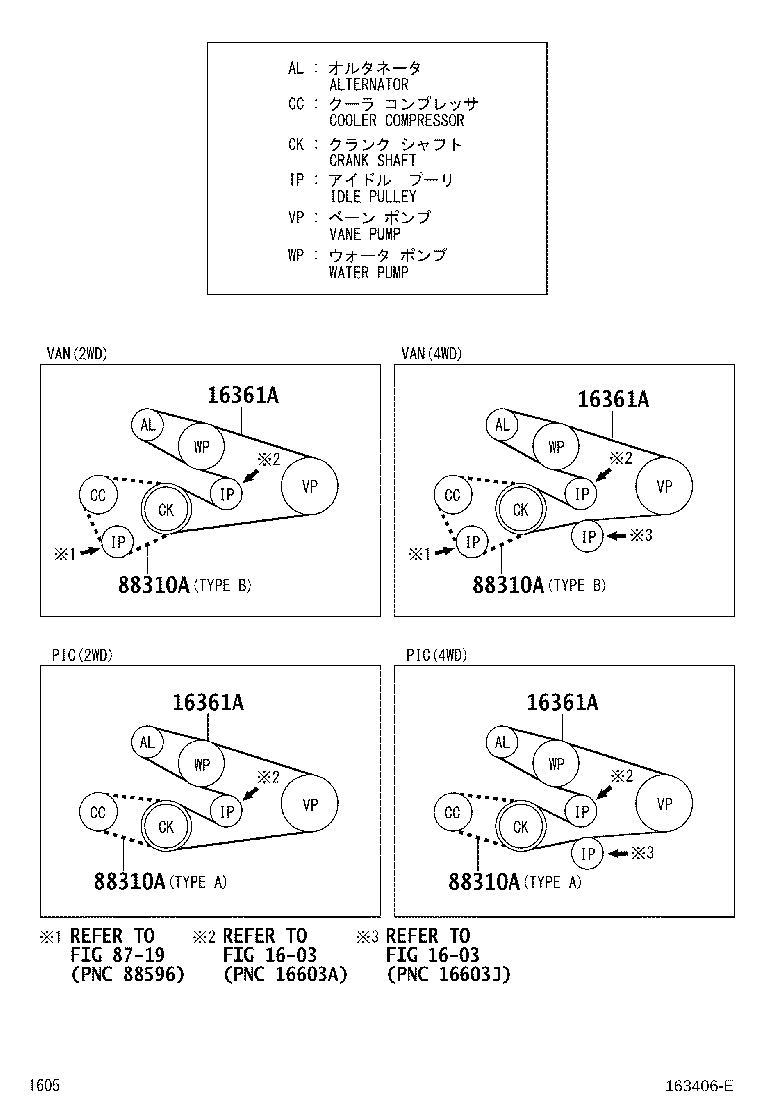

Figure 167691 167691 2020-07 → — Figure 163406E 163406E 2008-01 → —

Part groups

PNCDescription
16361A Belt, V(FOR FAN & ALTERNATOR)
88310A Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
