Toyota Lite/Townace
2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan
Discontinued model
Data version 2020-10

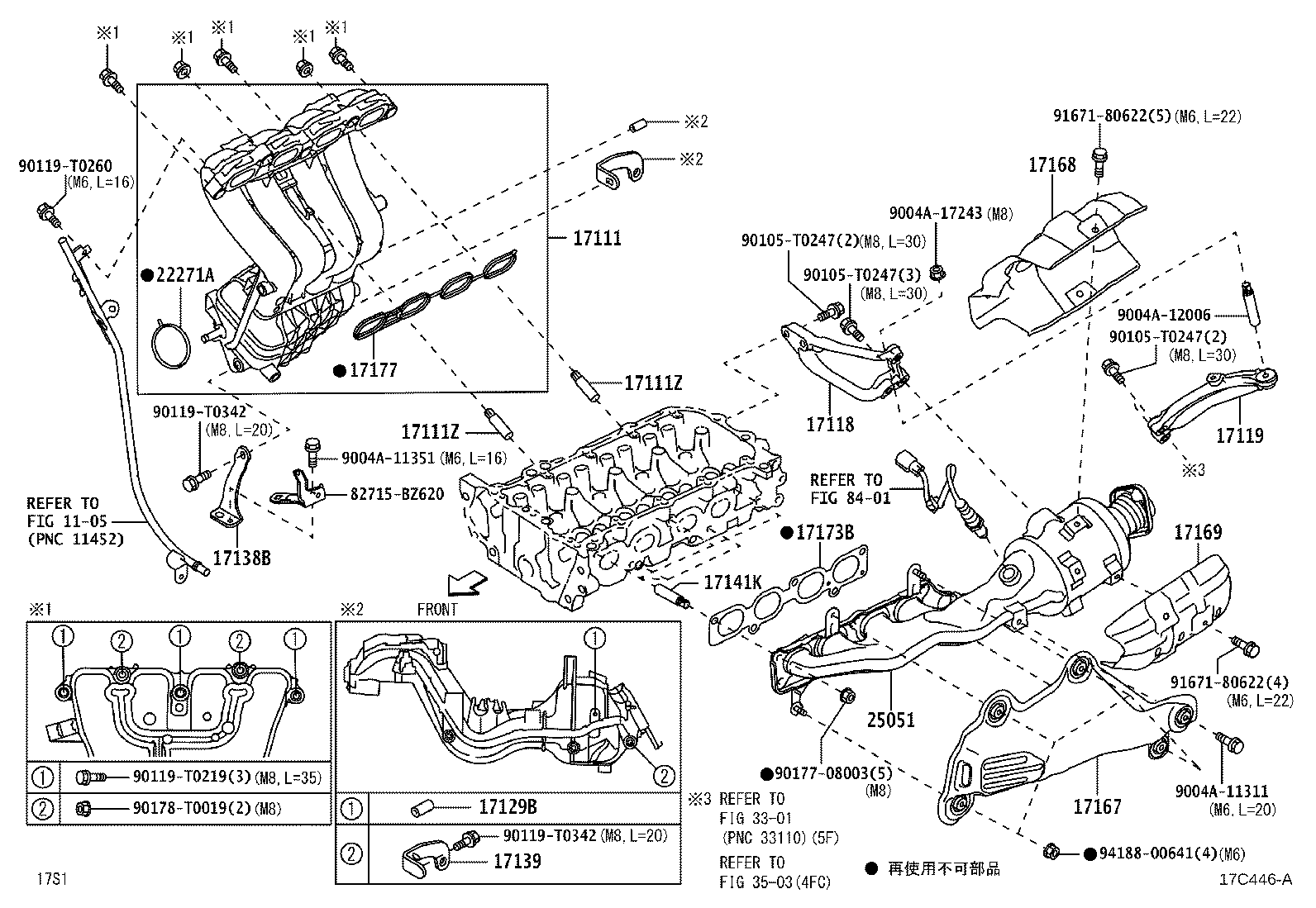

Manifold
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17111 | Manifold, Intake |
| 17111Z | Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
| 17118 | Stay, Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17129B | Plug |
| 17138B | Stay, Intake Manifold |
| 17139 | Stay, Manifold, NO.2 |
| 17141 | Manifold, Exhaust |
| 17141K | Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17169 | Insulator, Exhaust Manifold Heat, NO.3 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17173B | Gasket, Exhaust Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 22271A | Gasket, Throttle Body |
| 25051 | Converter Sub-assy, Exhaust Manifold |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
