Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

8 part groups · 4 illustrations

Illustrations

Figure 176261G

176261G 2008-01 → —

Figure 176262F

176262F 2008-01 → —

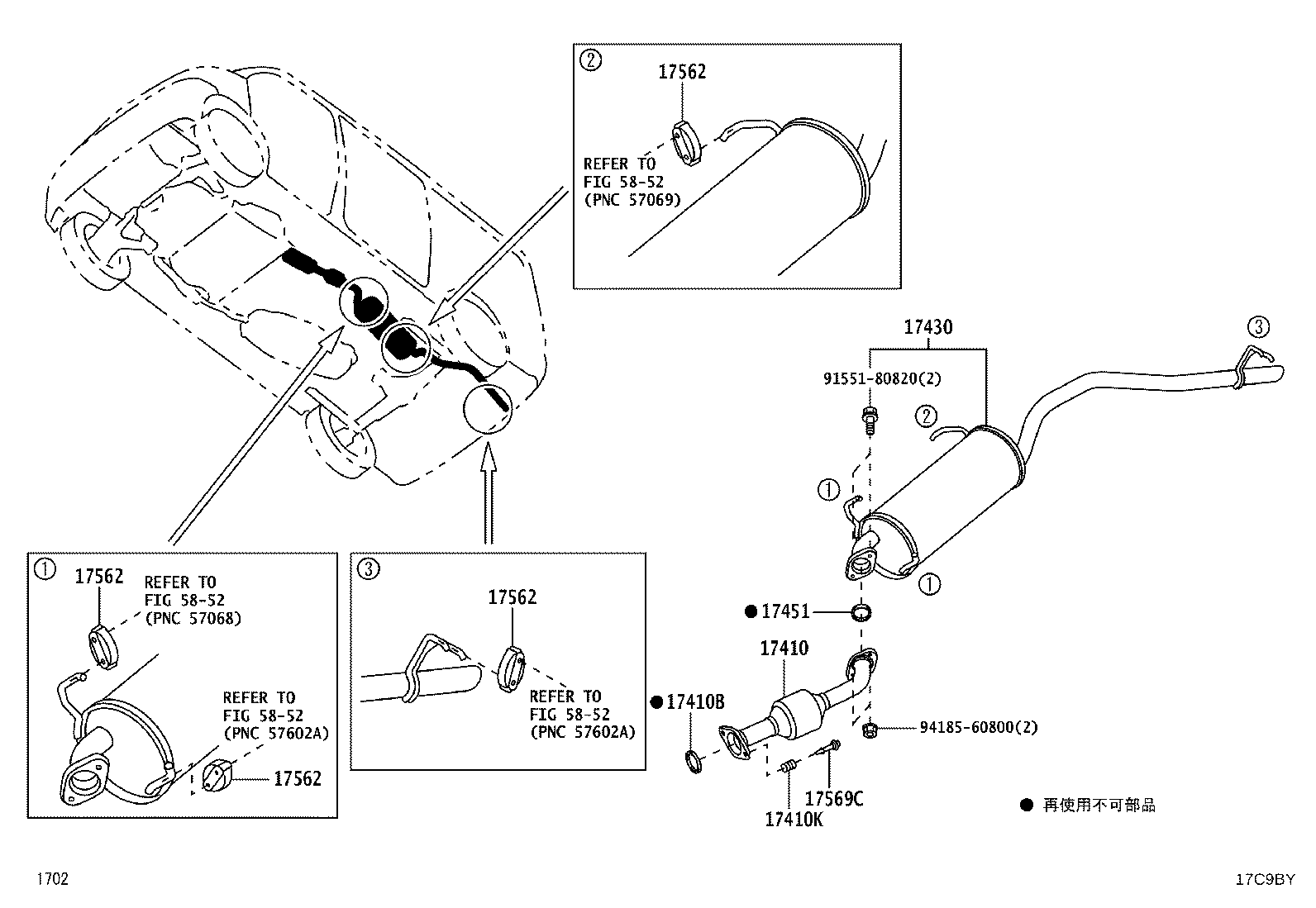

Figure 17C9BY

17C9BY 2020-07 → —

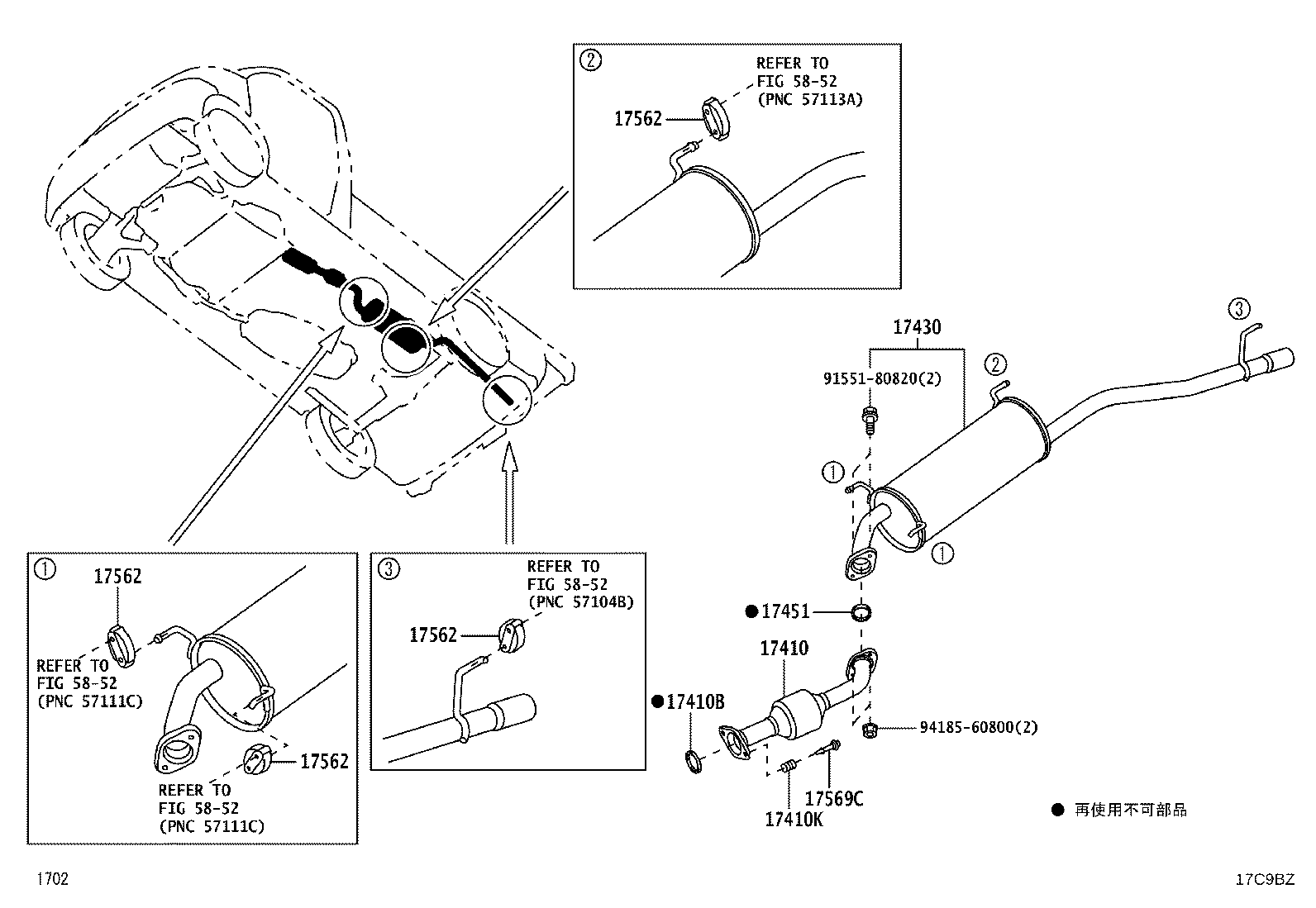

Figure 17C9BZ

17C9BZ 2020-07 → —

Part groups

PNC	Description
17410	Pipe Assy, Exhaust, Front
17410B	Gasket, Exhaust Pipe
17410K	Spring, Exhaust Pipe
17420X	Gasket, Exhaust Pipe, Center
17430	Pipe Assy, Exhaust, Tail
17451	Gasket, Exhaust Pipe
17562	Support, Exhaust Pipe, NO.2
17569C	Bolt, Exhaust Pipe Support

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
