Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

4 part groups · 3 illustrations

Illustrations

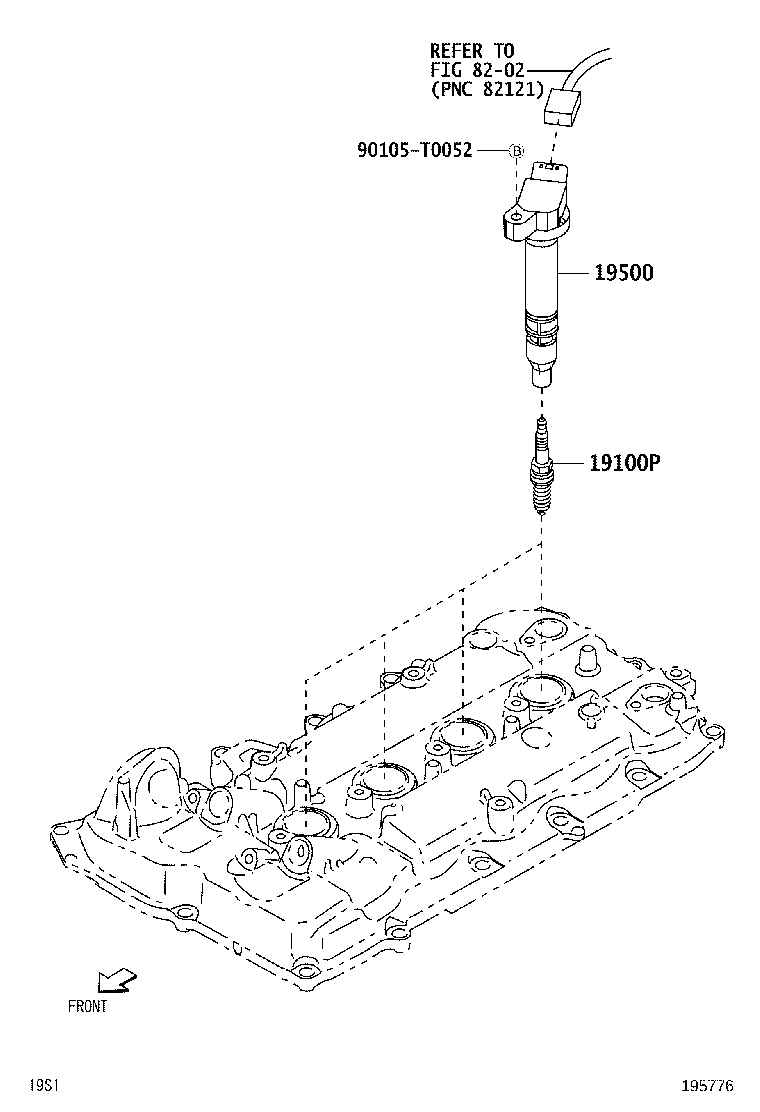

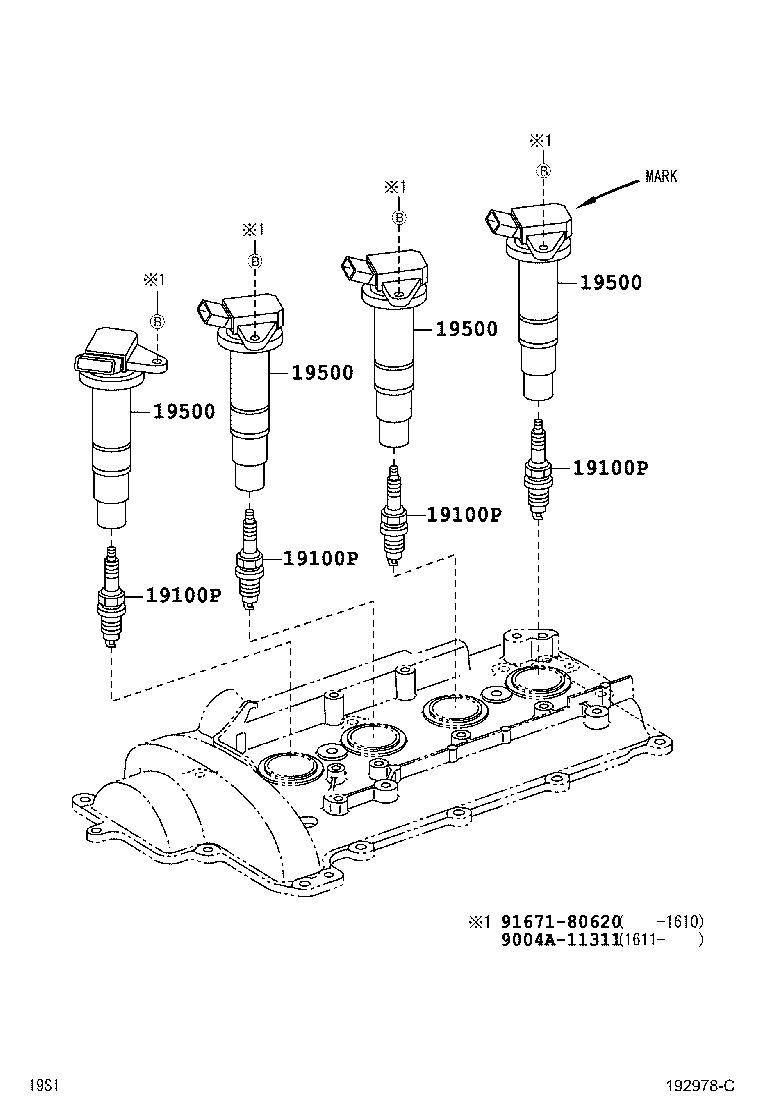

Figure 194319C 194319C 2008-01 → 2010-06 Figure 192978C 192978C 2010-06 → — Figure 195776 195776 2020-07 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19500F Cap, Plug
19515 Gasket, Ignition Coil Cover, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
