Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

17 part groups · 6 illustrations

Illustrations

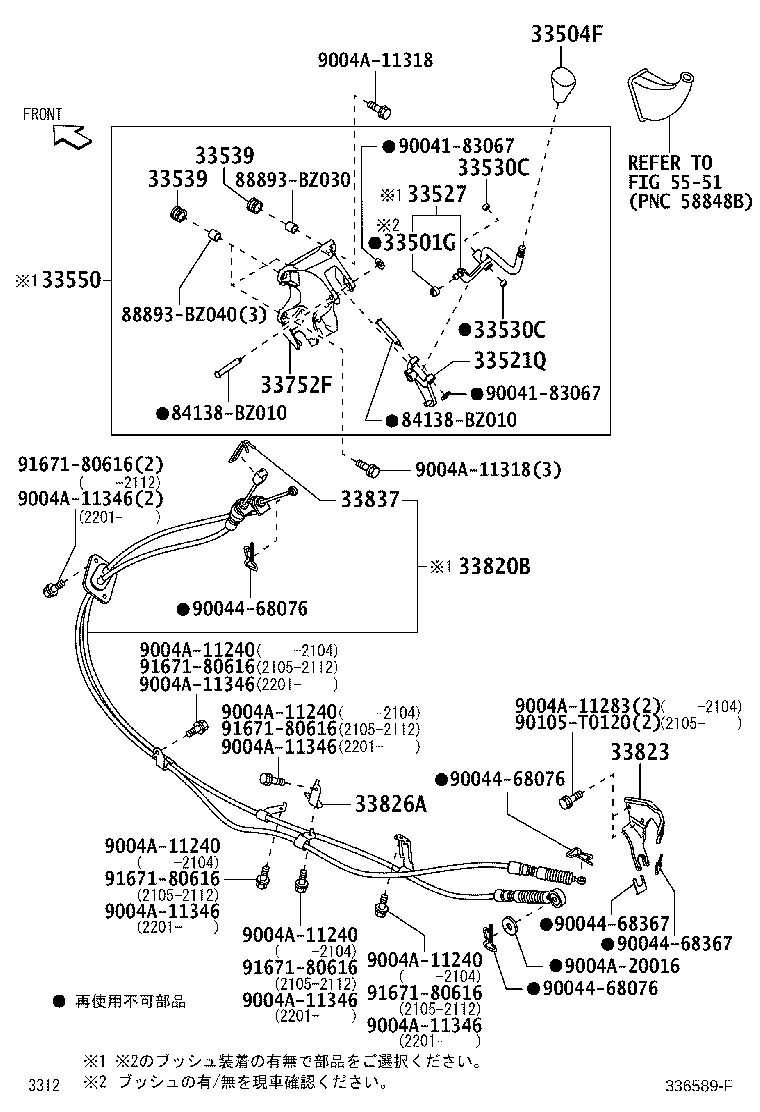

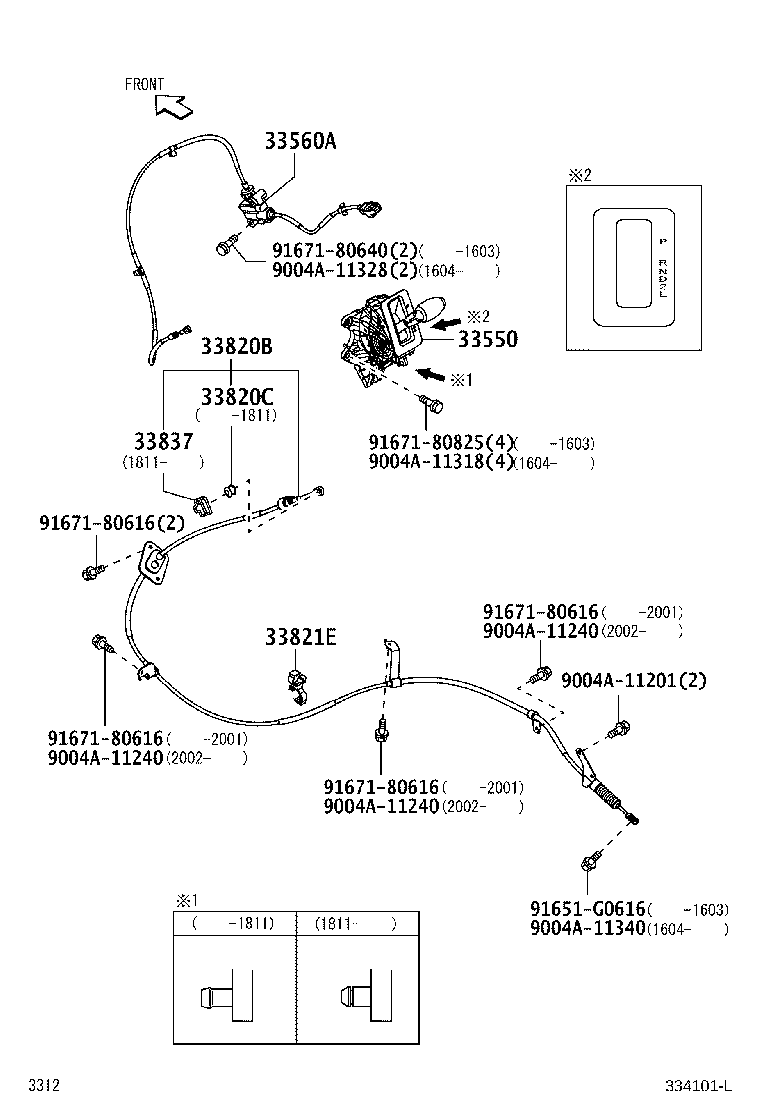

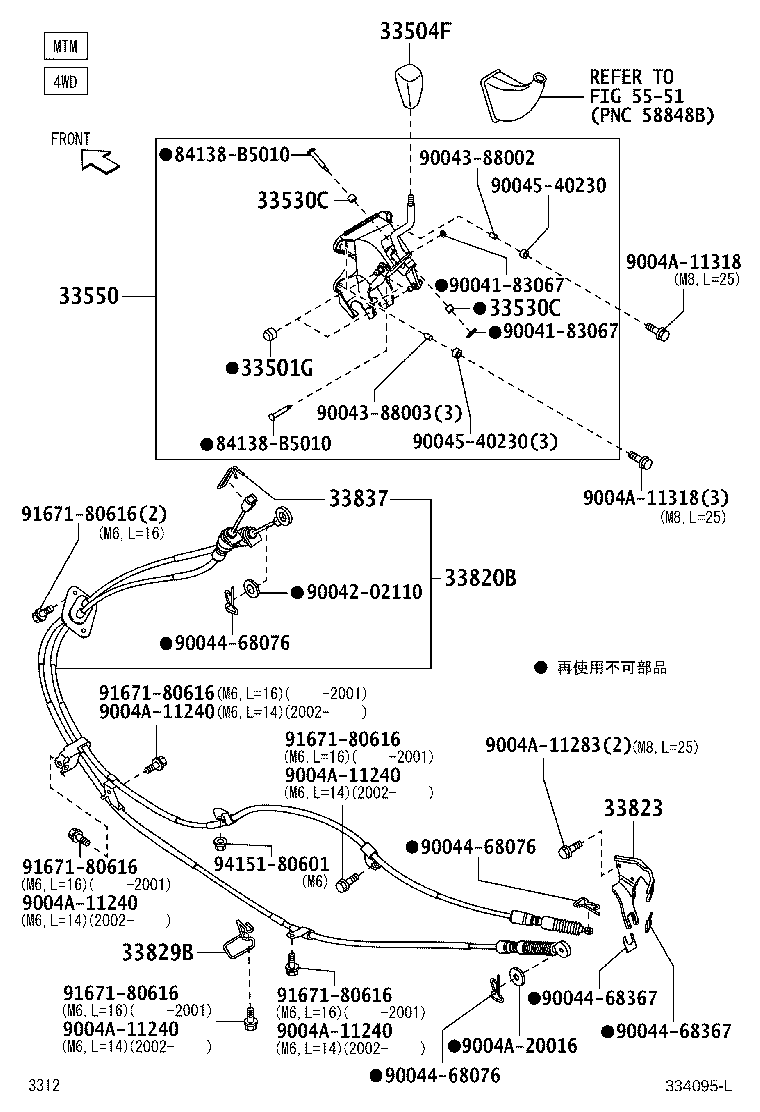

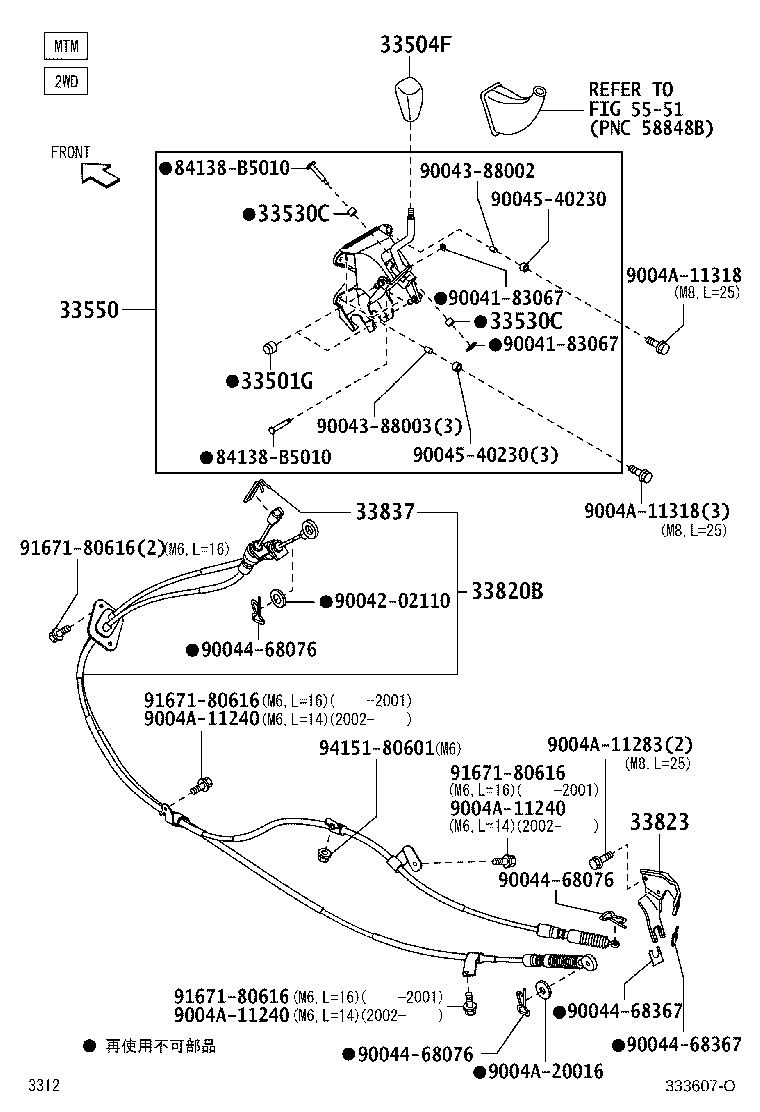

Figure 333606N 333606N 2008-01 → 2020-07 Figure 334101L 334101L 2010-06 → 2020-07 Figure 336350D 336350D 2020-07 → — Figure 333607O 333607O 2008-01 → 2020-07 Figure 334095L 334095L 2010-06 → 2020-07 Figure 336589F 336589F 2008-01 → —

Part groups

PNCDescription
33501G Bush (FOR FLOOR SHIFT CONTROL SHAFT)
33504F Knob Sub-assy, Shift Lever
33521Q Housing, Shift Lever (FOR FLOOR SHIFT)
33527 Lever, Control Shift (FOR FLOOR SHIFT)
33530C Bush (FOR SHIFT LEVER)
33539 Cushion, Shift Lever Anti-rattle
33550 Floor Shift Assy, Transmission
33554C Cover, Shift Lock Release Button
33560A Cable Assy, Shift Lock Release
33752F Support, Control Link (FOR FLOOR SHIFT)
33820B Cable Assy, Transmission Control
33820C Bush (FOR TRANSMISSION CONTROL CABLE)
33821E Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33826A Bracket, Transmission Control Cable, NO.2
33829B Clamp, Transmission Control Cable
33837 Clip, Transmission Control Cable Adjust
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
