Toyota Lite/Townace
2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan
Discontinued model
Data version 2020-10

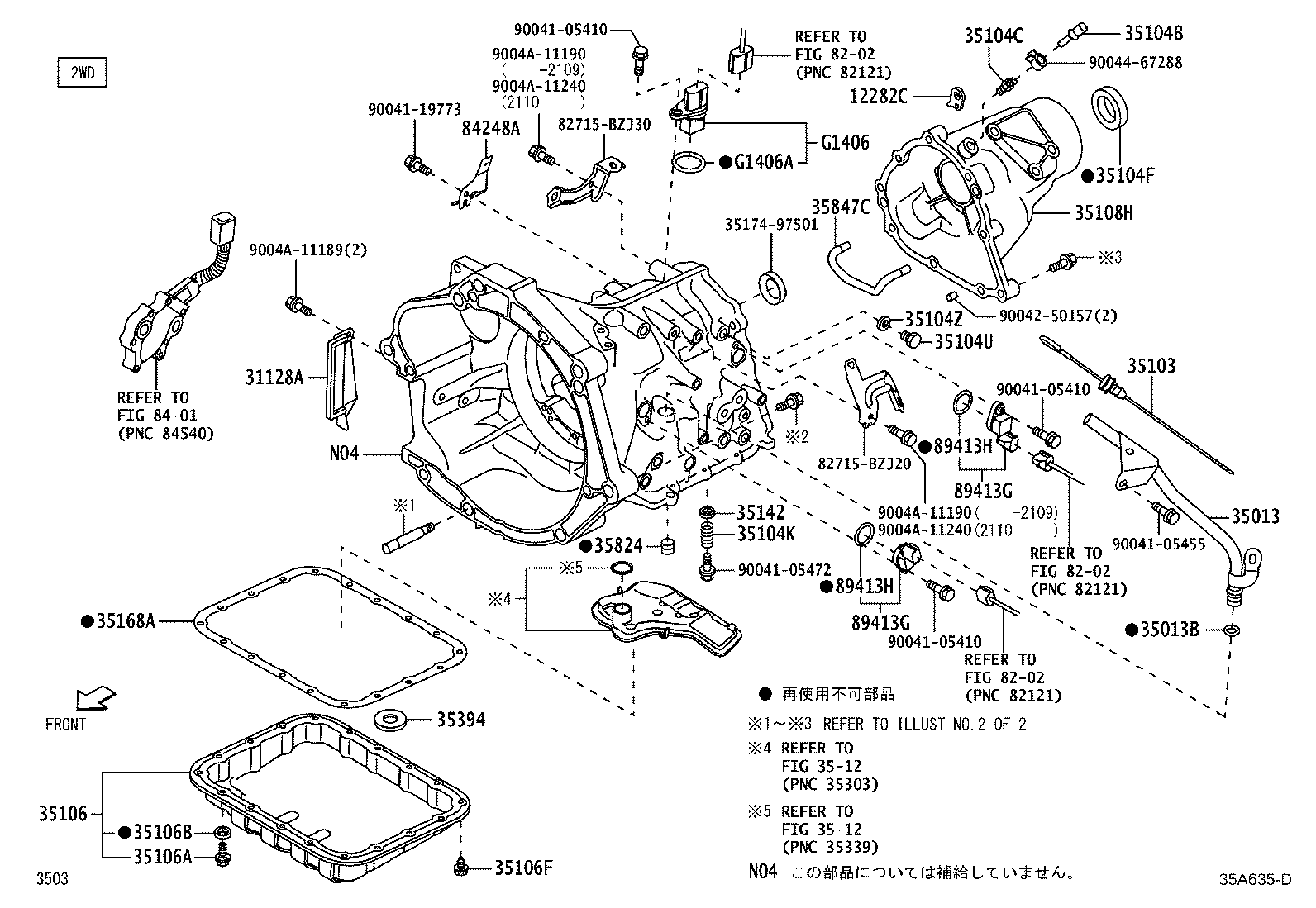

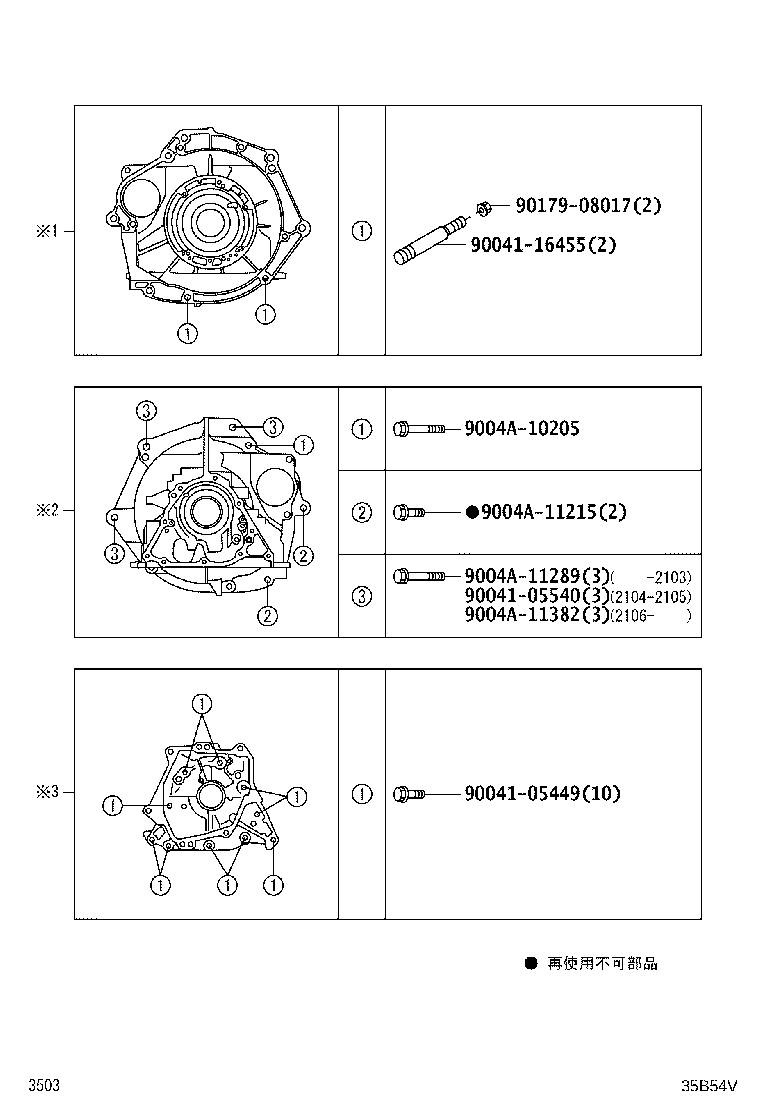

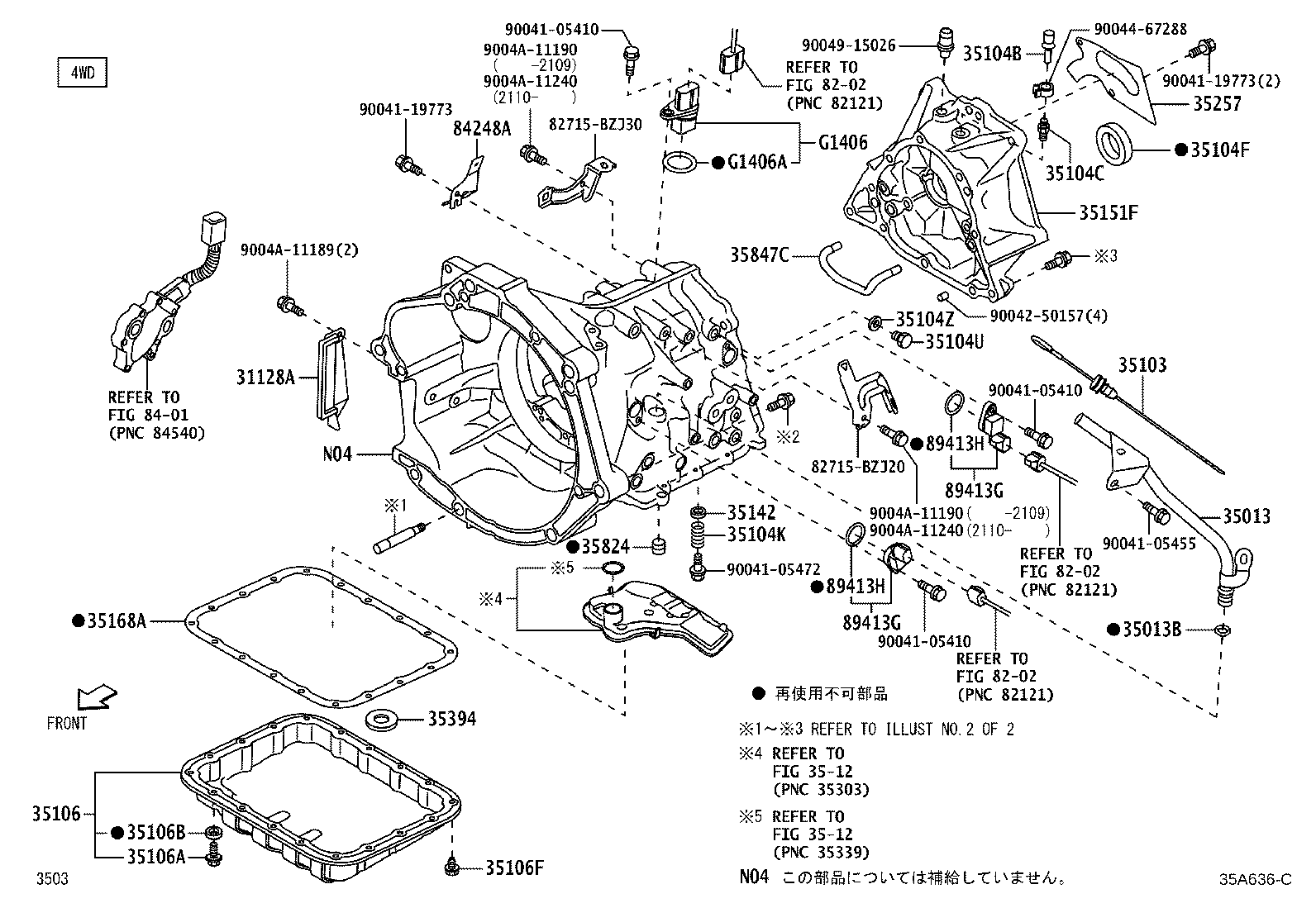

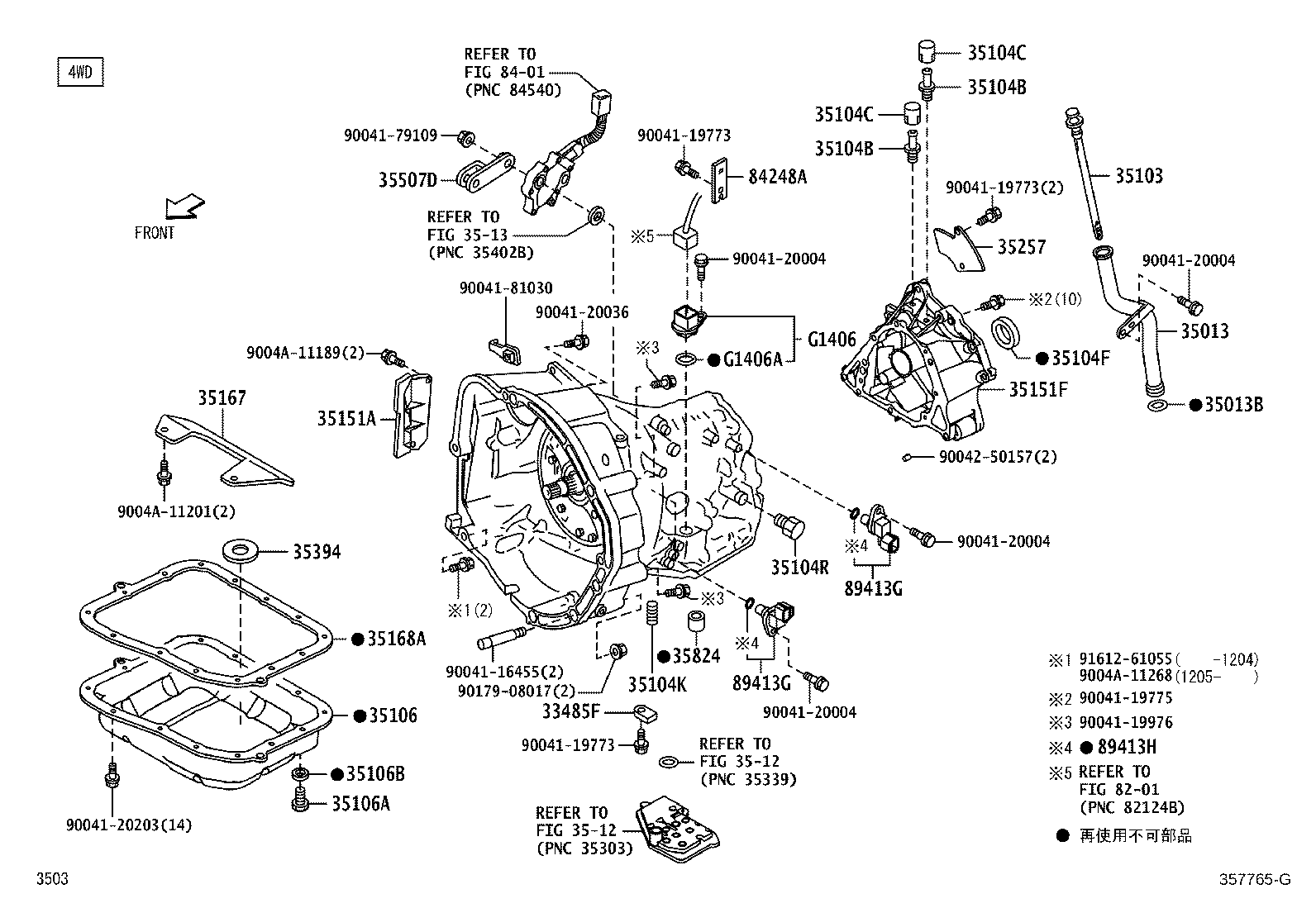

Transmission Case & Oil Pan (ATM)
33 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 12282C | Hanger, Engine, NO.2 |
| 31128A | Cover, Clutch Housing Under(ATM) |
| 33485F | Plate, Speedmeter Lock |
| 35013 | Tube Sub-assy, Transmission Oil Filler |
| 35013B | Ring, O (FOR TRANSMISSION OIL FILLER TUBE) |
| 35103 | Gage Sub-assy, Transmission Oil Level |
| 35104B | Plug, Breather, NO.1 (ATM) |
| 35104C | Plug, Breather, NO.2 (ATM) |
| 35104F | Seal, Oil (FOR TRANSAXLE CASE) |
| 35104K | Compression Spring, Transaxle Case |
| 35104R | Plug, NO.2 (FOR TRANSAXLE CASE) |
| 35104U | Bolt (FOR TRANSAXLE CASE) |
| 35104Z | Gasket (FOR TRANSAXLE CASE) |
| 35106 | Pan Sub-assy, Automatic Transmission Oil |
| 35106A | Plug Sub-assy, Drain (ATM) |
| 35106B | Gasket, Drain Plug (ATM) |
| 35106F | Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN) |
| 35108H | Housing Sub-assy, Extension |
| 35142 | Gasket, Transmission Case(ATM) |
| 35151A | Cover, Transaxle Case, Upper |
| 35151F | Cover, Transmission Case, Side |
| 35167 | Protector, Transmission Oil Pal |
| 35168A | Gasket, Automatic Transaxle Oil Pan |
| 35257 | Plate, Oil Guide |
| 35394 | Magnet, Oil Cleaner (FOR TRANSMISSION) |
| 35507D | Lever, Transmission Control Shaft |
| 35824 | Seal, Brake Cylinder |
| 35847C | Tube, Transmission Lube Apply |
| 84248A | Clamp, Switch Harness |
| 89413G | Sensor, Transmission Revolution |
| 89413H | Ring, O(FOR TRANSMISSION REVOLUTION SENSOR) |
| G1406 | Connector Sub-assy, Trans Solenoid |
| G1406A | Ring, O(FOR TRANS SOLENOID CONNECTOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
