Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Vacuum Piping

12 part groups · 3 illustrations

Illustrations

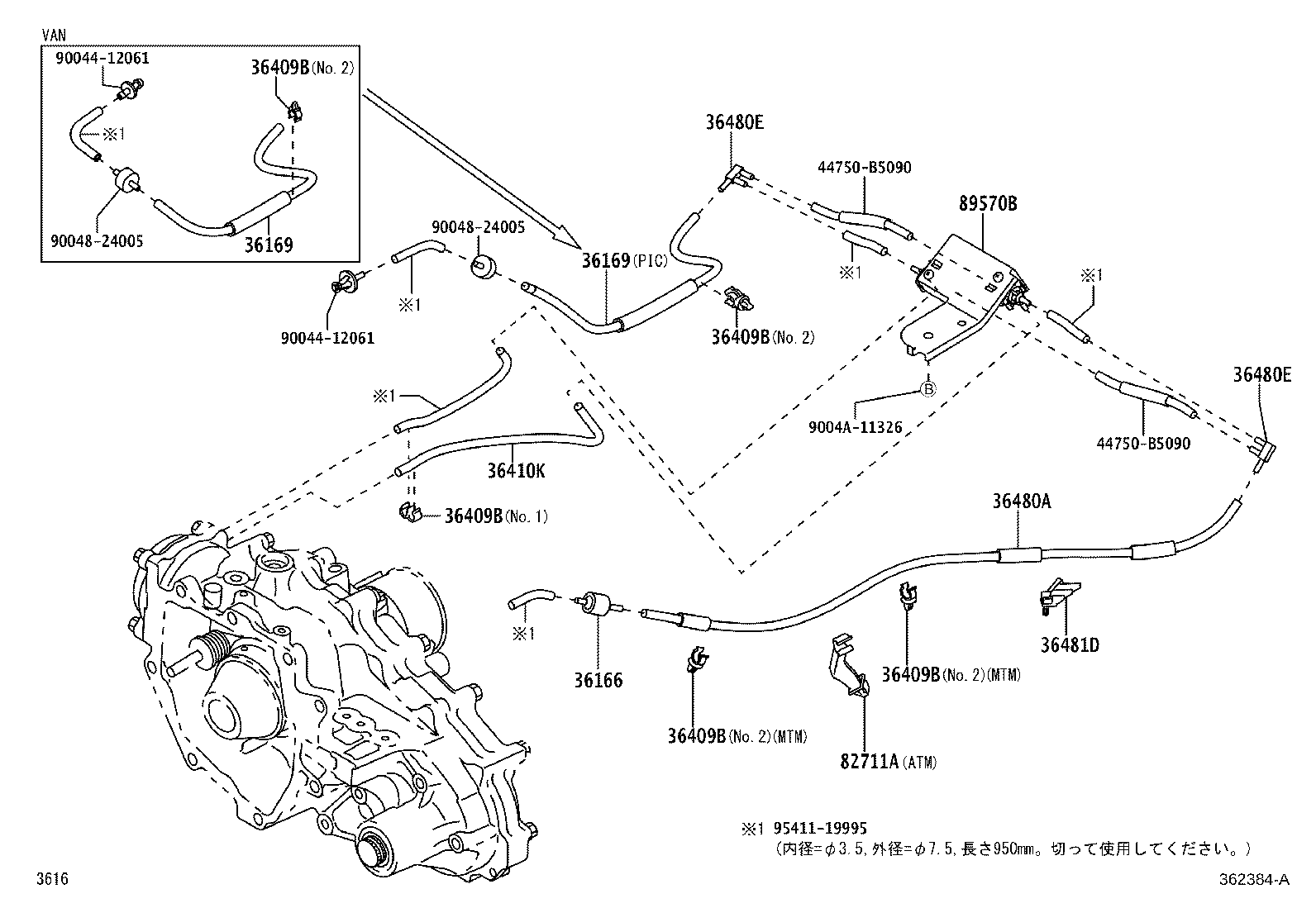

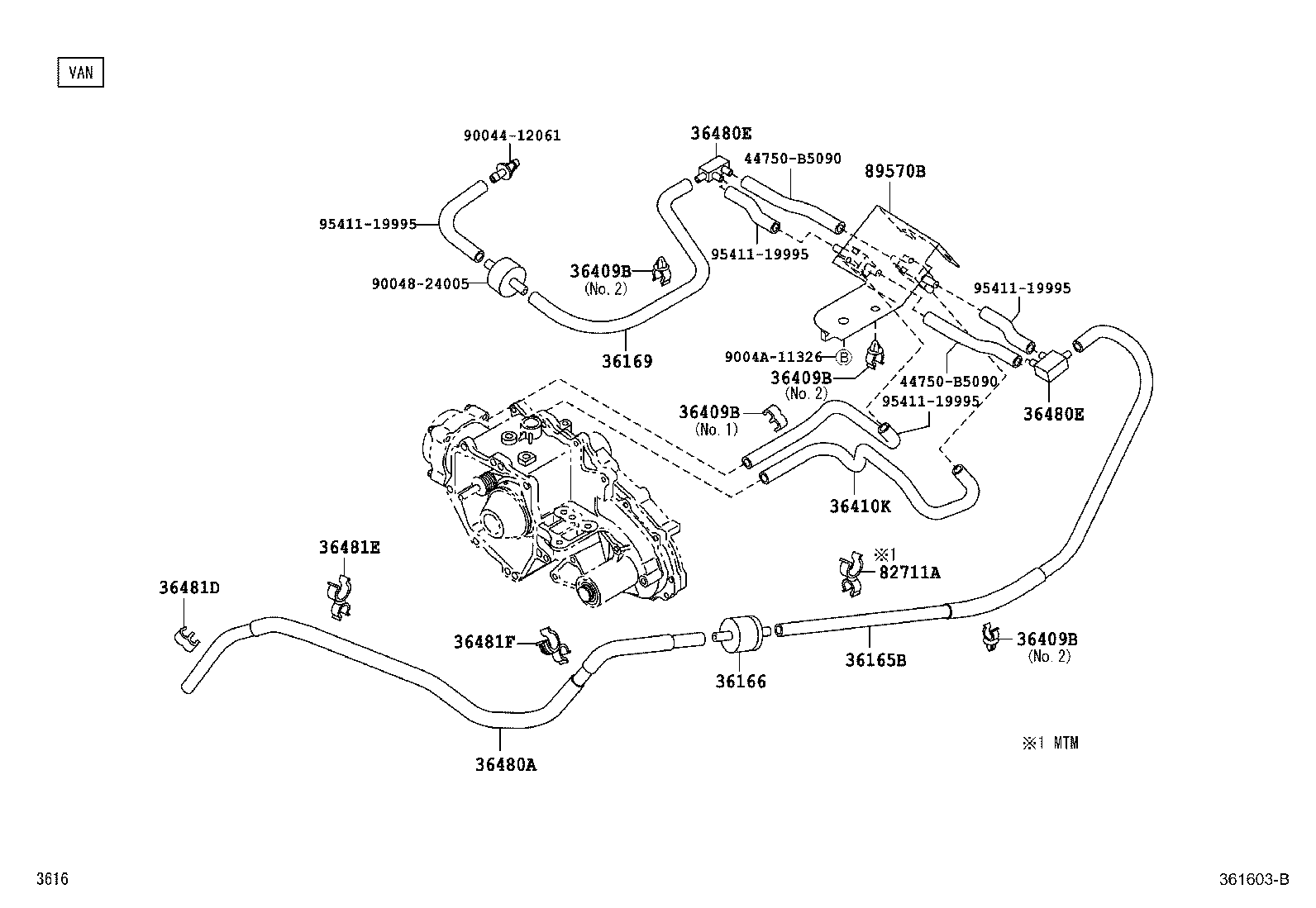

Figure 361606B 361606B 2010-06 → 2020-07 Figure 361603B 361603B 2010-06 → 2020-07 Figure 362384A 362384A 2020-07 → —

Part groups

PNCDescription
36165B Hose(CHECK VALVE, NO.2)
36166 Valve, Check
36169 Hose
36409B Clamp, Vacuum Tube
36410K Hose, Vacuum (FOR TRANSFER VACUUM)
36480A Hose (FOR VACUUM CHECK VALVE)
36480E Way, 3 (FOR TRANSFER VACUUM TUBE)
36481D Clamp, NO.1 (FOR TRANSFER VACUUM)
36481E Clamp, NO.2 (FOR TRANSFER VACUUM)
36481F Clamp, NO.3(FOR TRANSFER VACUUM)
82711A Clamp(FOR TRANSFER VACUUM TUBE)
89570B Valve Assy, Vacuum Switching
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
