Toyota Lite/Townace
2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan
Discontinued model
Data version 2020-10

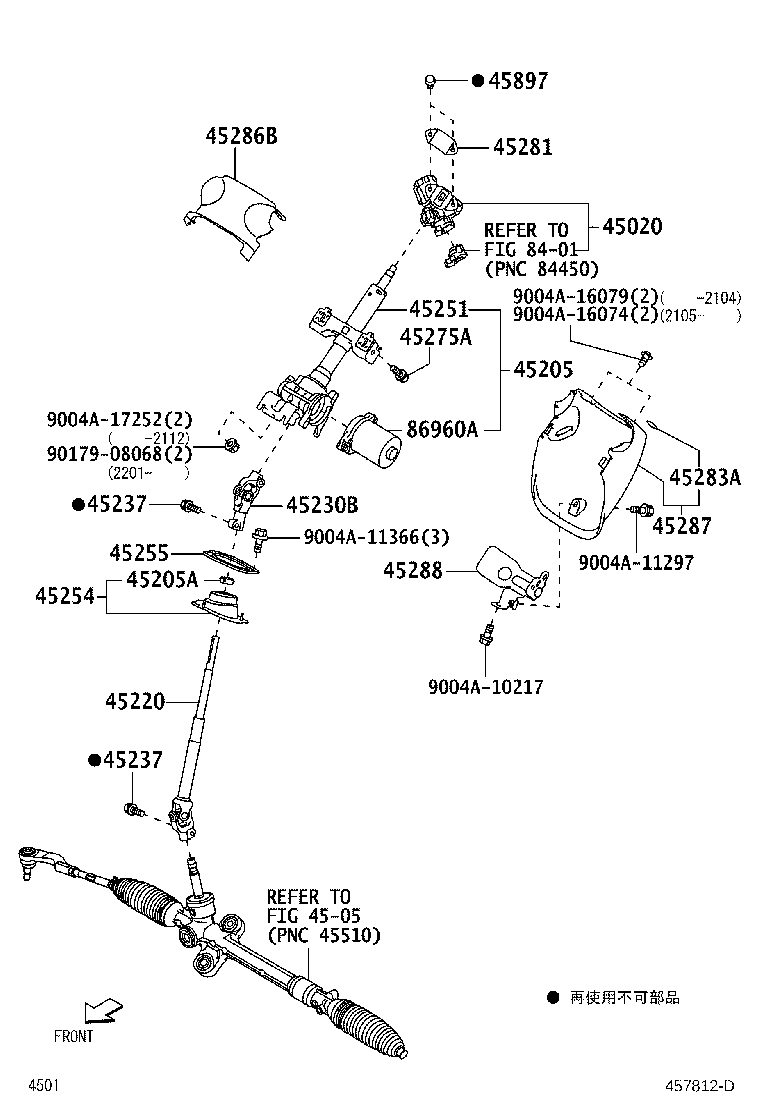

Steering Column & Shaft
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45020 | Bracket Assy, Steering Column Upper W/Switch |
| 45205 | Tube Sub-assy, Steering Column |
| 45205A | Bush(FOR STEERING COLUMN TUBE) |
| 45220 | Shaft Assy, Steering Intermediate |
| 45230B | Joint Assy, Steering Shaft Universal |
| 45237 | Bolt, Flexible Attaching(FOR STEERING MAIN SHAFT) |
| 45250 | Column Assy, Steering |
| 45251 | Tube Set, Steering Column |
| 45254 | Shield, Steering Column Hole |
| 45255 | Plate, Steering Column Hole Cover |
| 45275A | Bolt, Hexagon(FOR STEERING COLUMN BRACKET) |
| 45281 | Housing, Steering Column |
| 45283A | Plate, Beam Change & Turn Signal Caution |
| 45286B | Cover, Steering Column, Upr |
| 45287 | Cover, Steering Column, Lwr |
| 45288 | Plate, Steering Column Cover |
| 45897 | Bolt, Steering Lock Set |
| 86960A | Motor Set, Power Steering |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
