Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

13 part groups · 4 illustrations

Illustrations

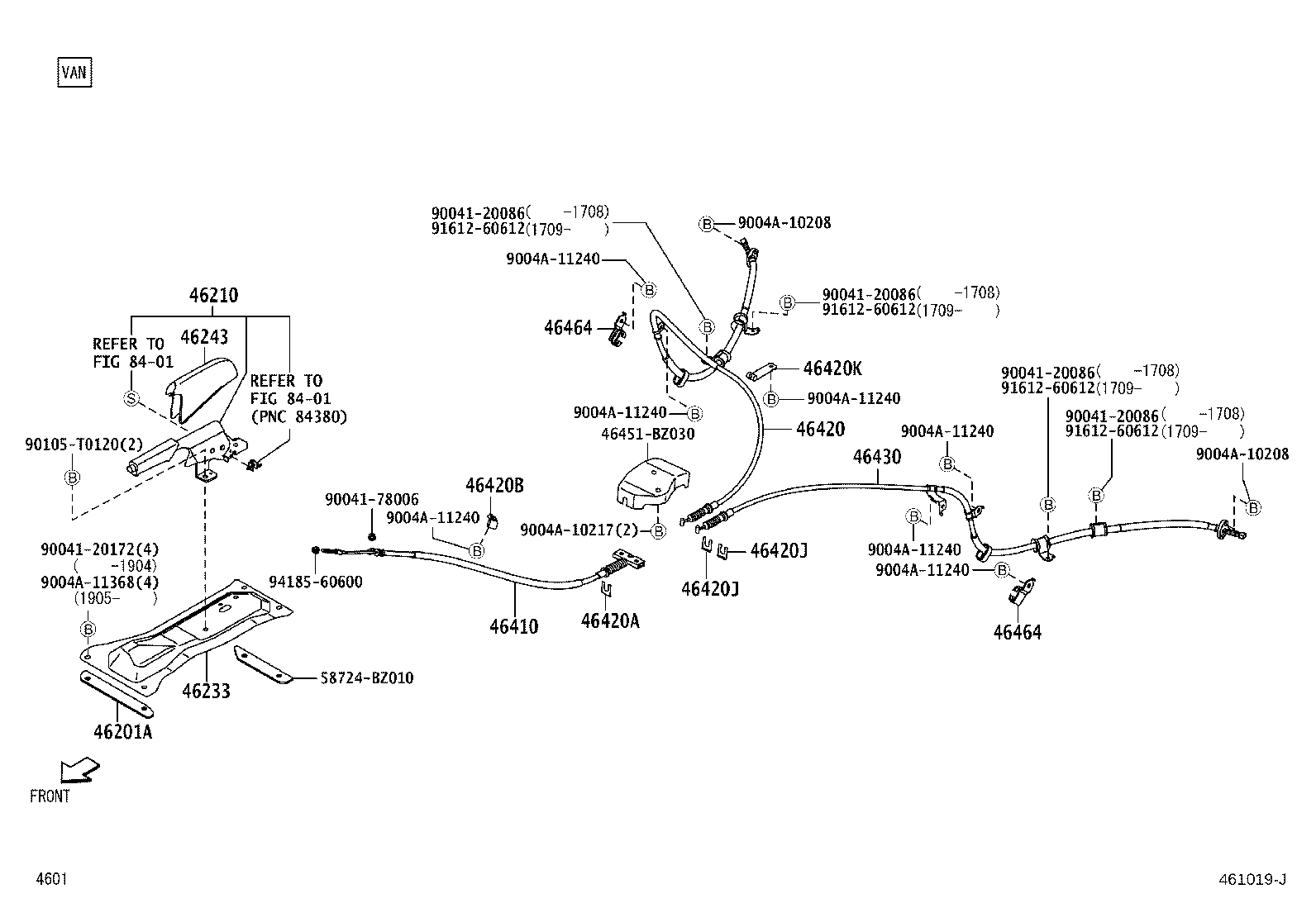

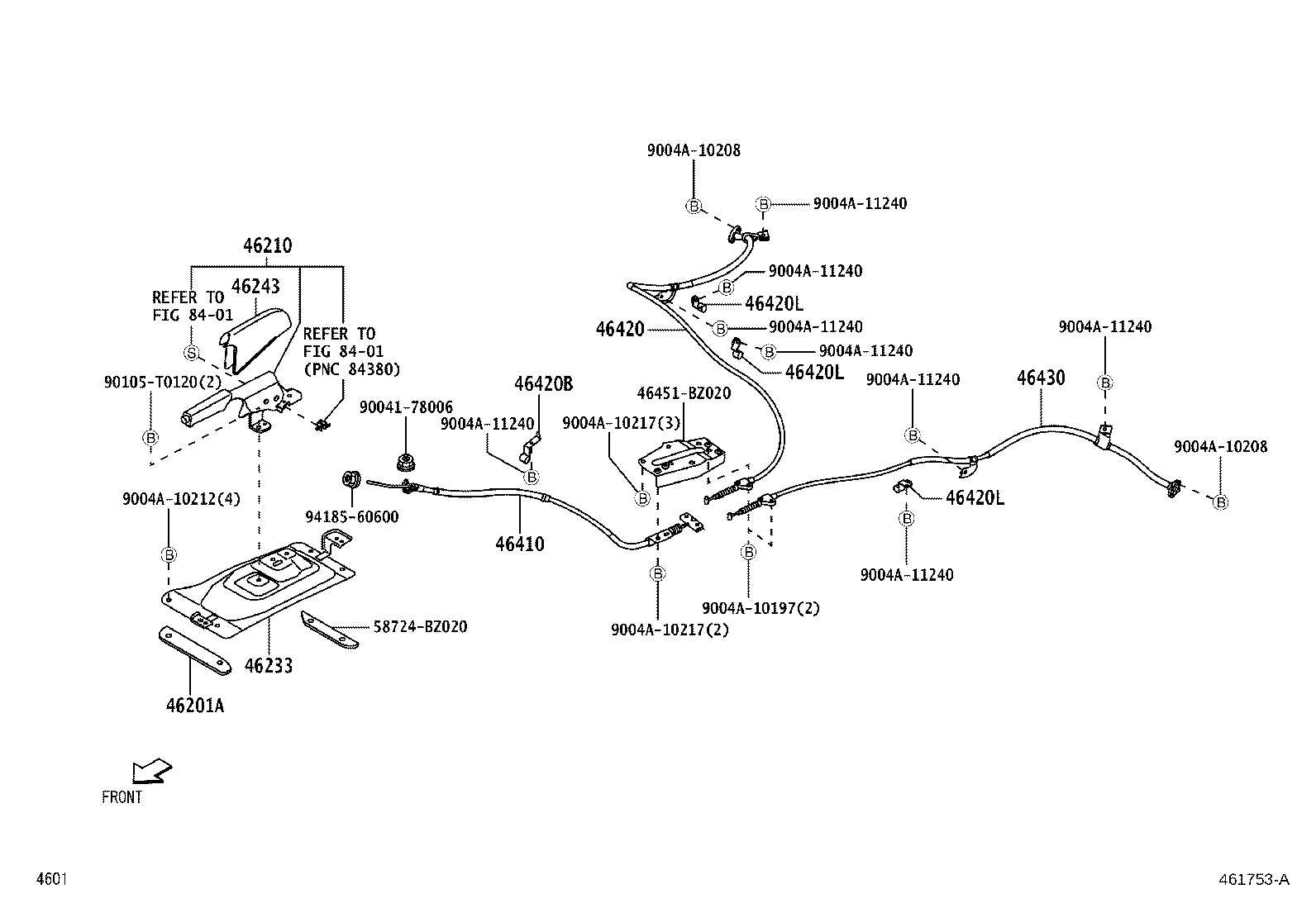

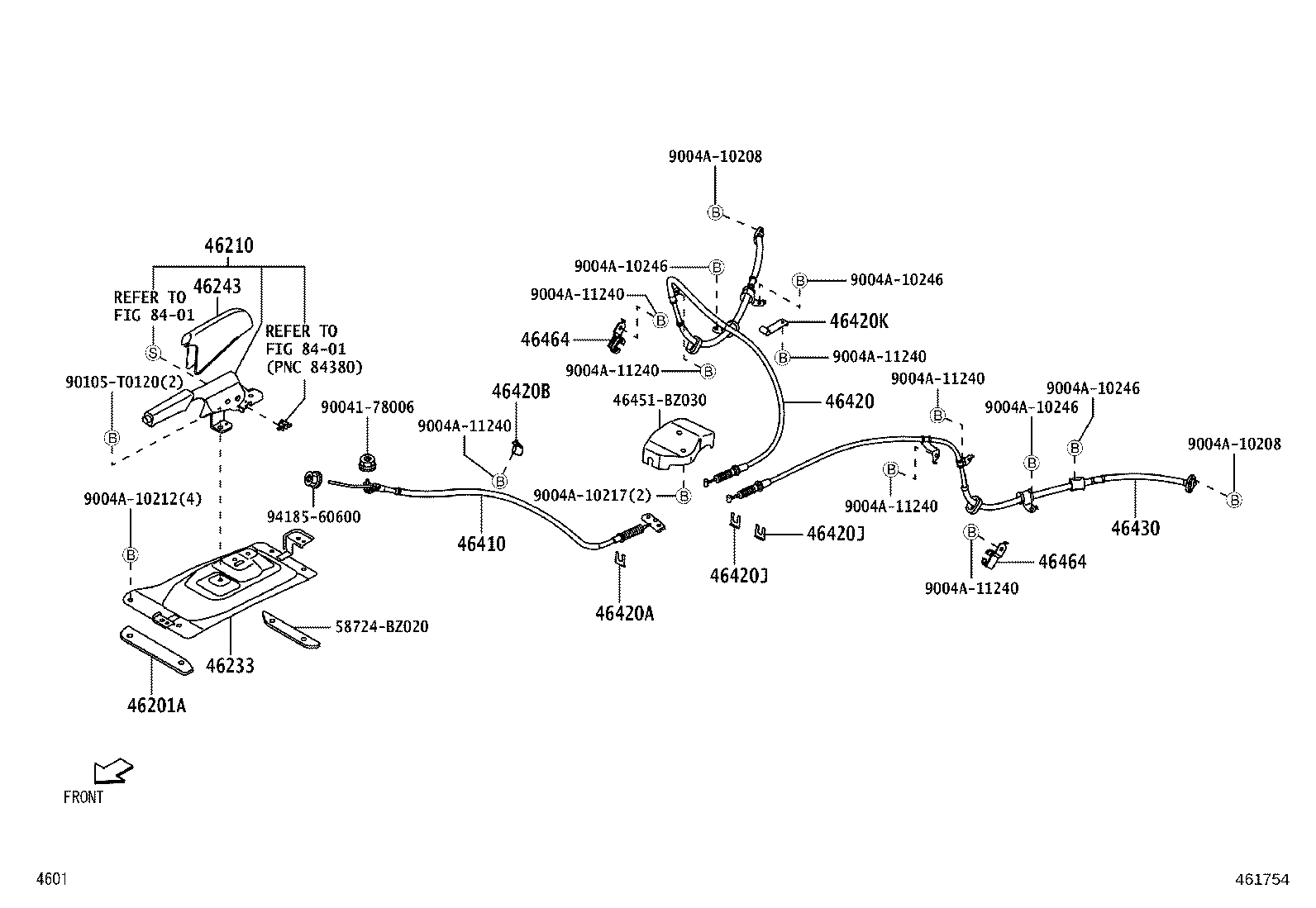

Figure 461020J 461020J 2008-01 → 2020-07 Figure 461019J 461019J 2008-01 → 2020-07 Figure 461753A 461753A 2020-07 → — Figure 461754 461754 2020-07 → —

Part groups

PNCDescription
46201A Cushion(FOR PARKING BRAKE PEDAL)
46210 Lever Assy, Parking Brake
46233 Support, Parking Brake Center
46243 Cover, Parking Brake Lever
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46420J Clamp, NO.3(FOR PARKING BRAKE CABLE)
46420K Clamp, NO.4(FOR PARKING BRAKE CABLE)
46420L Clamp, NO.5(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46464 Plate, Cable Clamp Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
