Toyota Lite/Townace
2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan
Discontinued model
Data version 2020-10

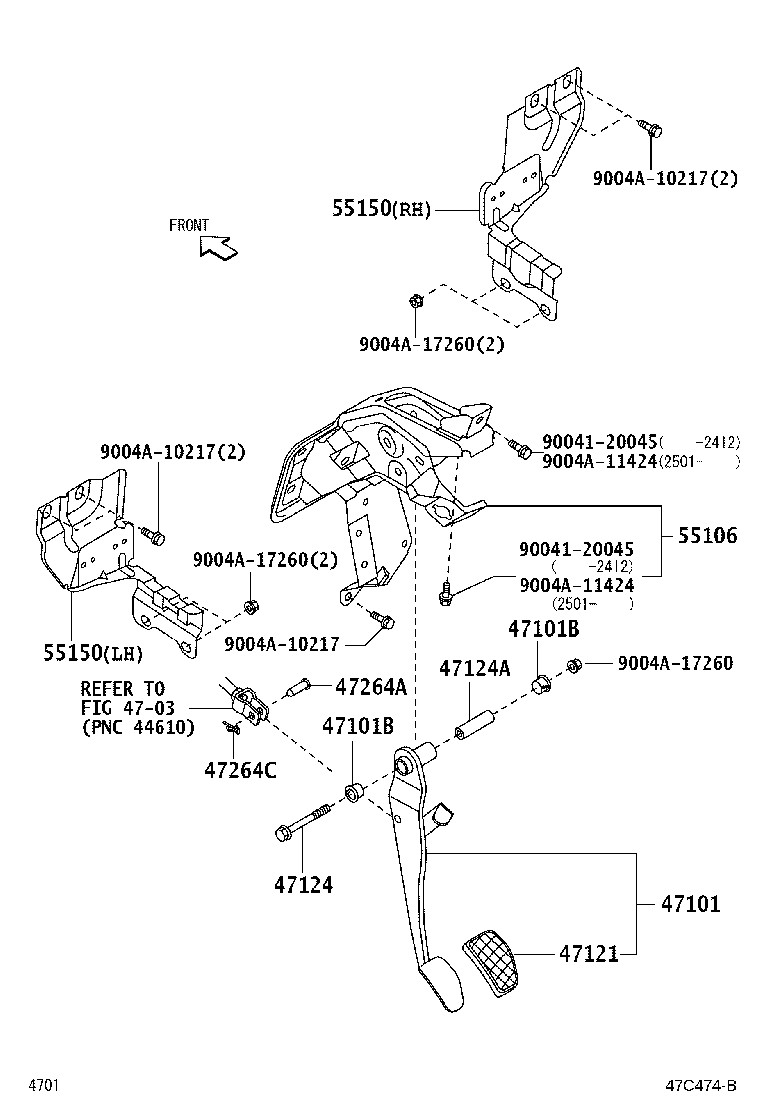

Brake Pedal & Bracket
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47101 | Pedal Sub-assy, Brake |
| 47101B | Bush(FOR BRAKE PEDAL) |
| 47110A | Bracket Assy, Pedal |
| 47121 | Pad, Brake Pedal |
| 47124 | Shaft, Brake Pedal |
| 47124A | Collar(FOR BRAKE PEDAL SHAFT) |
| 47125D | Stay, Brake Pedal Bracket |
| 47131 | Cushion(FOR STOP LAMP SWITCH) |
| 47264A | Pin(FOR PUSH ROD) |
| 47264C | Clip(FOR PUSH ROD CLEVIS PIN) |
| 55106 | Support Sub-assy, Brake Pedal |
| 55150 | Bracket Assy, Pedal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
