Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

9 part groups · 2 illustrations

Illustrations

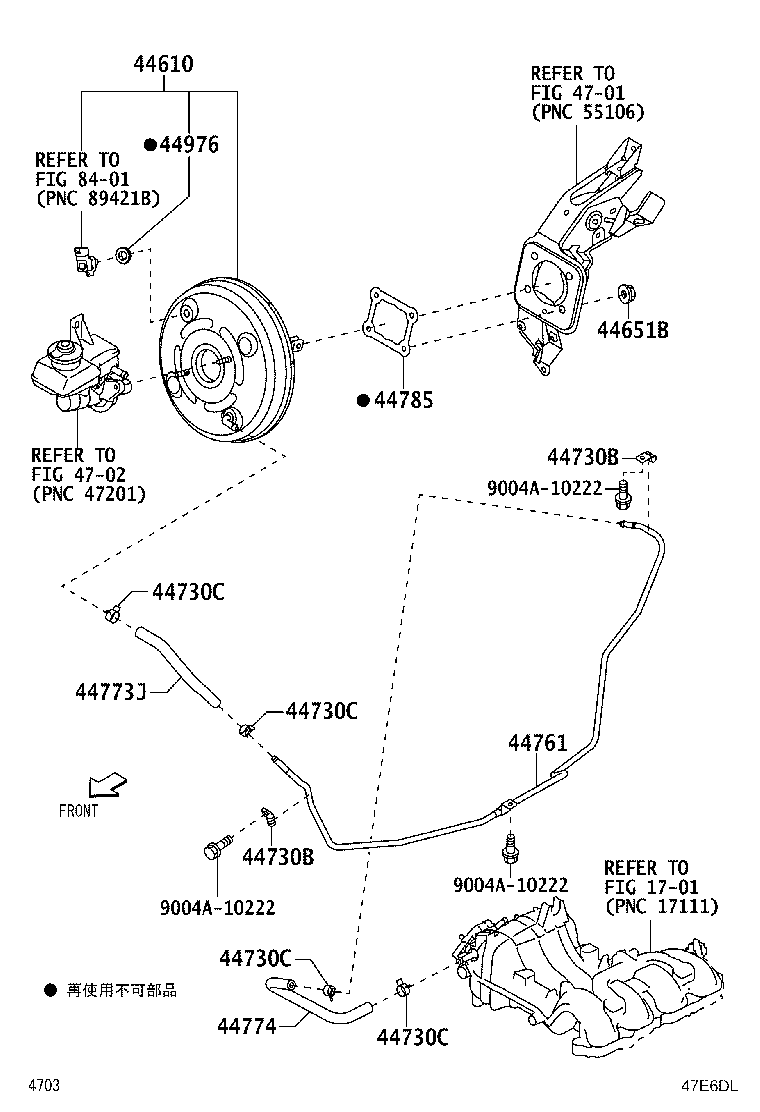

Figure 476333C 476333C 2008-01 → 2020-07 Figure 47E6DL 47E6DL 2020-07 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44651B Nut, Booster
44730B Clamp, Vacuum Hose
44730C Clip(FOR VACUUM HOSE)
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44773J Hose, Vacuum, NO.3
44774 Hose, Union TO Connector Tube
44785 Gasket, Brake Booster
44976 Seal, Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
