Toyota Lite/Townace
2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan
Discontinued model
Data version 2020-10

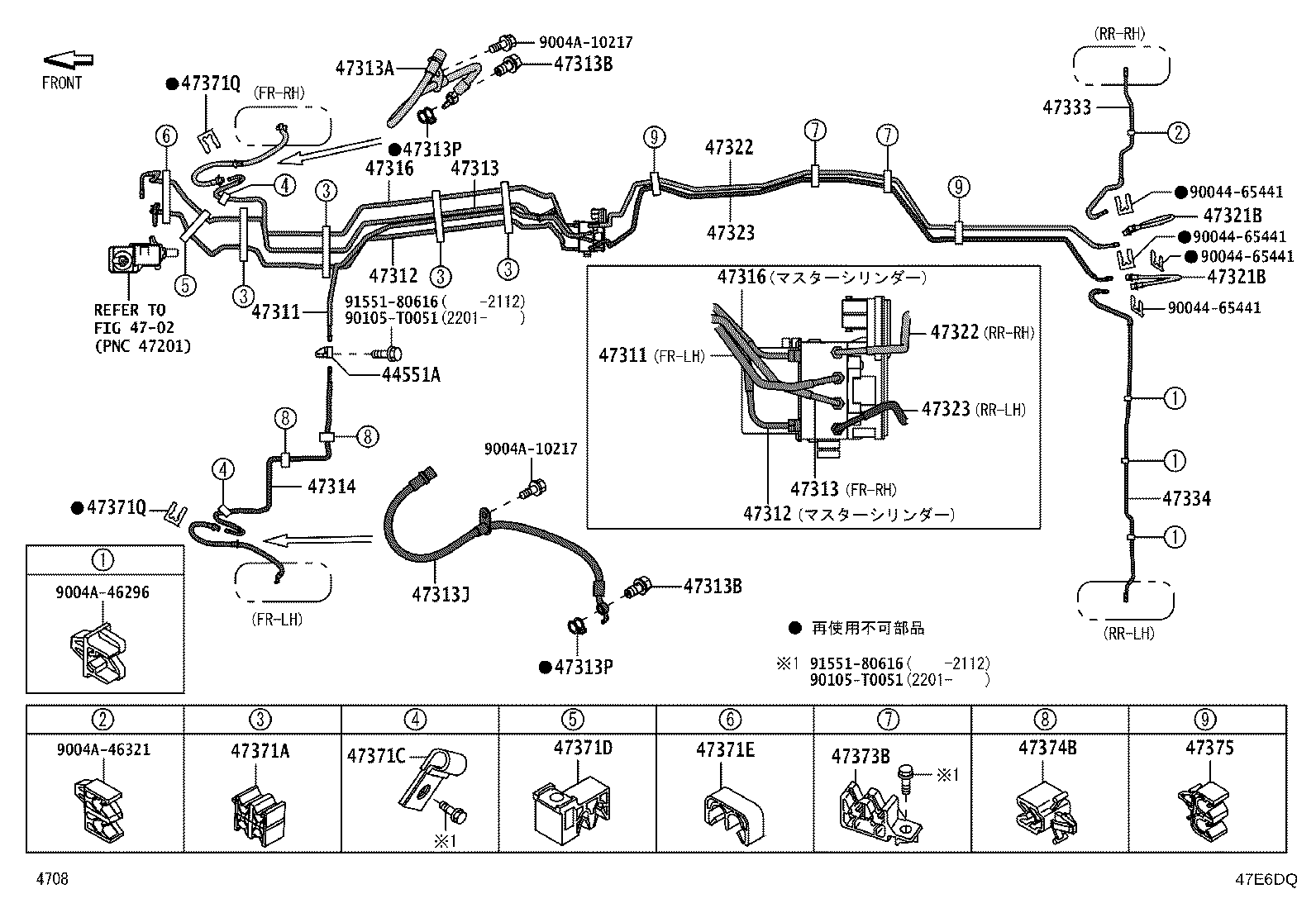

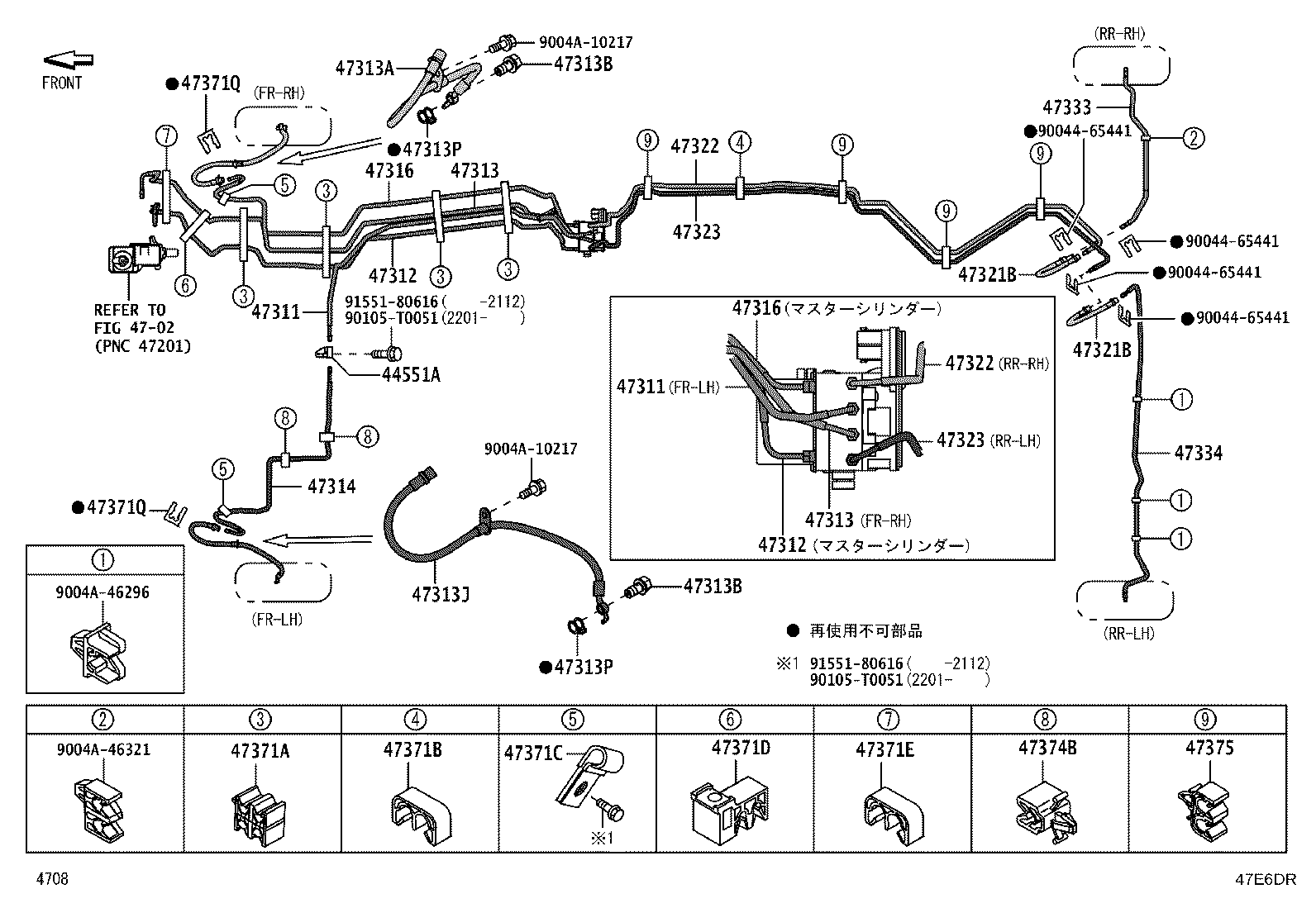

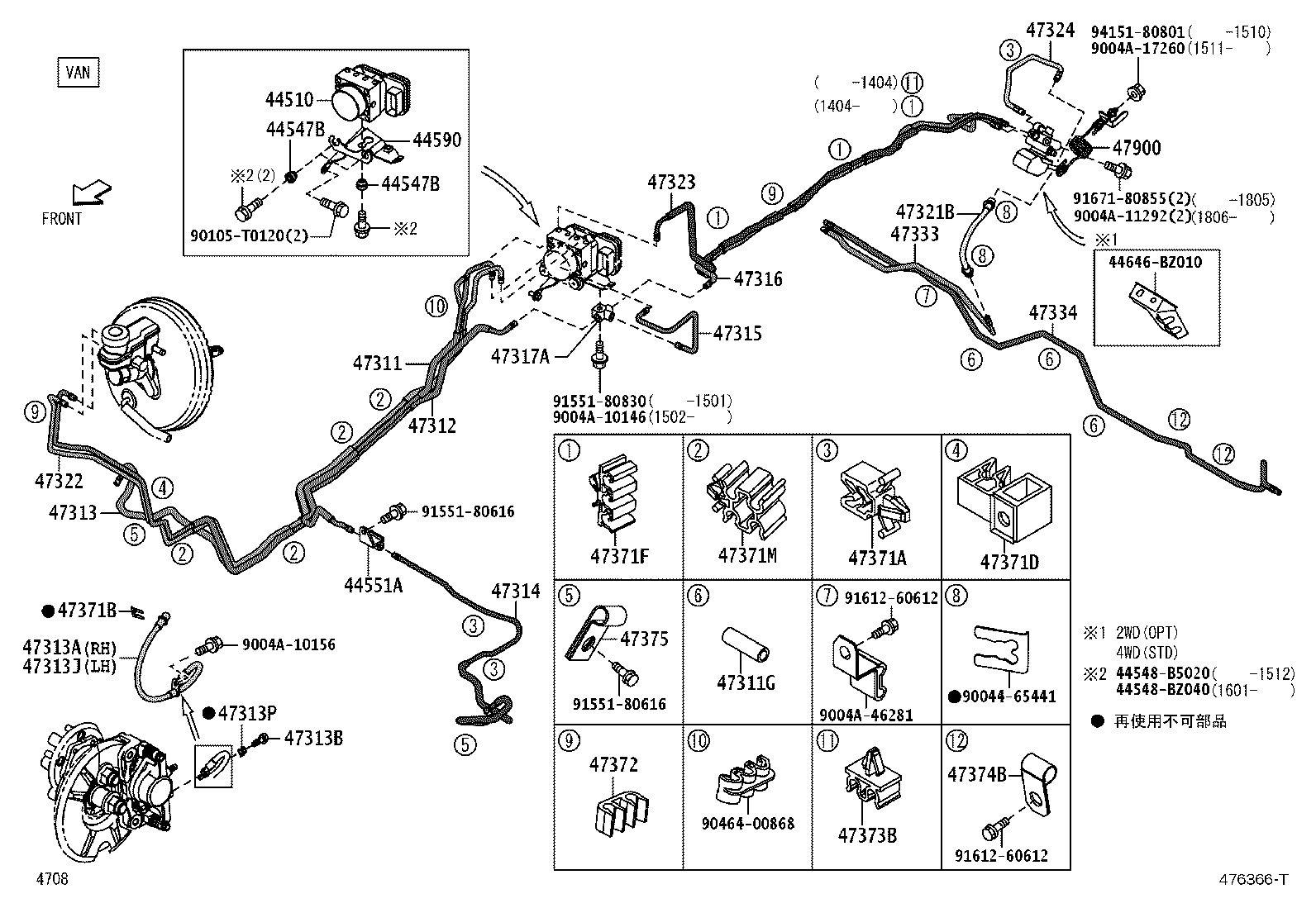

Brake Tube & Clamp
39 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

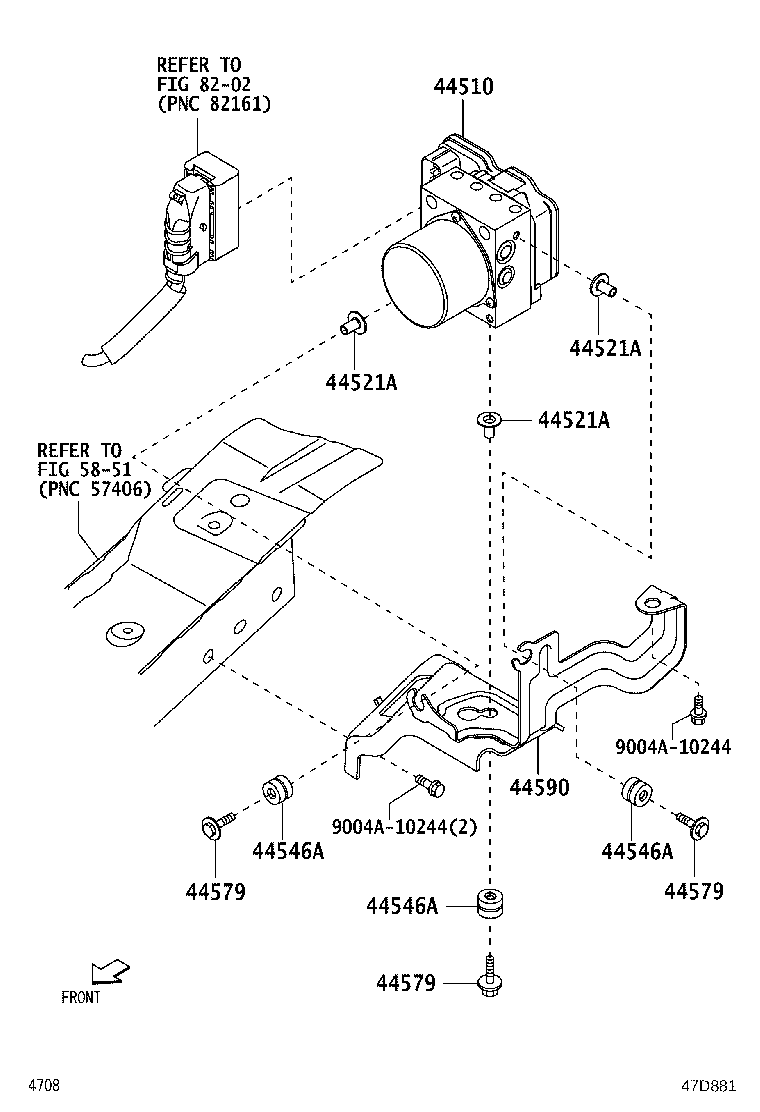

| 44510 | Actuator Assy, Brake |
| 44521A | Collar, Brake Actuator Case, NO.1 |
| 44546A | Cushion, Brake Actuator Bolt |
| 44547B | Cushion, Brake Actuator Bracket |
| 44551A | Way, NO.1(FOR BRAKE ACTUATOR) |
| 44579 | Bolt, Brake Actuator Bracket |
| 44590 | Bracket Assy, Brake Actuator |
| 47311 | Tube, Front Brake, NO.1 |
| 47311G | Hose, Flexible(FOR BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313J | Hose, Flexible, NO.2(FOR FRONT) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47314 | Tube, Front Brake, NO.4 |
| 47315 | Tube, Front Brake, NO.5 |
| 47316 | Tube, Front Brake, NO.6 |
| 47317A | Way(FOR BRAKE TUBE) |
| 47321B | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47322 | Tube, Rear Brake, NO.2 |
| 47323 | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47333 | Tube, Rear Brake, NO.12 |
| 47334 | Tube, Rear Brake, NO.13 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47371B | Clamp, Brake Tube, NO.6 |
| 47371C | Clamp, Brake Tube, NO.7 |
| 47371D | Clamp, Brake Tube, NO.8 |
| 47371E | Clamp, Brake Tube, NO.9 |
| 47371F | Clamp, Brake Tube, NO.10 |
| 47371M | Clamp, Brake Tube, NO.13 |
| 47371Q | Clamp, Brake Tube, NO.15 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374B | Clamp, Brake Tube, NO.4 |
| 47375 | Clamp, Brake Tube, NO.5 |
| 47900 | Valve Assy, Load Sensing W/Spring |
| 47931 | Bracket, Load Sensing Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
