Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

14 part groups · 4 illustrations

Illustrations

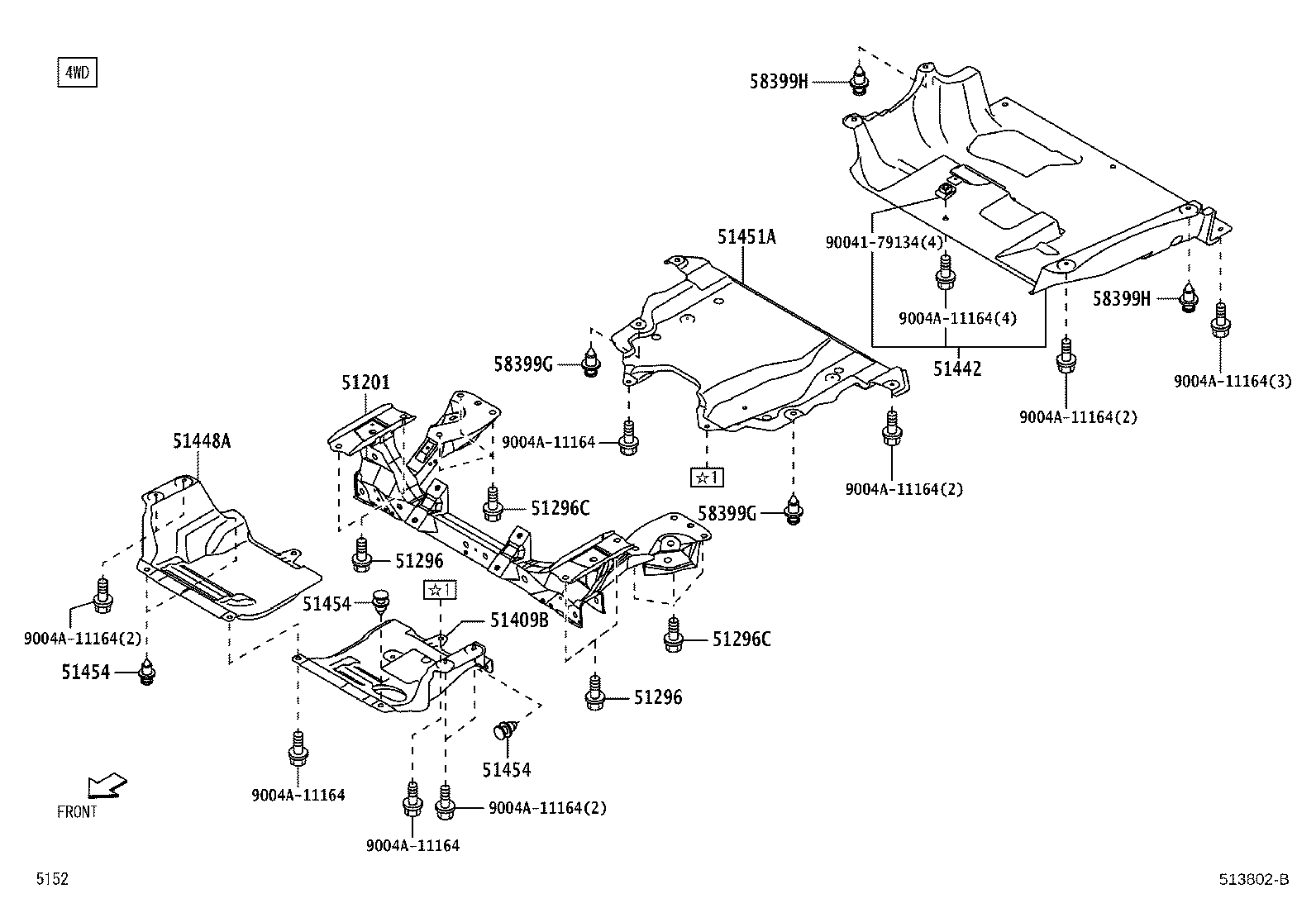

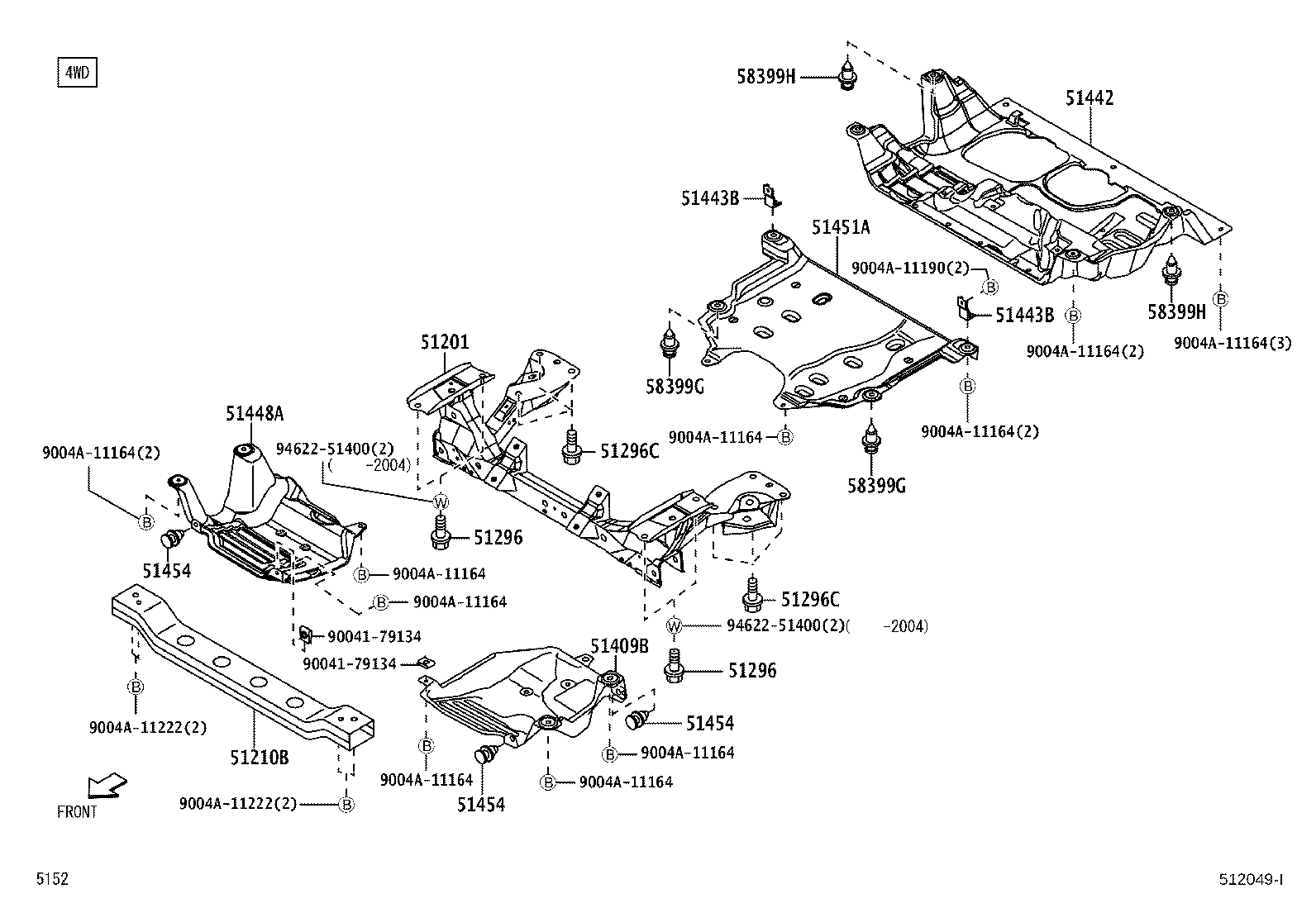

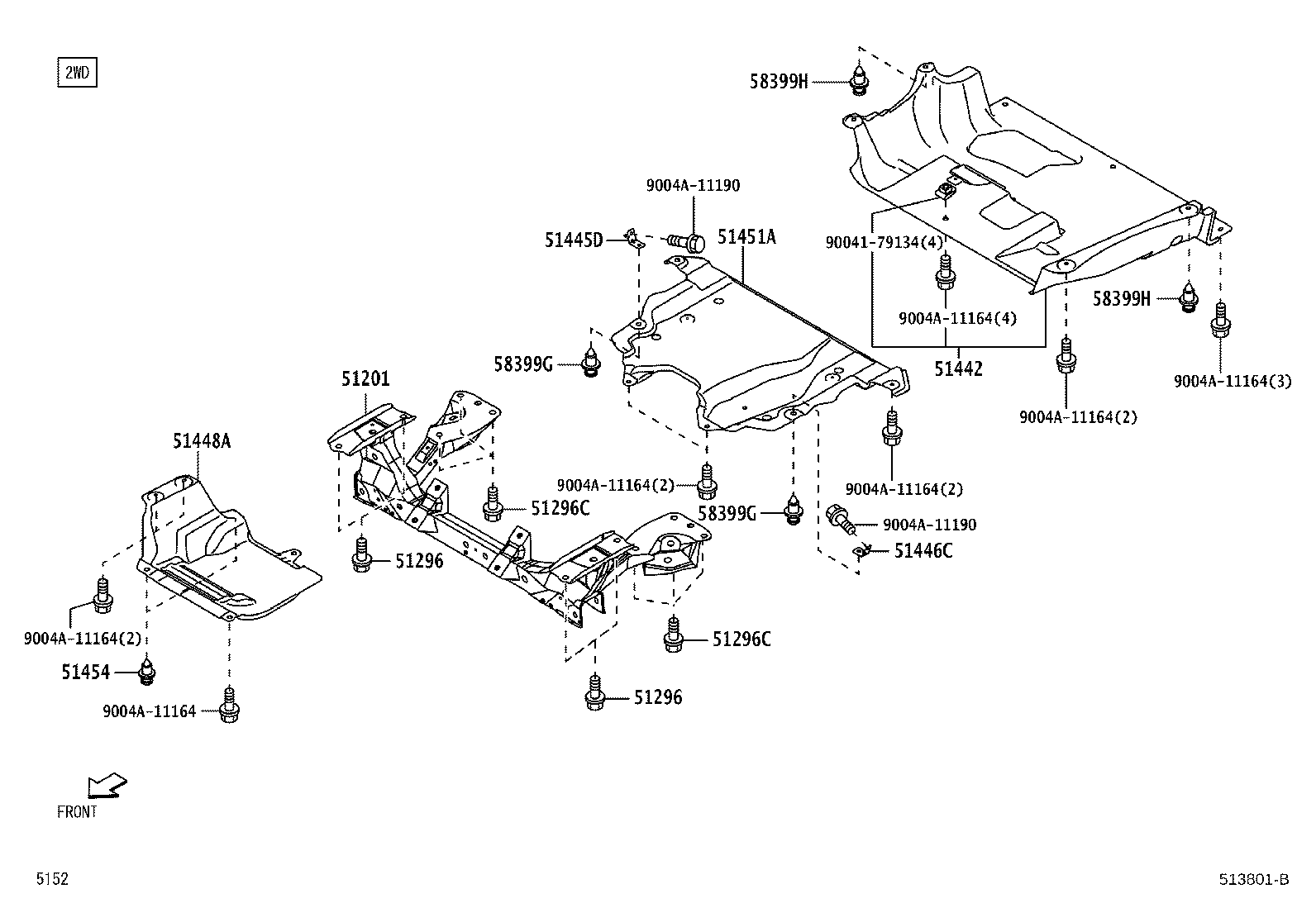

Figure 511812L 511812L 2008-01 → — Figure 512049I 512049I 2010-06 → — Figure 513801B 513801B 2020-07 → — Figure 513802B 513802B 2020-07 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51210B Crossmember Assy, Frame, NO.1
51296 Bolt, Front Suspension Member Mounting
51296C Bolt, Front Suspension Member Mounting
51409B Cover Sub-assy, Engine Under, LH
51442 Cover, Engine Under, NO.2
51443B Cover, Engine Under, NO.3
51445D Bracket, Engine Under Cover, RH
51446C Bracket, Engine Under Cover, LH
51448A Cover, Engine Side Under, RH
51451A Cover, Engine Under, Center
51454 Clip
58399G Clip, NO.1(FOR REAR UNDER COVER)
58399H Clip, NO.2(FOR REAR UNDER COVER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
