Toyota Lite/Townace
2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan
Discontinued model
Data version 2020-10

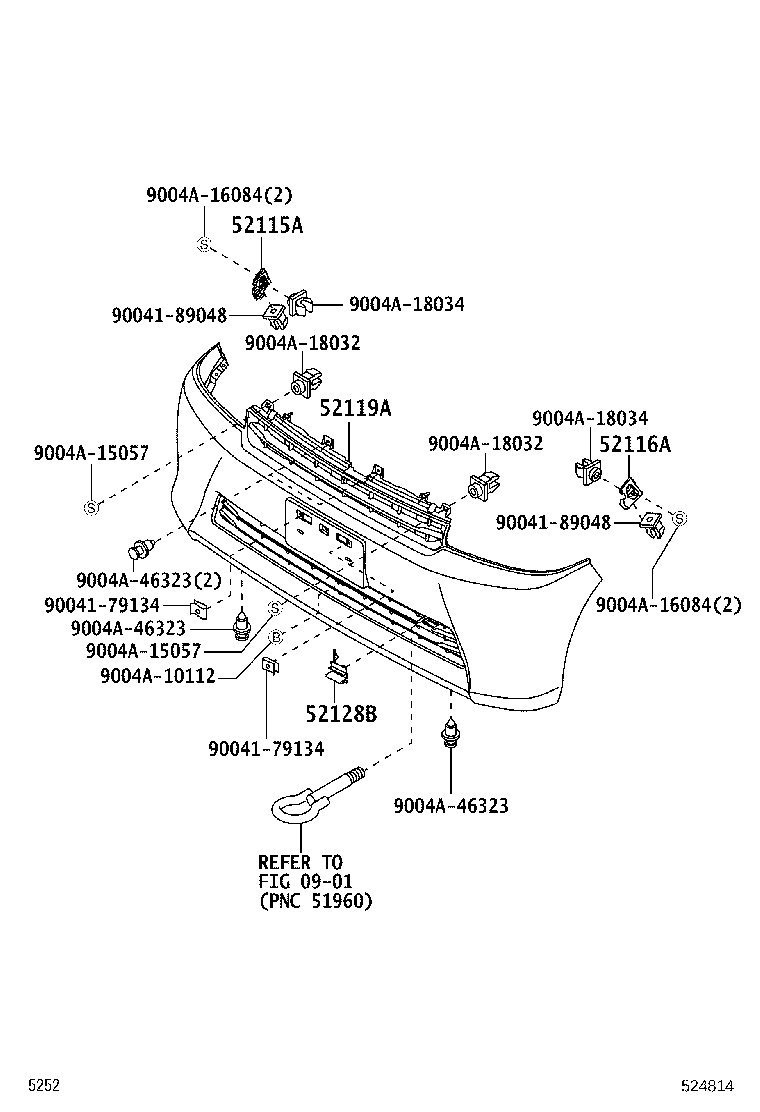

Front Bumper & Bumper Stay
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52128B | Cover, Front Bumper Hole, LH |
| 52143D | Bracket, Front Bumper Side, RH |
| 52144D | Bracket, Front Bumper Side, LH |
| 53121E | Clip(FOR FRONT BUMPER), NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
