Toyota Lite/Townace

2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan

Discontinued model Data version 2020-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

9 part groups · 3 illustrations

Illustrations

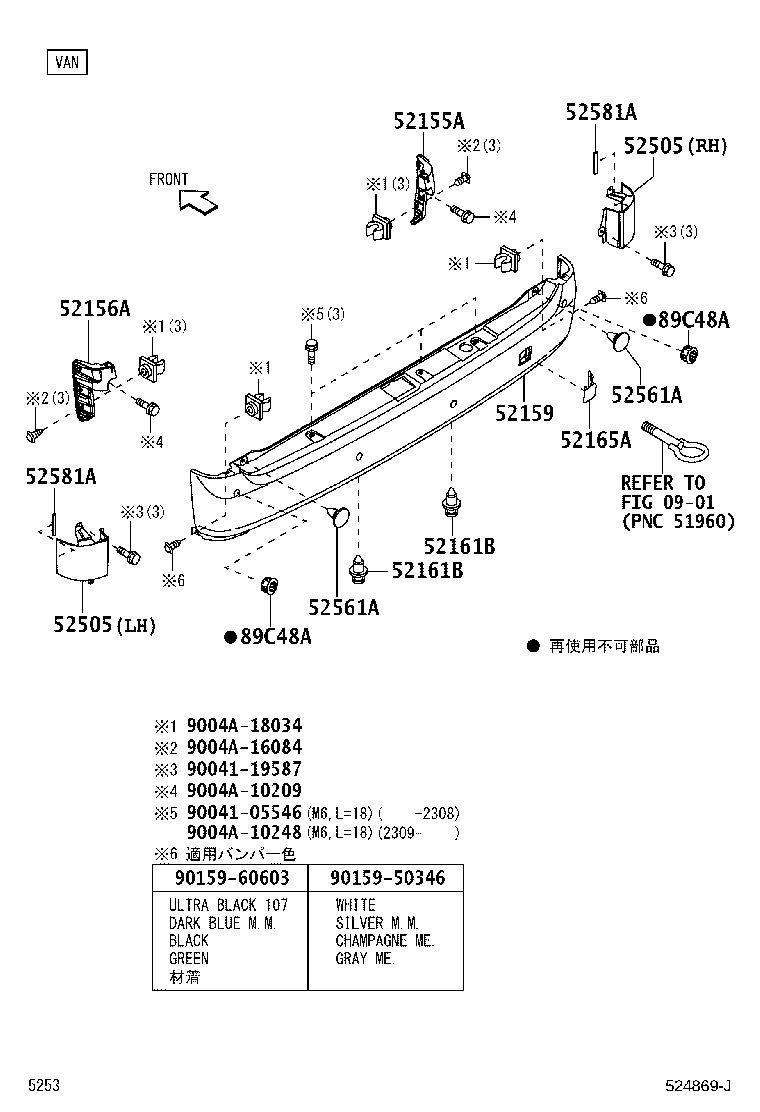

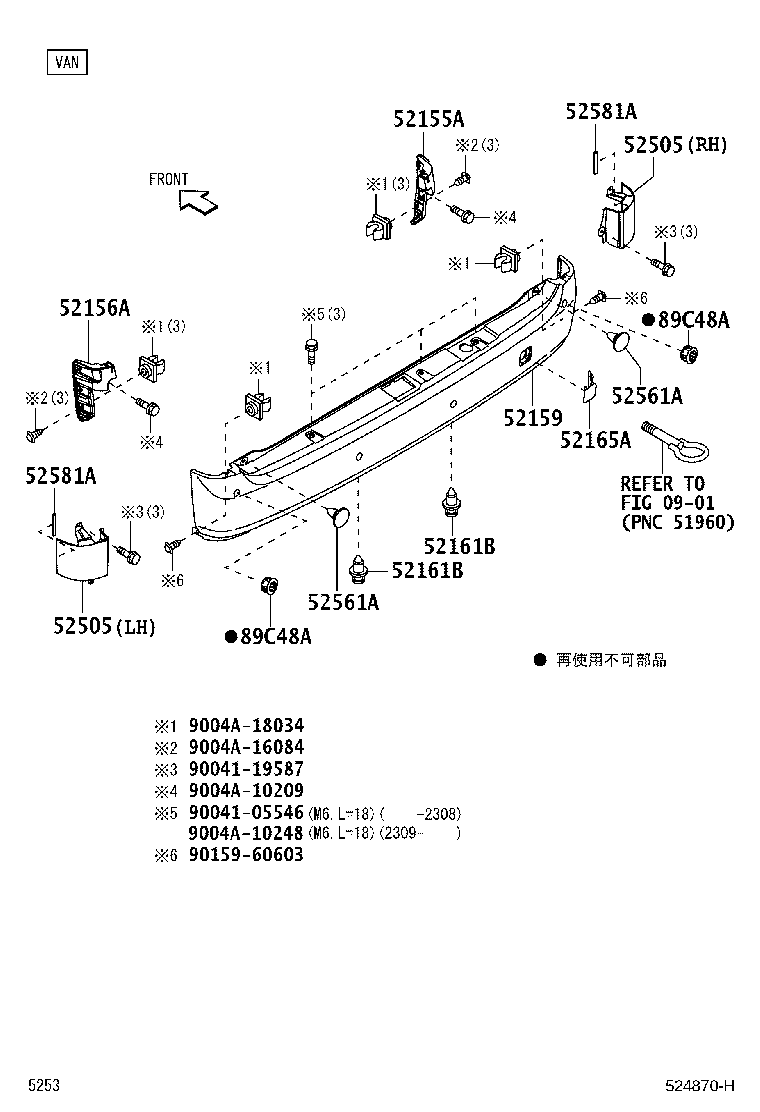

Figure 521896W 521896W 2008-01 → 2020-07 Figure 524869J 524869J 2020-07 → 2025-03 Figure 524870H 524870H 2020-07 → 2025-03

Part groups

PNCDescription
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52165A Cover, Rear Bumper, Upr RH
52505 Filler Sub-assy, Rear Bumper
52561A Clip(FOR REAR BUMPER RETAINER)
52581A Protector, Rear Bumper Filler
89C48A Retainer, Ultrasonic Sensor, Rear Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
