Toyota Lite/Townace
2008-01 → present · chassis S402#,S403#,S412#,S413# · catalogue 641130 · Japan
Discontinued model
Data version 2020-10

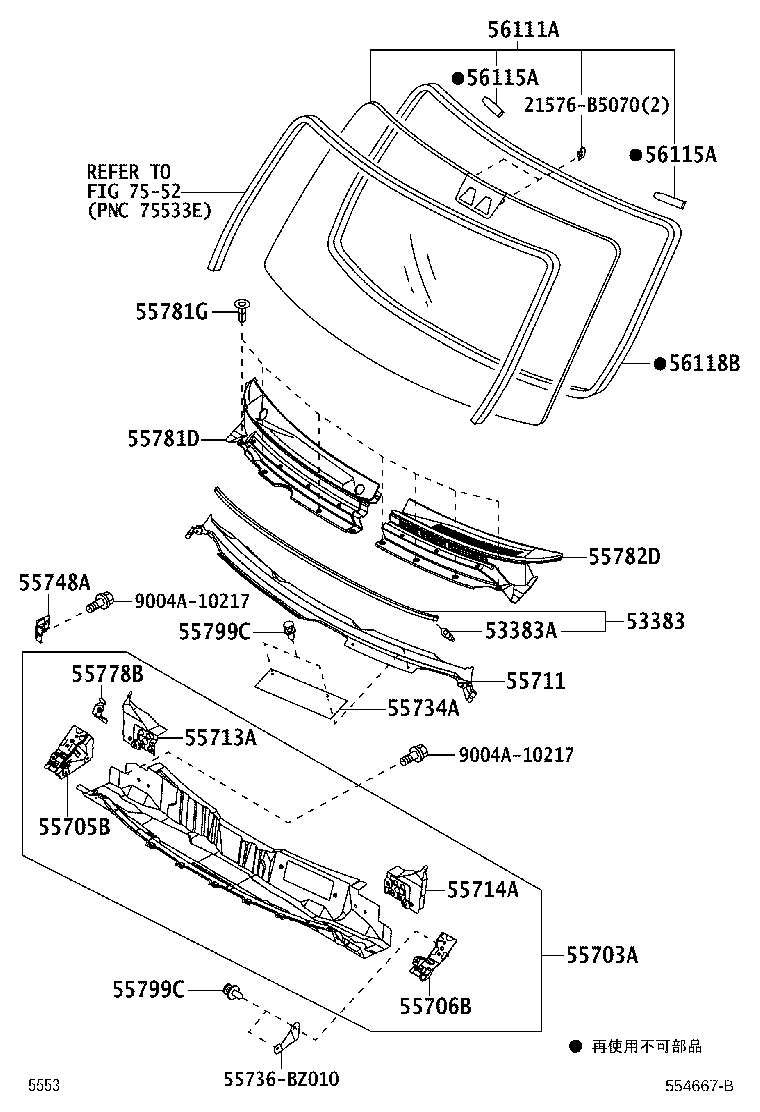

Cowl Panel & Windshield Glass
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53383 | Seal, Hood TO Cowl Top |
| 53383A | Clip(FOR HOOD TO COWL TOP SEAL) |
| 55703A | Panel Sub-assy, Cowl Top, Inner |
| 55705B | Panel Sub-assy, Cowl Top Side, RH |
| 55706B | Panel Sub-assy, Cowl Top Side, LH |
| 55711 | Panel, Cowl Top, Outer |
| 55713A | Panel, Cowl Top Side, RH |
| 55714A | Panel, Cowl Top Side, LH |
| 55734A | Plate, Water Guard, RH |
| 55748A | Brace, Cowl Top Inner TO Pillar |
| 55778B | Bracket, Identification Number Plate |
| 55781D | Louver, Cowl Top Ventilator, RH |
| 55781G | Clip, Cowl Top Ventilator Louver |
| 55782D | Louver, Cowl Top Ventilator, LH |
| 55799C | Clip, Cowl Top Ventilator Louver |
| 56111A | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56118B | Dam, Window Glass Adhesive, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
